CyberPower 24-Outlets PDU

Name: CyberPower 24-Outlets PDU
Brand: CYBERPOWER
SKU: 9VT574
Price: 1195.95 USD
Availability: InStock

CYBERPOWER

PCN#

9VT574

MFG#

PDU41102

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,195.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

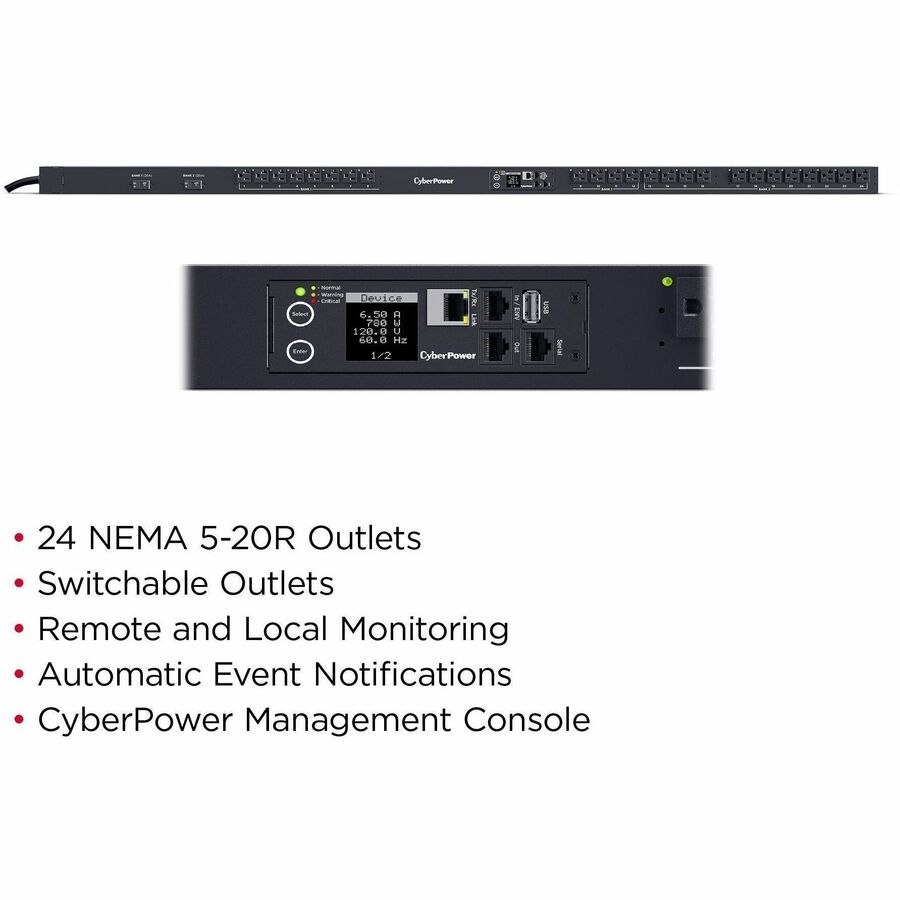

Product Highlights:

24 Outlets, 10 ft, NEMA L5
30P, Vertical, 0U, SNMP, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & Standards UL 60950-1 FCC Class A Country of OriginPhilippinesEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 22 lbs.

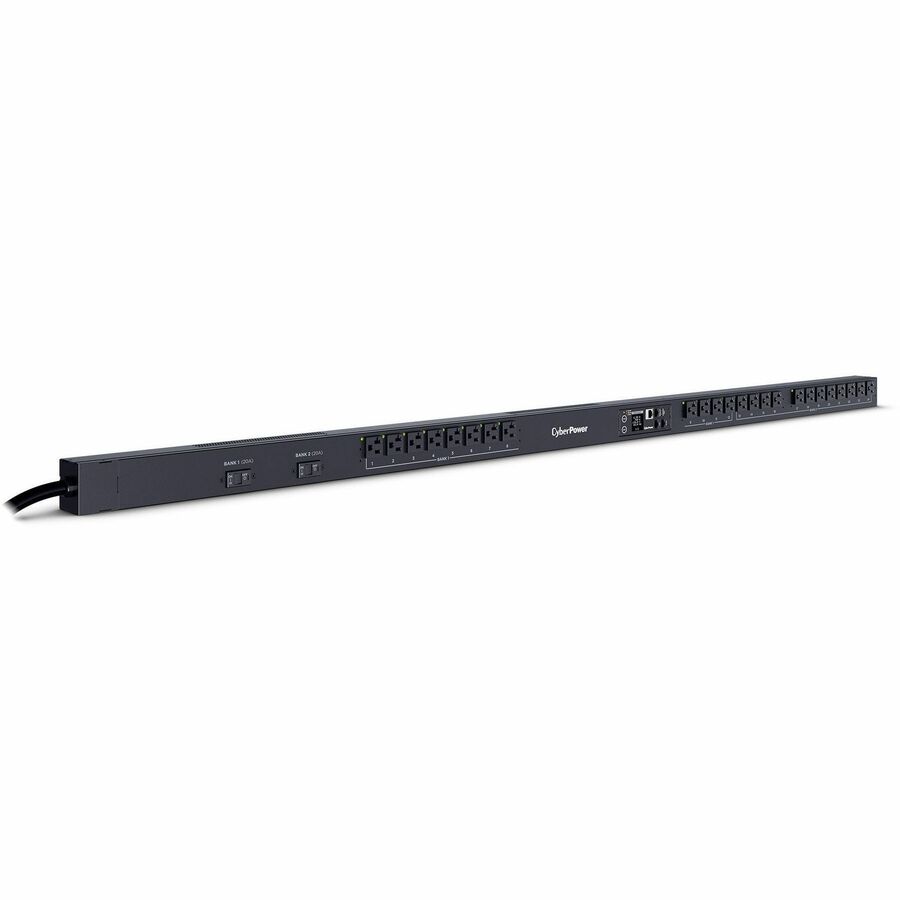

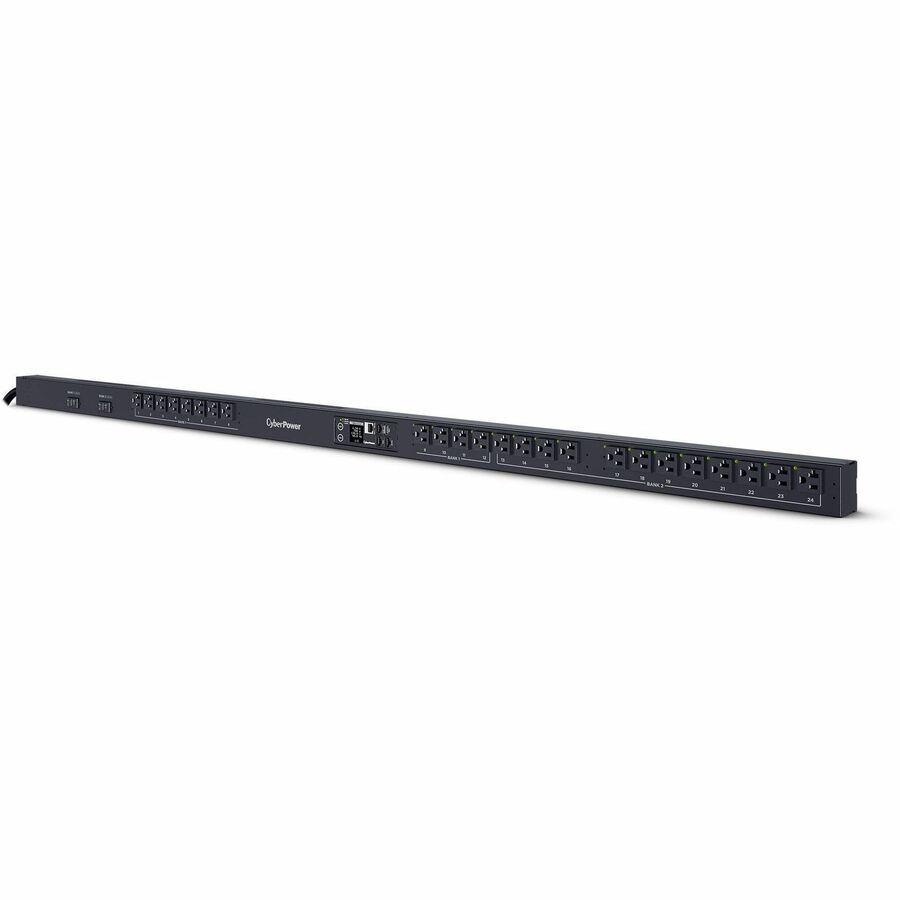

CyberPower PDU41102 Single Phase 100 - 120 VAC 30A Switched PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU41102
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Switched PDU
Product Name	PDU41102
Marketing Information	The CyberPower PDU41102, a 24-outlet (front), 0U rackmount switched power distribution unit (PDU), provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41102 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Product Type	PDU

Technical Information

PDU Type	Switched
Design	Modular
Phase	Single Phase

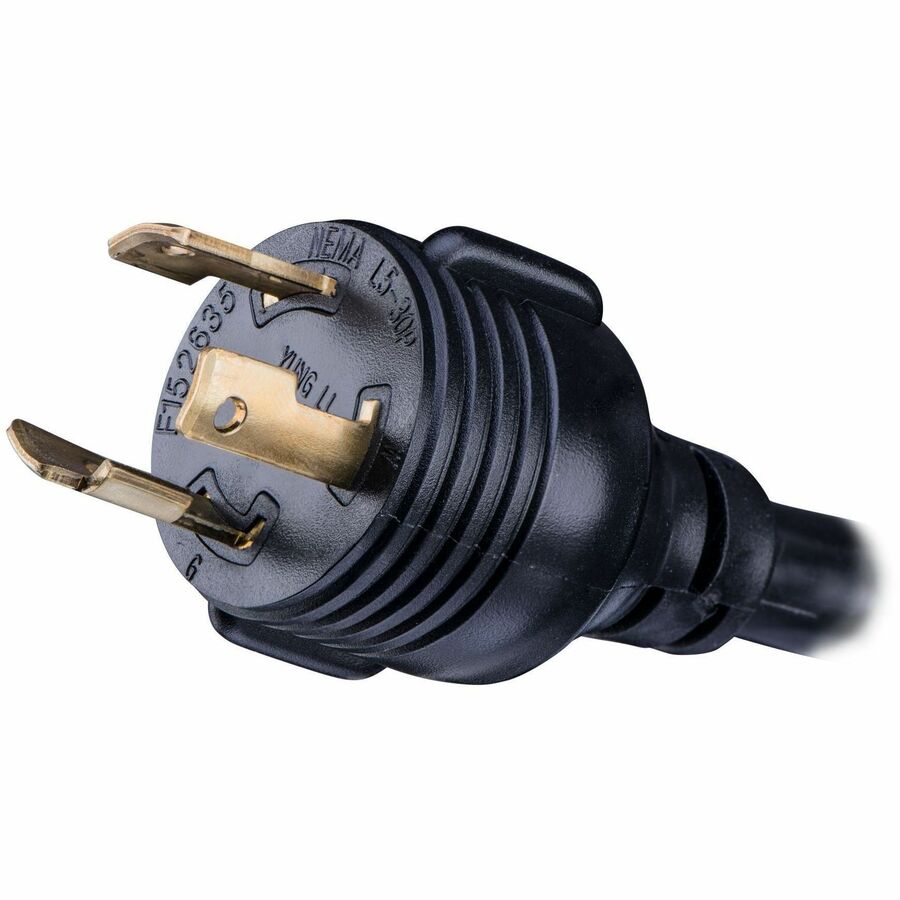

Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	24 x NEMA 5-20R
Protection Type	Overload Protection
Locking Receptacles	Cord Retention Tray
Environmental Sensors	Temperature/Humidity

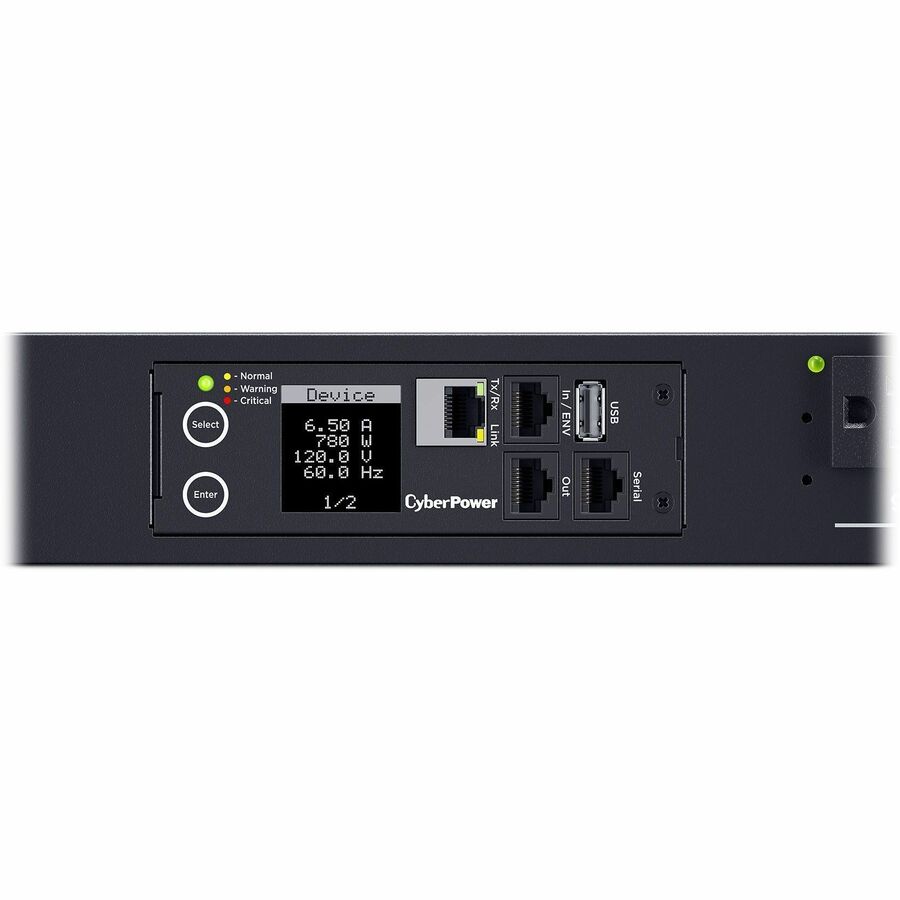

Features	LCD Display LED Status Indicator

Power Description

Output Voltage	120 V AC
Output Voltage Range	100 V AC - 120 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	0U
Cord Length	10 ft

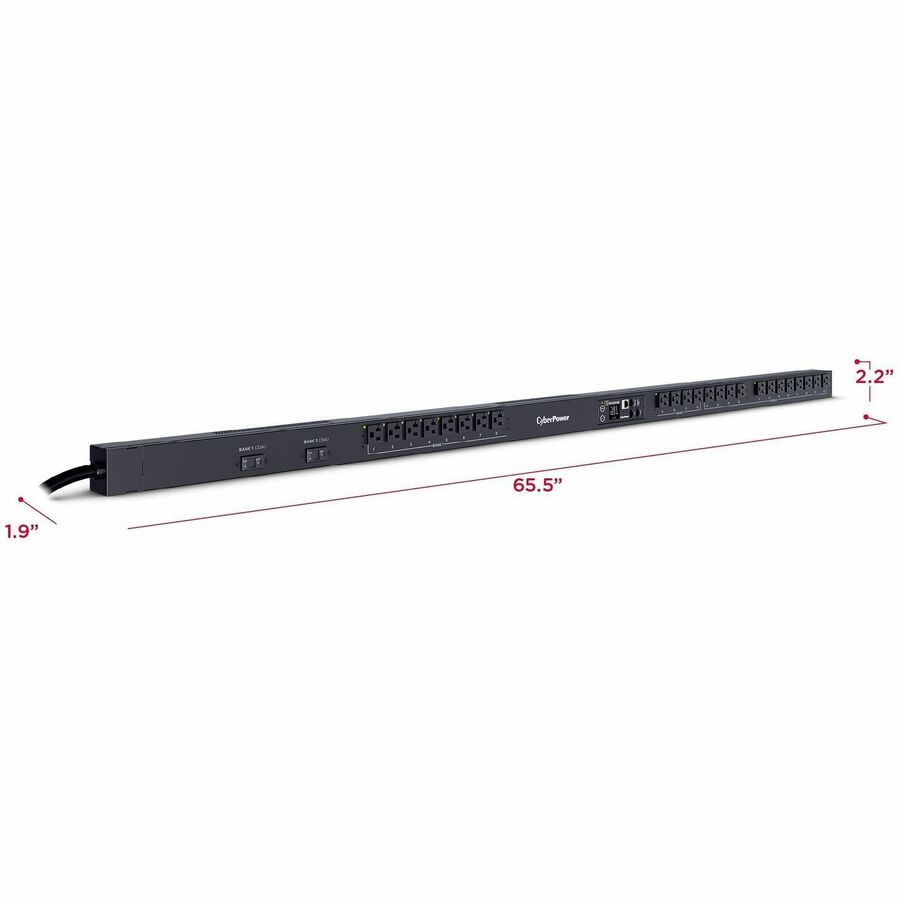

Height	65.5"
Width	2.2"
Depth	1.9"
Weight (Approximate)	17.20 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	149°F (65°C)

Miscellaneous

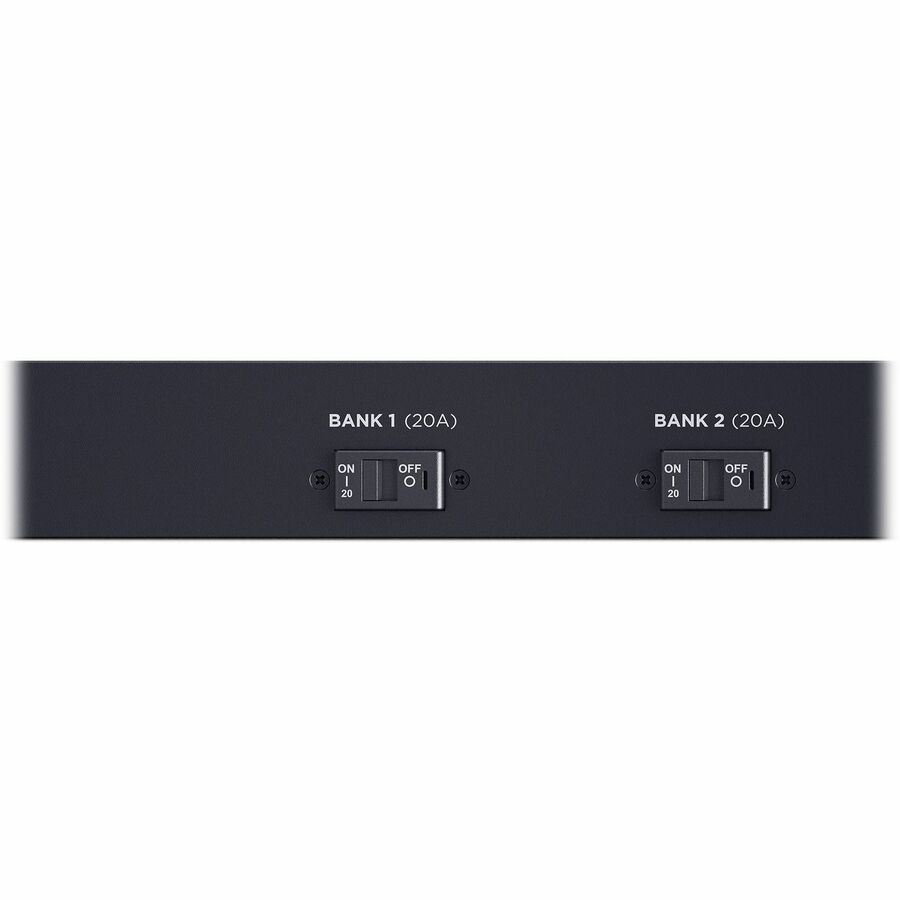

Additional Information	Physical Dimensions - (WxHxD) (cm) : 5.59 x 166.37 x 4.83 (cm) Physical Dimensions - (WxHxD) (in) : 2.2 x 65.5 x 1.9 (in) Physical Dimensions - (WxHxD) (mm) : 56 x 1664 x 48 (mm) Weight (kg) : 7.8 Weight (lb) : 17.2 Shipping Dimensions - (WxHxD) (cm) : 18.49 x 189.51 x 11.51 (cm) Shipping - Dimensions (WxHxD, in) : 7.28 x 74.61 x 4.53 (in) Shipping - Dimensions (WxHxD, mm) : 184.91 x 1895.09 x 115.06 (mm) Shipping - Weight (kg) : 9.7 Shipping - Weight (lb) : 21.38 Cord Length : 10 ft (3.0 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-30P Maximum Input Current : 30A Phase : Single Phase Plug Style : Straight (Twist Lock) Nominal Output Voltage : 100 - 120 VAC Outlets - Front : 24 Outlets - # of Banks : 2 Outlets - Rear : 0 Outlets - Total : 24 Outlet Type COMPUTED : 24 - NEMA 5-20R Overload Protection : 20A x 2 Environmental Sensor : Optional, via RJ45 Hardware Connection Port : Ethernet (RJ45) LCD : Multifunction LCD LED Indicators : Tx/Rx Modular Expandability (Cascading) : Yes, via RJ45 Outlet switching : Yes SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Upgradeable firmware : Yes Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Vertical Rackmount Material of Construction : Metal Rack Height : 0U Style : Vertical Rackmount Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL 60950-1\|FCC Class A Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL 60950-1 FCC Class A
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
