CyberPower PDU41101 100 - 120 VAC 20A Switched PDU

Name: CyberPower PDU41101 100 - 120 VAC 20A Switched PDU
Brand: CYBERPOWER
SKU: 9GM216
Price: 1015.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM216

MFG#

PDU41101

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,015.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Outlets, 10 ft, NEMA L5
20P (5
20P Adapter), Vertical, 0U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterNetwork DeviceCertifications & StandardsUL62368FCC Class AICES-003: Issue 7Energy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 9 lbs.

CyberPower PDU41101 100 - 120 VAC 20A Switched PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU41101
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Switched PDU
Product Model	PDU41101
Product Name	PDU41101

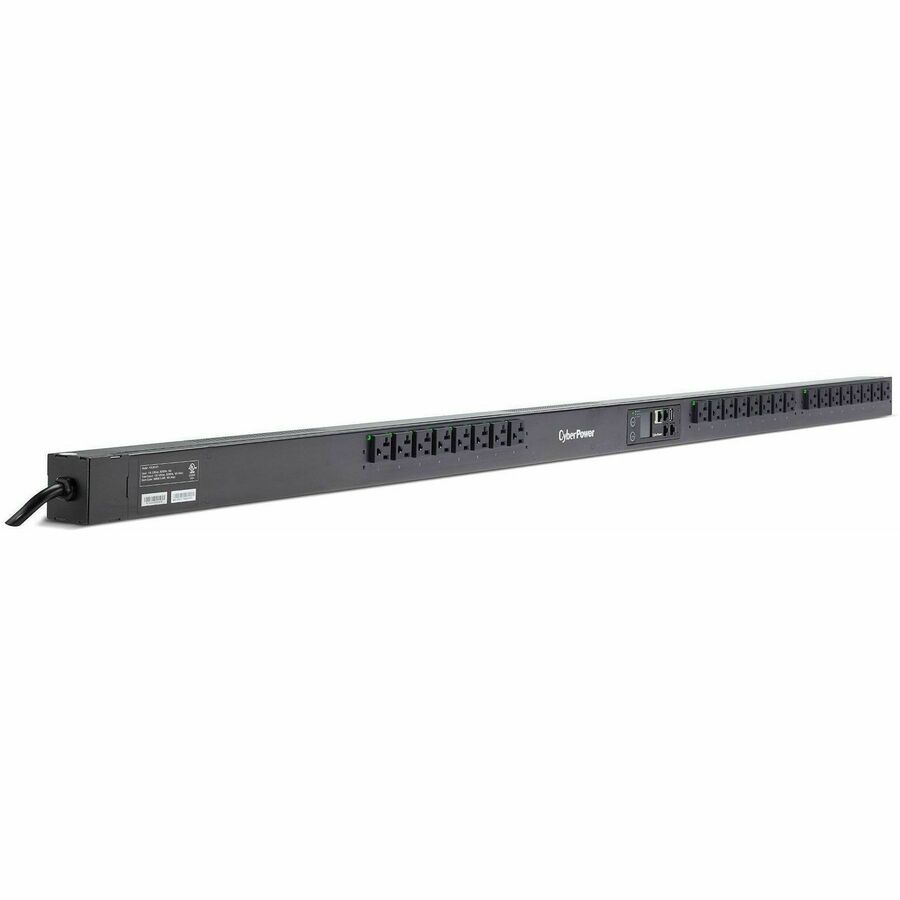

Marketing Information	The CyberPower PDU41101 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 120V 20A output. This PDU distributes power to 24 NEMA 5-20R receptacles from a single NEMA (L)5-20P plug with unfiltered electrical pass-through. Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41101 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Single Phase
Plug/Connector Type	NEMA L5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	24 x NEMA 5-20R
Features	LCD Display

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	120 V AC
Output Voltage Range	100 V AC - 120 V AC
Input Current	20 A
Input Frequency	60 Hz

Management

Management	Protocols: IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog Windows AD
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal/Vertical
Mount Type	Rack-mountable Wall-mountable
Form Factor	Rack
Rack Height	0U
Cord Length	10 ft
Height	65.6"
Width	1.9"
Depth	1.9"
Weight (Approximate)	15.43 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	149°F (65°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 4.78 x 166.62 x 4.78 (cm) Physical Dimensions - (WxHxD) (in) : 1.88 x 65.6 x 1.88 (in) Physical Dimensions - (WxHxD) (mm) : 48 x 1666 x 48 (mm) Weight (kg) : 7.0 Weight (lb) : 15.43 Shipping Dimensions - (WxHxD) (cm) : 189.23 x 11.43 x 17.78 (cm) Shipping - Dimensions (WxHxD, in) : 74.5 x 4.5 x 7 (in) Shipping - Dimensions (WxHxD, mm) : 1892.3 x 114.3 x 177.8 (mm) Shipping - Weight (kg) : 8.89 Shipping - Weight (lb) : 19.6 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P (5-20P Adapter) Maximum Input Current : 20A Nominal Input Voltage : 100 - 120 VAC Power Cord Length : 10 ft (3 m) Circuit Quantity : 1 Nominal Output Voltage : 100 - 120 VAC Number of Outlets : 24 Outlets - Total : 24 Outlet Type COMPUTED : 24 - NEMA 5-20R Overload Protection : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : Yes Protocols : IPv4\|TCP/IP\|UDP\|SNMPv1\|HTTP\|NTP\|DNS\|Telnet\|DHCP\|SMTP\|FTP\|IPv6\|SNMPv3\|HTTPs\|SSH\|SSL\|TLS\|LDAP(S)\|RADIUS\|Syslog\|CLI\|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Device
Certifications & Standards	UL62368 FCC Class A ICES-003: Issue 7
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
