CyberPower PDU41008 Single Phase 200 - 240 VAC 30A Switched PDU

Name: CyberPower PDU41008 Single Phase 200 - 240 VAC 30A Switched PDU
Brand: CYBERPOWER
SKU: 9GM078
Price: 1049.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM078

MFG#

PDU41008

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,049.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Outlets, 12 ft, NEMA L6
30P, Horizontal, 2U, SNMP, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageNetwork DeviceData CenterCertifications & StandardsUL62368FCC Class AICES-003: Issue 7Energy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 15 lbs.

CyberPower PDU41008 Single Phase 200 - 240 VAC 30A Switched PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU41008
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Switched PDU
Product Model	PDU41008
Product Name	PDU41008

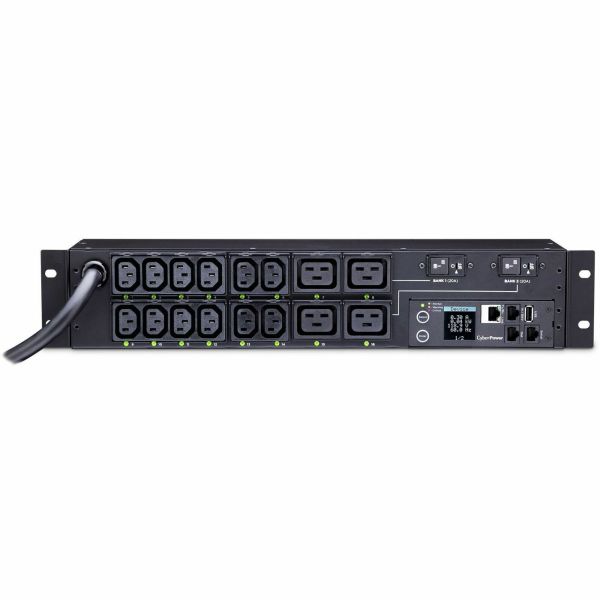

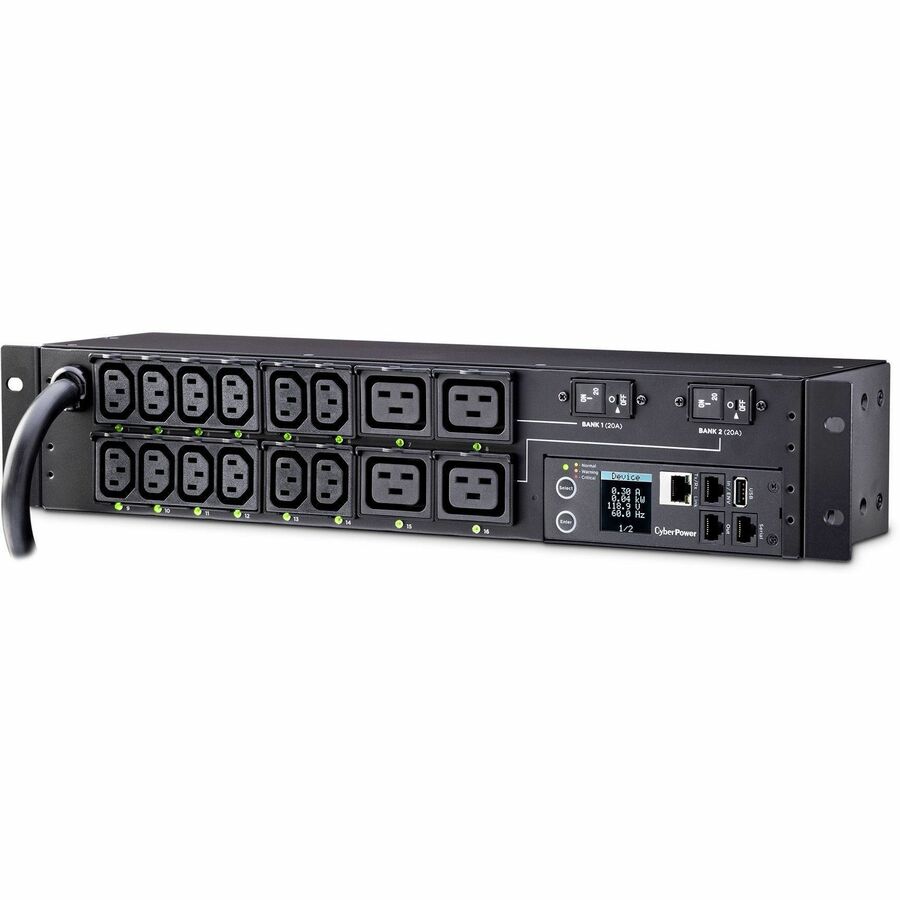

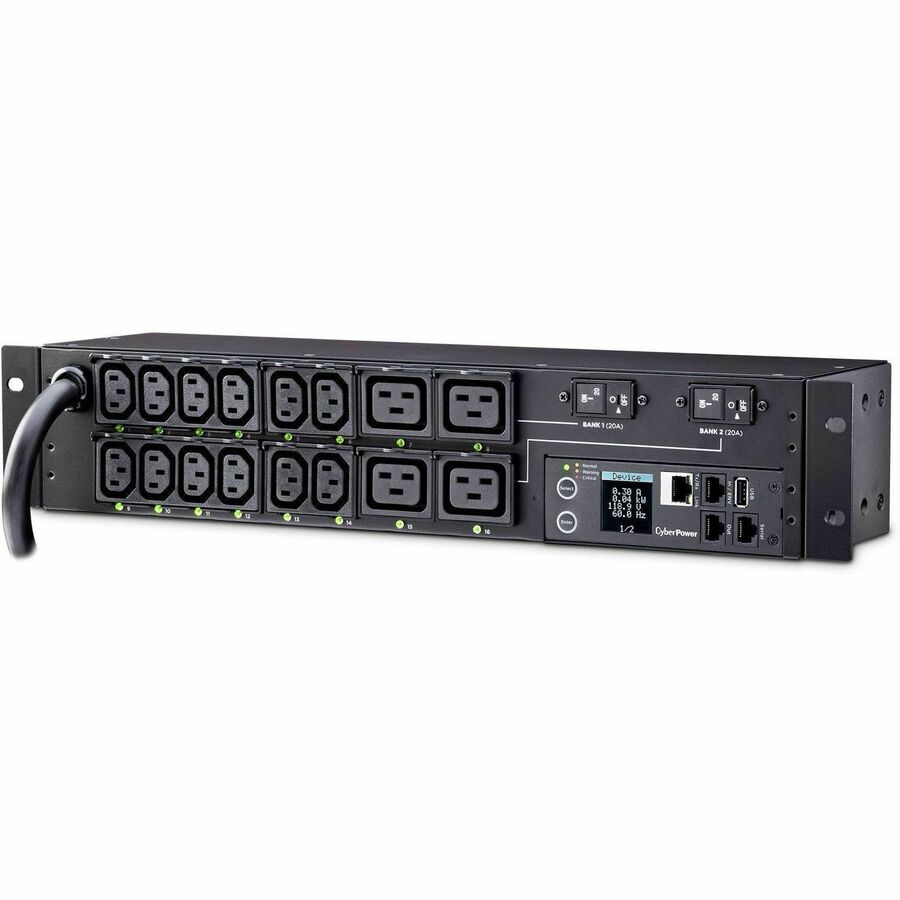

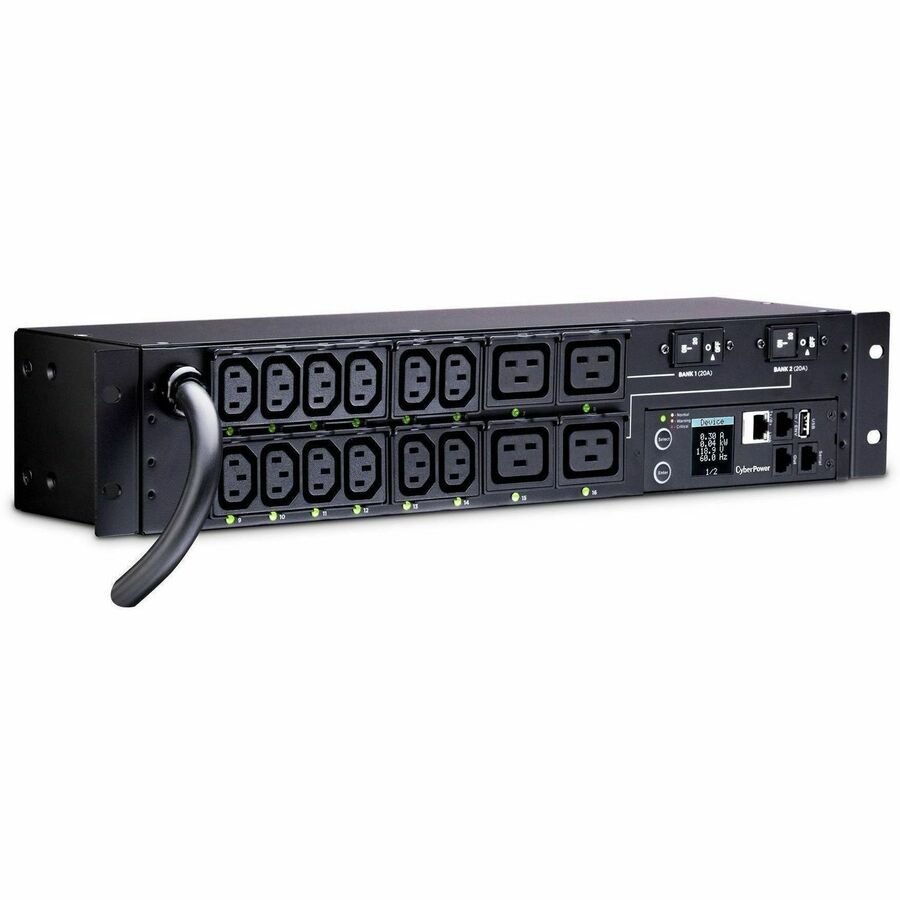

Marketing Information	The CyberPower PDU41008, a 16-outlet (front), 2U rackmount switched power distribution unit (PDU), provides 200-240V 30A output. It distributes power to twelve (12) IEC C13 receptacles and four (4) IEC C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C13 4 x IEC 60320 C19
Protection Type	Overload Protection
Locking Receptacles	Cord Retention Tray
Features	LED Status Indicator LCD Display

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	200 V AC 240 V AC
Output Voltage Range	200 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	Protocols: IPv4 TCP IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD SNMP
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal/Vertical
Mount Type	Rack-mountable Wall-mountable
Form Factor	Rack
Rack Height	2U
Cord Length	12 ft
Height	3.5"
Width	17.1"
Depth	4.4"
Weight (Approximate)	9.90 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	149°F (65°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.89 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.5 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 89 x 112 (mm) Weight (kg) : 4.49 Weight (lb) : 9.9 Shipping Dimensions - (WxHxD) (cm) : 50.04 x 14.99 x 24.89 (cm) Shipping - Dimensions (WxHxD, in) : 19.7 x 5.9 x 9.8 (in) Shipping - Dimensions (WxHxD, mm) : 500.38 x 149.86 x 248.92 (mm) Shipping - Weight (kg) : 6.49 Shipping - Weight (lb) : 14.3 Cord Length : 12 ft (3.7 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-30P Maximum Input Current : 30A Nominal Input Voltage : 200 - 240 VAC Phase : Single Phase Plug Style : Straight (Twist Lock) Controllable Outlets : 16 Meter Readout : Power Control Display Nominal Output Voltage : 200 - 240 VAC Outlets - Front : 16 Outlets - # of Banks : 2 Outlets - Rear : 0 Outlets - Total : 16 Outlet Type COMPUTED : 12 - IEC-320 C13 Overload Protection : 20A x 2 Overload Protection (Each Bank) : 20A USB Charge Port : No Hardware Connection Port : RJ45 LED Indicators : Tx/Rx SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 2U Style : Horizontal Rackmount Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Application/Usage	Network Device Data Center
Certifications & Standards	UL62368 FCC Class A ICES-003: Issue 7
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
