CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU

Name: CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU
Brand: CYBERPOWER
SKU: 9GM073
Price: 695.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM073

MFG#

PDU41002

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$695.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Outlets, 12 ft, NEMA L5
20P (5
20P Adapter), Horizontal, 1U, SNMP, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageNetwork DeviceServerCertifications & StandardsUL62368FCC Class AICES-003: Issue 7Energy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 9 lbs.

CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU41002
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Switched PDU
Product Model	PDU41002
Product Name	PDU41002
Marketing Information	The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Single Phase
Plug/Connector Type	NEMA L5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	8 x NEMA 5-20R
Locking Receptacles	Cord Retention Tray
Features	LED Status Indicator LCD Display

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	100 V AC 120 V AC
Output Voltage Range	100 V AC - 120 V AC
Input Current	20 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	Protocols: IPv4 TCP IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD SNMP
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal/Vertical
Mount Type	Rack-mountable Wall-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	12 ft
Height	1.8"
Width	17.1"
Depth	4.4"
Weight (Approximate)	7.30 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	149°F (65°C)

Miscellaneous

Package Contents	PDU41002 Adaptor

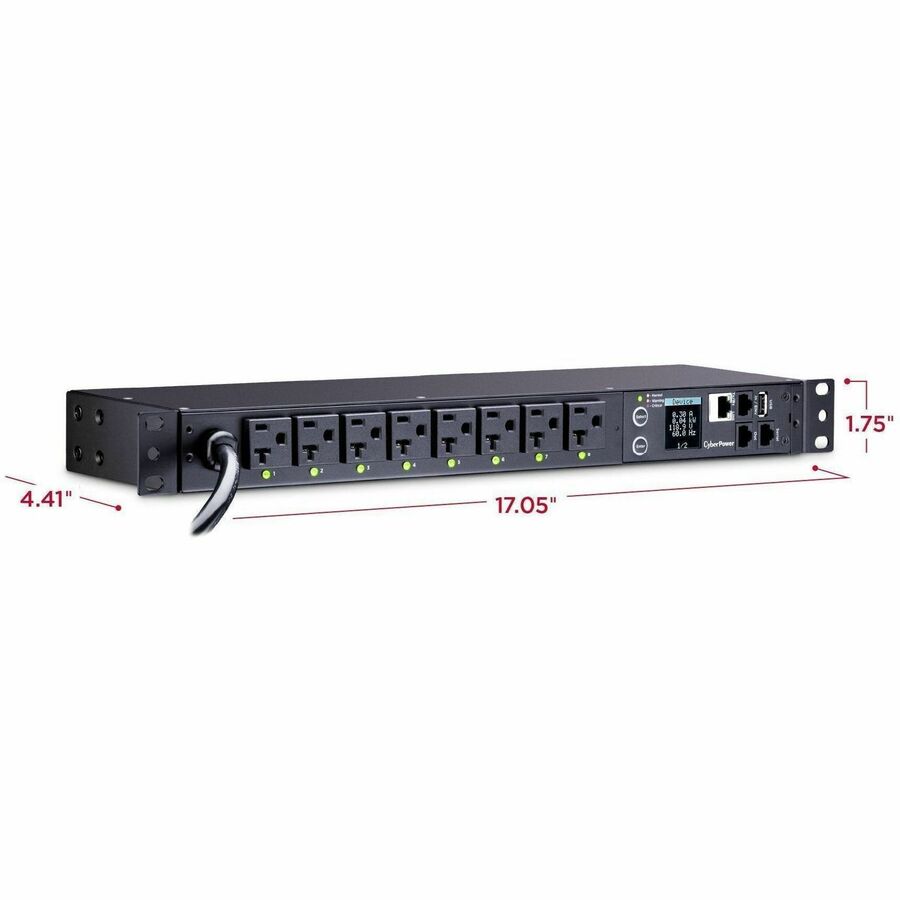

Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 112 (mm) Weight (kg) : 3.31 Weight (lb) : 7.3 Shipping Dimensions - (WxHxD) (cm) : 49.53 x 6.68 x 25.1 (cm) Shipping - Dimensions (WxHxD, in) : 19.5 x 2.63 x 9.88 (in) Shipping - Dimensions (WxHxD, mm) : 495.3 x 66.8 x 250.95 (mm) Shipping - Weight (kg) : 4.17 Shipping - Weight (lb) : 9.2 Cord Length : 12 ft (3.7 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P (5-20P Adapter) Maximum Input Current : 20A Phase : Single Phase Plug Style : Straight Meter Readout : Power Control Display Nominal Output Voltage : 100 - 120 VAC Outlets - Front : 8 Outlets - # of Banks : 1 Outlets - Rear : 0 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-20R Overload Protection : None Overload Protection (Each Bank) : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD LED Indicators : Tx/Rx Modular Expandability (Cascading) : Yes, via RJ45 Outlet switching : Yes SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Upgradeable firmware : Yes Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 1U Style : Horizontal Rackmount Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Application/Usage	Network Device Server
Certifications & Standards	UL62368 FCC Class A ICES-003: Issue 7
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
