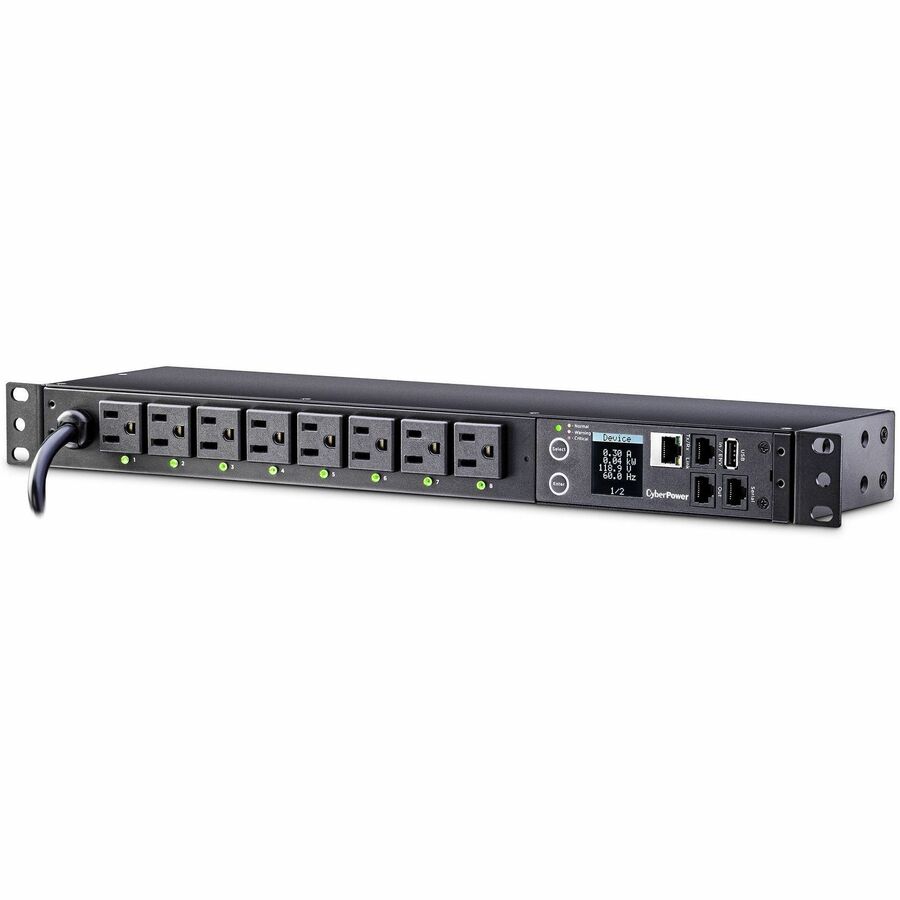

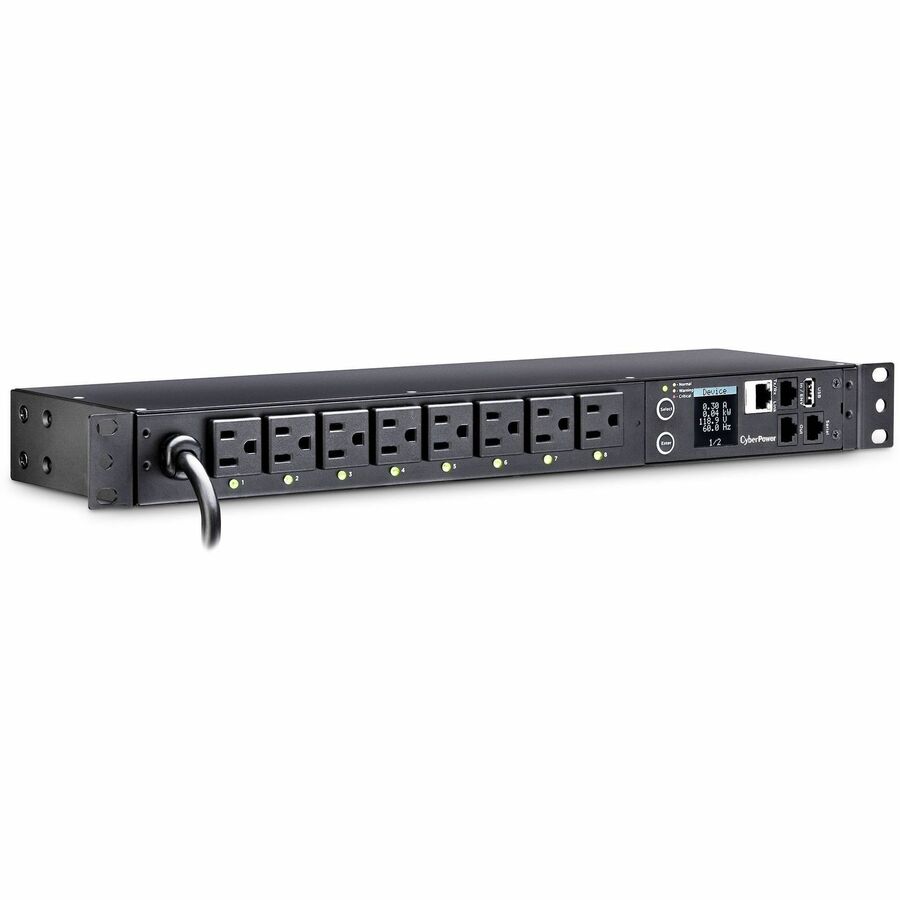

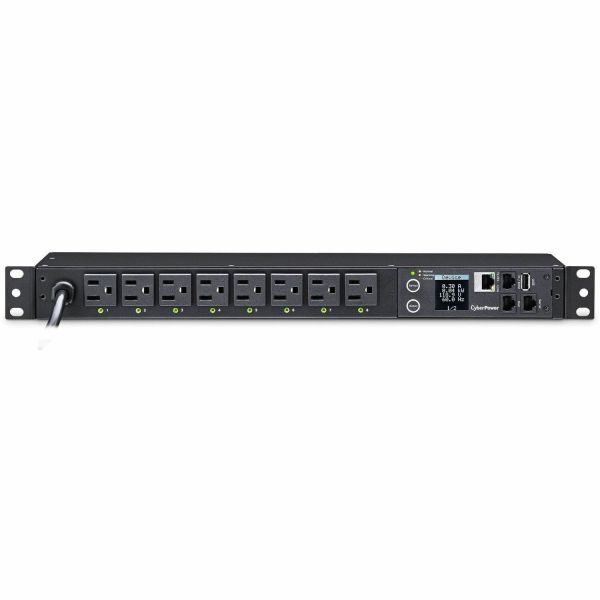

CyberPower PDU41001 Single Phase 100 - 120 VAC 15A Switched PDU

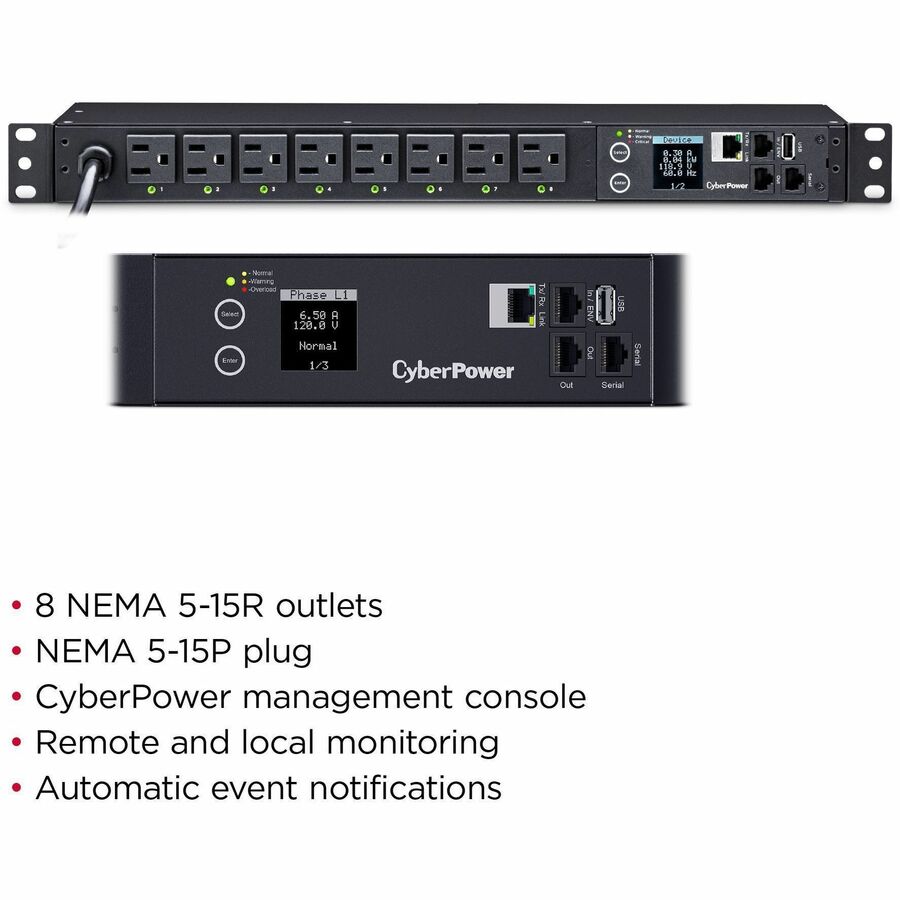

The CyberPower PDU41001, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.

Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41001 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

• Power Distribution
  Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
• Switch-Free Design
  Safeguards against accidental power shutdown.
• Switchable Outlets
  Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
• CyberPower Management Console
  A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.
• Remote and Local Monitoring
  Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
• Automatic Event Notifications
  Provide immediate updates about power events via email, SMS text, or SNMP traps.
• Upgradeable Firmware
  Downloadable improvements (firmware updates) to programs that run the PDU.
• Digital Display

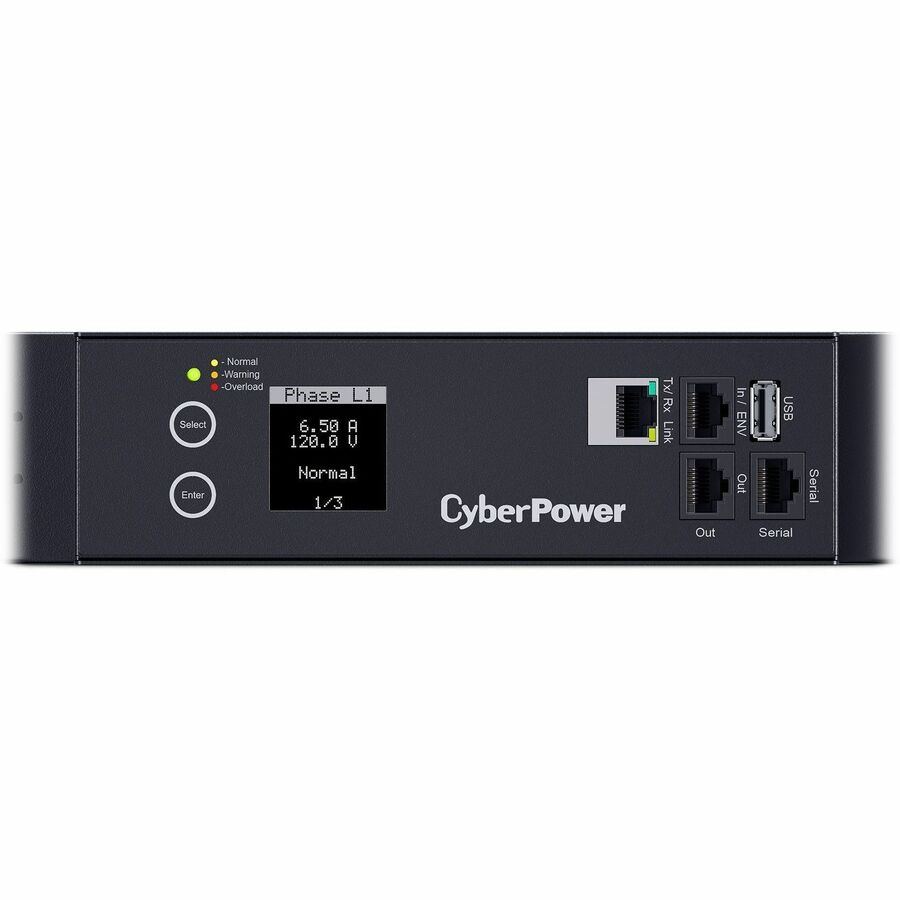

  Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
• Network-Grade Plugs and Outlets
  Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
• Long Input Power Cord
  Reaches distant power sources, allowing the PDU to be placed where it's needed.
• Cord Retention Tray
  Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
• Configurable Mounting Brackets

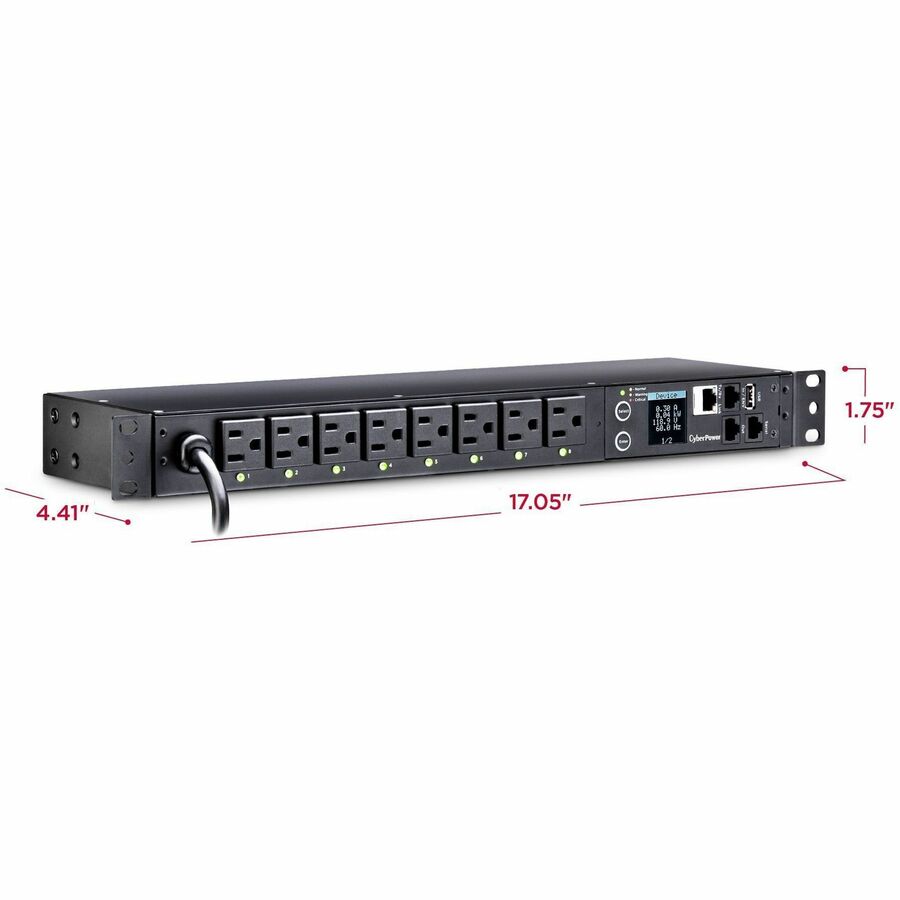

  Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
• Durable Metal Housing
  Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
• Three-Year Limited Warranty
  Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

What's In The Box

PDU, 4 Mounting Brackets (2 short and 2 long), 10 Flat Head M4x8 Bracket Mounting Screws, Cord Retention Tray, 10 Cable Ties, 6 M3x6 Cord Retention Tray Mounting Screws, 6 M5x12 Screws, 6 Washers, RJ45/DB9 Serial Port Connection Cable, User Manual, Registration Card, CD

• IPv4
• TCP/IP
• UDP
• SNMPv1
• HTTP
• NTP
• DNS,
• Telnet
• DHCP
• SMTP
• FTP
• IPv6
• SNMPv3
• HTTPs
• SSH
• SSL
• TLS
• LDAP(S)
• RADIUS
• Syslog
• Windows AD

• Rack-mountable
• Wall-mountable

• PDU41001 8-Outlet PDU
• 4 x Mounting Brackets (2 short and 2 long)
• 10 x Flat Head M4x8 Bracket Mounting Screws
• Cord Retention Tray
• 10 x Cable Ties
• 6 x M3x6 Cord Retention Tray Mounting Screws
• 6 x M5x12 Screws
• 6 x Washers
• RJ45/DB9 Serial Port Connection Cable
• User Manual
• Registration Card
• CD
