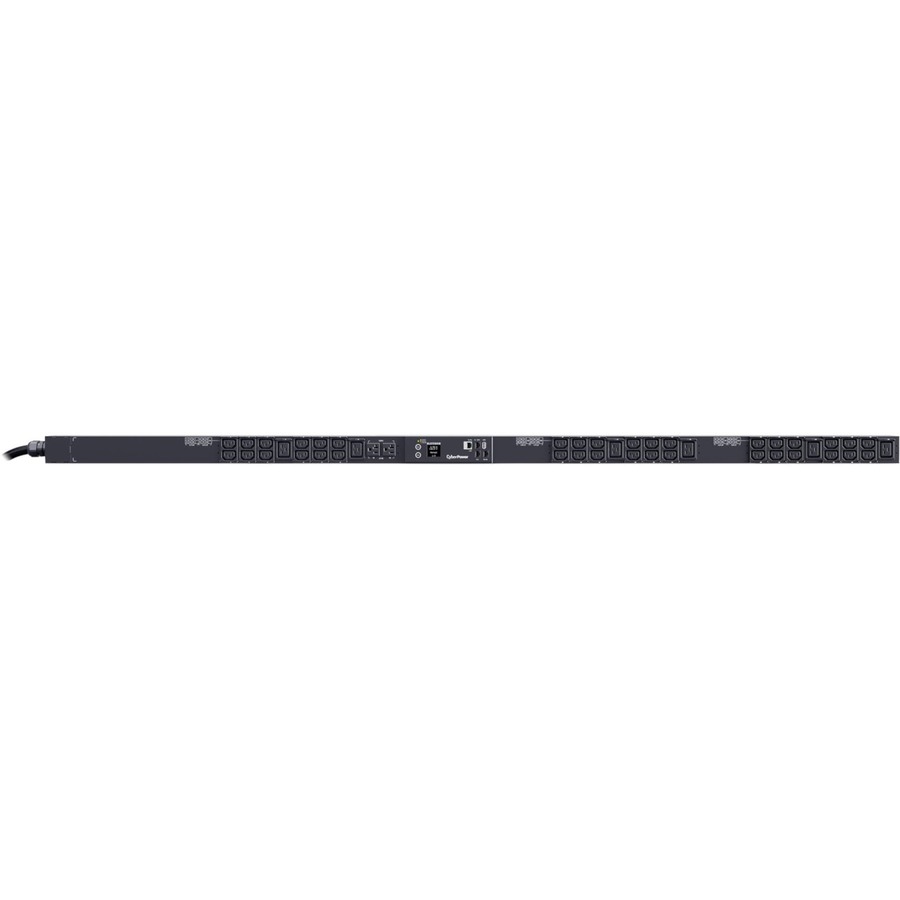

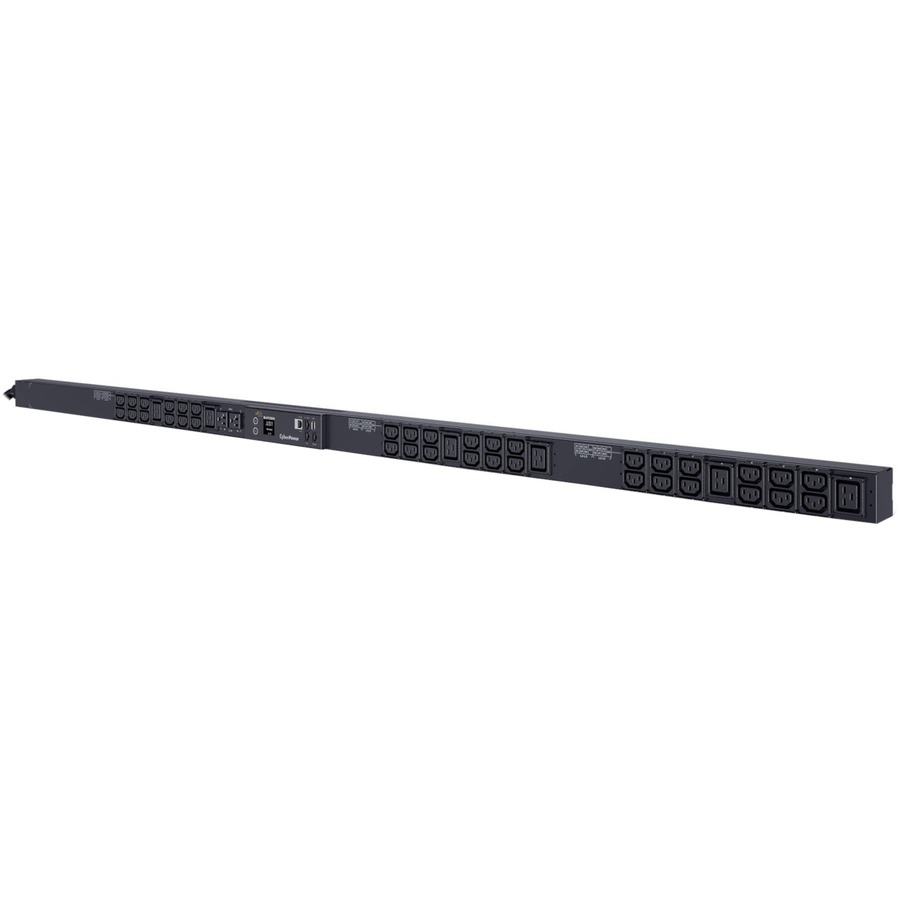

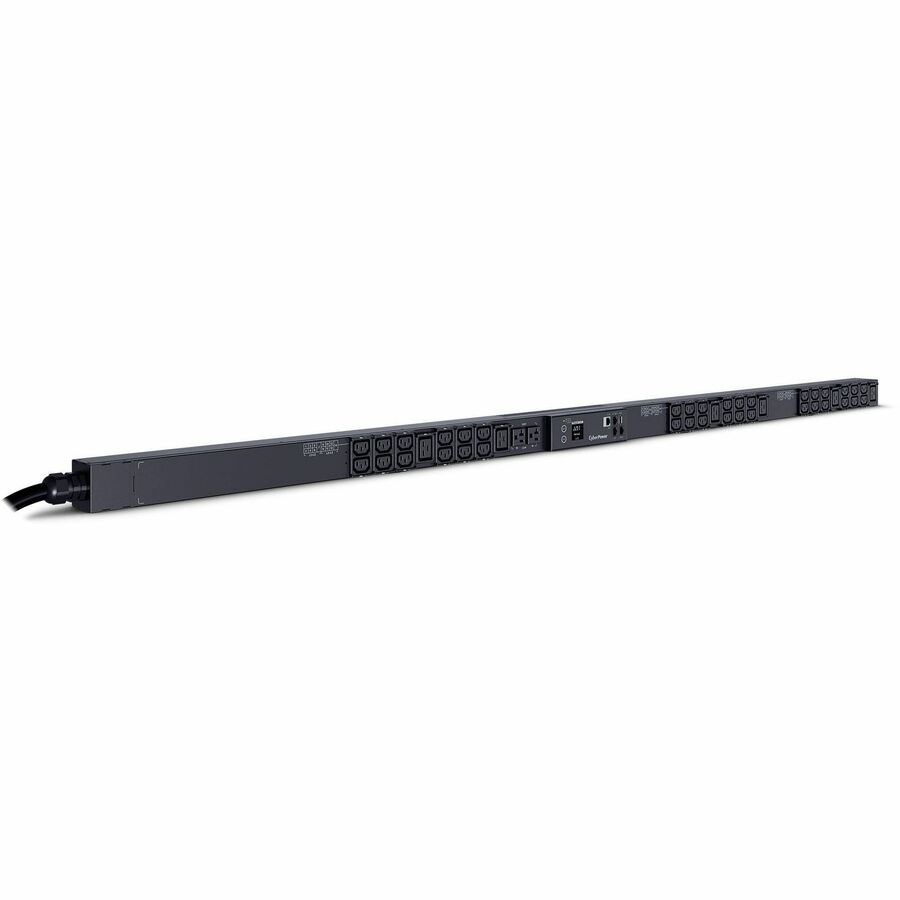

CyberPower PDU33103 3 Phase 120 - 208 VAC 20A Monitored PDU

Name: CyberPower PDU33103 3 Phase 120 - 208 VAC 20A Monitored PDU
Brand: CYBERPOWER
SKU: 9MF704
Price: 976.01 USD
Availability: InStock

CYBERPOWER

PCN#

9MF704

MFG#

PDU33103

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$976.01

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

44 Outlets, 10 ft, NEMA L21
20P, Vertical, 0U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & Standards UL60950-1 UL62368-1 FCC Class A Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 21 lbs.

CyberPower PDU33103 3 Phase 120 - 208 VAC 20A Monitored

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU33103
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Monitored PDU
Product Model	PDU33103
Product Name	PDU33103 3 Phase 120 - 208 VAC 20A Monitored

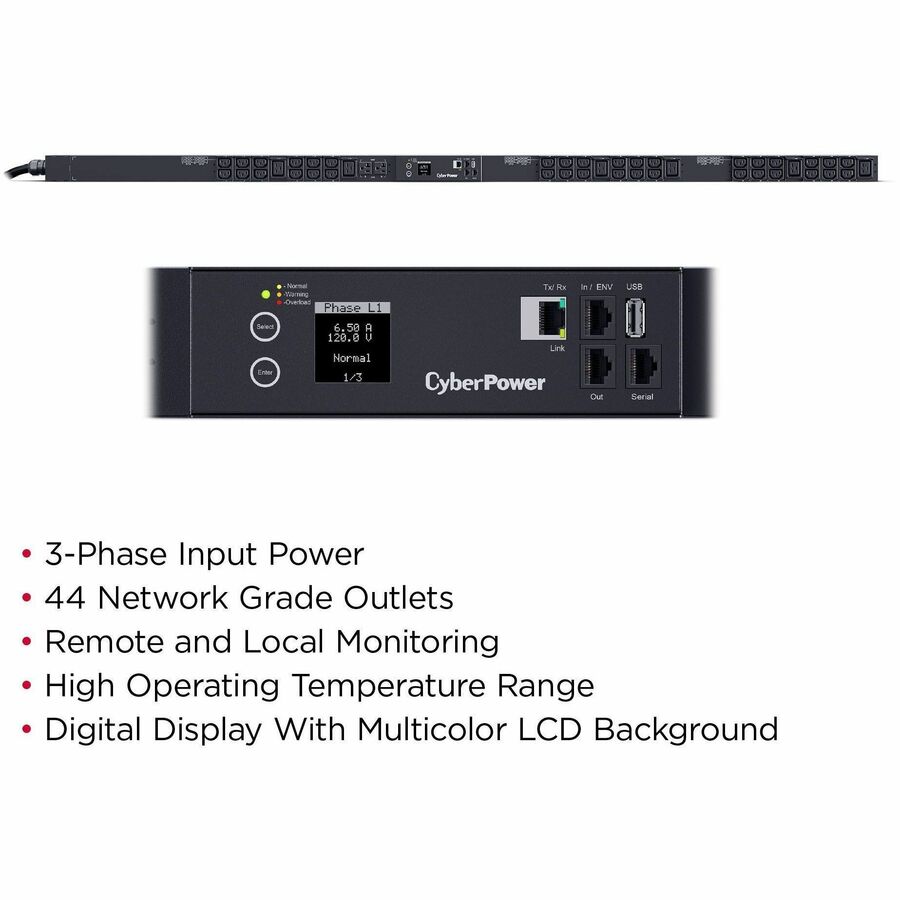

Marketing Information	Stay informed about your power with the CyberPower PDU33103 monitored 3-Phase PDU. Ideal for data centers and network closets, this unit provides power monitoring in real time over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection or locally by using the LCD. The PDU33103 supports a 208V 20A input and includes 44 outlets. Other features include an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU33103 is protected by a three-year limited warranty.
Product Condition	New
Product Type	PDU

Technical Information

PDU Type	Monitored
Design	Modular
Phase	Three Phase
Plug/Connector Type	NEMA L21-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	44 x NEMA 5-20R
Locking Receptacles	Cord Retention Tray

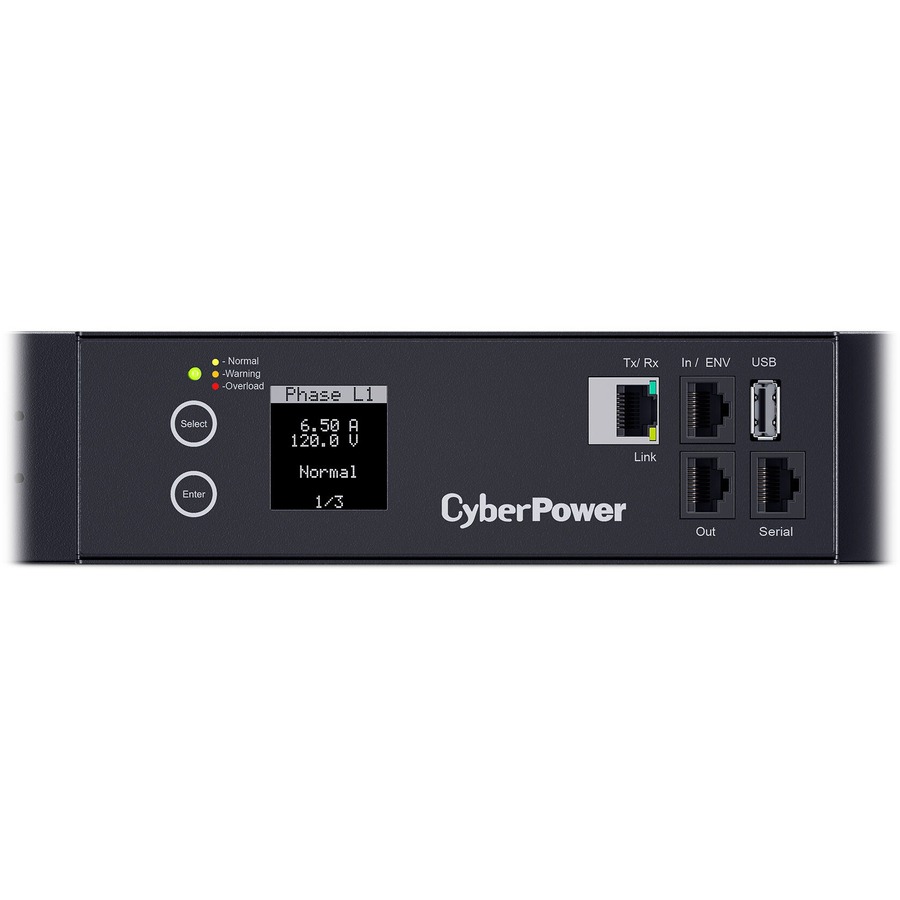

Features	LCD Display LED Status Indicator

Power Description

Input Voltage	230 V AC
Output Voltage Range	120 V AC - 208 V AC
Input Current	20 A
Input Frequency	60 Hz

Management

IPv4
TCP/IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
CLI
Windows AD

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mount Type	Rack-mountable
Rack Height	0U
Cord Length	9.84 ft
Height	70.5"
Width	2.2"
Depth	2.2"
Weight (Approximate)	13.21 lb

Environmental Conditions

Minimum Operating Temperature	23°F (-5°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	113°F (45°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 5.59 x 179.07 x 5.59 (cm) Physical Dimensions - (WxHxD) (in) : 2.2 x 70.5 x 2.2 (in) Physical Dimensions - (WxHxD) (mm) : 56 x 1791 x 56 (mm) Weight (kg) : 5.99 Weight (lb) : 13.2 Shipping Dimensions - (WxHxD) (cm) : 17.53 x 203.45 x 16.0 (cm) Shipping - Dimensions (WxHxD, in) : 6.9 x 80.1 x 6.3 (in) Shipping - Dimensions (WxHxD, mm) : 175.26 x 2034.54 x 160.02 (mm) Shipping - Weight (kg) : 9.39 Shipping - Weight (lb) : 20.7 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L21-20P Maximum Input Current : 20A Nominal Input Voltage : 208 VAC Phase : 3 Phase Nominal Output Voltage : 120 - 208 VAC Outlets - # of Banks : 3 Outlets - Total : 44 Outlet Type COMPUTED : 2 - NEMA 5-20R Overload Protection : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : Ethernet (RJ45) LCD : Multifunction LCD LED Indicators : Tx/Rx Modular Expandability (Cascading) : Yes, via RJ45 Monitoring Level : Input Protocols : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Software (Free Download) : PowerPanel® Business Upgradeable firmware : Yes Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes Form Factors Supported : 0U Vertical Rackmount Material of Construction : Metal Rack Height : 0U Operating Elevation : 0 - 11480 ft (0 - 3499 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 23 - 140 °F (-5 - 60 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : -4 - 113 °F (-20 - 45 °C) Environmental : RoHS Compliant Safety : UL60950-1\|UL62368-1\|FCC Class A Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL60950-1 UL62368-1 FCC Class A
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
