CYBERPOWER PDU31116 PDU 100-120V/15A 20 OUTLETS 0U RM

by
CYBERPOWER
PCN#
JU1413
MFG#
PDU31116
$395.78
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Monitored
  • NEMA 5
  • 15P

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 16 lbs.
CyberPower PDU31116 20-Outlets PDU
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PDU31116

Manufacturer Website Address

https://www.cyberpowersystems.com/

Brand Name

CyberPower

Product Model

PDU31116

Product Name

PDU31116 20-Outlets PDU

Marketing Information

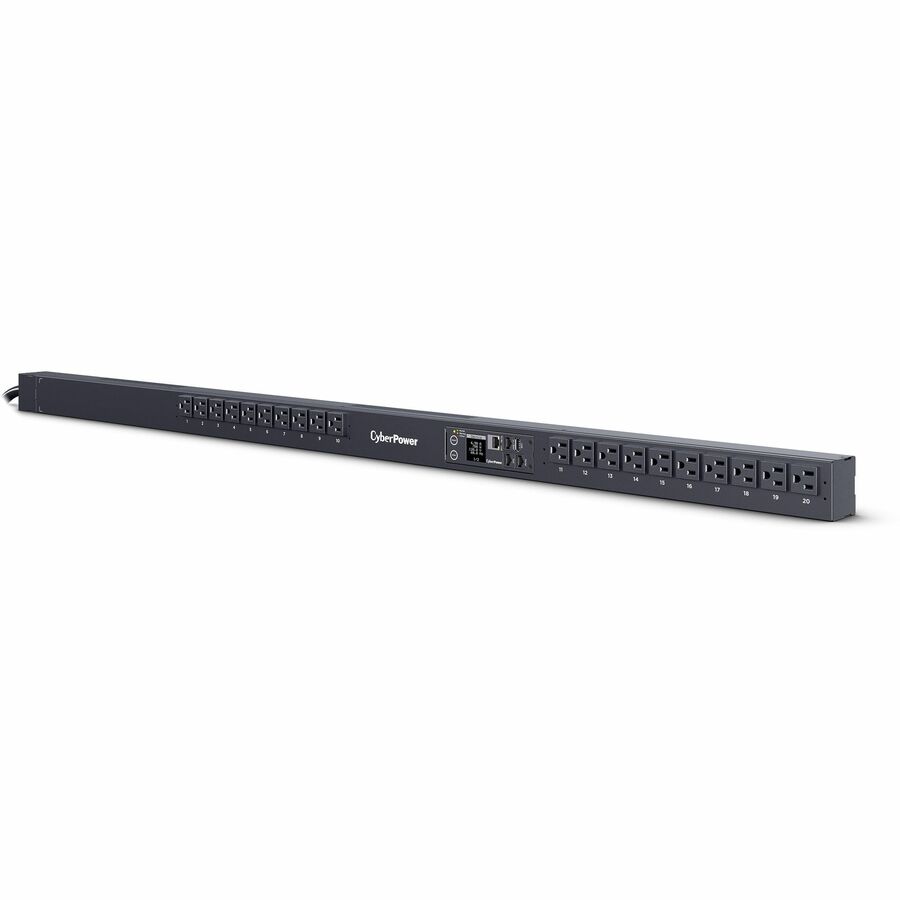

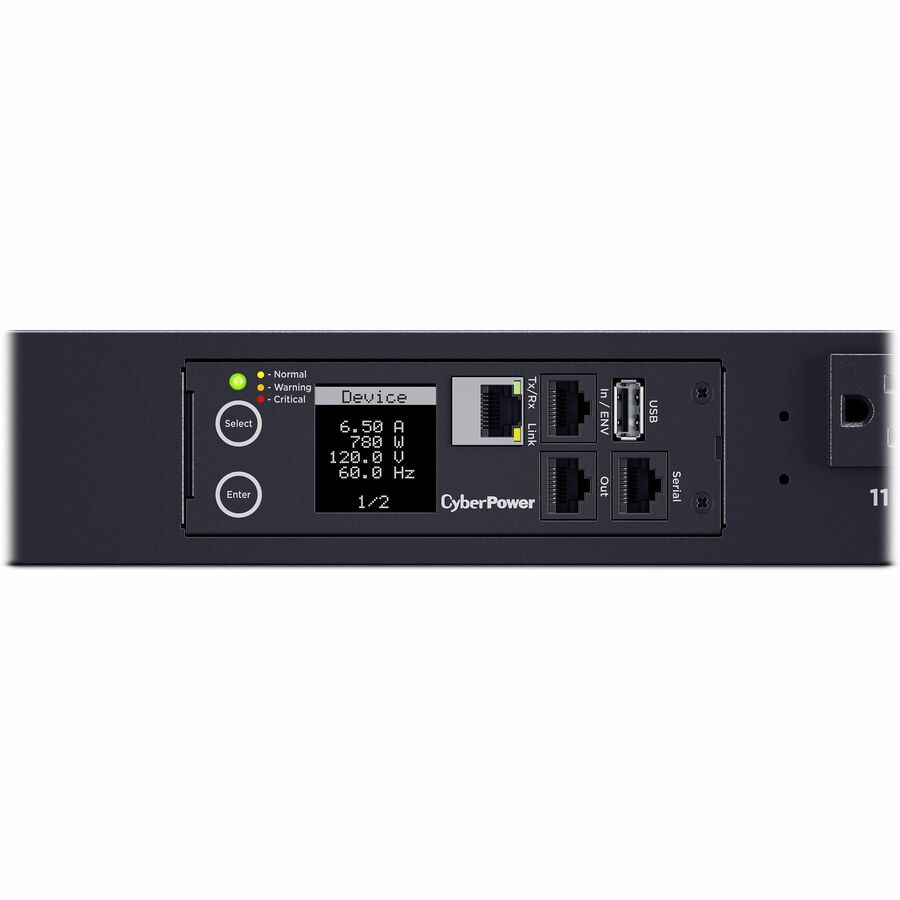

The CyberPower PDU31116, a 20-outlet, 0U rackmount monitored power distribution unit (PDU), provides 120V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally by using the LCD. The PDU31116 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Product Condition

New

Product Type

PDU
Technical Information

PDU Type

Monitored

Phase

Single Phase

Plug/Connector Type

NEMA 5-15P

Receptacle Type

NEMA 5-15R

Receptacle Detail

20 x NEMA 5-15R

Features

LCD Display
Power Description

Output Voltage Range

100 V AC - 120 V AC

Input Current

15 A

Input Frequency

60 Hz
Management

Management

  • SNMP
  • TCP/IP
  • UDP
  • DHCP
  • HTTP
Interfaces/Ports

Network (RJ-45)

Yes
Physical Characteristics

Color Family

Black

Product Color

Black

Mounting Orientation

Vertical

Mount Type

  • Rack-mountable
  • Wall-mountable

Form Factor

Horizontal/Vertical

Rack Height

0U

Cord Length

10 ft

Height

53.1"

Width

1.9"

Depth

2.2"

Weight (Approximate)

11.51 lb
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

140°F (60°C)

Minimum Operating Humidity

0%

Maximum Operating Humidity

95%

Minimum Storage Temperature

5°F (-15°C)

Maximum Storage Temperature

149°F (65°C)
Miscellaneous

Certifications & Standards

UL 62368-1

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

3 Year
