CyberPower PDU31008 Single Phase 200 - 240 VAC 30A Monitored PDU

Name: CyberPower PDU31008 Single Phase 200 - 240 VAC 30A Monitored PDU
Brand: CYBERPOWER
SKU: 9ML307
Price: 875.95 USD
Availability: InStock

CYBERPOWER

PCN#

9ML307

MFG#

PDU31008

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$875.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Outlets, 12 ft, NEMA L6
30P, Horizontal, 2U, SNMP, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & Standards UL 60950 FCC Class A Energy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 1 lbs.

CyberPower PDU31008 Single Phase 200 - 240 VAC 30A Monitored PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU31008
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Monitored PDU
Product Model	PDU31008
Product Name	PDU31008

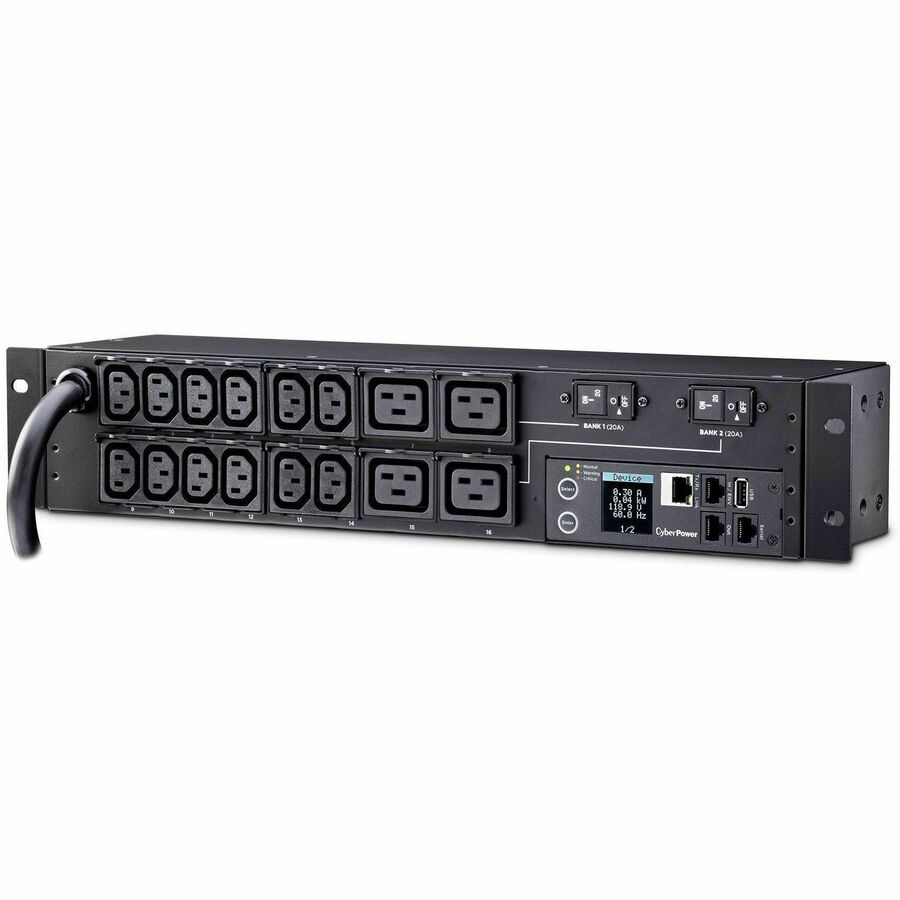

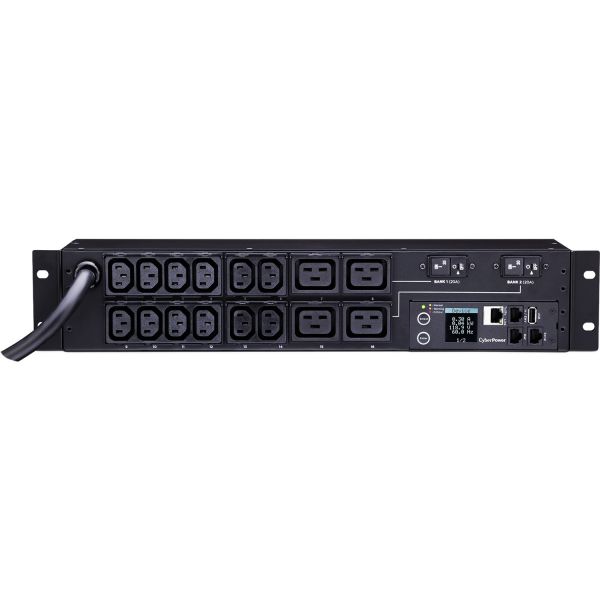

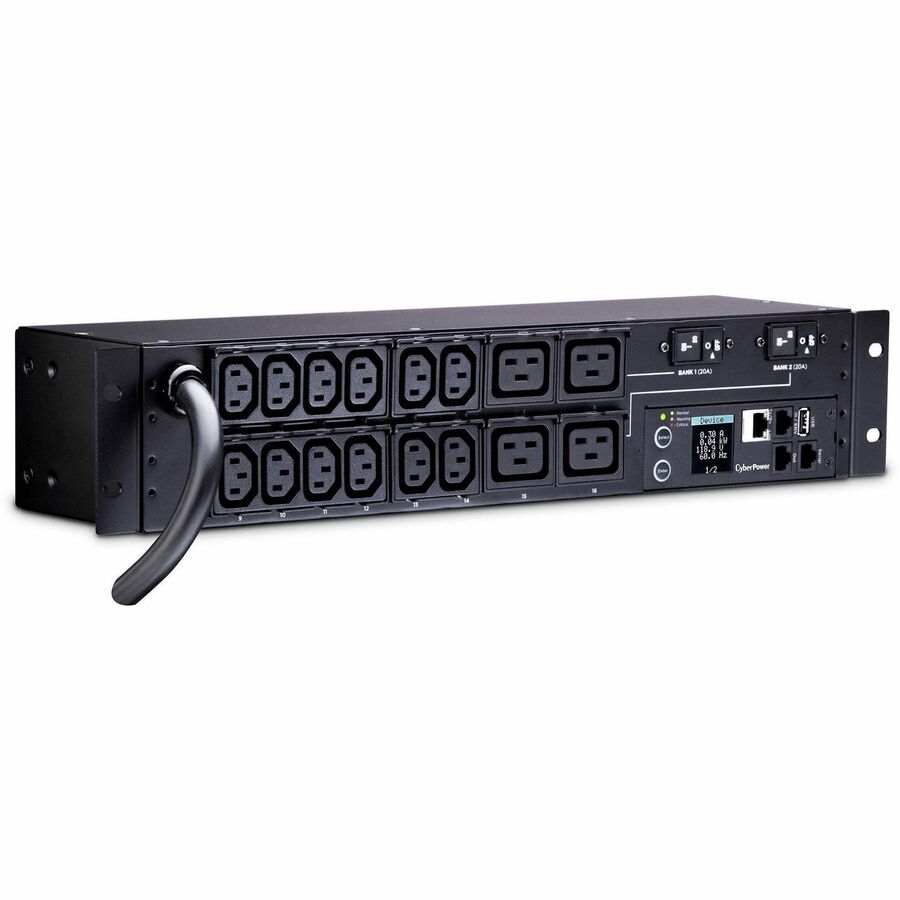

Marketing Information	The CyberPower PDU31008, a 2U rackmount, monitored power distribution unit (PDU) provides 200-240Vac, 30A output via twelve (12) IEC C13 and four (4) IEC C19 receptacles from a single NEMA L6-30P input power plug. Configure and monitor this unit over the network using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Single Phase

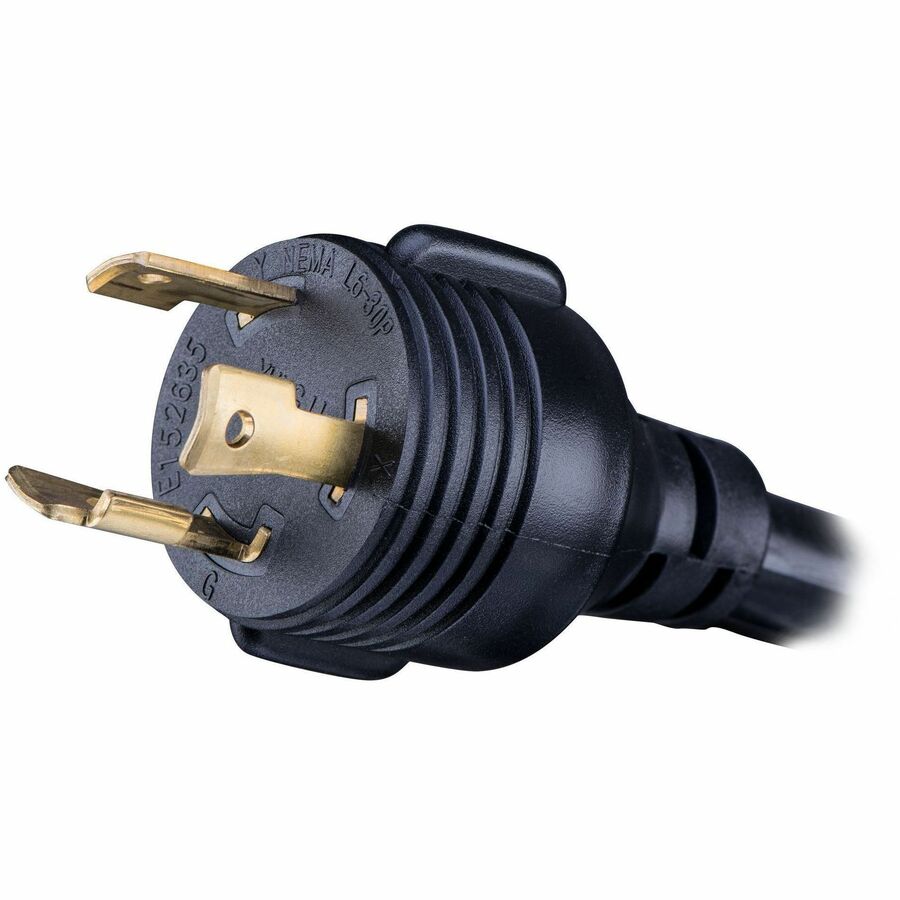

Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C13 4 x IEC 60320 C19
Protection Type	Overload Protection
Features	Onboard Display

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	230 V AC
Output Voltage Range	200 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal/Vertical
Mount Type	Rack-mountable Wall-mountable
Form Factor	Rack
Rack Height	2U
Cord Length	12 ft
Height	3.5"
Width	4.4"
Depth	17.1"
Length	4.4"
Weight (Approximate)	9 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	131°F (55°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 11.2 x 8.89 x 43.31 (cm) Physical Dimensions - (WxHxD) (in) : 4.41 x 3.5 x 17.05 (in) Physical Dimensions - (WxHxD) (mm) : 112 x 89 x 433 (mm) Weight (kg) : 4.08 Weight (lb) : 9 Shipping Dimensions - (WxHxD) (cm) : 26.04 x 15.14 x 50.17 (cm) Shipping - Dimensions (WxHxD, in) : 10.25 x 5.96 x 19.75 (in) Shipping - Dimensions (WxHxD, mm) : 260.35 x 151.38 x 501.65 (mm) Shipping - Weight (kg) : 4.49 Shipping - Weight (lb) : 9.9 Cord Length : 12 ft (3.7 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-30P Maximum Input Current : 30A Phase : Single Phase Plug Style : Straight Controllable Outlets : 0 Meter Readout : Power Control Display Nominal Output Voltage : 200 - 240 VAC Outlets - Front : 16 Outlets - # of Banks : 2 Outlets - Rear : 0 Outlets - Total : 16 Outlet Type COMPUTED : 12 - IEC-320 C13 Overload Protection : 20A x 2 Overload Protection (Each Bank) : 20A USB Charge Port : No Hardware Connection Port : RJ45 LED Indicators : Tx/Rx SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 2U Style : Horizontal Rackmount Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL 60950 Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL 60950 FCC Class A
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
