CyberPower PDU31005 100 - 120 VAC 20A Monitored PDU

Name: CyberPower PDU31005 100 - 120 VAC 20A Monitored PDU
Brand: CYBERPOWER
SKU: 12NH77
Price: 369.95 USD
Availability: InStock

CYBERPOWER

PCN#

12NH77

MFG#

PDU31005

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$369.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Outlets, 10 ft, IEC
320 C20, Horizontal, 1U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyEnergy StarNoCountry of OriginChinaWarranty

Shipping Weight: 9 lbs.

CyberPower PDU31005 100 - 120 VAC 20A Monitored PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU31005
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Monitored PDU
Product Model	PDU31005
Product Name	PDU31005 100 - 120 VAC 20A Monitored

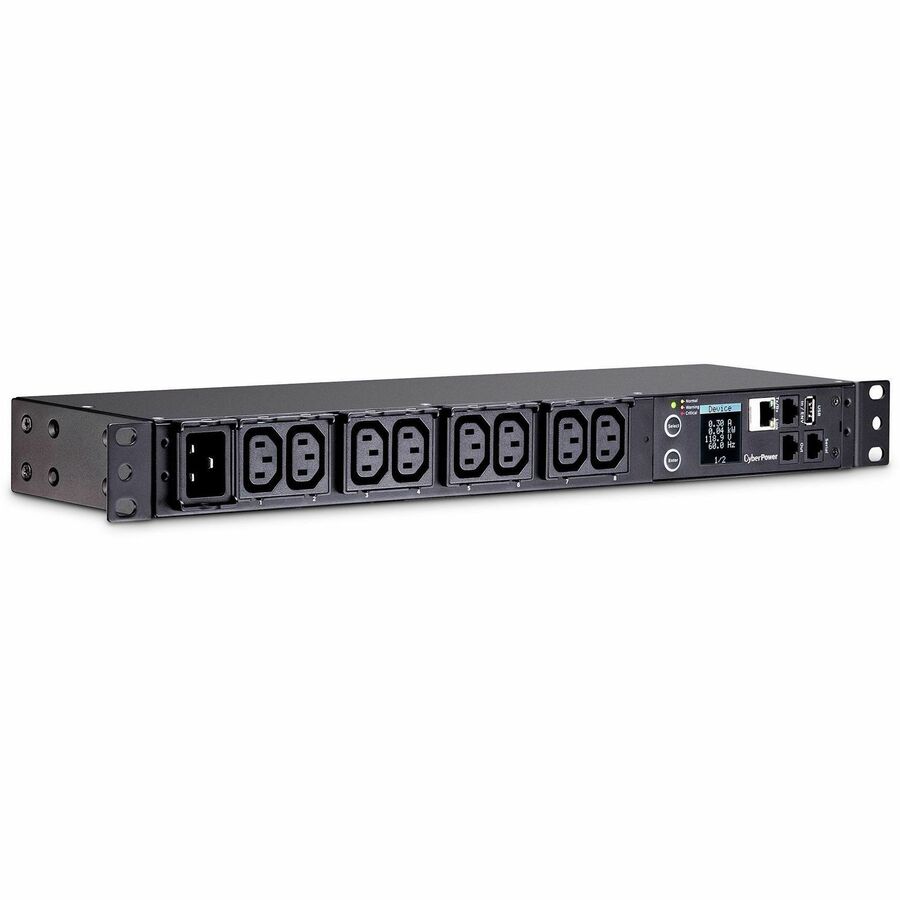

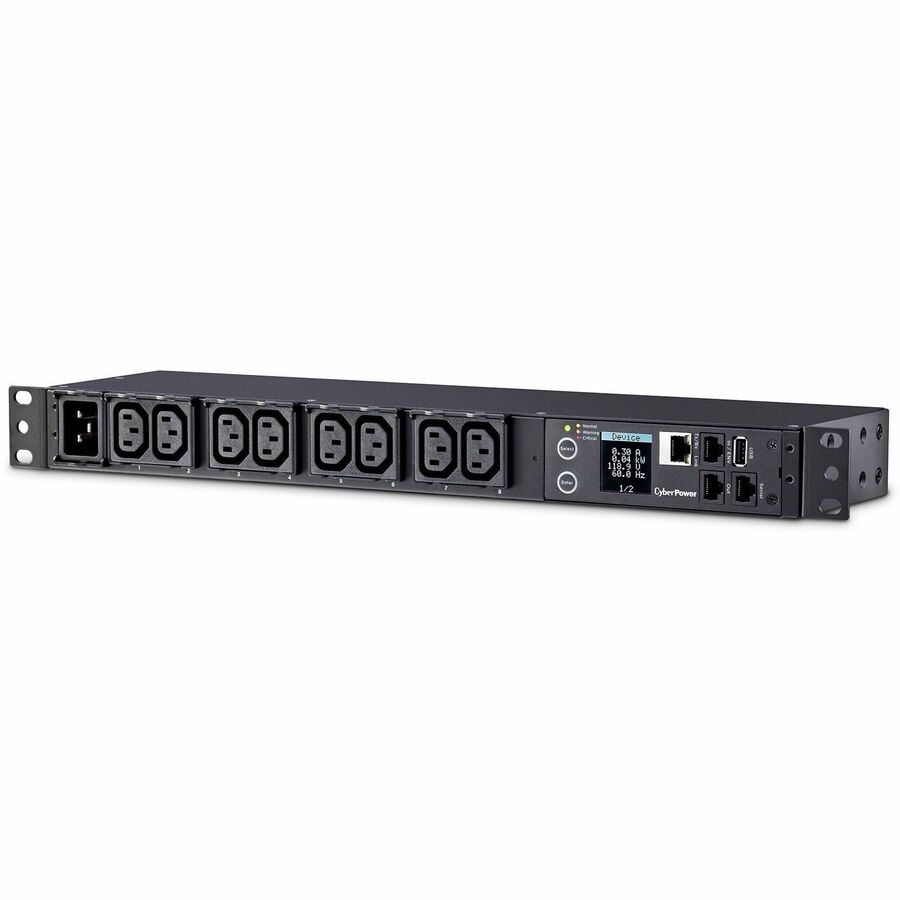

Marketing Information	The CyberPower PDU31005, an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU), provides 100-120V 20A output. PDU31005 distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Monitor power status over the network using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD screen.
Product Type	PDU

Technical Information

PDU Type	Monitored
Plug/Connector Type	IEC 60320 C20
Plug/Connector Detail	1 x IEC 60320 C20
Receptacle Type	IEC 60320 C13
Receptacle Detail	8 x IEC 60320 C13

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 240 V AC
Output Voltage Range	100 V AC - 240 V AC
Input Current	20 A

Management

IPv4
TCP/IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
CLI
Windows AD

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mount Type	Rack-mountable
Rack Height	1U
Height	1.8"
Width	17.1"
Length	4.4"
Weight (Approximate)	4.20 lb

Miscellaneous

Package Contents	PDU31005 8-Outlet PDU Power Cord 10ft IEC-320 C13/20 2 x Mounting Brackets Short/Long 12 x (Flat Head M4 x 8) Bracket Mounting Screws 6 x (M5 x 12) Rack Mounting Screws/Washers Cord Retention Tray 6 x (M3 x 6) Cord Retention Tray Mounting Screws 27 x Cable Ties RJ45/DB9 Serial Port Connection Cable User's Manual Registration & Software Download Cards
Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.57 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.8 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 46 x 112 (mm) Weight (kg) : 1.91 Weight (lb) : 4.2 Shipping Dimensions - (WxHxD) (cm) : 50.04 x 6.6 x 24.89 (cm) Shipping - Dimensions (WxHxD, in) : 19.7 x 2.6 x 9.8 (in) Shipping - Dimensions (WxHxD, mm) : 500.38 x 66.04 x 248.92 (mm) Shipping - Weight (kg) : 1.91 Shipping - Weight (lb) : 4.2 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : IEC-320 C20 Maximum Input Current : 20A Power Cord Length : 10 ft (3 m) Circuit Quantity : 1 Nominal Output Voltage : 100 - 120 VAC Number of Outlets : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - IEC-320 C13 Overload Protection : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : No Protocols : IPv4\|TCP/IP\|UDP\|SNMPv1\|HTTP\|NTP\|DNS\|Telnet\|DHCP\|SMTP\|FTP\|IPv6\|SNMPv3\|HTTPs\|SSH\|SSL\|TLS\|LDAP(S)\|RADIUS\|Syslog\|CLI\|Windows AD Upgradeable firmware : Yes Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 131 °F (0 - 55 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 140 °F (-15 - 60 °C) Safety : UL 60950-1 Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Energy Star	No
Country of Origin	China

Warranty

Limited Warranty

3 Year
