CyberPower PDU31003 100 - 120 VAC 30A Monitored PDU

Name: CyberPower PDU31003 100 - 120 VAC 30A Monitored PDU
Brand: CYBERPOWER
SKU: 9GM235
Price: 837.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM235

MFG#

PDU31003

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$837.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Outlets, 12 ft, NEMA L5
30P, Horizontal, 2U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL 60950-1Energy StarNoCountry of OriginChinaUL ListedYesWarranty

Shipping Weight: 13 lbs.

CyberPower PDU31003 100 - 120 VAC 30A Monitored PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU31003
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Monitored PDU
Product Model	PDU31003
Product Name	PDU31003

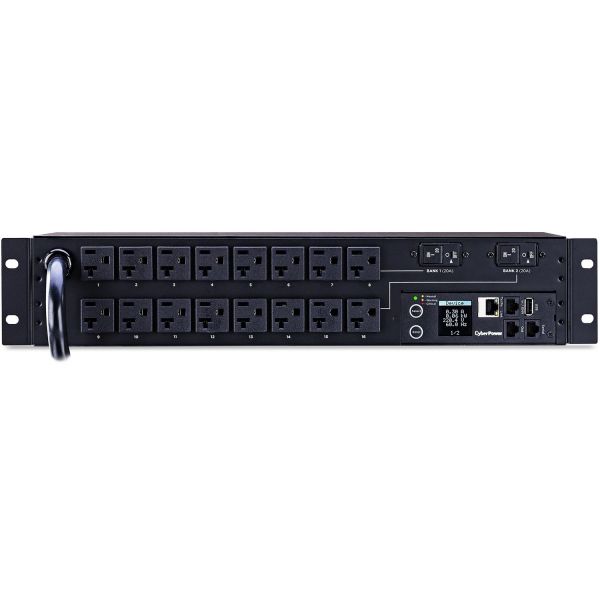

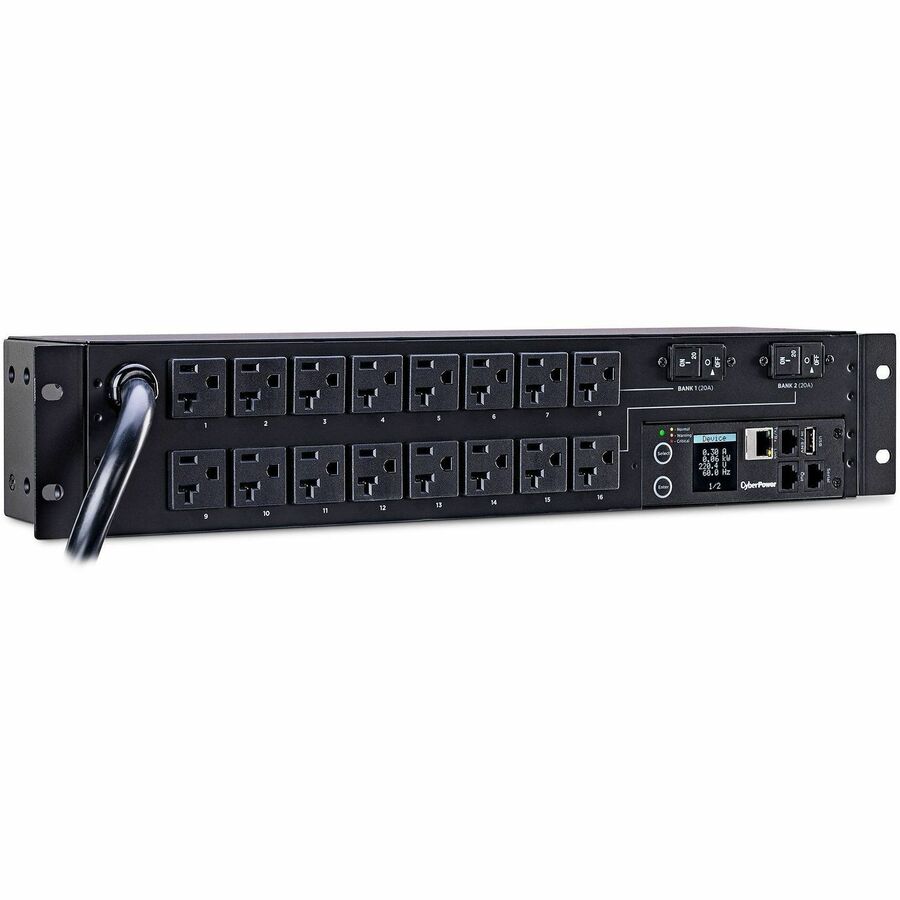

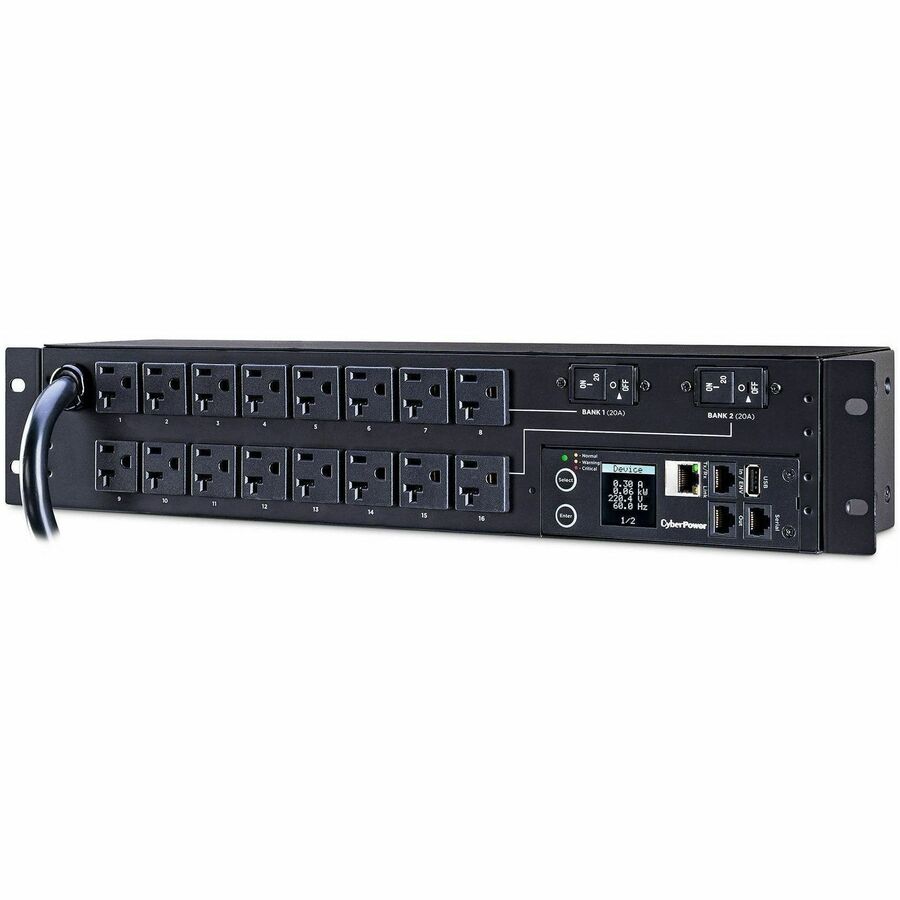

Marketing Information	The CyberPower PDU31003, a 16-outlet (front), 2U rackmount monitored power distribution unit (PDU), provides 120V 30A output. PDU31003 distributes power to 16 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.
Product Type	PDU

Technical Information

PDU Type	Monitored
Plug/Connector Type	NEMA L5-30P
Plug/Connector Detail	1 x NEMA L5-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	16 x NEMA 5-20R
Protection Type	Overload Protection
Features	LCD Display

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	120 V AC
Output Voltage Range	100 V AC - 120 V AC
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Remote Outlet Switching	No

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal/Vertical
Mount Type	Rack-mountable Wall-mountable
Form Factor	Rack
Rack Height	2U
Cord Length	12 ft
Height	3.5"
Width	17.1"
Depth	4.4"
Length	4.4"
Weight (Approximate)	8.80 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	131°F (55°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.89 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.5 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 89 x 112 (mm) Weight (kg) : 3.99 Weight (lb) : 8.8 Shipping Dimensions - (WxHxD) (cm) : 50.04 x 1.52 x 24.89 (cm) Shipping - Dimensions (WxHxD, in) : 19.7 x 0.6 x 9.8 (in) Shipping - Dimensions (WxHxD, mm) : 500.38 x 15.24 x 248.92 (mm) Shipping - Weight (kg) : 4.88 Shipping - Weight (lb) : 10.75 Cord Length : 12 ft (3.7 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-30P Maximum Input Current : 30A Power Cord Length : 12 ft (4 m) Circuit Quantity : 2 Nominal Output Voltage : 100 - 120 VAC Number of Outlets : 16 Outlets - Total : 16 Outlet Type COMPUTED : 16 - NEMA 5-20R Overload Protection : 30A USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : No Protocols : IPv4\|TCP/IP\|UDP\|SNMPv1\|HTTP\|NTP\|DNS\|Telnet\|DHCP\|SMTP\|FTP\|IPv6\|SNMPv3\|HTTPs\|SSH\|SSL\|TLS\|LDAP(S)\|RADIUS\|Syslog\|CLI\|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 2U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Safety : UL 60950-1 Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL 60950-1
Energy Star	No
Country of Origin	China
UL Listed	Yes

Warranty

Limited Warranty

3 Year
