CyberPower PDU31002 100 - 120 VAC 20A Monitored PDU

Name: CyberPower PDU31002 100 - 120 VAC 20A Monitored PDU
Brand: CYBERPOWER
SKU: JX1173
Price: 637.31 USD
Availability: InStock

CYBERPOWER

PCN#

JX1173

MFG#

PDU31002

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$637.31

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Outlets, 12 ft, NEMA L5
20P (5
20P Adapter), Horizontal, 1U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL 60950-1Energy StarNoCountry of OriginChinaEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 9 lbs.

CyberPower PDU31002 100 - 120 VAC 20A Monitored PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU31002
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Monitored PDU
Product Model	PDU31002
Product Name	PDU31002

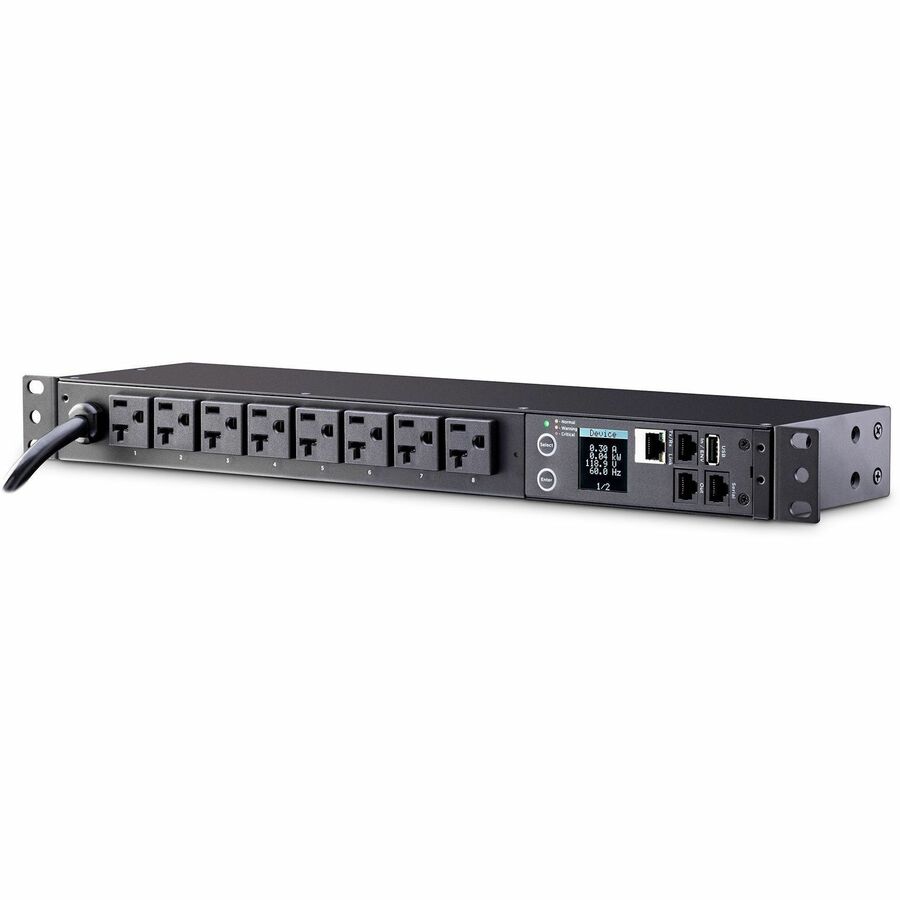

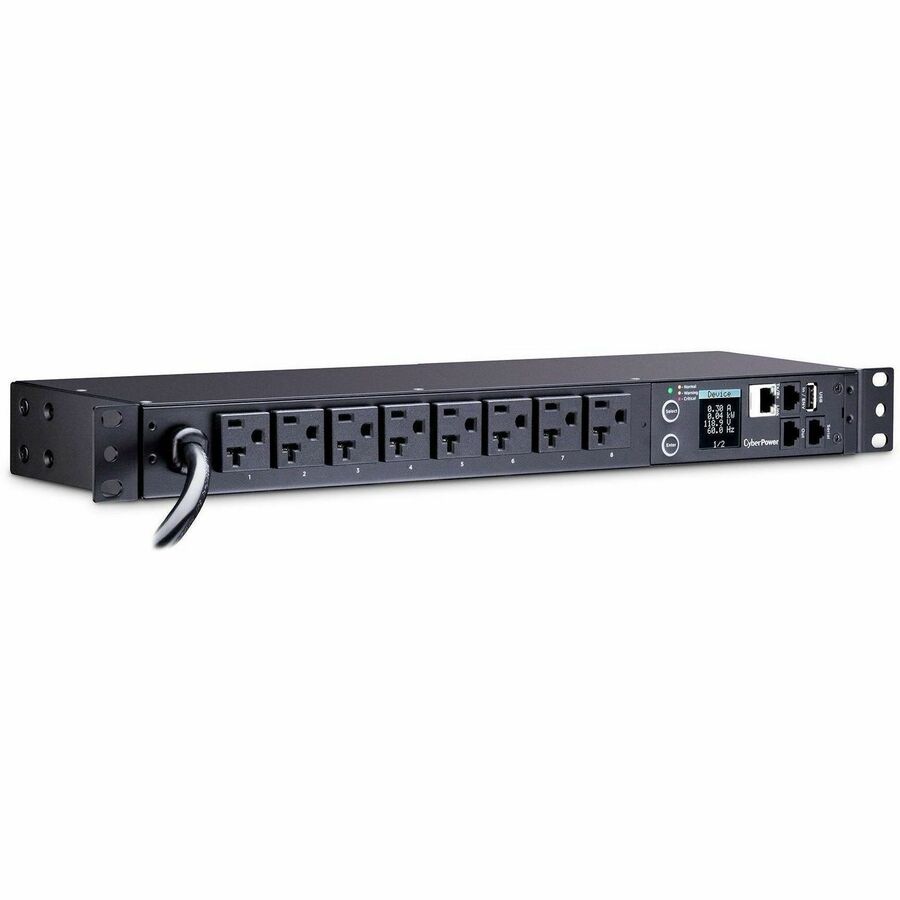

Marketing Information	The CyberPower PDU31002 an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU), provides 120V 20A output. PDU31002 distributes power to 8 NEMA 5-20R receptacles from a single twist lock NEMA L5-20P, or, with the included adaptor, NEMA 5-20P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.
Product Type	PDU

Technical Information

PDU Type	Monitored
Plug/Connector Type	NEMA L5-20P
Plug/Connector Detail	1 x NEMA L5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	8 x NEMA 5-20R
Features	LCD Display

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	120 V AC
Output Voltage Range	100 V AC - 120 V AC
Input Current	20 A
Input Frequency	60 Hz

Management

Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Remote Outlet Switching	No

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal/Vertical
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	12 ft
Height	1.8"
Width	17.1"
Depth	4.4"
Length	4.4"
Weight (Approximate)	6 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	131°F (55°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Package Contents	PDU31002 Adaptor
Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 112 (mm) Weight (kg) : 2.72 Weight (lb) : 6 Shipping Dimensions - (WxHxD) (cm) : 49.53 x 6.99 x 25.1 (cm) Shipping - Dimensions (WxHxD, in) : 19.5 x 2.75 x 9.88 (in) Shipping - Dimensions (WxHxD, mm) : 495.3 x 69.85 x 250.95 (mm) Shipping - Weight (kg) : 9.19 Shipping - Weight (lb) : 20.25 Cord Length : 12 ft (3.7 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P (5-20P Adapter) Maximum Input Current : 20A Power Cord Length : 12 ft (4 m) Circuit Quantity : 1 Nominal Output Voltage : 100 - 120 VAC Number of Outlets : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-20R Overload Protection : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : No Protocols : IPv4\|TCP/IP\|UDP\|SNMPv1\|HTTP\|NTP\|DNS\|Telnet\|DHCP\|SMTP\|FTP\|IPv6\|SNMPv3\|HTTPs\|SSH\|SSL\|TLS\|LDAP(S)\|RADIUS\|Syslog\|CLI\|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 131 °F (0 - 55 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 140 °F (-15 - 60 °C) Environmental : RoHS Compliant Safety : UL 60950-1 Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL 60950-1
Energy Star	No
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
