CyberPower PDU30MVT24F 100 - 125 VAC 30A Metered PDU

Name: CyberPower PDU30MVT24F 100 - 125 VAC 30A Metered PDU
Brand: CYBERPOWER
SKU: 9GM214
Price: 358.28 USD
Availability: InStock

CYBERPOWER

PCN#

9GM214

MFG#

PDU30MVT24F

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$358.28

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Outlets, 10 ft, NEMA L5
30P, Vertical, 0U, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 18 lbs.

CyberPower PDU30MVT24F 100 - 125 VAC 30A Metered PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU30MVT24F
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Metered PDU
Product Model	PDU30MVT24F
Product Name	PDU30MVT24F 100 - 125 VAC 30A Metered
Marketing Information	The CyberPower PDU30MVT24F, a 24-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 – 125 V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring.
Product Type	PDU

Technical Information

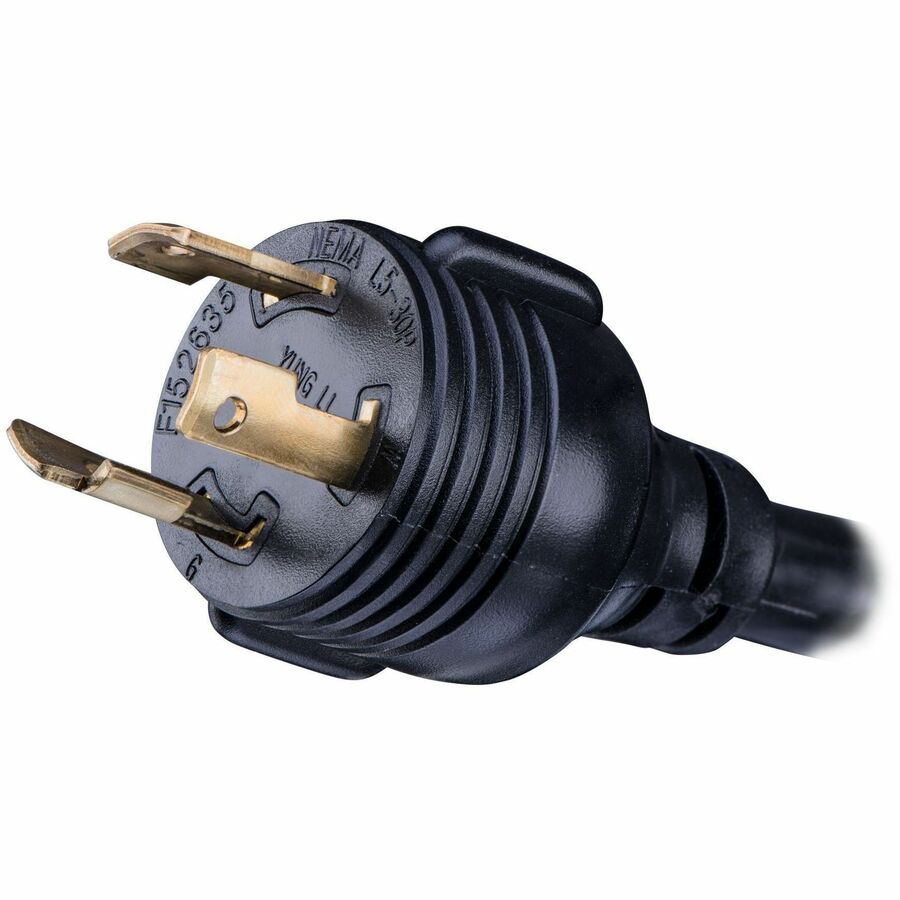

Plug/Connector Type	NEMA L5-30P
Plug/Connector Detail	1 x NEMA L5-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	24 x NEMA 5-20R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC

Physical Characteristics

Mounting Orientation	Horizontal/Vertical
Mount Type	Wall-mountable Rack-mountable
Weight (Approximate)	11.40 lb

Miscellaneous

Package Contents	Metered PDU30MVT24F 24-Outlets PDU Cord Retention Tray
Additional Information	Physical Dimensions - (WxHxD) (cm) : 4.45 x 152.4 x 5.72 (cm) Physical Dimensions - (WxHxD) (in) : 1.75 x 60 x 2.25 (in) Physical Dimensions - (WxHxD) (mm) : 44 x 1524 x 57 (mm) Weight (kg) : 5.17 Weight (lb) : 11.4 Shipping Dimensions - (WxHxD) (cm) : 18.03 x 7.62 x 164.47 (cm) Shipping - Dimensions (WxHxD, in) : 7.1 x 3.0 x 64.75 (in) Shipping - Dimensions (WxHxD, mm) : 180.34 x 76.2 x 1644.65 (mm) Shipping - Weight (kg) : 5.17 Shipping - Weight (lb) : 11.4 Cord Length : 10 ft (3.0 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-30P Maximum Input Current : 30A Plug Style : Straight (Twist Lock) Nominal Output Voltage : 100 - 125 VAC Outlets - Front : 24 Outlets - Rear : 0 Outlets - Total : 24 Outlet Type COMPUTED : 24 - NEMA 5-20R Overload Protection : 20A x 2 USB Charge Port : No Adjustable Mounting Brackets : 3 sets (L-Short, L-Long, Flat) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL60950_1 certified by ETL Product Warranty : Limited Lifetime Warranty
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
