CyberPower PDU30BT8F8R Single Phase 100 - 125 VAC 30A Basic PDU

Name: CyberPower PDU30BT8F8R Single Phase 100 - 125 VAC 30A Basic PDU
Brand: CYBERPOWER
SKU: 9GM226
Price: 221.31 USD
Availability: InStock

CYBERPOWER

PCN#

9GM226

MFG#

PDU30BT8F8R

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$221.31

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

16 Outlets, 12 ft, NEMA L5
30P, Horizontal, 1U, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 8 lbs.

CyberPower PDU30BT8F8R Single Phase 100 - 125 VAC 30A Basic PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU30BT8F8R
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Basic PDU
Product Model	PDU30BT8F8R
Product Name	PDU30BT8F8R Single Phase 100 - 125 VAC 30A Basic

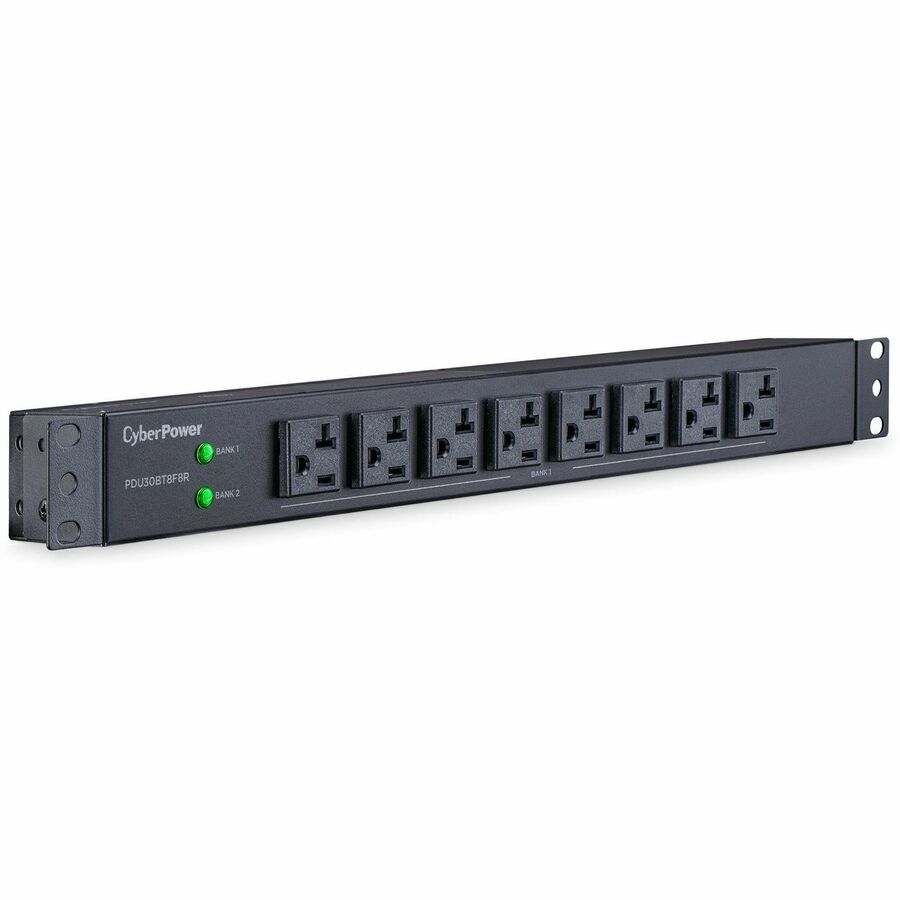

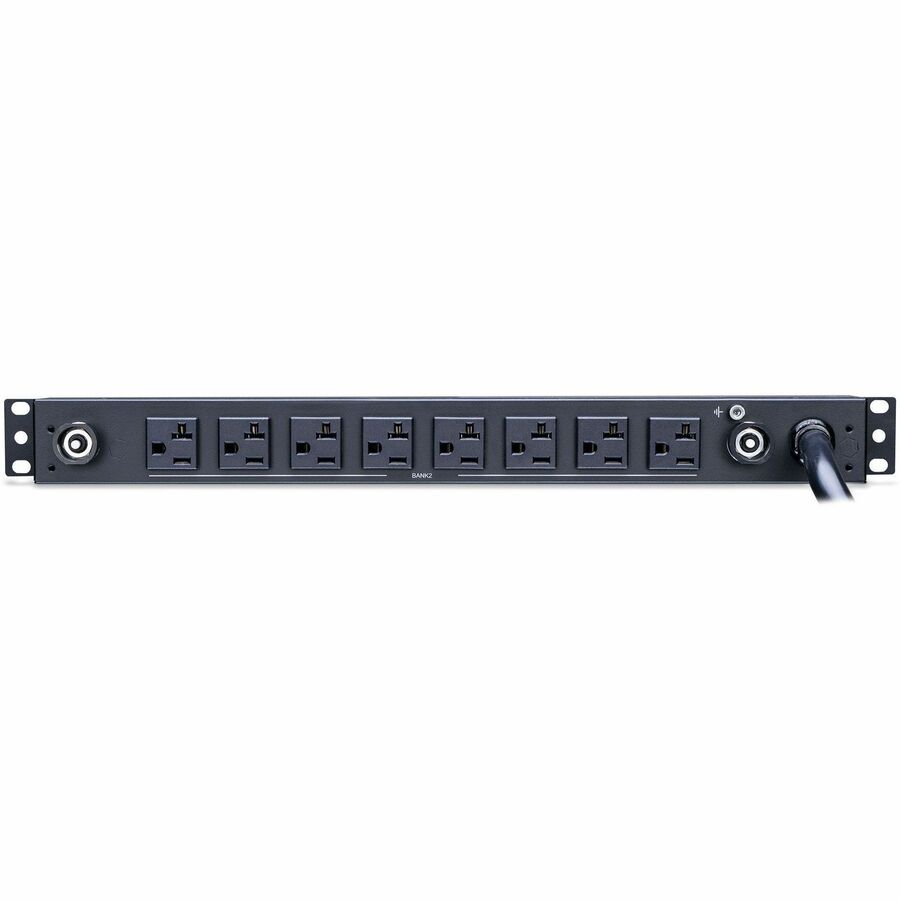

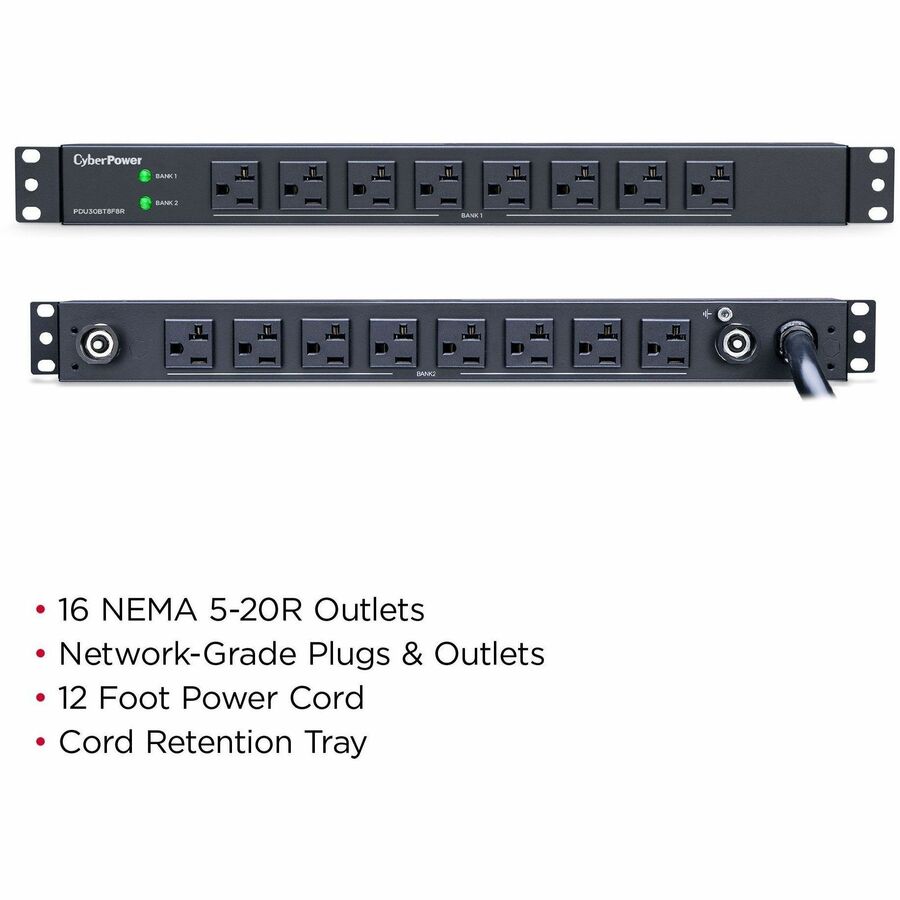

Marketing Information	The CyberPower PDU30BT8F8R, a 16-outlet (8 front, 8 rear) rackmount basic power distribution unit (PDU), provides 100-125V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BT8F8R has rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Single Phase

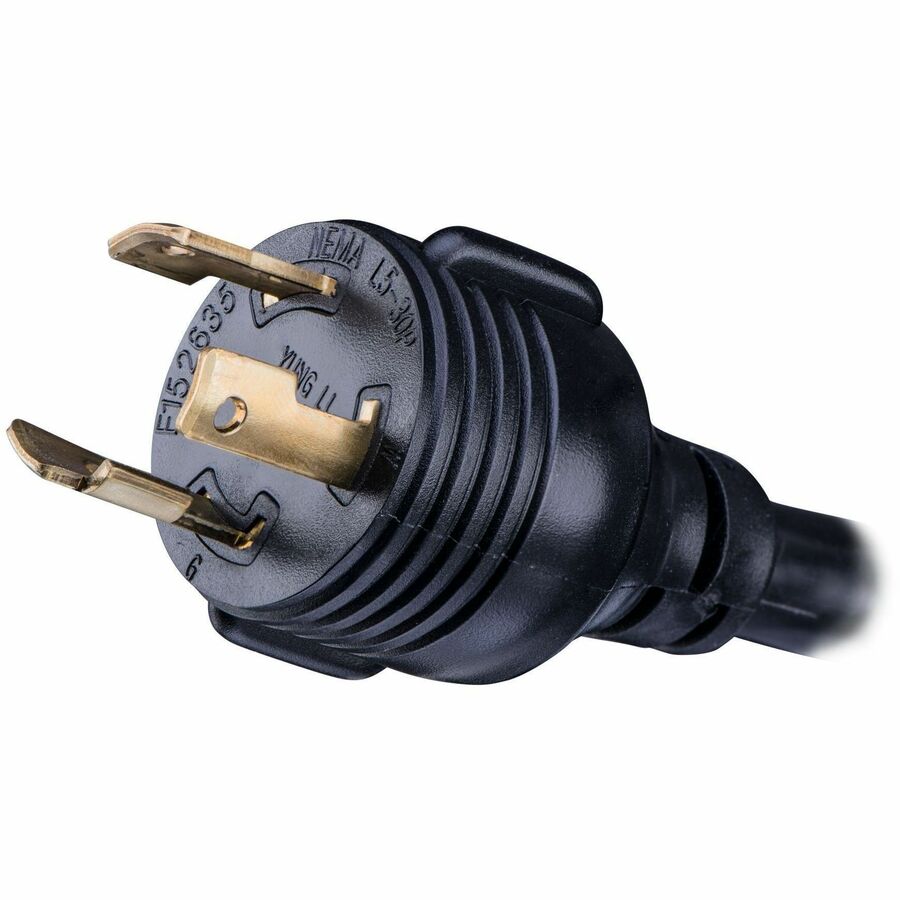

Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	16 x NEMA 5-20R
Protection Type	Overload Protection
Locking Receptacles	Cord Retention Tray

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage	100 V AC 125 V AC
Output Voltage Range	100 V AC - 125 V AC
Input Current	30 A
Input Frequency	60 Hz

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Horizontal
Mount Type	Rack-mountable Wall-mountable
Form Factor	Horizontal/Vertical
Rack Height	1U
Cord Length	12 ft

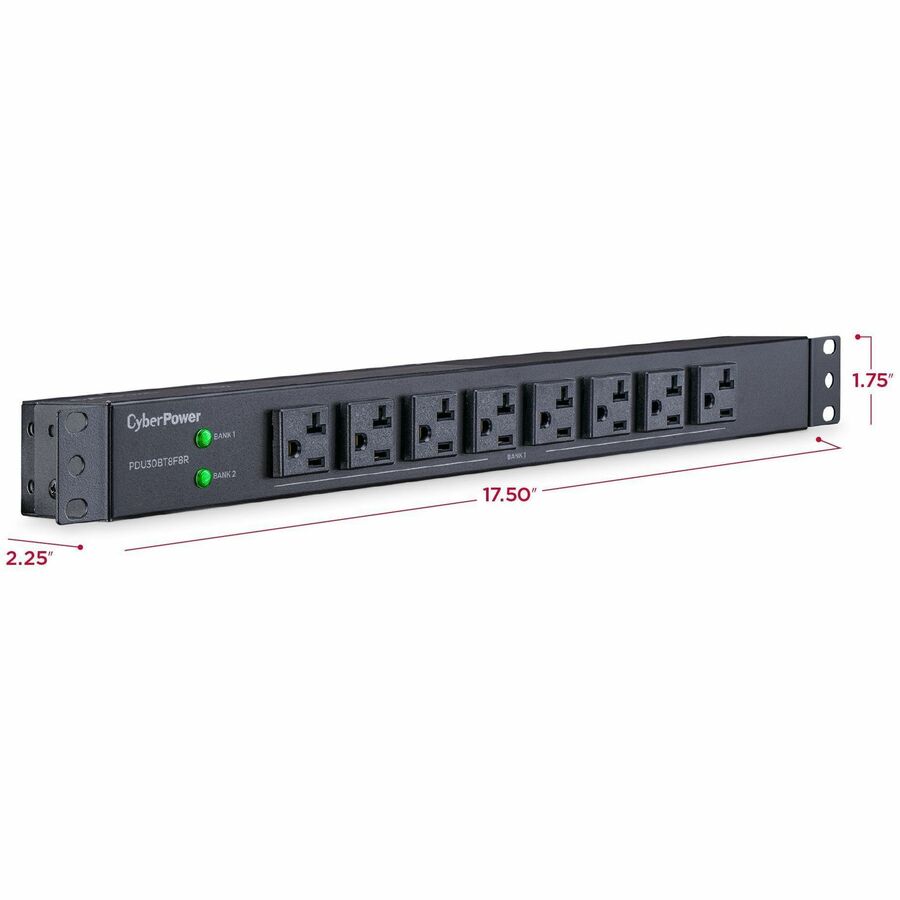

Height	1.8"
Width	17.5"
Depth	2.3"
Weight (Approximate)	6 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	95°F (35°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	113°F (45°C)

Miscellaneous

Package Contents	Basic PDU30BT8F8R 16-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card
Additional Information	Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm) Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in) Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm) Weight (kg) : 2.72 Weight (lb) : 6 Shipping Dimensions - (WxHxD) (cm) : 22.63 x 6.68 x 50.8 (cm) Shipping - Dimensions (WxHxD, in) : 8.91 x 2.63 x 20.0 (in) Shipping - Dimensions (WxHxD, mm) : 226.31 x 66.8 x 508.0 (mm) Shipping - Weight (kg) : 9.47 Shipping - Weight (lb) : 20.88 Cord Length : 12 ft (3.7 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-30P Maximum Input Current : 30A Nominal Input Voltage : 100 - 125 VAC Phase : Single Phase Plug Style : Straight (Twist Lock) Nominal Output Voltage : 100 - 125 VAC Outlets - Front : 8 Outlets - # of Banks : 1 Outlets - Rear : 8 Outlets - Total : 16 Outlet Type COMPUTED : 16 - NEMA 5-20R Overload Protection : 20A x 2 USB Charge Port : No Adjustable Mounting Brackets : 2 sets (L-Short, L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL62368 Product Warranty : Limited Lifetime Warranty
Application/Usage	Network Device Server
Certifications & Standards	UL60950_1 certified by ETL CSA C22.2
Energy Star	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
