CyberPower Metered ATS PDU PDU24006 10-Outlets PDU

by
CYBERPOWER
PCN#
08AU69
MFG#
PDU24006
$447.28
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Metered
  • NEMA L6
  • 20P

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 11 lbs.
CyberPower Metered ATS PDU PDU24006 10-Outlets PDU
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PDU24006

Manufacturer Website Address

https://www.cyberpowersystems.com/

Brand Name

CyberPower

Product Series

Metered ATS PDU

Product Model

PDU24006

Product Name

Metered ATS PDU PDU24006 10-Outlets PDU

Marketing Information

Ensure continued operation of critical devices with the CyberPower PDU24006 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

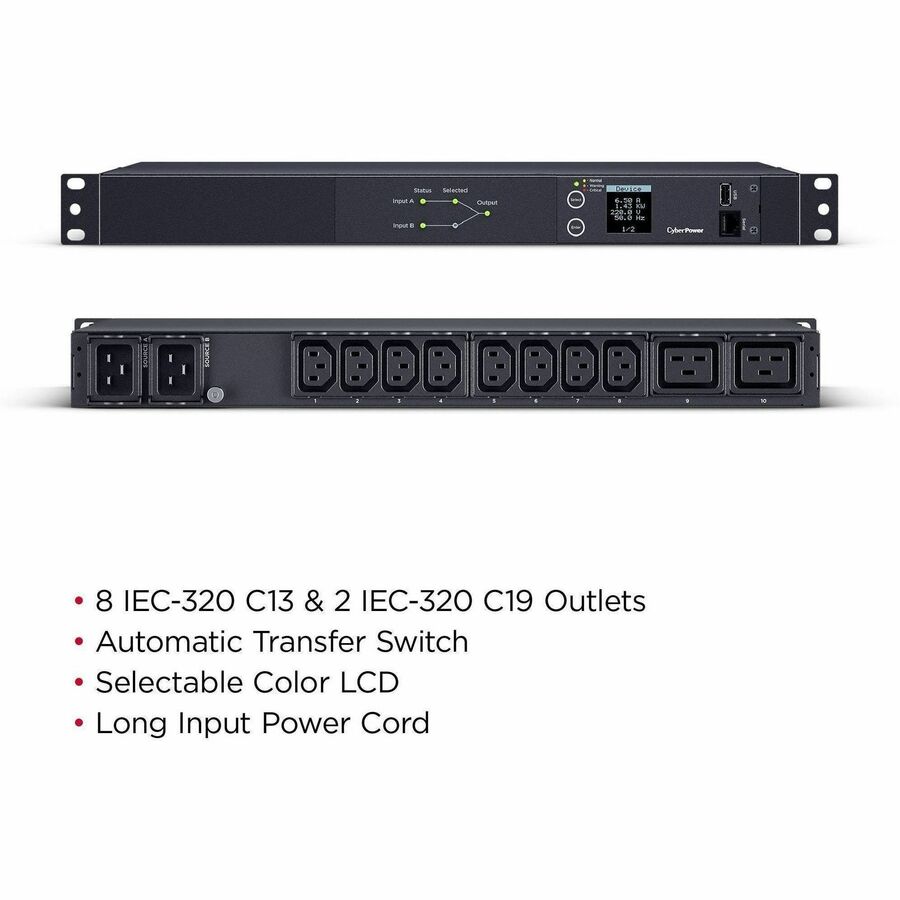

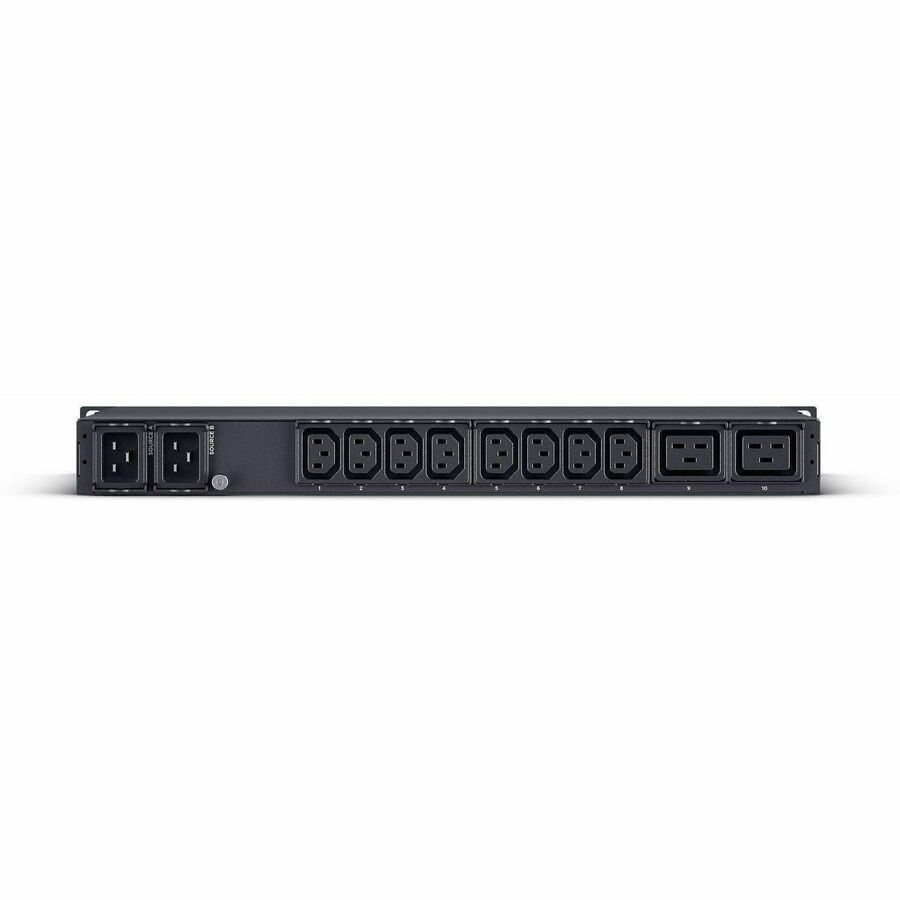

The PDU24006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24006 is protected by a three-year limited warranty.

Product Type

PDU
Technical Information

PDU Type

Metered

Phase

Single Phase

Plug/Connector Type

NEMA L6-20P

Plug/Connector Detail

2 x NEMA L6-20P

Receptacle Type

  • IEC 60320 C13
  • IEC 60320 C19

Receptacle Detail

  • 8 x IEC 60320 C13
  • 2 x IEC 60320 C19

Protection Type

Overload Protection
Power Description

Input Voltage

230 V AC

Input Voltage Range

200 V AC - 240 V AC

Output Voltage

230 V AC

Output Voltage Range

200 V AC - 240 V AC

Input Current

20 A
Interfaces/Ports

Network (RJ-45)

Yes
Physical Characteristics

Product Color

Black

Mounting Orientation

Horizontal

Mount Type

Rack-mountable

Rack Height

1U

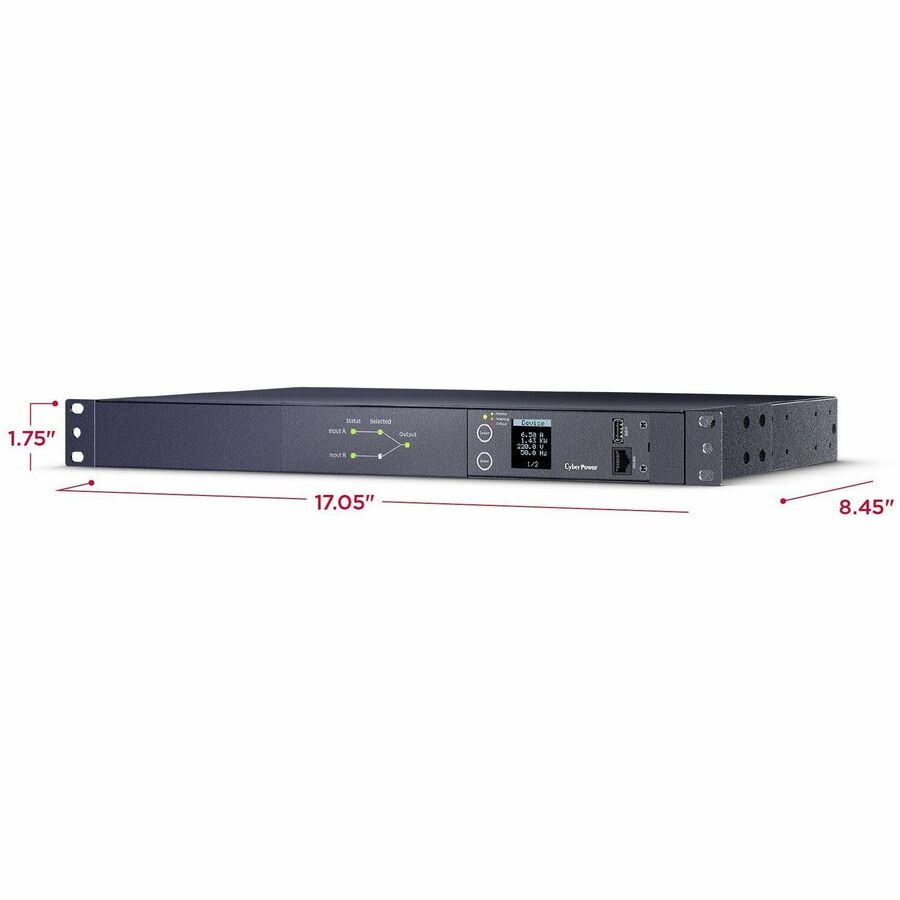

Height

1.8"

Width

17.1"

Depth

8.4"

Weight (Approximate)

11 lb
Miscellaneous

Country of Origin

China

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

3 Year
