CyberPower PDU20SWHVT10ATNET 200 - 240 VAC 20A Switched ATS PDU

Name: CyberPower PDU20SWHVT10ATNET 200 - 240 VAC 20A Switched ATS PDU
Brand: CYBERPOWER
SKU: 4445AK
Price: 647.84 USD
Availability: InStock

CYBERPOWER

PCN#

4445AK

MFG#

PDU20SWHVT10ATNET

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$647.84

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

10 Outlets, 10 ft, 2 x NEMA L6
20P, Horizontal, 1U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL60950-1 Certified by ETL (USA)CSA C22.2(Canada)FCC Class AEnergy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 16 lbs.

CyberPower PDU20SWHVT10ATNET 200 - 240 VAC 20A Switched ATS PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU20SWHVT10ATNET
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Switched ATS PDU
Product Model	PDU20SWHVT10ATNET
Product Name	PDU20SWHVT10ATNET 200 - 240 VAC 20A Switched ATS

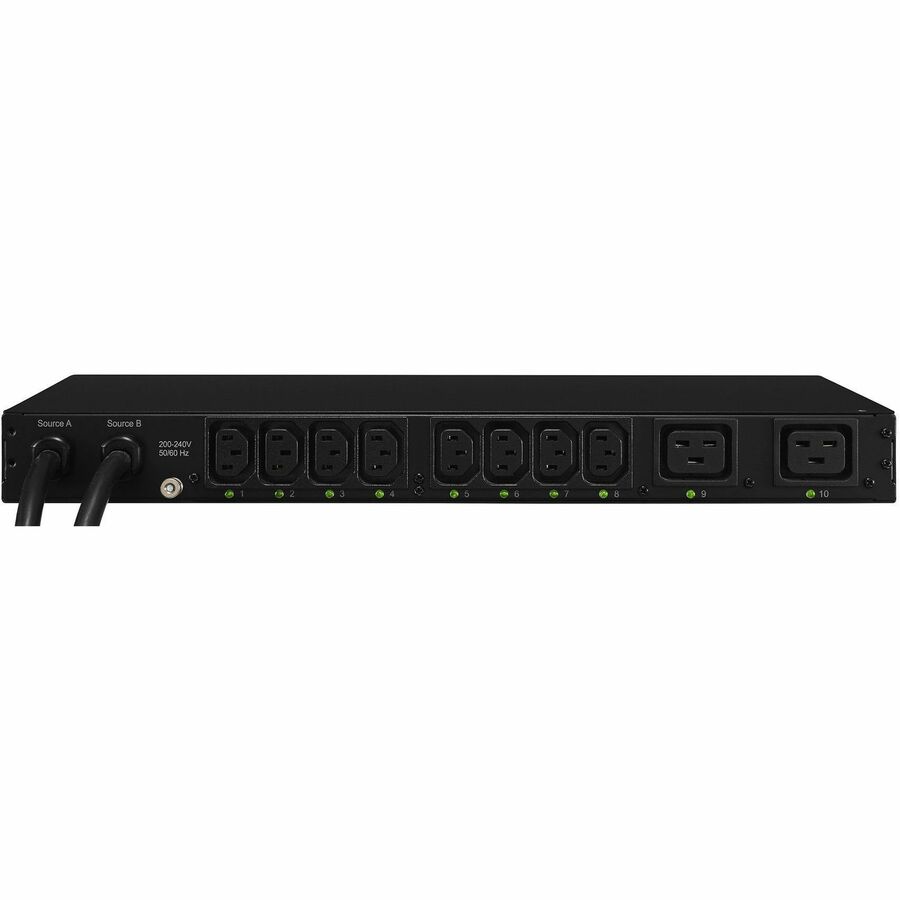

Marketing Information	The CyberPower PDU20SWHVT10ATNET, a 10-outlet (rear), 1U rackmount switched automatic transfer switch (ATS) power distribution unit (PDU), provides 200-240V 20A output. It distributes unfiltered electrical pass-through to to 10 receptacles--8 IEC-320 C13 and 2 IEC-320 C19 receptacles--from redundant NEMA L6-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU20SWHVT10ATNET includes a SNMP/HTTP card (RMCARD203). With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the PDU. The switched outlet receptacles can be managed individually or collectively. The LCD panel provides local monitoring of the PDU and on/off control for the outlets. It can also be used to measure the electrical current (displayed in amperes) used by connected equipment. The LCD panel also shows input and output voltages, active power consumption levels (displayed in kilowatts), and hardware and firmware versions. Designed for datacenters and other demanding electrical applications, the PDU20SWHVT10ATNET has rugged, industrial-grade metal housing, a 10-foot AC power cord, and a cord retention tray. It can be mounted horizontally and is UL and CSA certified by ETL, and Class A FCC-certified. A three-year warranty covers the PDU and connected equipment for as long as you own the product.
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	NEMA L6-20P
Plug/Connector Detail	2 x NEMA L6-20P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	8 x IEC 60320 C13 2 x IEC 60320 C19

Power Description

Input Voltage	230 V AC
Output Voltage	230 V AC
Input Current	20 A

Management

Automatic Transfer Switch (ATS)
SNMP/HTTP

Physical Characteristics

Mount Type	Rack-mountable
Rack Height	1U
Cord Length	10 ft
Height	1.8"
Width	17.1"
Length	9.3"
Weight (Approximate)	12.35 lb

Miscellaneous

Package Contents	PDU20SWHVT10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P RMCARD203 SNMP Card 1 x Mounting Brackets Set Cord Retention Tray Cord Organizers User Manual
Additional Information	Physical Dimensions - (WxHxD) (cm) : 4.45 x 43.31 x 23.62 (cm) Physical Dimensions - (WxHxD) (in) : 1.75 x 17.05 x 9.3 (in) Physical Dimensions - (WxHxD) (mm) : 44 x 433 x 236 (mm) Weight (kg) : 5.6 Weight (lb) : 12.35 Shipping Dimensions - (WxHxD) (cm) : 41.91 x 12.7 x 54.61 (cm) Shipping - Dimensions (WxHxD, in) : 16.5 x 5.0 x 21.5 (in) Shipping - Dimensions (WxHxD, mm) : 419.1 x 127.0 x 546.1 (mm) Shipping - Weight (kg) : 5.6 Shipping - Weight (lb) : 12.35 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : 2 x NEMA L6-20P Maximum Input Current : 20A Nominal Input Voltage : 200 - 240 VAC On/Off Switch : No Plug Style : Straight (Twist Lock) Nominal Output Voltage : 200 - 240 VAC Outlet Banks : 1 Outlets - Front : 0 Outlets - Rear : 10 Outlets - Total : 10 Outlet Type COMPUTED : 8 - IEC-320 C13 Overload Protection : None USB Charge Port : No Hardware Connection Port : RJ45 LCD : Multifunction LCD LED Indicators : Input Protocols : TCP/IP\|UDP\|DHCP\|SNMP\|HTTP SNMP / HTTP Remote Monitoring : Yes - RMCARD203 pre-installed or with optional RMCARD205 Adjustable Mounting Brackets : 1 set (L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Online Thermal Dissipation : 41 BTU/hr Operating Elevation : 0 - 13100 ft (0 - 3993 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL60950_1 certified by ETL Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL60950-1 Certified by ETL (USA) CSA C22.2(Canada) FCC Class A
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
