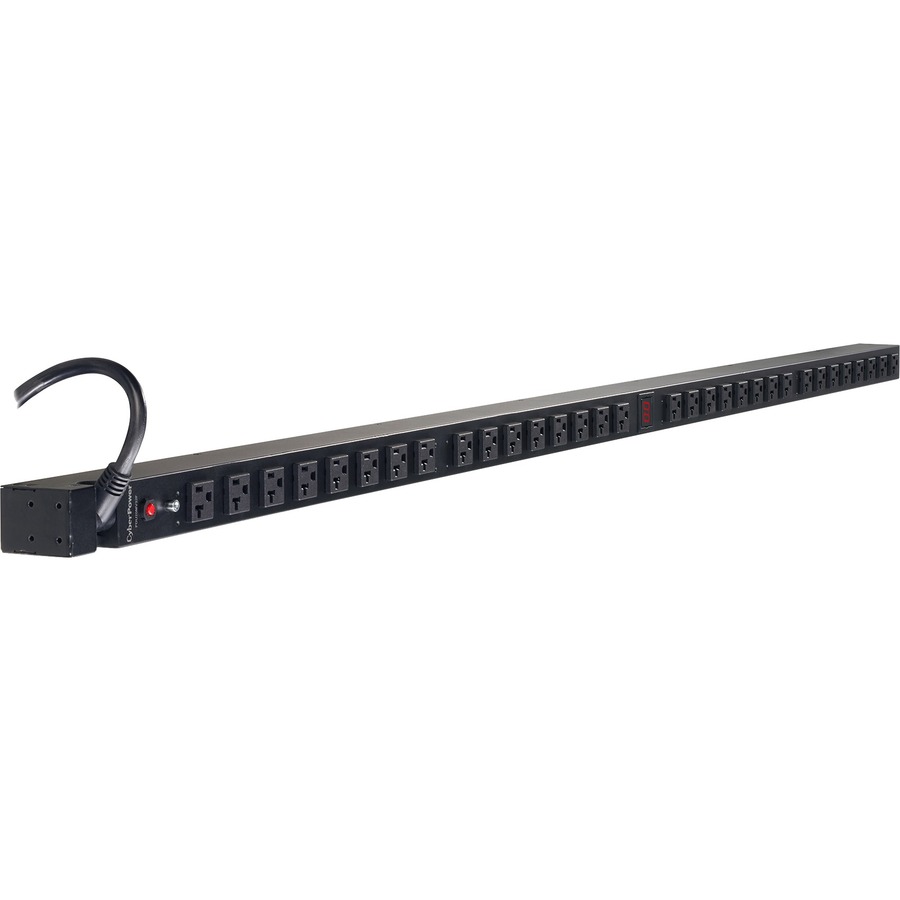

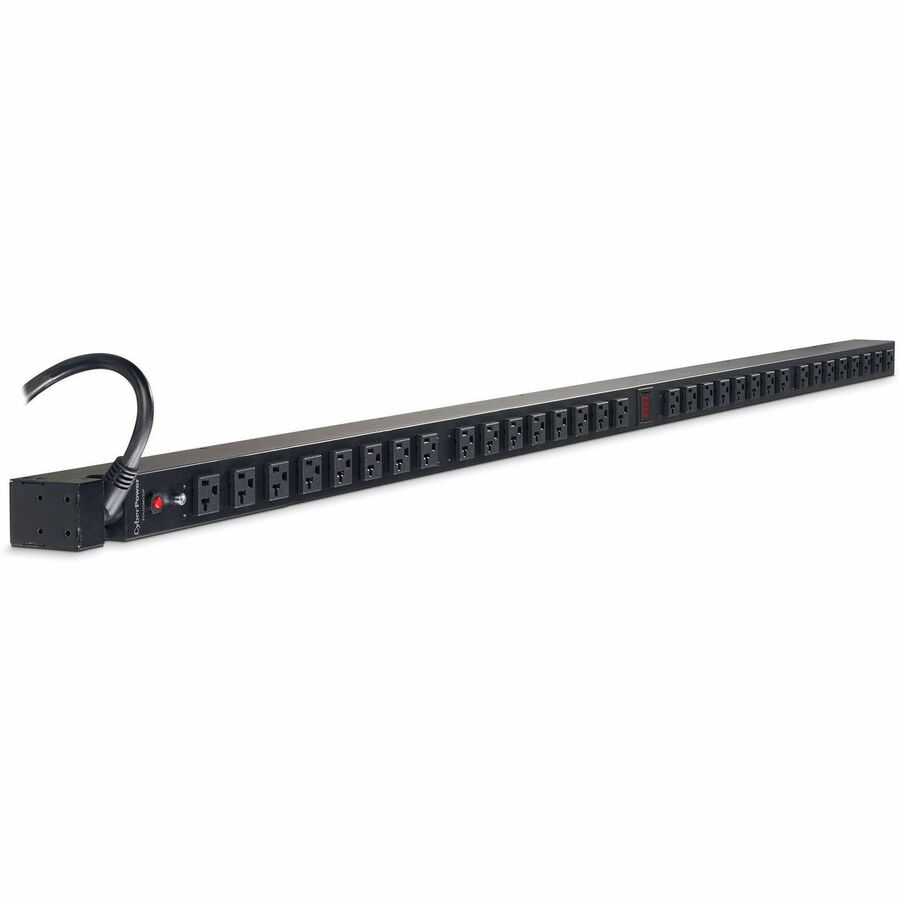

CyberPower PDU20MV32F 100 - 125 VAC 20A Metered PDU

by
CYBERPOWER
PCN#
9MF686
MFG#
PDU20MV32F
$292.06
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 32 Outlets, 10 ft, NEMA 5
  • 20P, Vertical, 0U, Lifetime Warranty
Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 19 lbs.
CyberPower PDU20MV32F 100 - 125 VAC 20A Metered PDU
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PDU20MV32F

Manufacturer Website Address

https://www.cyberpowersystems.com/

Brand Name

CyberPower

Product Series

Metered PDU

Product Model

PDU20MV32F

Product Name

Metered PDU20MV32F 32-Outlets PDU

Marketing Information

The CyberPower Metered PDU20MV32F 32-Outlets PDU provides 120V 20A output. It distributes power to 32 NEMA 5-20R receptacles from a single NEMA 5-20P plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

Product Type

PDU
Technical Information

Plug/Connector Type

NEMA 5-20P

Receptacle Type

NEMA 5-20R

Receptacle Detail

32 x NEMA 5-20R

Protection Type

Overload Protection
Power Description

Input Voltage

120 V AC

Output Voltage

120 V AC
Physical Characteristics

Mounting Orientation

Vertical

Mount Type

Rack-mountable

Height

70"

Width

1.8"

Depth

2.3"

Weight (Approximate)

11.70 lb
Miscellaneous

Package Contents

  • Metered PDU20MV32F 32-Outlets PDU
  • Cord Retention Tray

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

Lifetime
