CyberPower PDU20BVT14F 100 - 125 VAC 20A Basic PDU

Name: CyberPower PDU20BVT14F 100 - 125 VAC 20A Basic PDU
Brand: CYBERPOWER
SKU: 9JN637
Price: 165.13 USD
Availability: InStock

CYBERPOWER

PCN#

9JN637

MFG#

PDU20BVT14F

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$165.13

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

14 Outlets, 10 ft, NEMA L5
20P, Vertical, 0U, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 8 lbs.

CyberPower PDU20BVT14F 100 - 125 VAC 20A Basic PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU20BVT14F
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Basic PDU
Product Model	PDU20BVT14F
Product Name	PDU20BVT14F 100 - 125 VAC 20A Basic

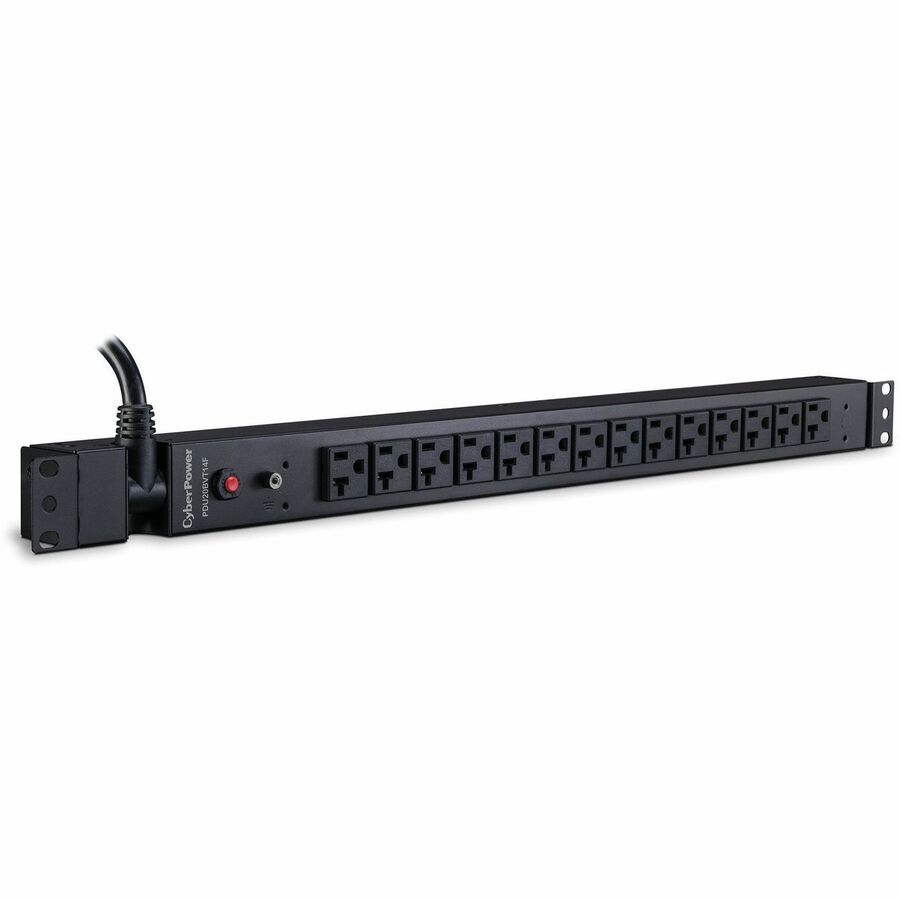

Marketing Information	The CyberPower PDU20BVT14F, a 14-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 14 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVT14F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Single Phase
Plug/Connector Type	NEMA L5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	14 x NEMA 5-20R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage Range	100 V AC - 125 V AC

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	24"
Width	1.8"
Depth	1.5"
Weight (Approximate)	4.60 lb

Miscellaneous

Package Contents	Basic PDU20BVT14F 14-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card
Additional Information	Physical Dimensions - (WxHxD) (cm) : 4.45 x 60.96 x 3.81 (cm) Physical Dimensions - (WxHxD) (in) : 1.75 x 24 x 1.5 (in) Physical Dimensions - (WxHxD) (mm) : 44 x 610 x 38 (mm) Weight (kg) : 2.09 Weight (lb) : 4.6 Shipping Dimensions - (WxHxD) (cm) : 15.24 x 7.62 x 72.39 (cm) Shipping - Dimensions (WxHxD, in) : 6.0 x 3.0 x 28.5 (in) Shipping - Dimensions (WxHxD, mm) : 152.4 x 76.2 x 723.9 (mm) Shipping - Weight (kg) : 2.04 Shipping - Weight (lb) : 4.5 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P Maximum Input Current : 20A Plug Style : Straight (Twist Lock) Nominal Output Voltage : 100 - 125 VAC Outlets - Front : 14 Outlets - Rear : 0 Outlets - Total : 14 Outlet Type COMPUTED : 14 - NEMA 5-20R Overload Protection : 20A USB Charge Port : No Adjustable Mounting Brackets : 3 sets (L-Short, L-Long, Flat) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1363 certified by ETL Product Warranty : Limited Lifetime Warranty
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
