CyberPower PDU20BVHVT24F 200 - 230 VAC 20A Basic PDU

Name: CyberPower PDU20BVHVT24F 200 - 230 VAC 20A Basic PDU
Brand: CYBERPOWER
SKU: 9GM232
Price: 250.7 USD
Availability: InStock

CYBERPOWER

PCN#

9GM232

MFG#

PDU20BVHVT24F

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$250.70

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Outlets, 10 ft, NEMA L6
20P, Vertical, 0U, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

CyberPower PDU20BVHVT24F 200 - 230 VAC 20A Basic PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU20BVHVT24F
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Model	PDU20BVHVT24F
Product Name	PDU20BVHVT24F 200 - 230 VAC 20A Basic

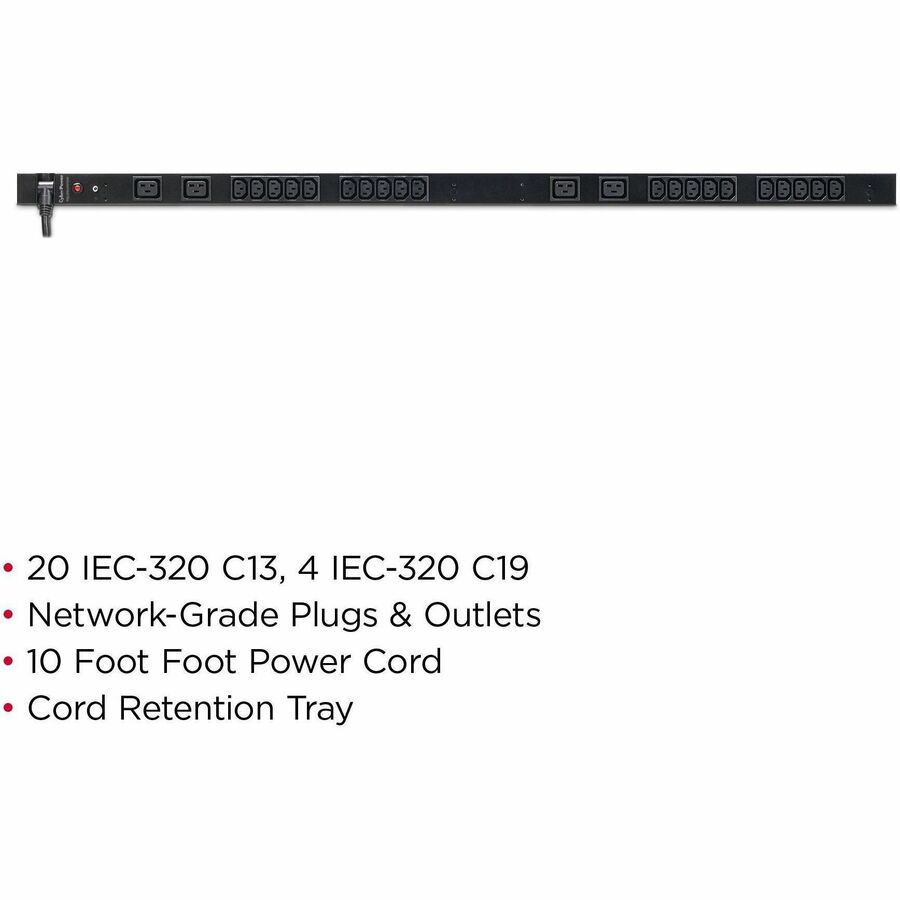

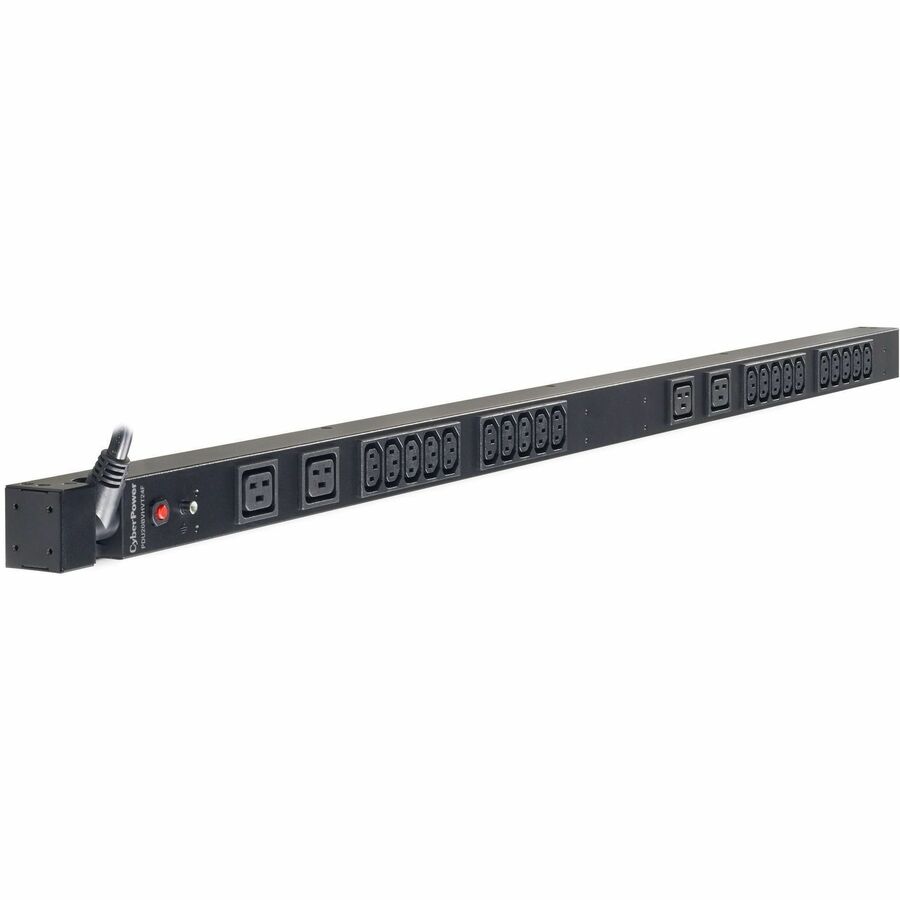

Marketing Information	The CyberPower PDU20BVHVT24F, a 24-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 20 IEC-320 C13, 4 IEC-320 C19 receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVHVT24F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Product Type	PDU

Technical Information

PDU Type	Basic
Plug/Connector Type	NEMA L6-20P
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	4 x IEC 60320 C19 20 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Output Voltage	230 V AC

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable

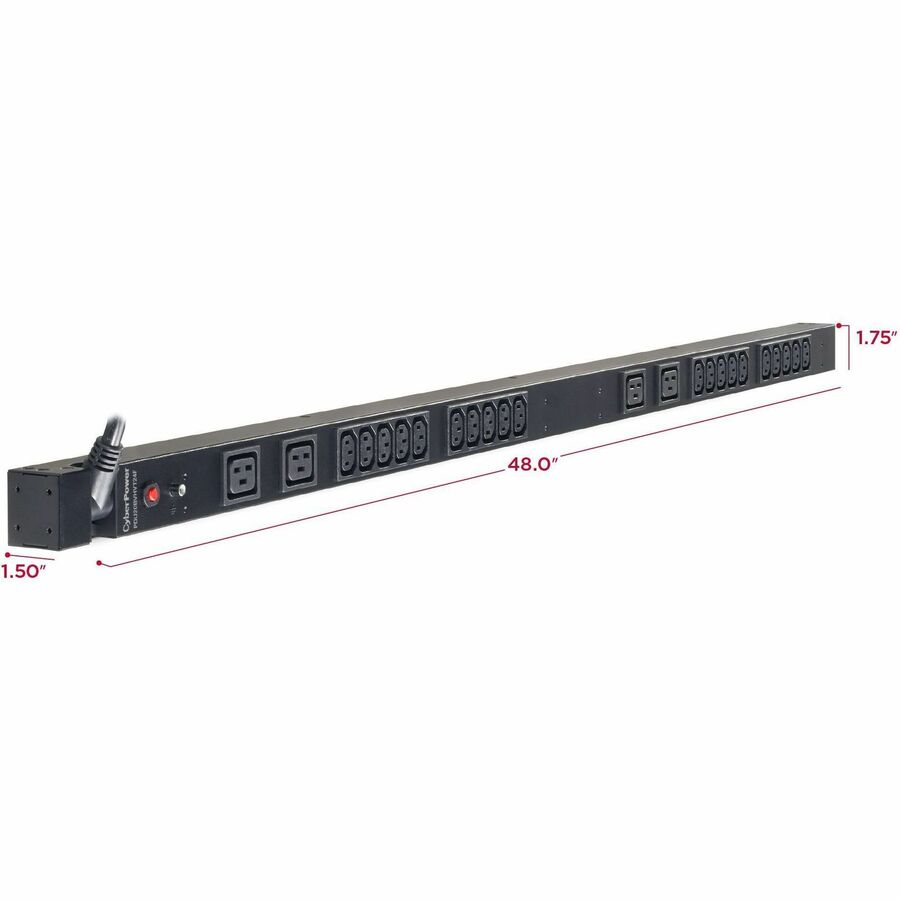

Height	48"
Width	1.8"
Length	1.5"
Weight (Approximate)	7.30 lb

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 4.45 x 121.92 x 3.81 (cm) Physical Dimensions - (WxHxD) (in) : 1.75 x 48 x 1.5 (in) Physical Dimensions - (WxHxD) (mm) : 44 x 1219 x 38 (mm) Weight (kg) : 3.31 Weight (lb) : 7.3 Shipping Dimensions - (WxHxD) (cm) : 133.35 x 7.62 x 15.24 (cm) Shipping - Dimensions (WxHxD, in) : 52.5 x 3.0 x 6.0 (in) Shipping - Dimensions (WxHxD, mm) : 1333.5 x 76.2 x 152.4 (mm) Shipping - Weight (kg) : 5.44 Shipping - Weight (lb) : 12.0 Cord Length : 10 ft (3.0 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-20P Maximum Input Current : 20A Plug Style : Straight (Twist Lock) Nominal Output Voltage : 200 - 230 VAC Outlets - Front : 24 Outlets - Rear : 0 Outlets - Total : 24 Outlet Type COMPUTED : 4 - IEC-320 C19 Overload Protection : 16A USB Charge Port : No Adjustable Mounting Brackets : 3 sets (L-Short, L-Long, Flat) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL60950_1 certified by ETL Product Warranty : Limited Lifetime Warranty
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
