CyberPower PDU20BV32F 100 - 125 VAC 20A Basic PDU

Name: CyberPower PDU20BV32F 100 - 125 VAC 20A Basic PDU
Brand: CYBERPOWER
SKU: 9JN636
Price: 280.65 USD
Availability: InStock

CYBERPOWER

PCN#

9JN636

MFG#

PDU20BV32F

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$280.65

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

32 Outlets, 10 ft, NEMA 5
20P, Vertical, 0U, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 17 lbs.

CyberPower PDU20BV32F 100 - 125 VAC 20A Basic PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU20BV32F
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Basic PDU
Product Model	PDU20BV32F
Product Name	PDU20BV32F 32-Outlets PDU

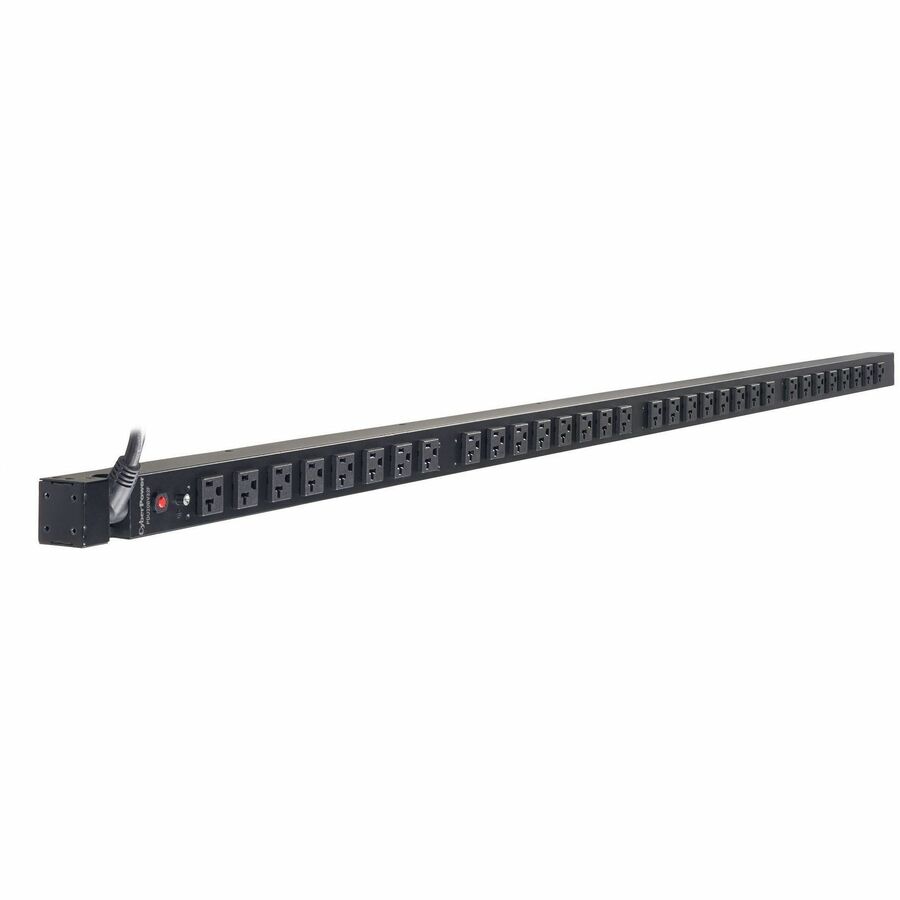

Marketing Information	The CyberPower PDU20BV32F, a 32-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 100 - 125 V 20A output. It distributes power to 32 NEMA 5-20R receptacles from a single NEMA 5-20P plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BV32F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warrantycovers defects in materials and workmanship in the product under normal use and conditions. Power Distribution Delivers AC power to servers, equipment, and connected devices via a power distribution unit. Switch-Free Design Safeguards against accidental power shutdown. Network-Grade Plugs and Outlets Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices. Long Input Power Cord Reaches distant power sources, allowing the PDU to be placed where it's needed. Cord Retention Tray Secures power cords, keeping them organized and accessible. Helps cords stay plugged in. Configurable Mounting Brackets Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount). Durable Metal Housing Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product. Limited Lifetime Warranty Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details. What's In The Box PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Single Phase
Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	32 x NEMA 5-20R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage Range	100 V AC - 125 V AC
Input Current	20 A

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Height	70"
Width	1.8"
Depth	1.5"
Weight (Approximate)	10 lb

Miscellaneous

Package Contents	PDU20BV32F 32-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
