CyberPower Basic PDU20BT6F12R 18-Outlets PDU

Name: CyberPower Basic PDU20BT6F12R 18-Outlets PDU
Brand: CYBERPOWER
SKU: 9MF673
Price: 226.72 USD
Availability: InStock

CYBERPOWER

PCN#

9MF673

MFG#

PDU20BT6F12R

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$226.72

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

18 Outlets, 15 ft, NEMA L5
20P, Horizontal, 1U, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 7 lbs.

CyberPower PDU20BT6F12R 100 - 125 VAC 20A Basic PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU20BT6F12R
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Model	PDU20BT6F12R
Product Name	PDU20BT6F12R 100 - 125 VAC 20A Basic

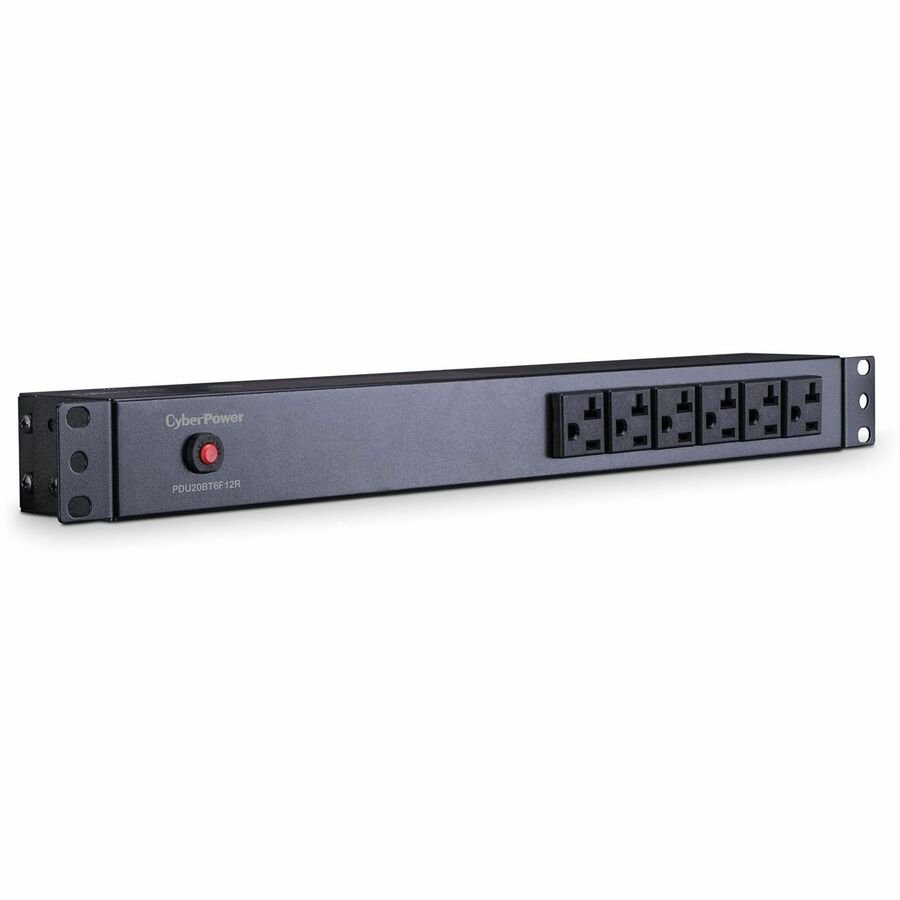

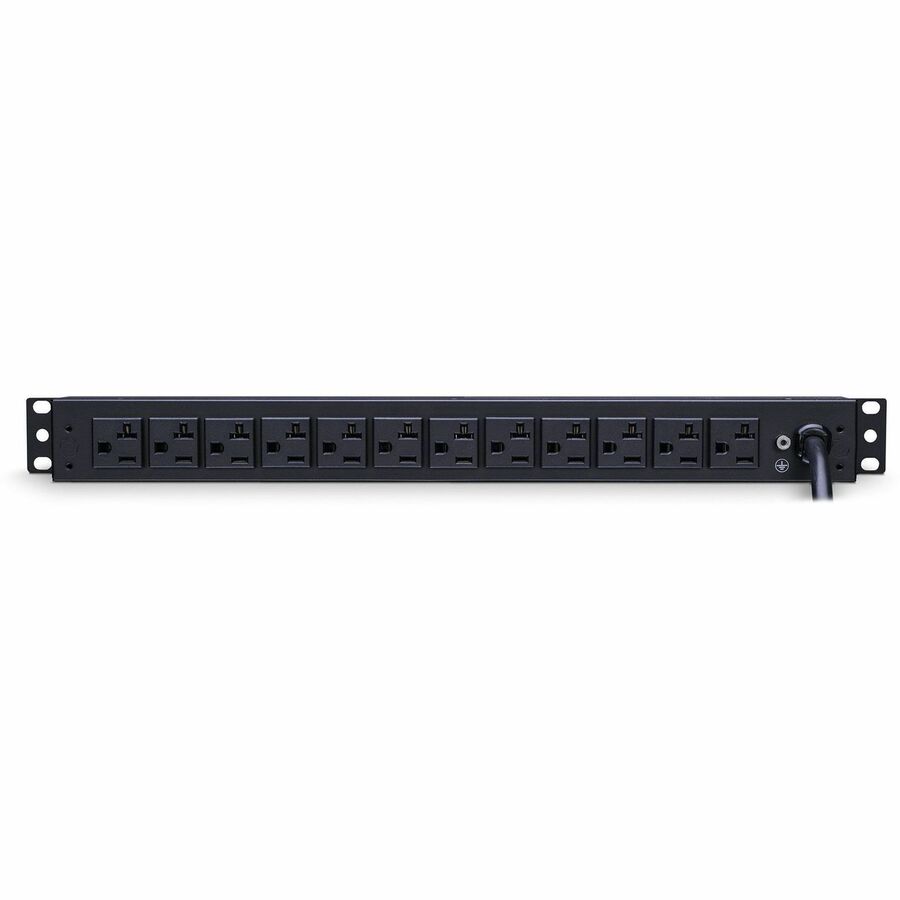

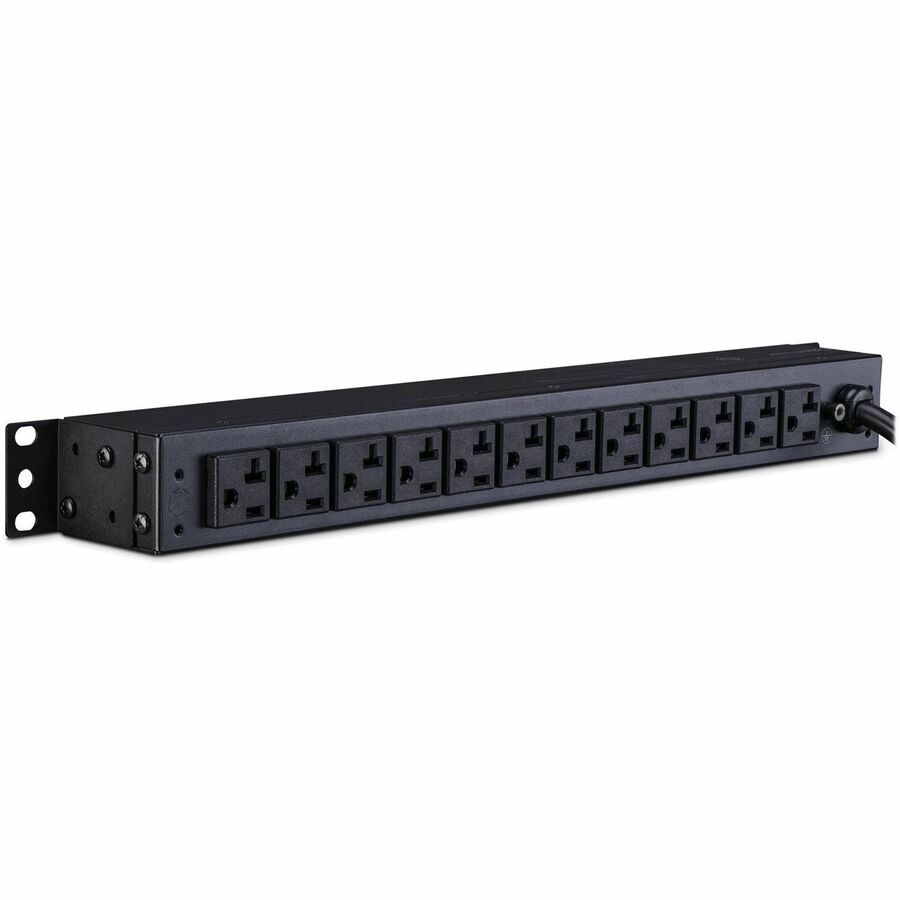

Marketing Information	The CyberPower PDU20BT6F12R, an 18-outlet (6 front, 12 rear) rackmount basic power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 18 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BT6F12R has rugged, industrial-grade metal housing, and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Product Type	PDU

Technical Information

PDU Type	Basic
Plug/Connector Type	NEMA L5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	18 x NEMA 5-20R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	1U
Height	1.8"
Width	17.5"
Depth	2.3"
Weight (Approximate)	4.67 lb

Miscellaneous

Package Contents	Basic PDU20BT6F12R 18-Outlets PDU Cord Retention Tray
Additional Information	Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm) Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in) Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm) Weight (kg) : 2.13 Weight (lb) : 4.7 Shipping Dimensions - (WxHxD) (cm) : 17.78 x 6.35 x 50.8 (cm) Shipping - Dimensions (WxHxD, in) : 7 x 2.5 x 20 (in) Shipping - Dimensions (WxHxD, mm) : 177.8 x 63.5 x 508.0 (mm) Shipping - Weight (kg) : 3.19 Shipping - Weight (lb) : 7.03 Cord Length : 15 ft (4.6 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P Maximum Input Current : 20A Plug Style : Straight (Twist Lock) Nominal Output Voltage : 100 - 125 VAC Outlets - Front : 6 Outlets - Rear : 12 Outlets - Total : 18 Outlet Type COMPUTED : 18 - NEMA 5-20R Overload Protection : 20A USB Charge Port : No Adjustable Mounting Brackets : 2 sets (L-Short, L-Long) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1363 certified by ETL Product Warranty : Limited Lifetime Warranty
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
