CyberPower PDU20BHVT12R 200 - 230 VAC 20A Basic PDU

Name: CyberPower PDU20BHVT12R 200 - 230 VAC 20A Basic PDU
Brand: CYBERPOWER
SKU: 9GM185
Price: 156.76 USD
Availability: InStock

CYBERPOWER

PCN#

9GM185

MFG#

PDU20BHVT12R

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$156.76

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

12 Outlets, 10 ft, NEMA L6
20P, Horizontal, 1U, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 6 lbs.

CyberPower PDU20BHVT12R 200 - 230 VAC 20A Basic PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU20BHVT12R
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Basic PDU
Product Model	PDU20BHVT12R
Product Name	Basic PDU20BHVT12R 12-Outlets PDU
Marketing Information	The CyberPower PDU20BHVT12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVT12R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. Power Distribution Delivers AC power to servers, equipment, and connected devices via a power distribution unit. Switch-Free Design Safeguards against accidental power shutdown. Network-Grade Plugs and Outlets Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices. Long Input Power Cord Reaches distant power sources, allowing the PDU to be placed where it's needed. Twist Lock Plug Secures an outlet by twisting and locking into place to prevent accidental disconnection. Cord Retention Tray Secures power cords, keeping them organized and accessible. Helps cords stay plugged in. Configurable Mounting Brackets Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount). Durable Metal Housing Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product. Limited Lifetime Warranty Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details. What's In The Box PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Single Phase
Plug/Connector Type	NEMA L6-20P
Receptacle Type	IEC 60320 C13
Receptacle Detail	12 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 230 V AC
Output Voltage Range	200 V AC - 230 V AC

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	1U

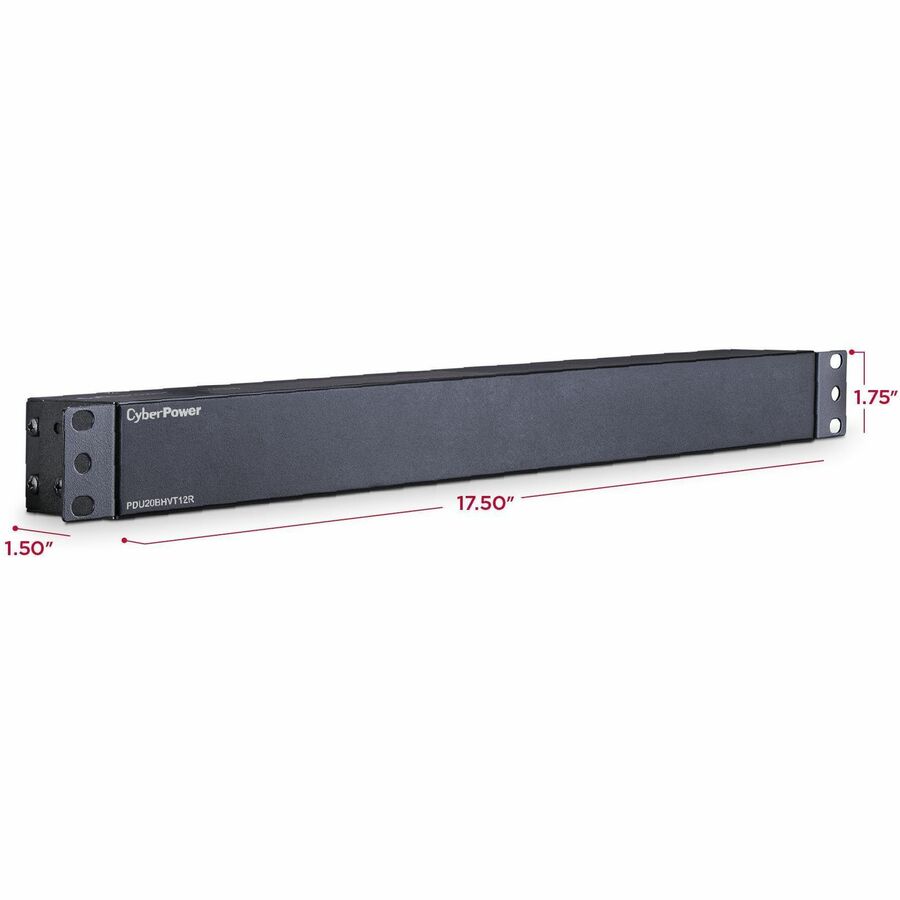

Height	1.8"
Width	17.5"
Depth	1.5"
Weight (Approximate)	3.70 lb

Miscellaneous

Package Contents	Basic PDU20BHVT12R 12-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card
Certifications & Standards	UL60950_1 certified by ETL CSA C22.2
Energy Star	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
