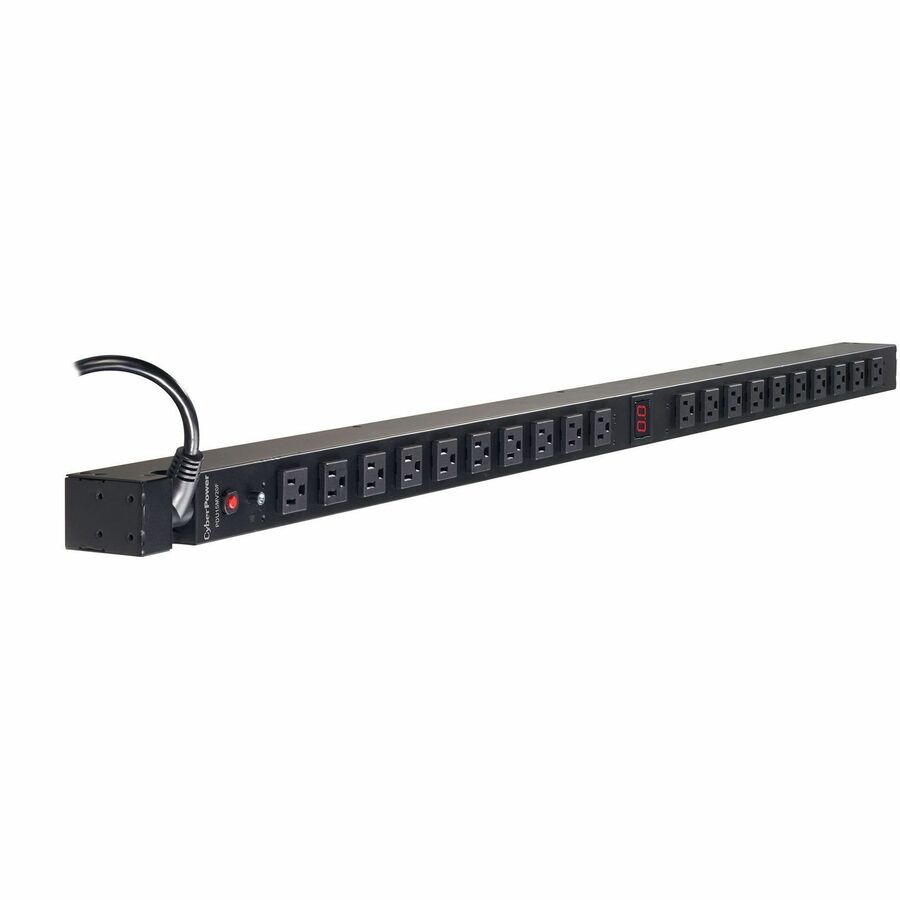

CyberPower PDU15MV20F 100 - 125 VAC 15A Metered PDU

Name: CyberPower PDU15MV20F 100 - 125 VAC 15A Metered PDU
Brand: CYBERPOWER
SKU: 9GM138
Price: 180.85 USD
Availability: InStock

CYBERPOWER

PCN#

9GM138

MFG#

PDU15MV20F

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$180.85

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

20 Outlets, 10 ft, NEMA 5
15P, Vertical, 0U, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 13 lbs.

CyberPower PDU15MV20F 100 - 125 VAC 15A Metered PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU15MV20F
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Metered PDU
Product Model	PDU15MV20F
Product Name	PDU15MV20F 100 - 125 VAC 15A Metered
Marketing Information	The CyberPower PDU15MV20F, a 20-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 – 125 V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Product Type	PDU

Technical Information

PDU Type	Metered
Phase	Single Phase
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	20 x NEMA 5-15R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage Range	100 V AC - 125 V AC
Input Current	15 A

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Height	48"
Width	17.5"
Depth	2.3"
Weight (Approximate)	8 lb

Miscellaneous

Package Contents	PDU15MV20F 20-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card
Additional Information	Physical Dimensions - (WxHxD) (cm) : 4.45 x 121.92 x 5.72 (cm) Physical Dimensions - (WxHxD) (in) : 1.75 x 48 x 2.25 (in) Physical Dimensions - (WxHxD) (mm) : 44 x 1219 x 57 (mm) Weight (kg) : 3.63 Weight (lb) : 8 Shipping Dimensions - (WxHxD) (cm) : 17.78 x 7.62 x 133.35 (cm) Shipping - Dimensions (WxHxD, in) : 7.0 x 3.0 x 52.5 (in) Shipping - Dimensions (WxHxD, mm) : 177.8 x 76.2 x 1333.5 (mm) Shipping - Weight (kg) : 23.81 Shipping - Weight (lb) : 52.5 Cord Length : 10 ft (3.0 m) Derated Input Current : 12 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA 5-15P Maximum Input Current : 15A Plug Style : Straight Meter Readout : Amperage Nominal Output Voltage : 100 - 125 VAC Outlets - Front : 20 Outlets - Rear : 0 Outlets - Total : 20 Outlet Type COMPUTED : 20 - NEMA 5-15R Overload Protection : 15A USB Charge Port : No Adjustable Mounting Brackets : 3 sets (L-Short, L-Long, Flat) Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 0U Vertical Rackmount Material of Construction : Metal Rack Height : 0U Style : Vertical Rackmount Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1363 certified by ETL Product Warranty : Limited Lifetime Warranty
Energy Star	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
