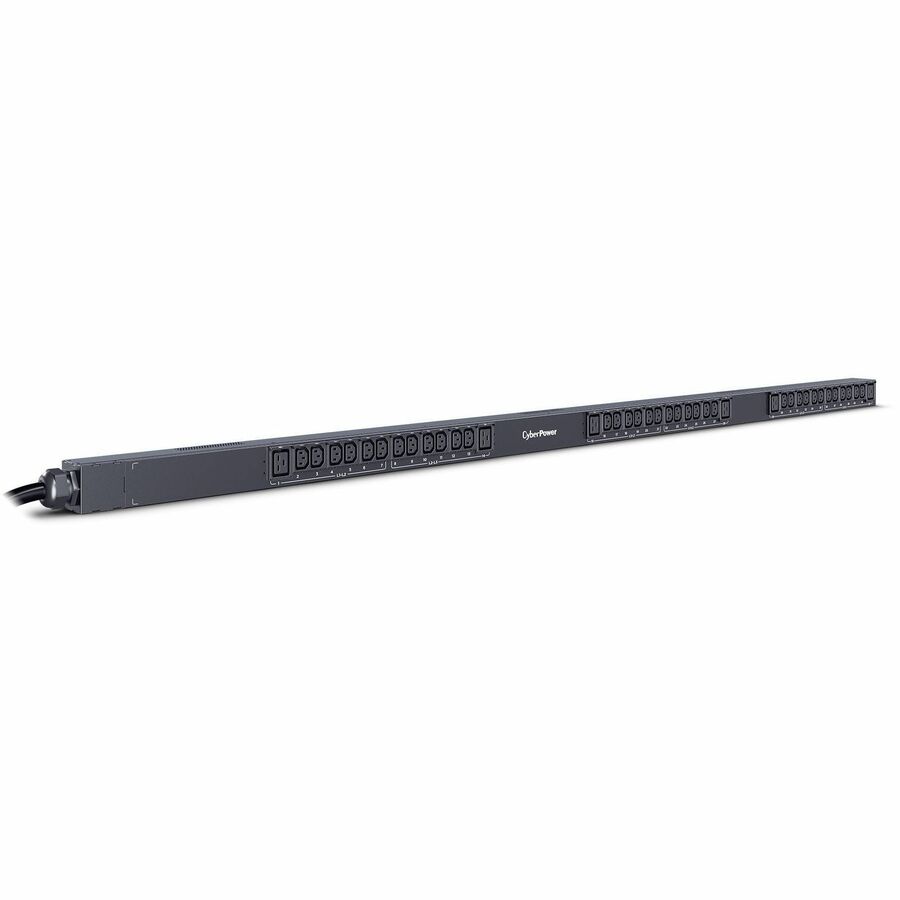

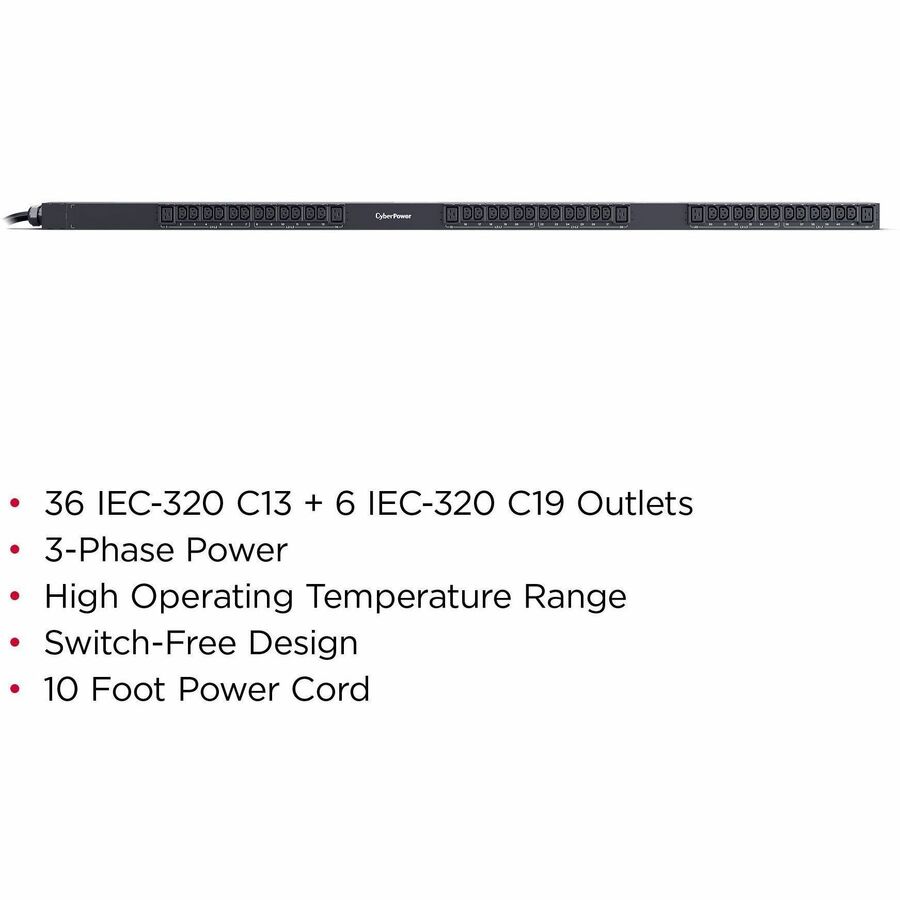

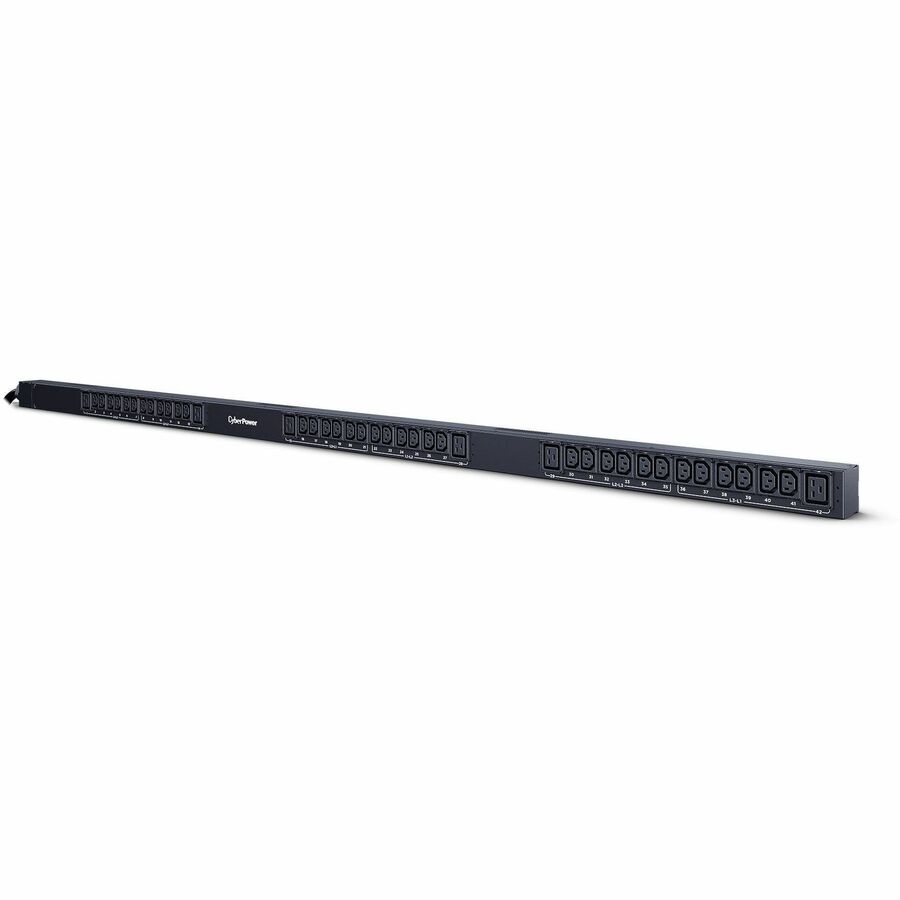

CyberPower PDU13103 42-Outlets PDU

by
CYBERPOWER
PCN#
08HQ67
MFG#
PDU13103
main product photo
fotorama-image
CYBERPOWER Authorized Dealer
$410.65
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 42 Outlets, 10 ft, NEMA L21
  • 20P, Vertical, 0U, 3YR Warranty
Product Condition: New and Factory Fresh
Limited WarrantyEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty
Shipping Weight: 21 lbs.
CyberPower PDU13103 3 Phase 200 - 240 VAC 20A Basic PDU
Overview
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PDU13103

Manufacturer Website Address

https://www.cyberpowersystems.com

Brand Name

CyberPower

Product Model

PDU13103

Product Name

PDU13103 3 Phase 200 - 240 VAC 20A Basic

Marketing Information

Deliver reliable unfiltered power to connected equipment with the CyberPower PDU13103 basic 3-Phase PDU. Designed for data centers and other electrically demanding applications, this unit features rugged, industrial-grade metal housing, network-grade outlets and operates in high temperatures up to 140°F (60°C).

The PDU13103 supports a 200V-240V 20A input, includes 42 IEC outlets, and provides a maximum output load of 5.7kW. The CyberPower PDU13103 is protected by a three-year limited warranty.

Product Type

PDU
Technical Information

PDU Type

Basic

Phase

Three Phase

Plug/Connector Type

NEMA L21-20P

Receptacle Type

  • IEC 60320 C13
  • IEC 60320 C19

Receptacle Detail

  • 36 x IEC 60320 C13
  • 6 x IEC 60320 C19
Power Description

Input Voltage

230 V AC

Input Voltage Range

200 V AC - 240 V AC

Output Voltage

  • 200 V AC
  • 240 V AC

Output Voltage Range

200 V AC - 240 V AC

Power Rating (Watt)

5700 W

Input Current

20 A
Physical Characteristics

Color Family

Black

Product Color

Black

Mounting Orientation

Vertical

Mount Type

Rack-mountable

Rack Height

0U

Height

70.5"

Width

2.2"

Depth

2.2"

Weight (Approximate)

12.61 lb
Miscellaneous

Package Contents

  • PDU13103 42-Outlets PDU
  • Adjustable Mounting Brackets

Additional Information

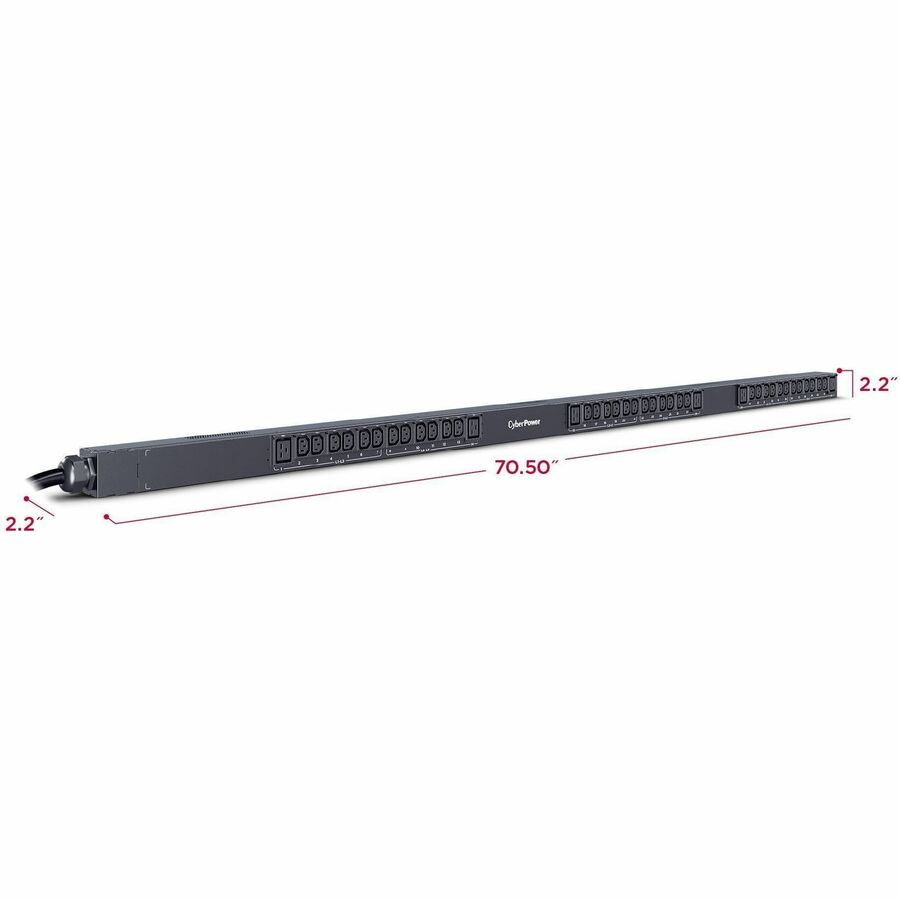

  • Physical Dimensions - (WxHxD) (cm) : 5.59 x 179.07 x 5.59 (cm)
  • Physical Dimensions - (WxHxD) (in) : 2.2 x 70.5 x 2.2 (in)
  • Physical Dimensions - (WxHxD) (mm) : 56 x 1791 x 56 (mm)
  • Weight (kg) : 5.72
  • Weight (lb) : 12.6
  • Shipping Dimensions - (WxHxD) (cm) : 17.53 x 16.0 x 201.42 (cm)
  • Shipping - Dimensions (WxHxD, in) : 6.9 x 6.3 x 79.3 (in)
  • Shipping - Dimensions (WxHxD, mm) : 175.26 x 160.02 x 2014.22 (mm)
  • Shipping - Weight (kg) : 9.12
  • Shipping - Weight (lb) : 20.1
  • Cord Length : 10 ft (3.0 m)
  • Derated Input Current : 16 A
  • Input Frequency Range : 50 Hz - 60 Hz
  • Input Plug Type : NEMA L21-20P
  • Maximum Input Current : 20A
  • Nominal Input Voltage : 200 - 240 VAC
  • Phase : 3 Phase
  • Nominal Output Voltage : 200 - 240 VAC
  • Outlets - Total : 42
  • Outlet Type COMPUTED : 36 - IEC-320 C13
  • Overload Protection : None
  • Adjustable Mounting Brackets : 1 set
  • Color : Black
  • Cord Retention Tray/Cord Organizers : Yes
  • Form Factors Supported : 0U Vertical Rackmount
  • Material of Construction : Metal
  • Rack Height : 0U
  • Operating Elevation : 0 - 11480 ft (0 - 3499 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 23 - 140 °F (-5 - 60 °C)
  • Environmental : RoHS Compliant
  • Safety : UL60950-1|FCC Class A|CB
  • Product Warranty : 3 Year Limited Warranty

    • Environmentally Friendly

    		Yes

    Environmental Compliance

    		Restriction of Hazardous Substances (RoHS)
    Warranty

    Limited Warranty

    		3 Year
