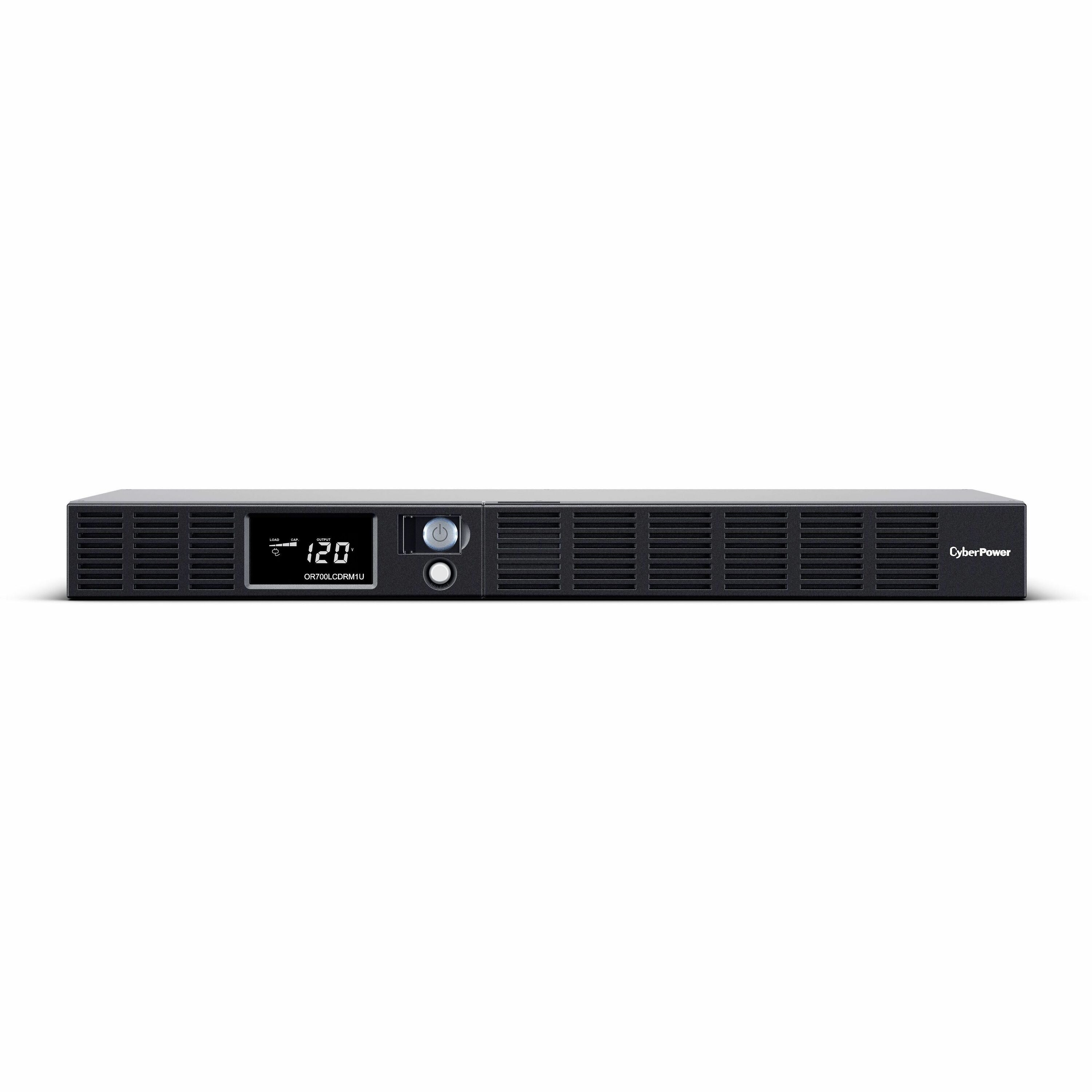

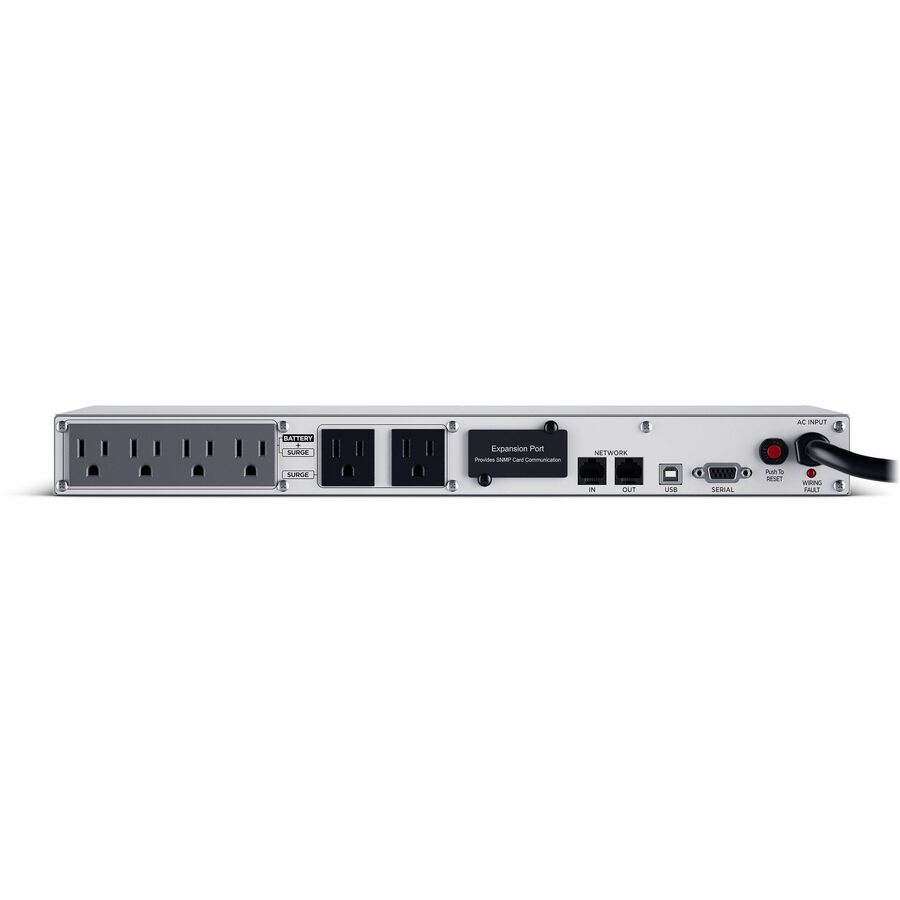

CyberPower OR700LCDRM1U Smart App LCD UPS Systems

• A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR700LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR700LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR700LCDRM1U comes with a three-year warranty and a

• 300,000 Connected Equipment Guarantee.

• Server
• Workstation
• Network Device
• Telecommunication

On Unit:

• Power On
• Wiring Fault

LCD Panel:

• Input Voltage
• Output Voltage
• Battery Capacity
• Load Level
• Runtime
• On Battery
• Overload
• Silent Mode

• Smart App Intelligent LCD OR700LCDRM1U 700VA UPS
• Rack Ears (2)
• User Manual
• Power Management Software
• Warranty Card
• Serial Cable
• Phone Cable
• USB Cable

• Replacement Battery Cartridge Quantity: 1
• Adjustable Voltage Range: 88 - 144 VAC
• Circuit Breaker: 15A
• Plug Style: Straight
• Automatic Voltage Regulation: Single Boost
• On Battery Frequency: 60 Hz ± 1%
• Output Power Factor: 0.6
• Overload Protection: Internal Circuitry Limiting
• Network Protection RJ45: 1-in / 1-Out (10/100/1000)
• LCD: Multifunction LCD
• Management Cable: USB Cable
• SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205
• Form Factor: Rackmount
• Material of Construction: Metal
• Operating Relative Humidity: 0 - 95 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)

• UL1778
• cUL107.1
• FCC Class B

CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.

• 300000 Lifetime
