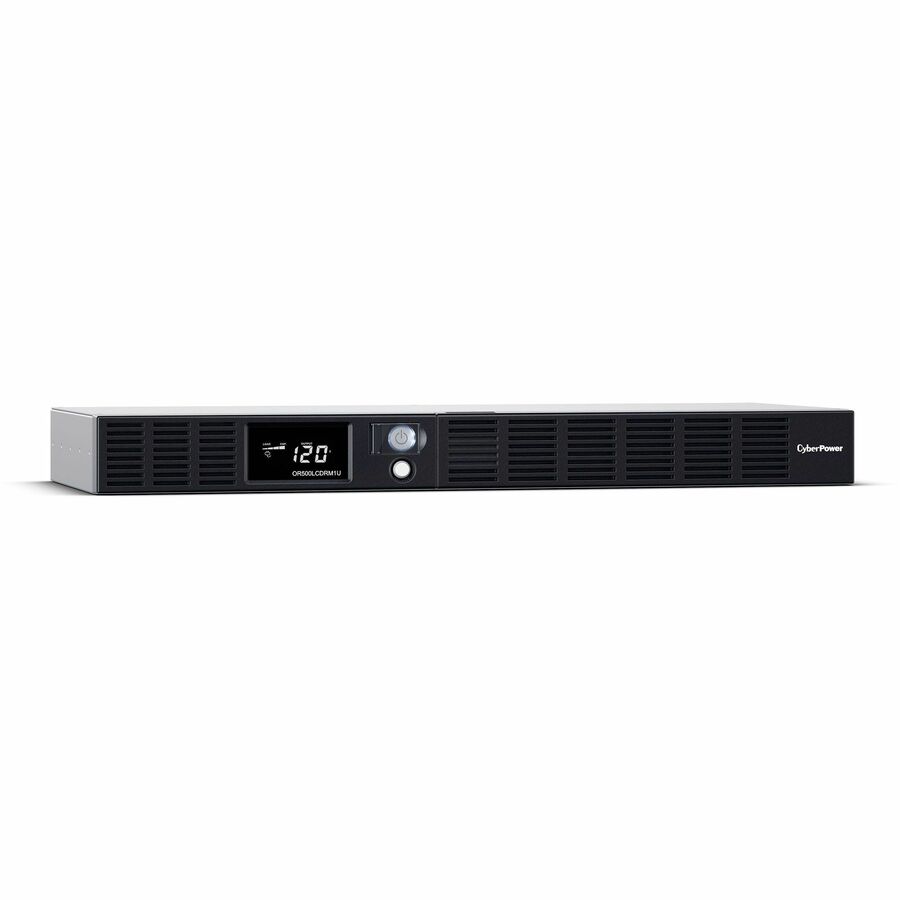

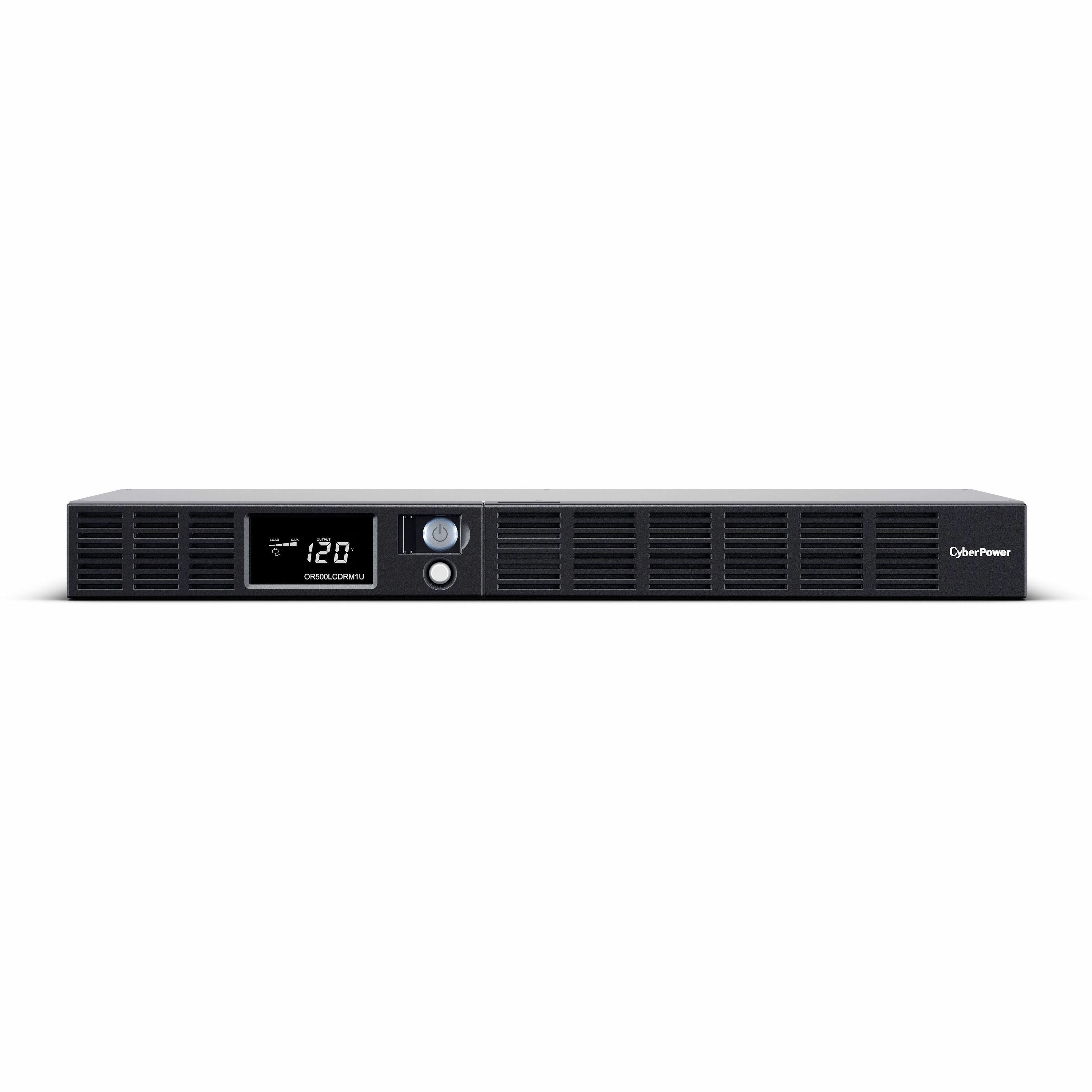

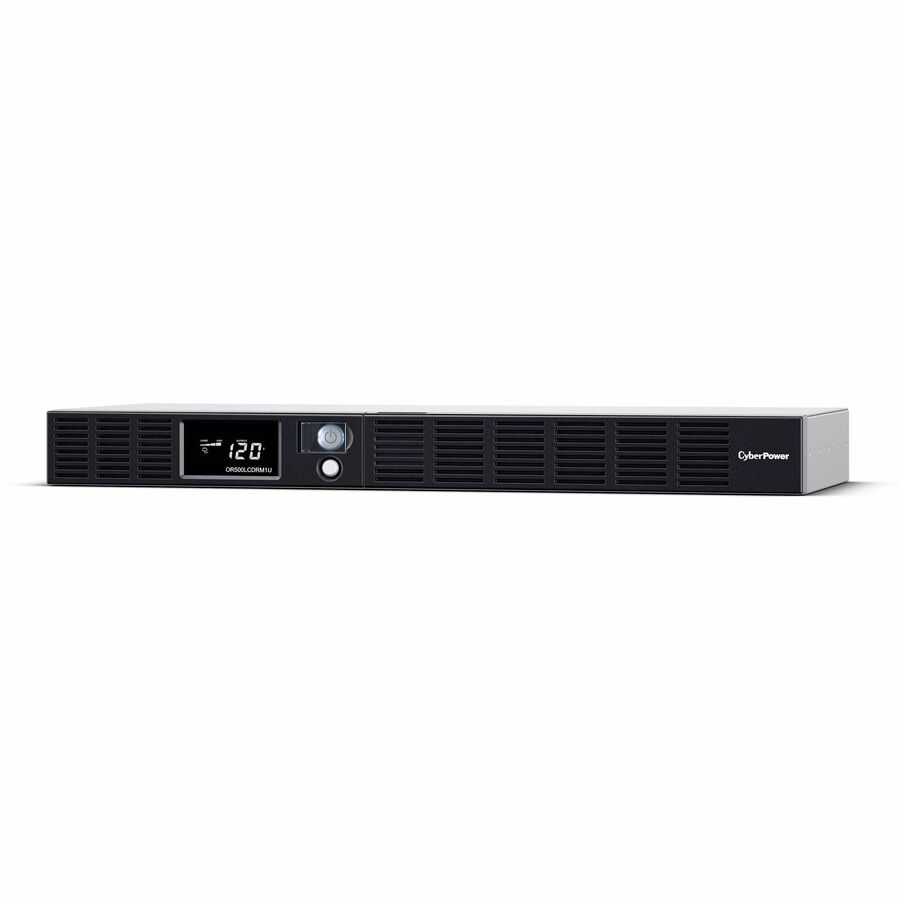

CyberPower OR500LCDRM1U Smart App LCD UPS Systems

• A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a

• 300,000 Connected Equipment Guarantee.

• RJ-45
• RJ-11

• Dataline Surge
• Black Out
• AC Surge
• Sag

• Server
• Workstation
• Network Device
• Telecommunication

• On Battery
• Battery Mode
• Overload

On Unit:

• Power On
• Wiring Fault

LCD Panel:

• Input Voltage
• Output Voltage
• Battery Capacity
• Load Level
• Runtime
• On Battery
• Overload
• Silent Mode

• Smart App Intelligent LCD OR500LCDRM1U 500VA UPS
• Rack Ears (2)
• User Manual
• Power Management Software
• Warranty Card
• Serial Cable
• Phone Cable
• USB Cable

• Energy Saving : GreenPower UPS™ Bypass Technology
• Energy Star Certified : Yes
• UPS Topology : Line Interactive
• Battery Quantity : 2
• Battery Size : 6 V / 7 Ah
• Battery Type : Sealed Lead-Acid Battery
• Hot Swappable : Yes
• Replacement Battery Cartridge : RB0670X2
• Replacement Battery Cartridge Quantity : 1
• Runtime at Full Load : 3 min
• Runtime at Half Load : 12 min
• Typical Recharge Time : 8 Hours
• User Replaceable Battery : Yes
• Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 23.5 (cm)

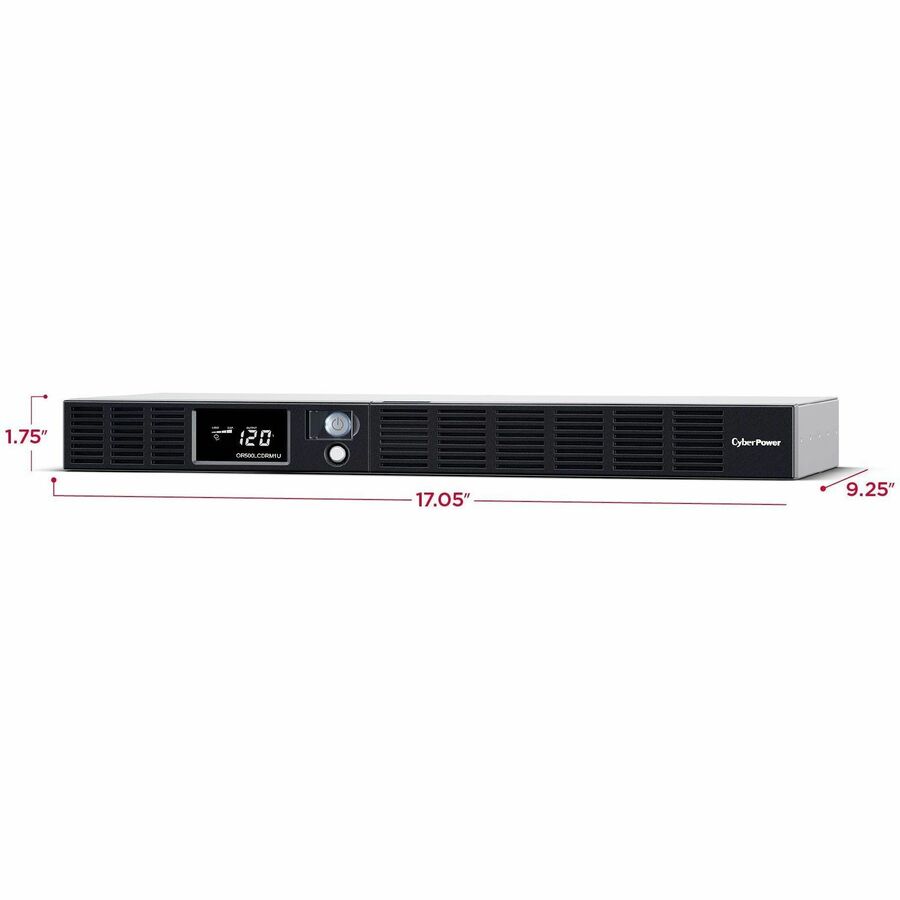

• Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 9.25 (in)
• Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 235 (mm)
• Weight (kg) : 8.16
• Weight (lb) : 18
• Shipping Dimensions - (WxHxD) (cm) : 31.75 x 14.61 x 52.07 (cm)
• Shipping - Dimensions (WxHxD, in) : 12.5 x 5.75 x 20.5 (in)
• Shipping - Dimensions (WxHxD, mm) : 317.5 x 146.05 x 520.7 (mm)
• Shipping - Weight (kg) : 9.34
• Shipping - Weight (lb) : 20.6
• Adjustable Voltage Range : 88 - 144 VAC
• Circuit Breaker : 15 A
• Cord Length : 10 ft (3.0 m)
• Input Frequency Range : 57 Hz - 63 Hz
• Input Plug Type : NEMA 5-15P
• Input Voltage Range : 90 VAC - 140 VAC
• Nominal Input Voltage : 120 VAC
• Plug Style : Right Angle - 45° Offset
• Automatic Voltage Regulation : Single Boost
• On AC WaveForm : Sine Wave
• On Battery Frequency : 60 Hz ± 1%
• On Battery Voltage : 120 VAC ± 10%
• On Battery Waveform : Simulated Sine Wave

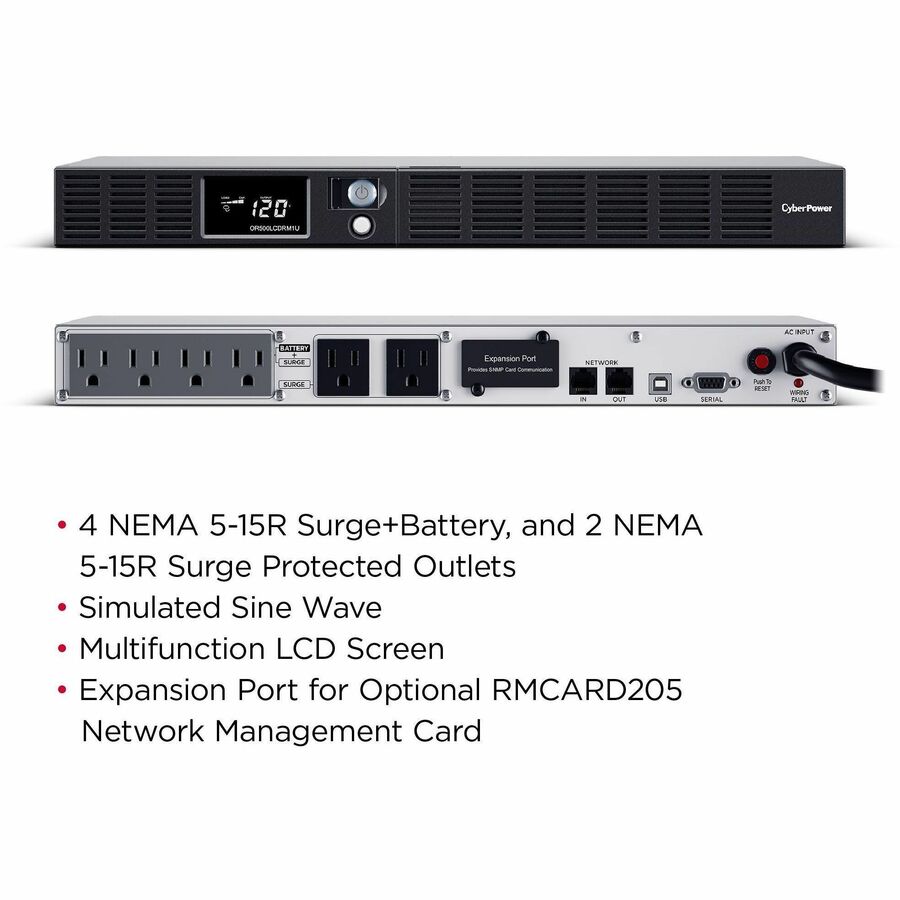

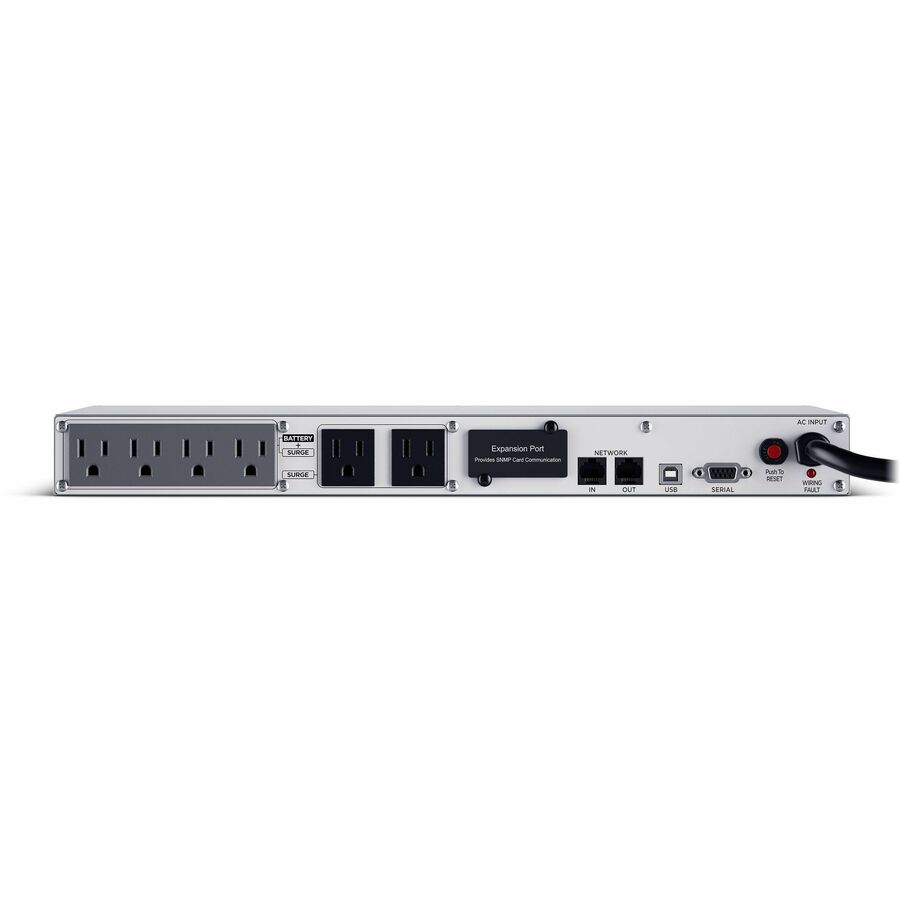

• Outlets - Battery & Surge Protected : 4
• Outlets - Surge-Only Protected : 2
• Outlets - Total : 6
• Outlet Type COMPUTED : 6 - NEMA 5-15R
• Output Power Factor : 0.6
• Overload Protection : Internal Circuitry Limiting
• Typical Transfer Time : 8 ms
• USB Charge Port : No
• VA : 500 VA
• Watts : 300 W
• EMI/RFI Filtration COMPUTED : Yes
• Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
• Surge Suppression (Joules) : 1150 J
• EMI/RFI Filtration COMPUTED : Yes
• Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
• Surge Suppression (Joules) : 1150 J
• Audible Alarms : Battery Mode
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• LED Indicators : Power On
• Management Cable : USB Cable
• Serial Port : 1 Dry Contact
• SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
• Software (Free Download) : PowerPanel® Business
• Color : Black

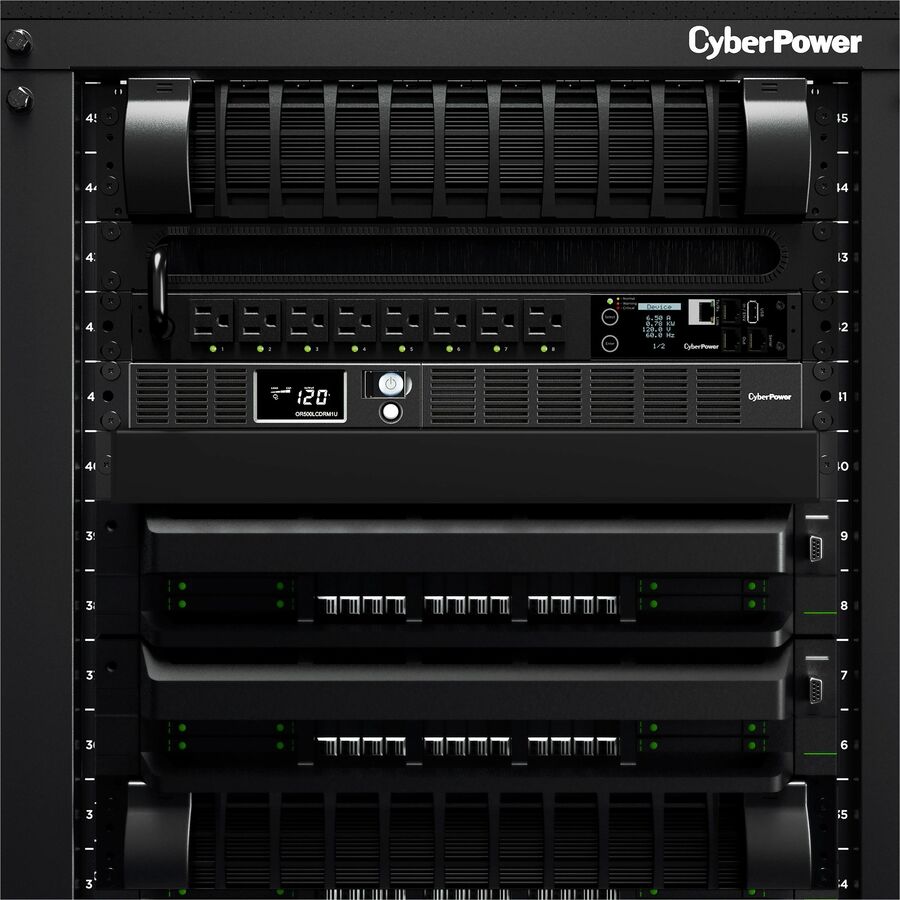

• Form Factor : Rackmount
• Material of Construction : Metal
• Rack Height : 1U
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Elevation : 0 - 50000 ft (0 - 15239 m)
• Storage Relative Humidity : 0 - 95% (non-condensing)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1778
• CEG Amount :
• 300000
• Connected Equipment Guarantee : Lifetime
• Extended Warranty Option : WEXT5YR-U1B
• Product Warranty : 3 Year Limited Warranty

• FCC Class B
• cUL 107.1
• UL 1778

CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.

• 300000 Lifetime
