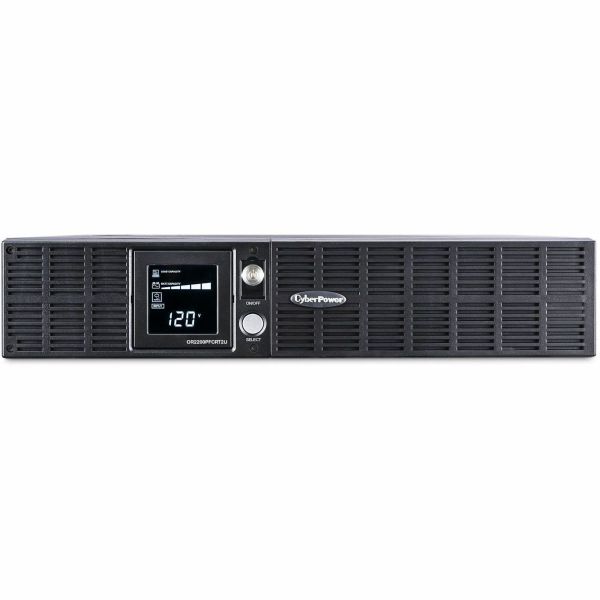

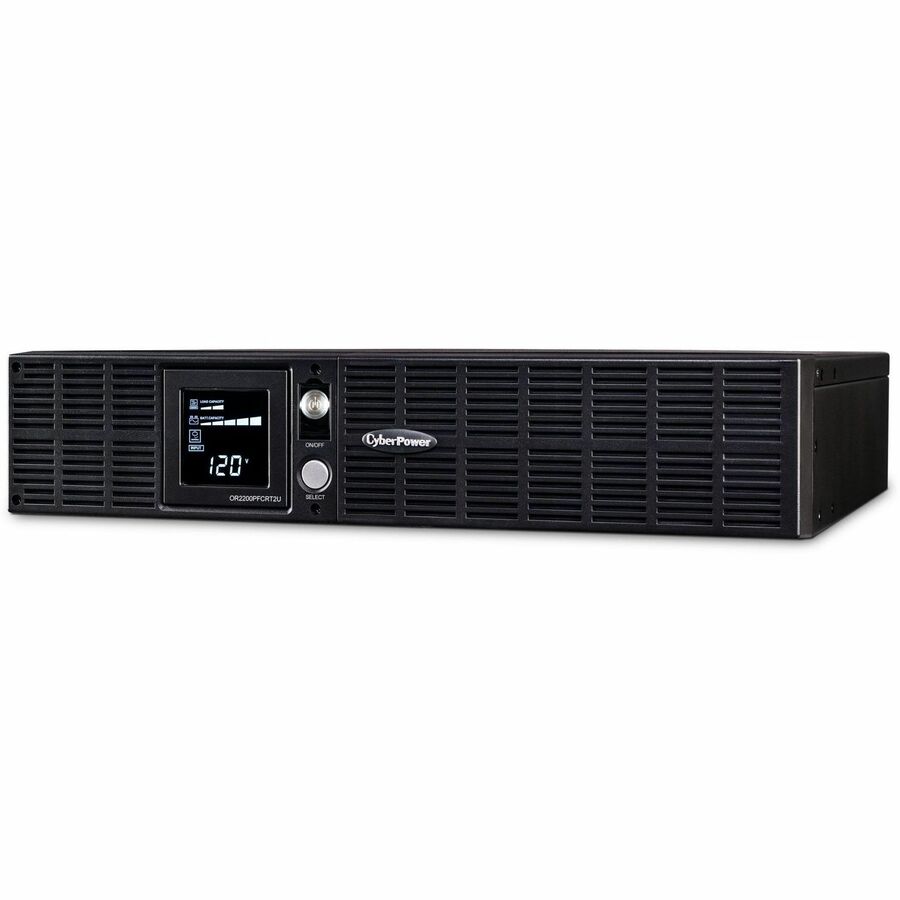

CyberPower OR2200PFCRT2U PFC Sinewave UPS Systems

Name: CyberPower OR2200PFCRT2U PFC Sinewave UPS Systems
Brand: CYBERPOWER
SKU: 9GM083
Price: 740.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM083

MFG#

OR2200PFCRT2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$740.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

2000VA/1540W, 120 VAC, NEMA 5
20P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & Standards UL 1778 5th Ed cUL FCC Class A Software IncludedPowerPanel Business Edition SoftwareEnergy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 62 lbs.

CyberPower OR2200PFCRT2U PFC Sinewave UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OR2200PFCRT2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	PFC Sinewave UPS
Product Model	OR2200PFCRT2U
Product Name	OR2200PFCRT2U PFC Sinewave UPS Systems
Marketing Information	A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200PFCRT2U comes with a three-year warranty and a 300,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-20P

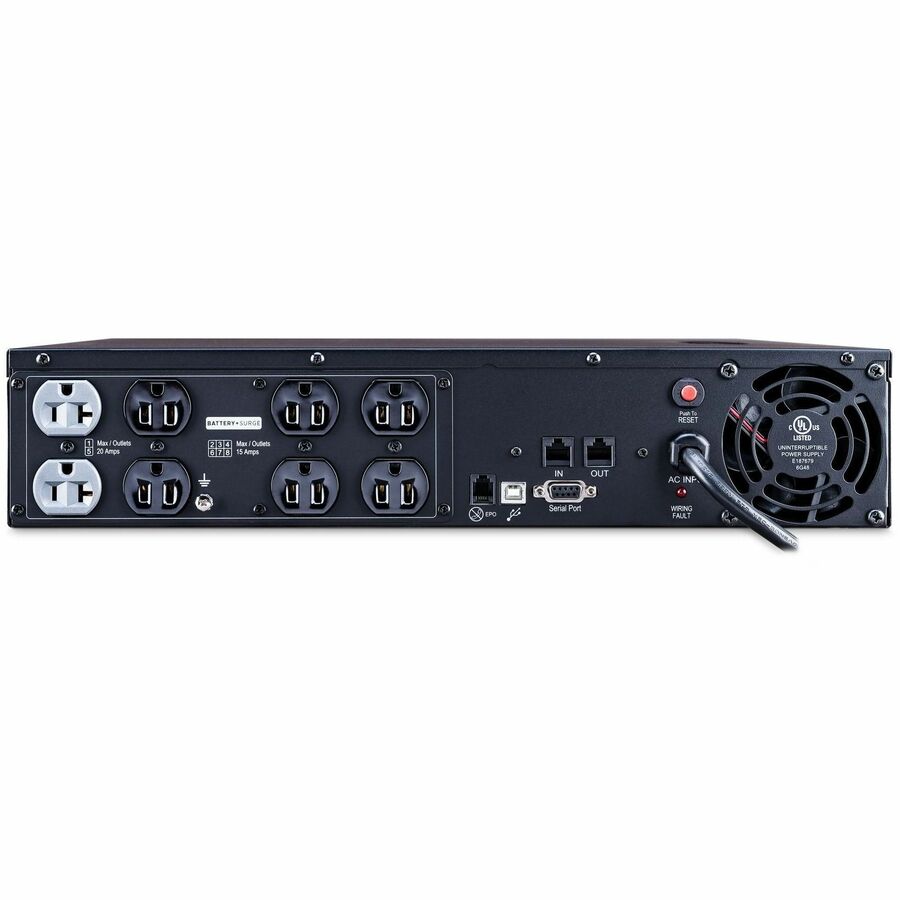

Receptacle Type	NEMA 5-20R NEMA 5-15R
Receptacle Detail	2 x NEMA 5-20R 6 x NEMA 5-15R
Dataline Protection	RJ-45 RJ-11
Protection Type	Over Loading
Emergency Power OFF	Yes
Transfer Time	4 ms
EMI/RFI Noise Filter	Yes

Power Description

Load Capacity (VA)	2000 VA
Load Capacity (Watt)	1540 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Waveform Type	Sine Wave

Controls/Indicators

Status Indicators

Power On
Wiring Fault

Interfaces/Ports

Serial Port	Yes
USB	Yes

Battery Information

Number of Batteries	4
Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid

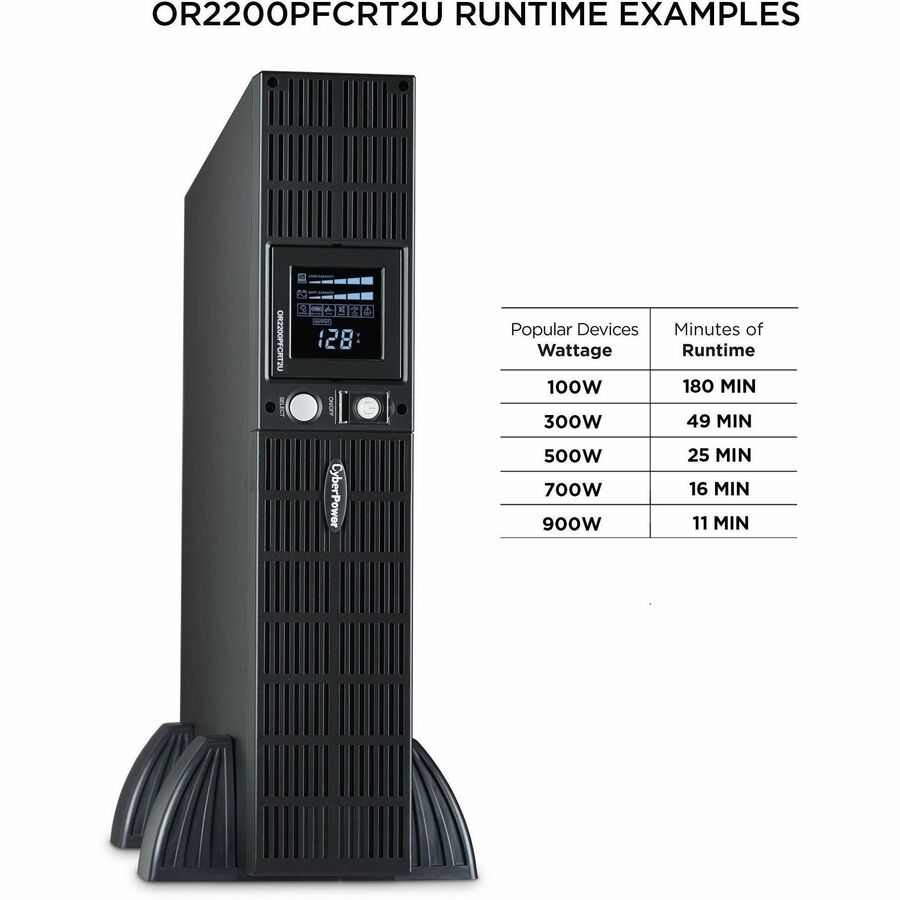

Backup/Run Time (Full Load)	4.50 Minute
Backup/Run Time (Half Load)	19.80 Minute
Typical Battery Recharge Time	10 Hour
Hot Swappable	Yes

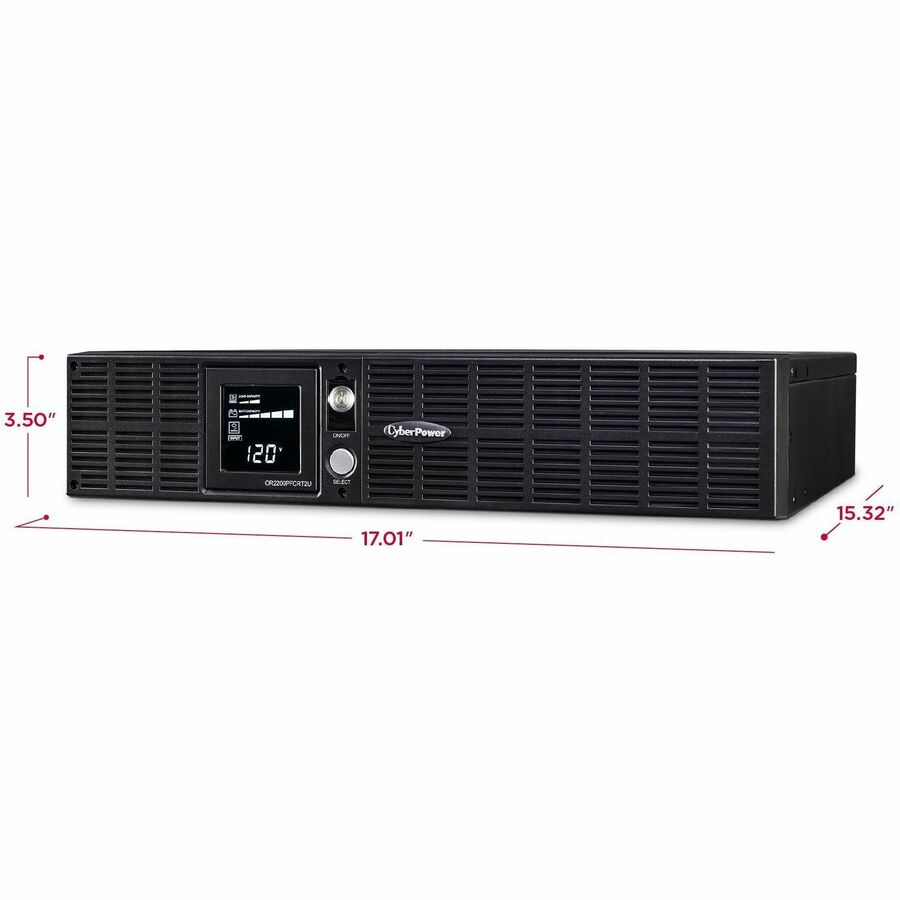

Physical Characteristics

Height	3.50"
Width	17.01"
Depth	15.32"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	57.20 lb

Miscellaneous

Package Contents	Intelligent LCD PFC Sinewave OR2200PFCRT2U Line-interactive UPS USB A-B Cable User's Manual Software Download Card Registration Info Card
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Battery Voltage : 24 VDC Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4H (With serial numbers beginning with 'GX9') Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 4.5 min Runtime at Half Load : 15.5 min Typical Recharge Time : 10 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.21 x 8.89 x 38.91 (cm) Physical Dimensions - (WxHxD) (in) : 17.01 x 3.5 x 15.32 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 389 (mm) Weight (kg) : 25.95 Weight (lb) : 57.2 Shipping Dimensions - (WxHxD) (cm) : 52.07 x 30.48 x 53.98 (cm) Shipping - Dimensions (WxHxD, in) : 20.5 x 12.0 x 21.25 (in) Shipping - Dimensions (WxHxD, mm) : 520.7 x 304.8 x 539.75 (mm) Shipping - Weight (kg) : 9.64 Shipping - Weight (lb) : 21.25 Adjustable Voltage Range : 86 - 142 VAC Circuit Breaker : 20 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-20P Input Voltage Range : 88 VAC - 139 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlet Type COMPUTED : 2 - NEMA 5-20R Output Power Factor : 0.8 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms Under/Over-Voltage Correction : +14% USB Charge Port : No VA : 2000 VA Watts : 1540 W EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1470 J EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1470 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Remote Management Card : None Serial Port : 1 Serial Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1.5M from surface of unit : 48.5 dBA On Battery Thermal Dissipation : 1278 BTU/hr Online Thermal Dissipation : 177.5 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 5th Ed. CEG Amount : 300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL 1778 5th Ed cUL FCC Class A
Software Included	PowerPanel Business Edition Software
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
