CyberPower OR2200LCDRTXL2U Smart App LCD UPS Systems

Name: CyberPower OR2200LCDRTXL2U Smart App LCD UPS Systems
Brand: CYBERPOWER
SKU: 9GM334
Price: 905.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM334

MFG#

OR2200LCDRTXL2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$905.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

2100VA/1650W, 120 VAC, NEMA 5
20P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & Standards UL1778 CSA C22.2 No 107.3 FCC/DoC Class B Software IncludedPowerPanel Business Edition SoftwareEnergy StarNoCountry of OriginPhilippinesEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 90 lbs.

CyberPower OR2200LCDRTXL2U Smart App LCD UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OR2200LCDRTXL2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Smart App LCD UPS
Product Model	OR2200LCDRTXL2U
Product Name	OR2200LCDRTXL2U Smart App LCD UPS Systems
Marketing Information	A rack/tower convertible UPS with line interactive topology, the CyberPower Smart LCD OR2200LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR2200LCDRTXL2U comes with a three-year warranty and a 300,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20R

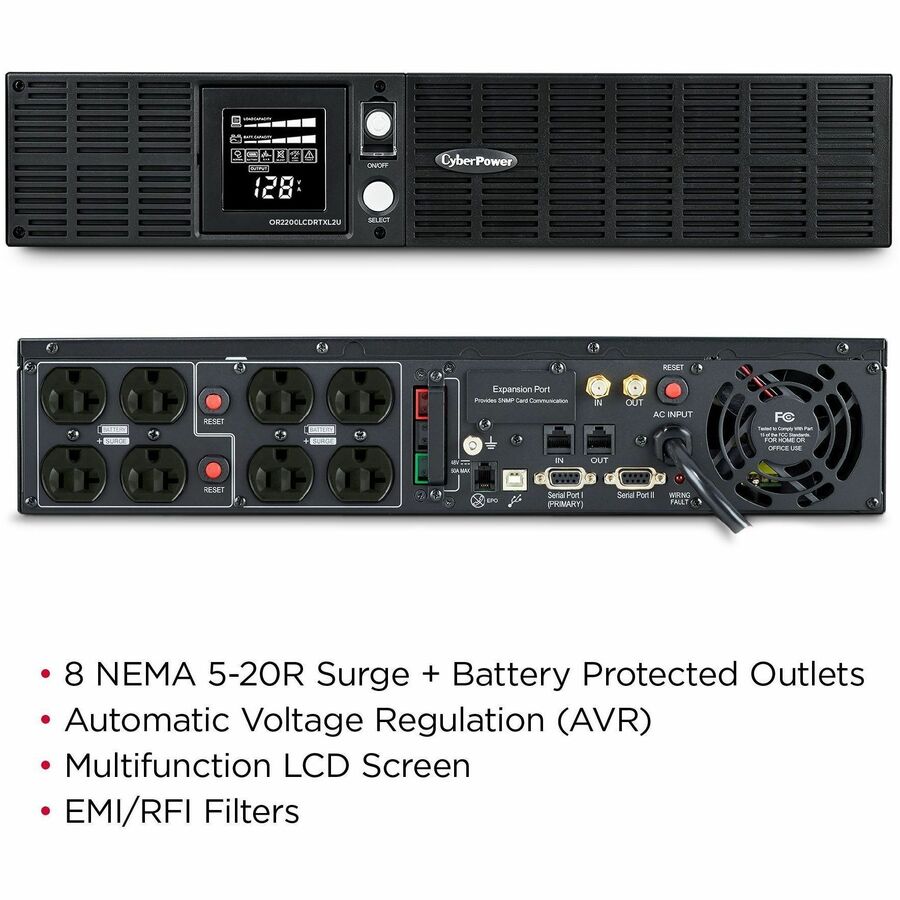

Receptacle Detail	8 x NEMA 5-20R
Number of Battery & Surge Outlets	8
Transfer Time	4 ms
Dataline Protection	RJ-11 RG-6
Overload Protection	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Application/Usage	Workstation Server Network Device Telecommunication

Power Description

Load Capacity (VA)	2190 VA
Input Voltage	120 V AC
Output Voltage	120 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Simulated Sine Wave

Management

Network Management	SNMP Manageable
Alarm	Battery Mode Low Battery Overload

Controls/Indicators

Status Indicators

Power On
Wiring Fault

Interfaces/Ports

Serial Port	Yes
USB (HID Compliant) Port	Yes
EPO Port	Yes

Battery Information

Number of Batteries	4
Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh

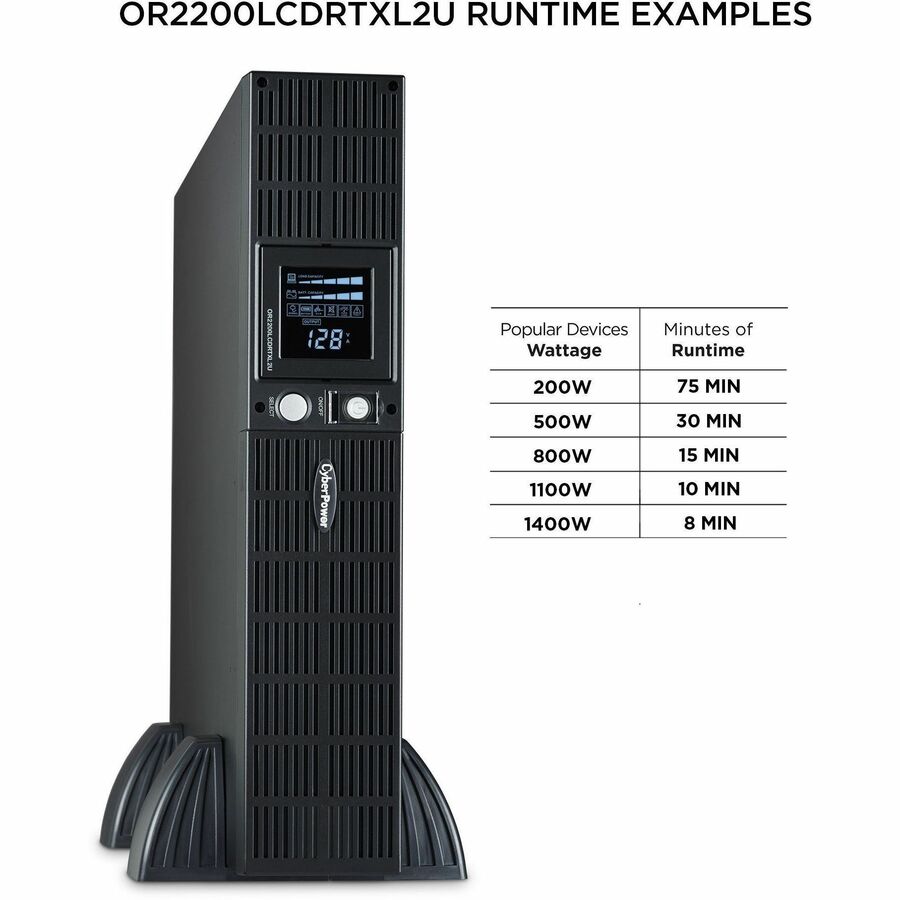

Backup/Run Time (Full Load)	6 Minute
Backup/Run Time (Half Load)	15 Minute
Typical Battery Recharge Time	8 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature

104°F (40°C)

Physical Characteristics

Color Family	Black
Product Color	Black

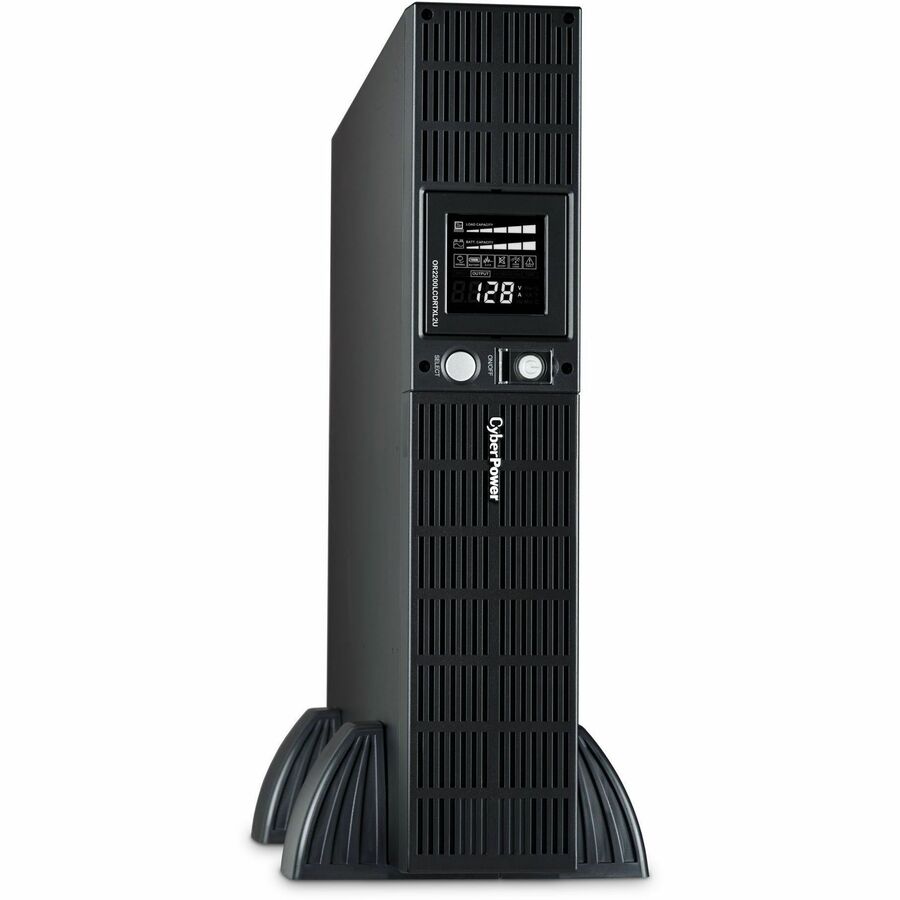

Form Factor	Rack/Tower
Rack Height	2U

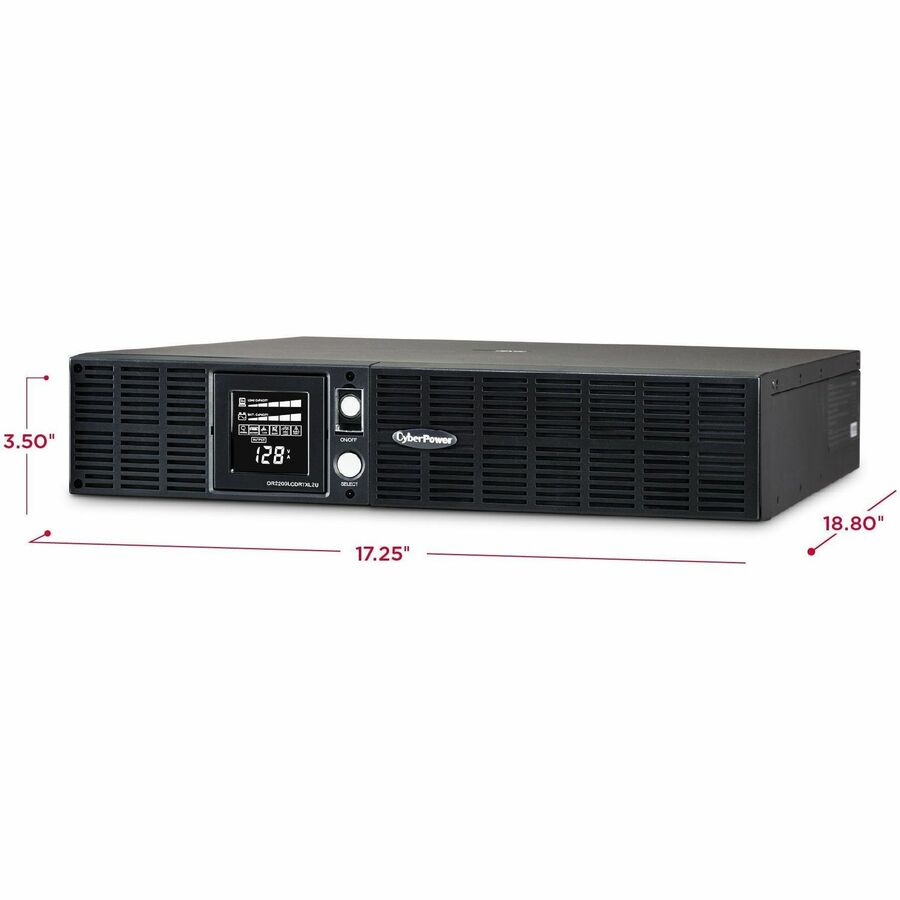

Height	3.5"
Width	17"
Depth	18.8"
Weight (Approximate)	90 lb

Miscellaneous

Package Contents	Smart App LCD OR2200LCDRTXL2U 2190 VA Tower/Rack-mountable UPS User's manual Rackmount brackets Stands, Telephone cable Emergency Power Off cable USB A+B type cable
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U02 Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4B Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 6 min Runtime at Half Load : 15 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 47.75 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 18.8 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 478 (mm) Weight (kg) : 40.82 Weight (lb) : 90 Shipping Dimensions - (WxHxD) (cm) : 55.25 x 26.67 x 60.96 (cm) Shipping - Dimensions (WxHxD, in) : 21.75 x 10.5 x 24.0 (in) Shipping - Dimensions (WxHxD, mm) : 552.45 x 266.7 x 609.6 (mm) Shipping - Weight (kg) : 40.82 Shipping - Weight (lb) : 90 Circuit Breaker : 20 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA 5-20P Nominal Input Voltage : 120 VAC Plug Style : Straight Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-20R Output Power Factor : 0.8 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 2100 VA Watts : 1650 W Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 2060 J Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 2060 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778 CSA C22.2 No 107.3 FCC/DoC Class B
Software Included	PowerPanel Business Edition Software
Energy Star	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	300000 Lifetime
