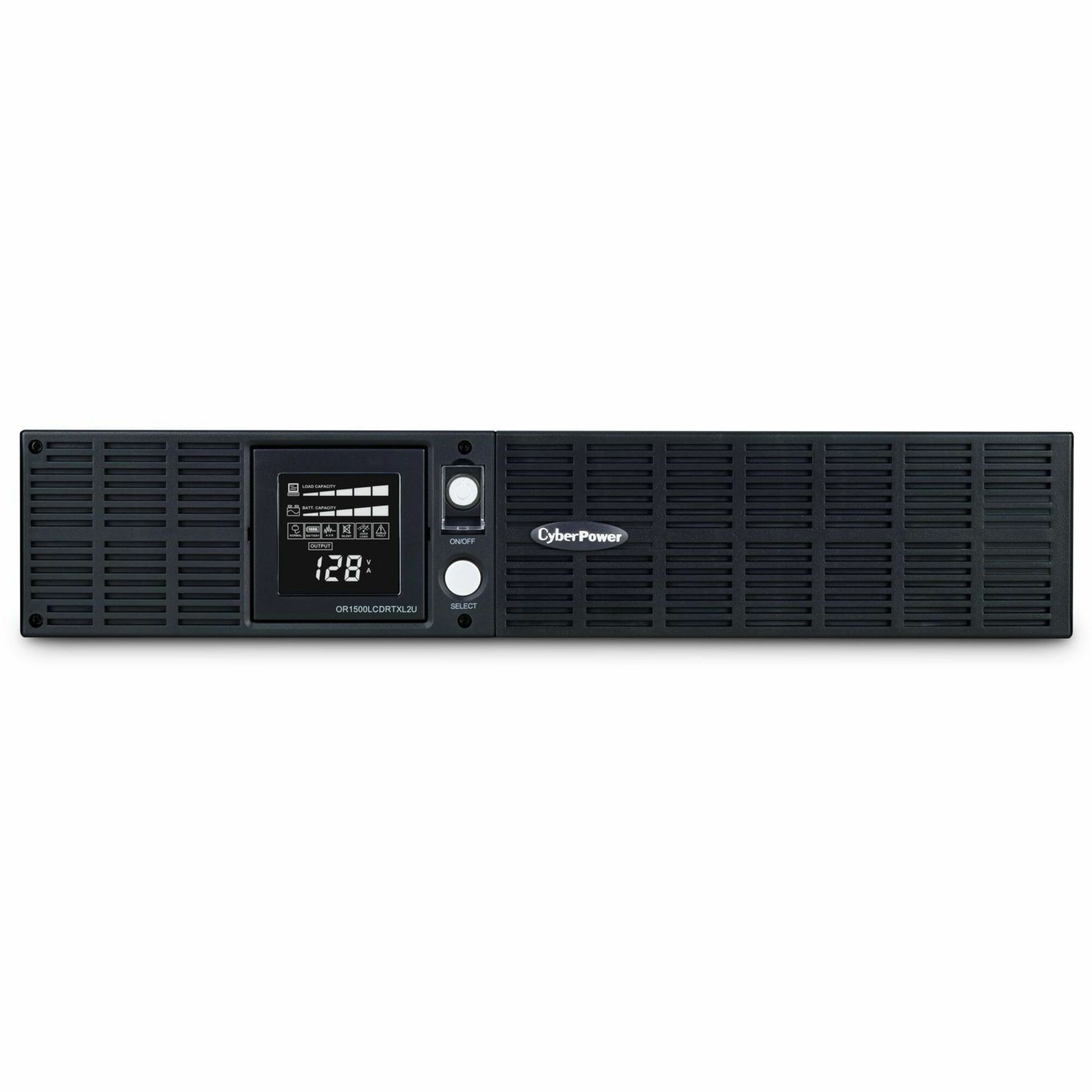

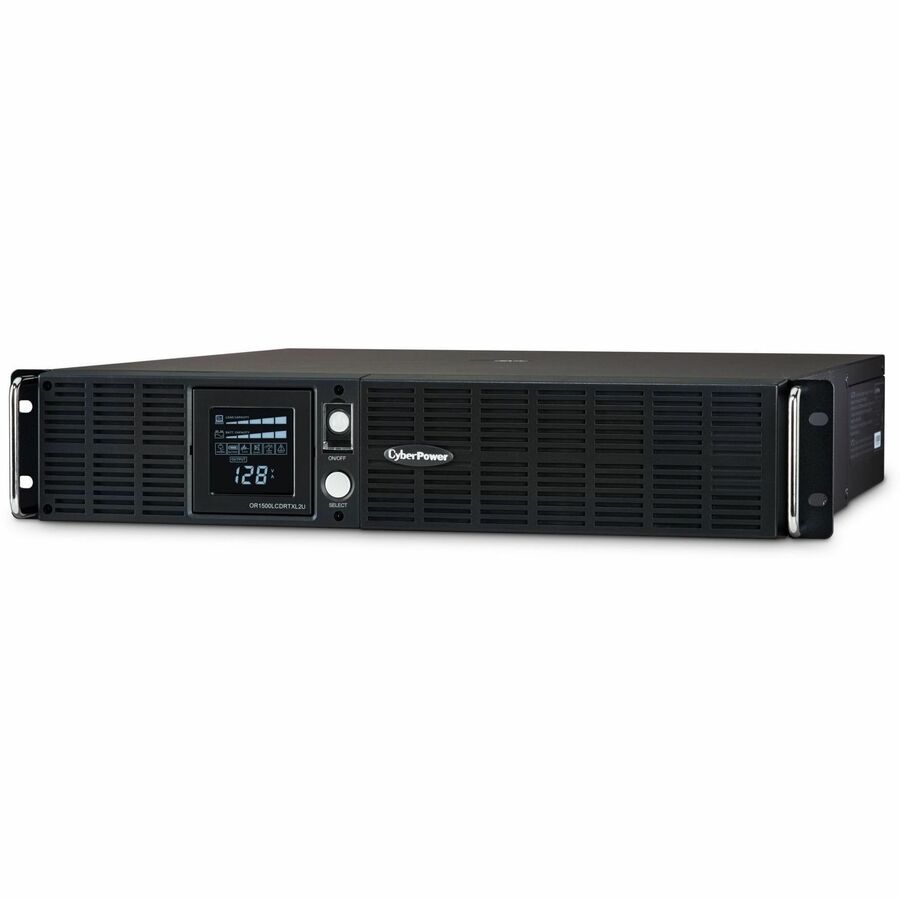

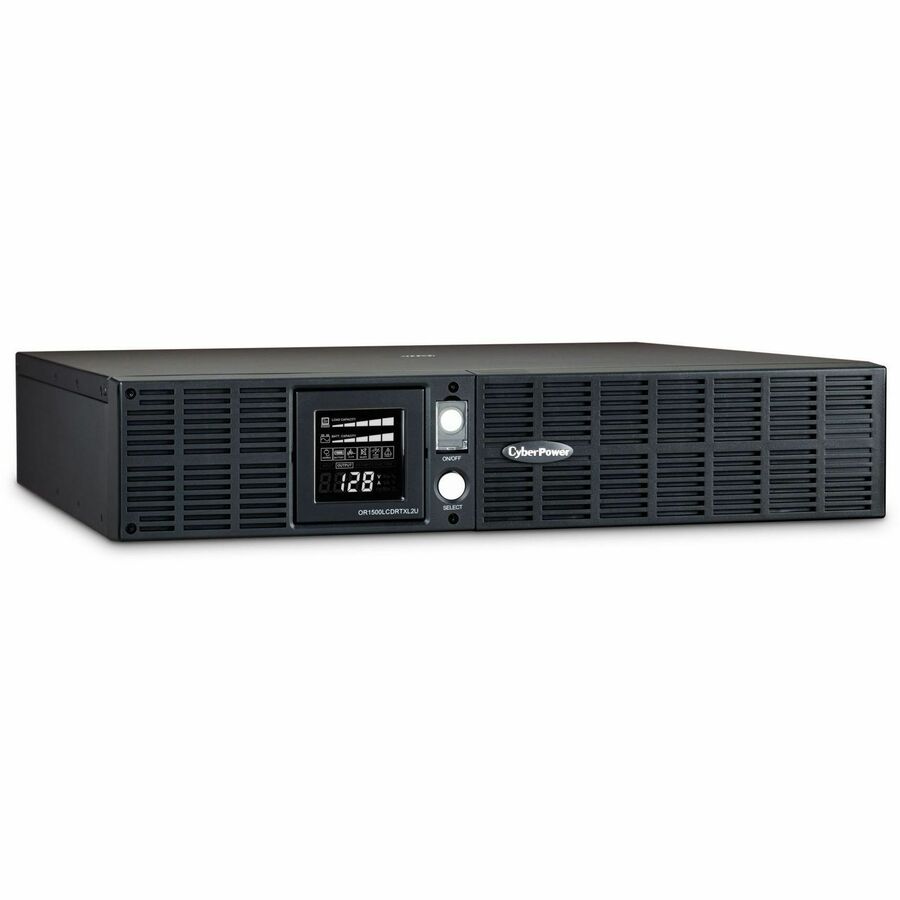

CyberPower OR1500LCDRTXL2U Smart App LCD UPS Systems

Name: CyberPower OR1500LCDRTXL2U Smart App LCD UPS Systems
Brand: CYBERPOWER
SKU: 9GM345
Price: 870.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM345

MFG#

OR1500LCDRTXL2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$870.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

1500VA/1125W, 120 VAC, NEMA 5
15P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1778cUL 107.3FCC DOC Class BSoftware IncludedPowerPanel Business Edition SoftwareEnergy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 80 lbs.

CyberPower OR1500LCDRTXL2U Smart App LCD UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OR1500LCDRTXL2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Smart App LCD UPS
Product Model	OR1500LCDRTXL2U
Product Name	OR1500LCDRTXL2U Smart App LCD UPS Systems
Marketing Information	A rack/tower UPS with line interactive topology, the CyberPower Smart LCD OR1500LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1500LCDRTXL2U comes with a three-year warranty and a 300,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

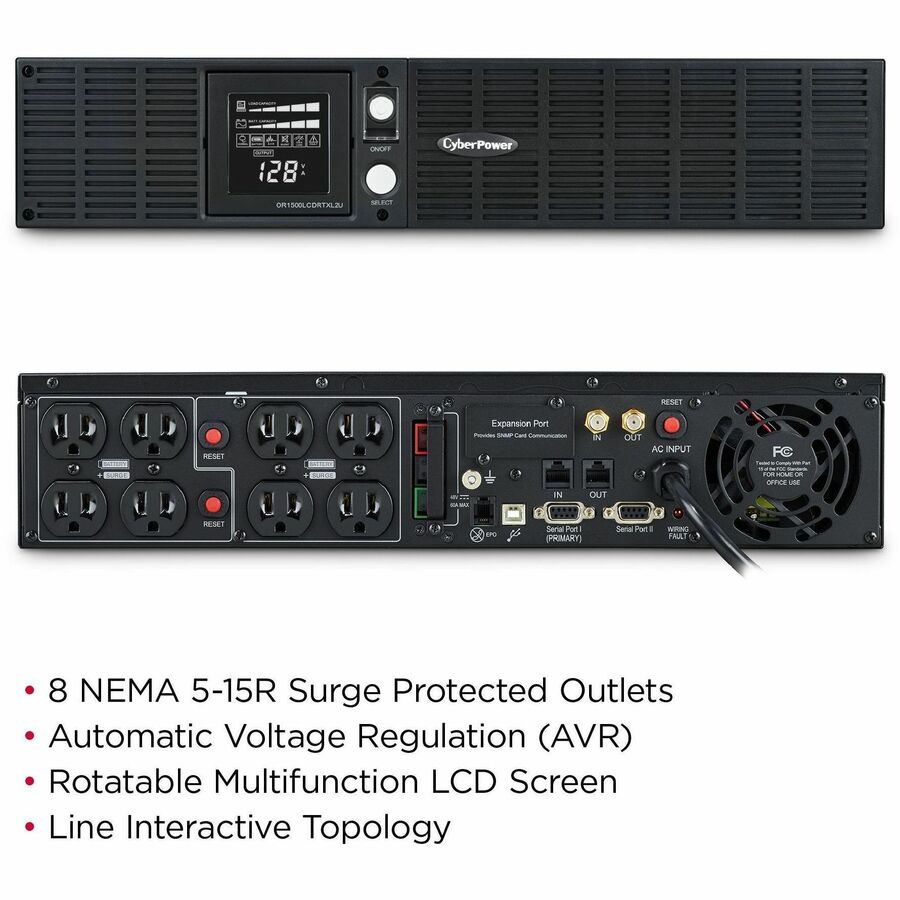

Receptacle Detail	8 x NEMA 5-15R
Dataline Protection	RG-6 RJ-45 RJ-11

Power Description

Load Capacity (VA)	1500 VA
Input Voltage	120 V AC
Output Voltage	120 V AC

Management

Network Management

SNMP Manageable

Interfaces/Ports

Serial Port	Yes
USB	Yes

Battery Information

Number of Batteries	4
Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	7 Minute
Backup/Run Time (Half Load)	18 Minute
Typical Battery Recharge Time	8 Hour

Physical Characteristics

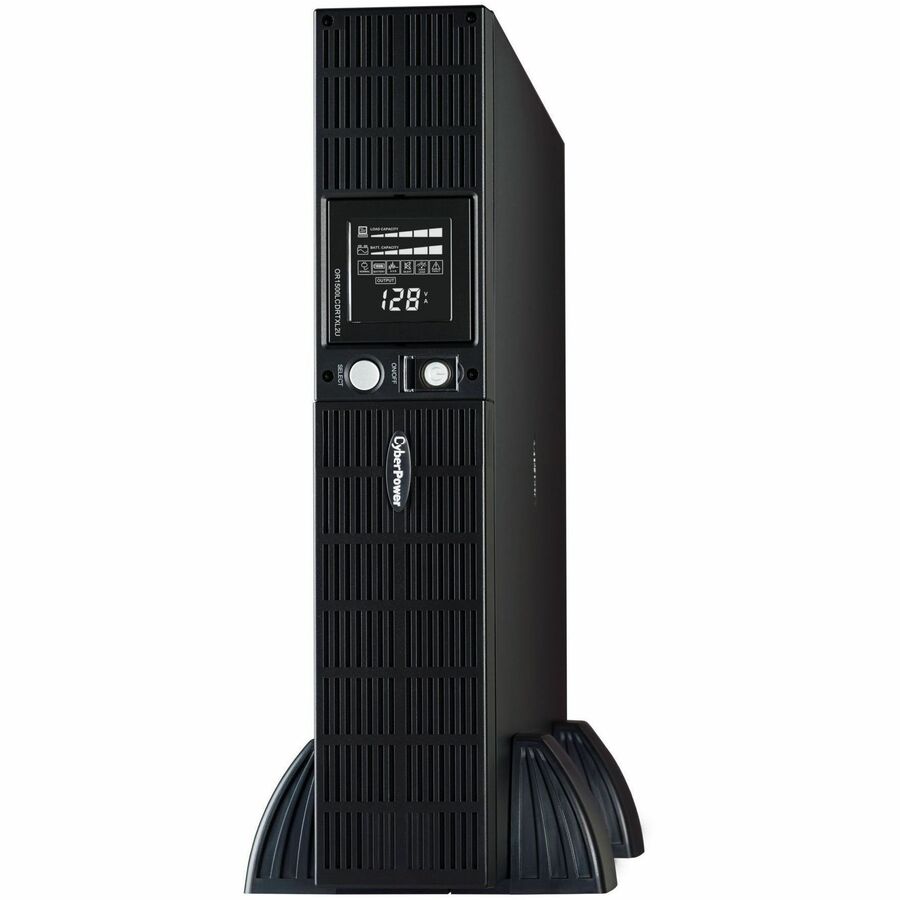

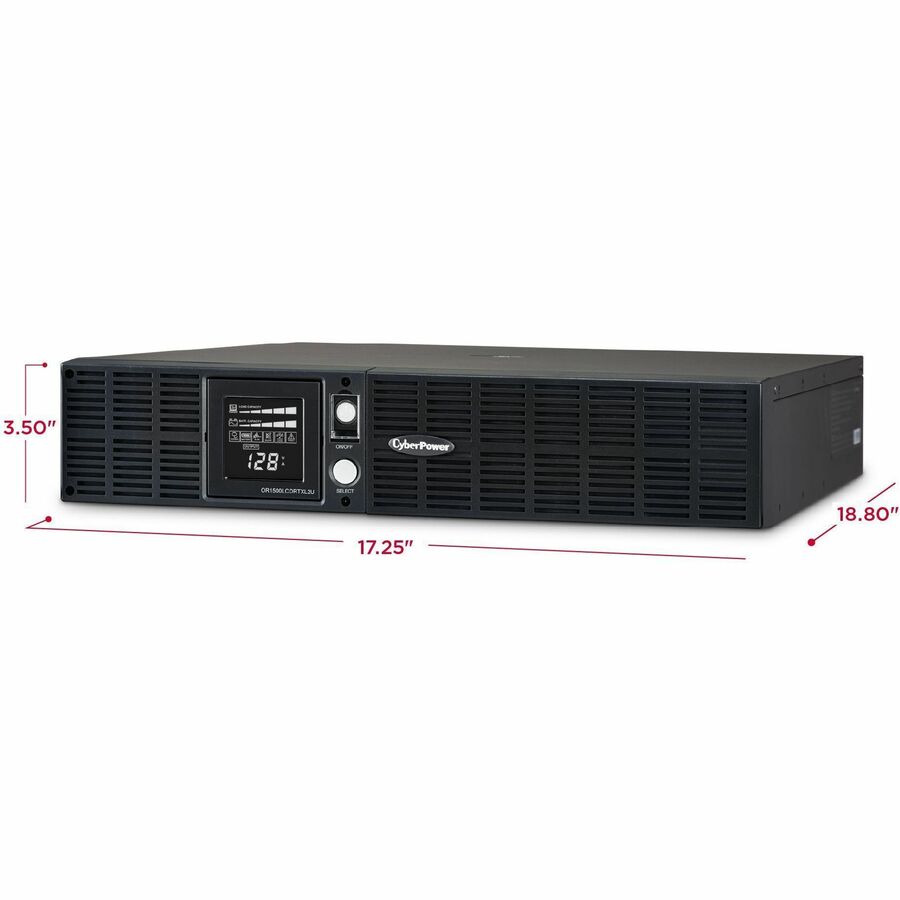

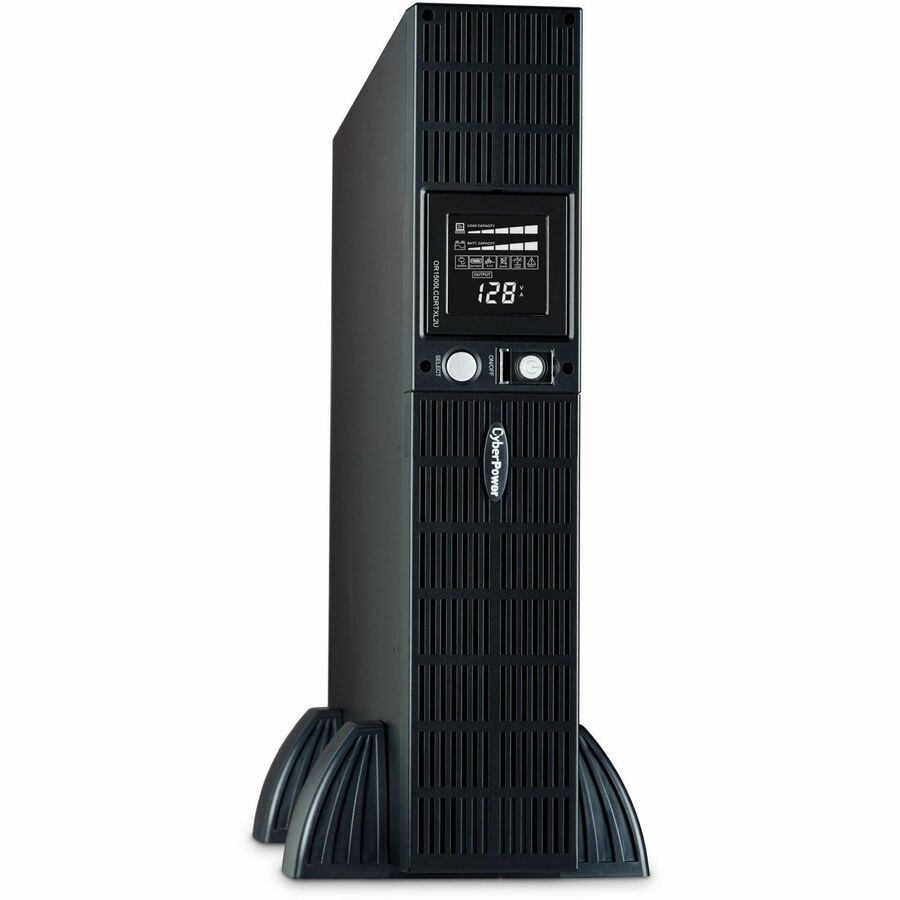

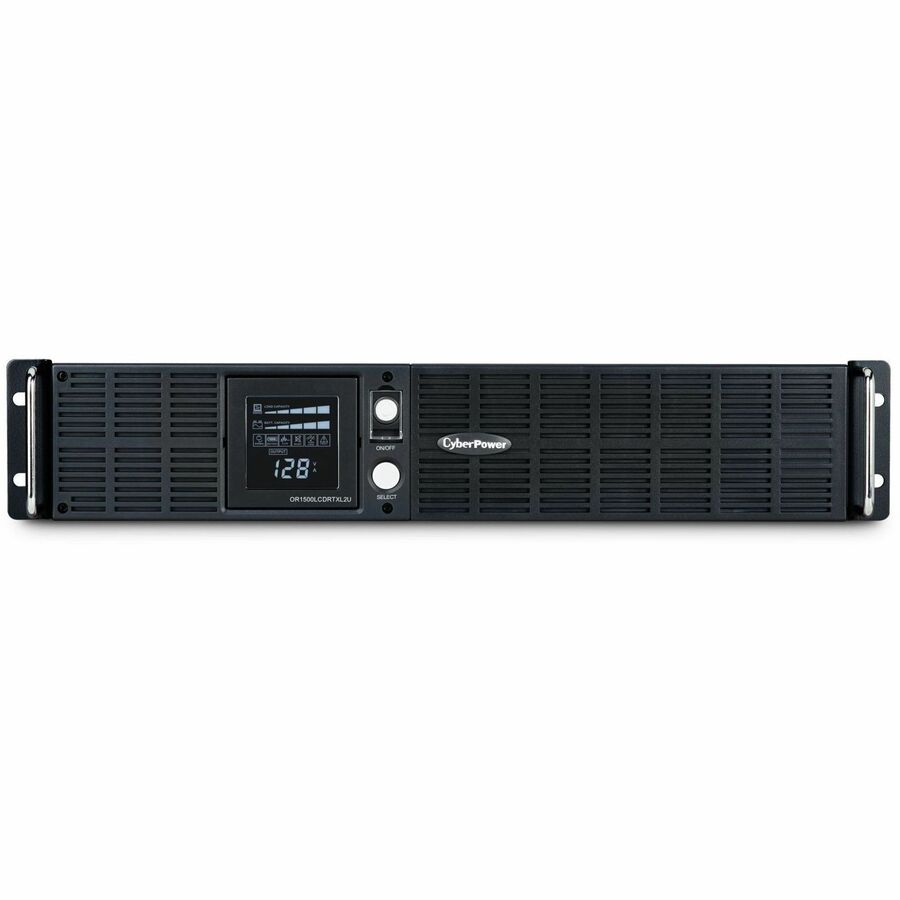

Form Factor	Rack/Tower
Rack Height	2U
Height	3.5"
Width	17"
Depth	18.8"
Weight (Approximate)	59.50 lb

Miscellaneous

Package Contents	Smart App Intelligent LCD OR1500LCDRTXL2U 1500 VA Tower/Rack-mountable UPS PowerPanel Business Edition Software CD-ROM
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Extended Battery Module : BP48VP2U02 Replacement Battery Cartridge : RB1270X4B Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 7 min Runtime at Half Load : 18 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 47.75 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 18.8 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 478 (mm) Weight (kg) : 26.99 Weight (lb) : 59.5 Shipping Dimensions - (WxHxD) (cm) : 55.25 x 26.67 x 60.33 (cm) Shipping - Dimensions (WxHxD, in) : 21.75 x 10.5 x 23.75 (in) Shipping - Dimensions (WxHxD, mm) : 552.45 x 266.7 x 603.25 (mm) Shipping - Weight (kg) : 35.38 Shipping - Weight (lb) : 78.00 Circuit Breaker : 15 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA 5-15P Nominal Input Voltage : 120 VAC Plug Style : Straight Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-15R Output Power Factor : 0.8 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 1500 VA Watts : 1125 W Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1840 J Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1840 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778 cUL 107.3 FCC DOC Class B
Software Included	PowerPanel Business Edition Software
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
