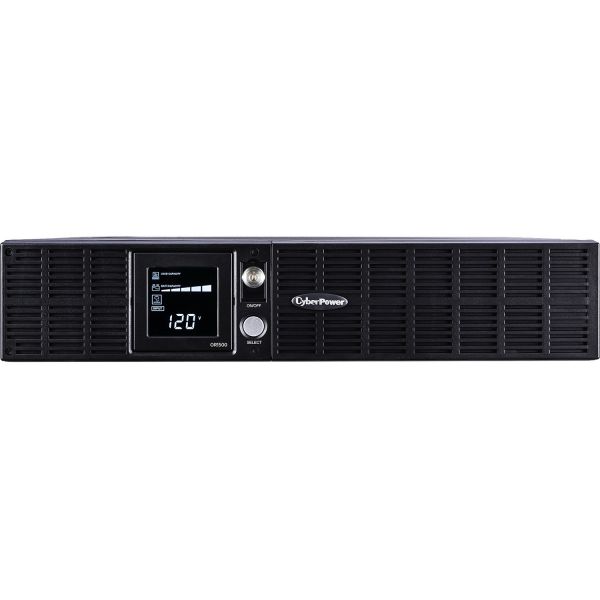

CyberPower OR1500LCDRT2U Smart App LCD UPS Systems

Name: CyberPower OR1500LCDRT2U Smart App LCD UPS Systems
Brand: CYBERPOWER
SKU: 9GM055
Price: 545.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM055

MFG#

OR1500LCDRT2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$545.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

1500VA/900W, 120 VAC, NEMA 5
15P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1778cUL 107.1FCC DOC Class BCSAC22.2Software IncludedPowerPanel Business Edition SoftwareEnergy StarYesCountry of OriginPhilippinesEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 52 lbs.

CyberPower OR1500LCDRT2U Smart App LCD UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OR1500LCDRT2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Smart App LCD UPS
Product Model	OR1500LCDRT2U
Product Name	OR1500LCDRT2U Smart App LCD UPS Systems
Marketing Information	A rack/tower UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1500LCDRT2U comes with a three-year warranty and a 300,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R
Number of Battery & Surge Outlets	8
Transfer Time	4 ms
Dataline Protection	RJ-11 RJ-45 RG-6
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Application/Usage	Server Workstation Network Device Telecommunication
Cord Length	10 ft
Circuit Breaker Current Rating	15 A

Power Description

Load Capacity (VA)	1500 VA
Load Capacity (Watt)	900 W
Input Voltage	120 V AC
Output Voltage	120 V AC
Input Frequency	47 Hz 63 Hz
Output Frequency	50 Hz 60 Hz
Waveform Type	Simulated Sine Wave
Surge Energy Rating	1840 J
Output Power Factor	0.6

Display & Graphics

Display

LCD

Management

Network Management	SNMP/HTTP Remote Monitoring
Alarm	Battery Mode Low Battery On Battery Overload UPS Fault Battery Missing

Controls/Indicators

Status Indicators

Power On
Wiring Fault

Interfaces/Ports

Serial Port	Yes
USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	4
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	7000 mAh
Backup/Run Time (Full Load)	6 Minute
Backup/Run Time (Half Load)	18 Minute
Typical Battery Recharge Time	8 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	95°F (35°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)

Physical Characteristics

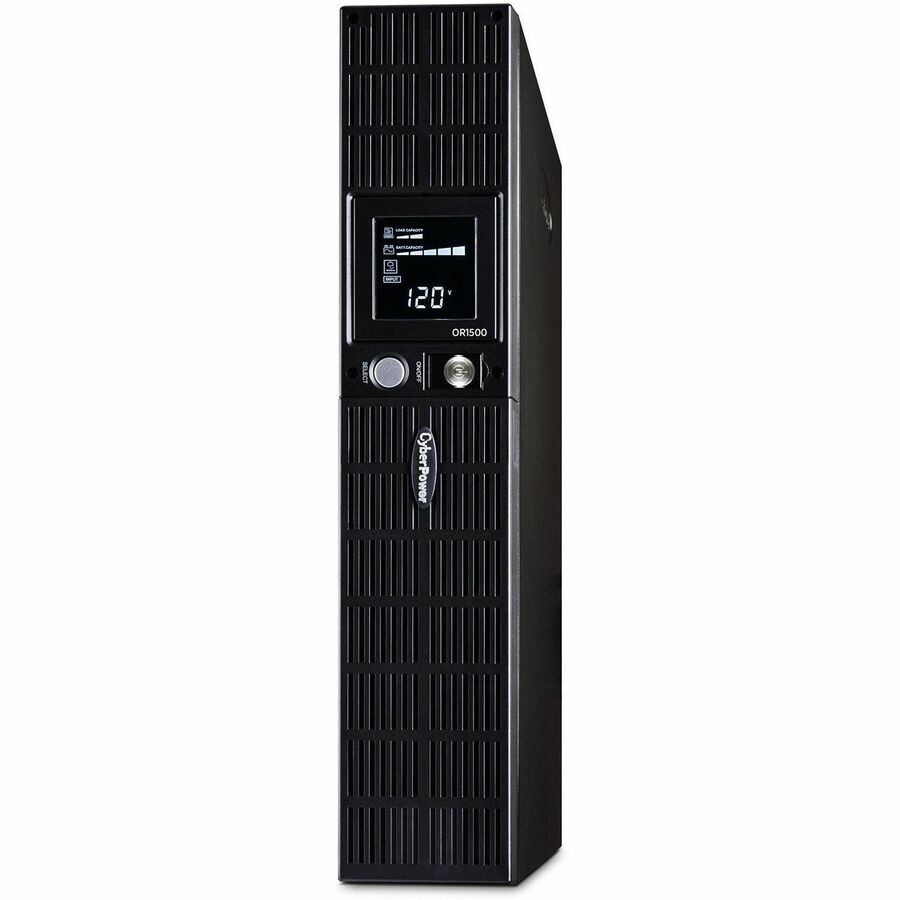

Form Factor	Rack/Tower
Rack Height	2U
Height	3.5"
Width	17.3"
Depth	15.7"
Weight (Approximate)	48.40 lb

Miscellaneous

Package Contents	Smart App Intelligent LCD OR1500LCDRT2U 1500VA UPS LCD RT PowerPanel Business Edition Software CD User Manual USB Cable Serial Cable Registration Card
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Replacement Battery Cartridge : RB1270X4J Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 6 min Runtime at Half Load : 18 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.82 x 8.89 x 40.01 (cm) Physical Dimensions - (WxHxD) (in) : 17.25 x 3.5 x 15.75 (in) Physical Dimensions - (WxHxD) (mm) : 438 x 89 x 400 (mm) Weight (kg) : 21.95 Weight (lb) : 48.4 Shipping Dimensions - (WxHxD) (cm) : 52.22 x 30.1 x 54.61 (cm) Shipping - Dimensions (WxHxD, in) : 20.56 x 11.85 x 21.5 (in) Shipping - Dimensions (WxHxD, mm) : 522.22 x 300.99 x 546.1 (mm) Shipping - Weight (kg) : 25.85 Shipping - Weight (lb) : 57.00 Circuit Breaker : 15 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 47 Hz - 63 Hz Input Plug Type : NEMA 5-15P Nominal Input Voltage : 120 VAC Plug Style : Straight Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 50/60 Hz ± 1% On Battery Voltage : 120 VAC ± 10% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port : No VA : 1500 VA Watts : 900 W EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1840 J EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1840 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778 cUL 107.1 FCC DOC Class B CSAC22.2
Software Included	PowerPanel Business Edition Software
Energy Star	Yes
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	300000 Lifetime
