CyberPower OR1500LCDRM1U Smart App LCD UPS Systems

Name: CyberPower OR1500LCDRM1U Smart App LCD UPS Systems
Brand: CYBERPOWER
SKU: 9GM167
Price: 614.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM167

MFG#

OR1500LCDRM1U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$614.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

1500VA/900W, 120 VAC, NEMA 5
15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1778cUL 107.1FCC DOC Class BSoftware IncludedPowerPanel® BusinessEnergy StarYesEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 39 lbs.

CyberPower OR1500LCDRM1U Smart App LCD UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OR1500LCDRM1U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Smart App LCD UPS
Product Model	OR1500LCDRM1U
Product Name	OR1500LCDRM1U Smart App LCD UPS Systems
Marketing Information	A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a 300,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

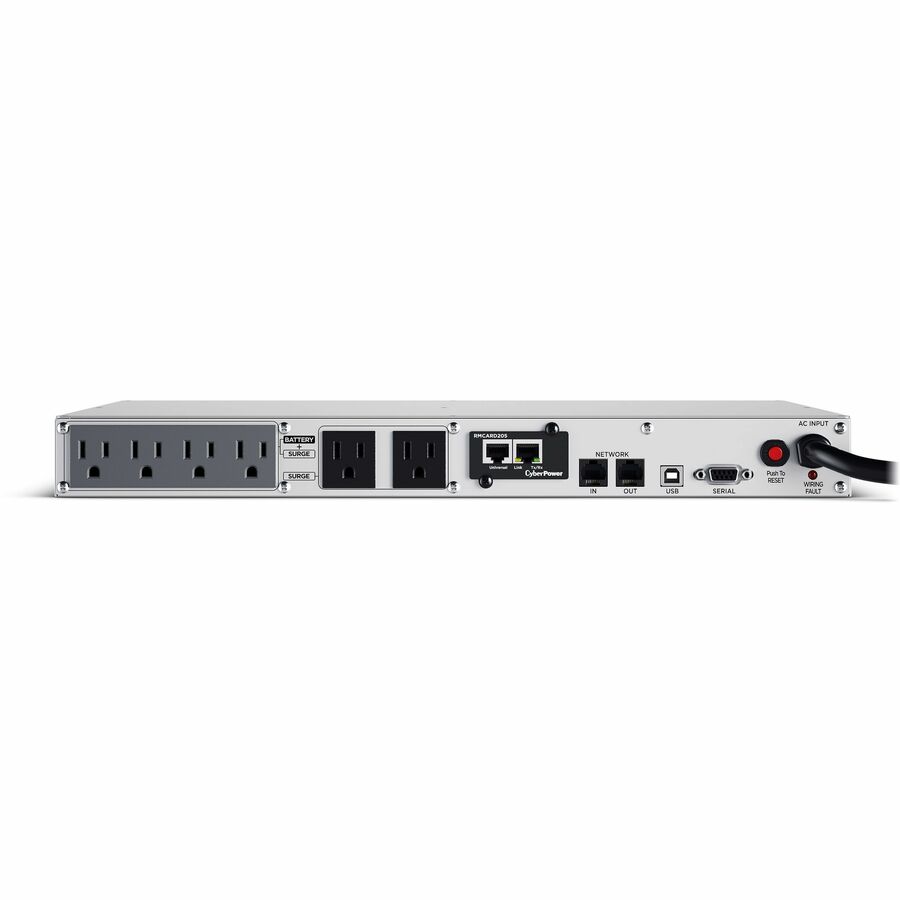

Receptacle Detail	6 x NEMA 5-15R
Number of Battery & Surge Outlets	4
Number of Surge-only Outlets	2
Transfer Time	8 ms
Dataline Protection	RJ-45 RJ-11
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Design

Power Description

Load Capacity (VA)	1500 VA
Input Voltage	120 V AC
Input Voltage Range	90 V AC - 140 V AC
Output Voltage	120 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Simulated Sine Wave
Surge Energy Rating	1150 J

Management

Network Management	SNMP Manageable
Alarm	Battery Mode

Controls/Indicators

Status Indicators

Power On
Multifunction LCD

Interfaces/Ports

Serial Port	Yes
USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

DC System Voltage	6 V DC
Number of Batteries	4
Battery Chemistry	Lead Acid
Battery Size	6V
Battery Capacity	9000 mAh

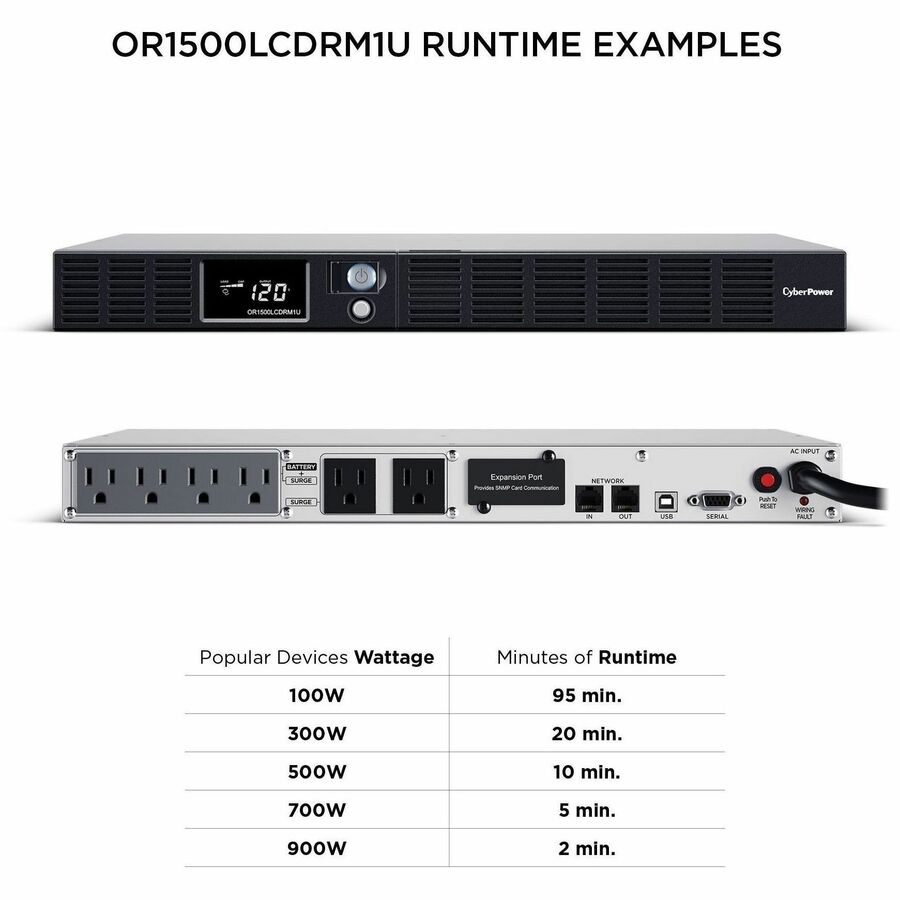

Backup/Run Time (Full Load)	2 Minute
Backup/Run Time (Half Load)	11 Minute
Typical Battery Recharge Time	8 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U

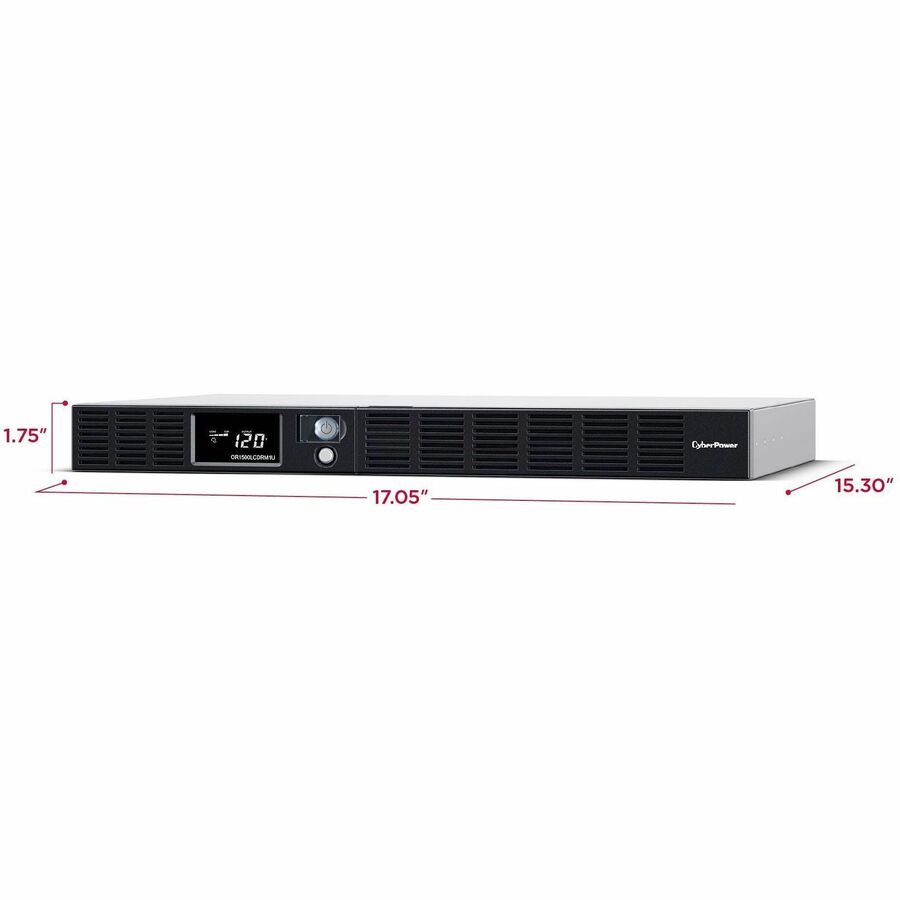

Height	1.8"
Width	17.1"
Length	15.3"
Weight (Approximate)	33 lb

Miscellaneous

Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 4 Battery Size : 6 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB0690X4 Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 2 min Runtime at Half Load : 11 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 38.86 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 15.3 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 389 (mm) Weight (kg) : 14.97 Weight (lb) : 33 Shipping Dimensions - (WxHxD) (cm) : 54.61 x 15.88 x 60.33 (cm) Shipping - Dimensions (WxHxD, in) : 21.5 x 6.25 x 23.75 (in) Shipping - Dimensions (WxHxD, mm) : 546.1 x 158.75 x 603.25 (mm) Shipping - Weight (kg) : 16.6 Shipping - Weight (lb) : 36.6 Adjustable Voltage Range : 88 - 144 VAC Circuit Breaker : 15 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 90 VAC - 140 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 10% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 4 Outlets - Surge-Only Protected : 2 Outlets - Total : 6 Outlet Type COMPUTED : 6 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 8 ms USB Charge Port : No VA : 1500 VA Watts : 900 W EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1150 J EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1150 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Dry Contact SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205 Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rackmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778 cUL 107.1 FCC DOC Class B
Software Included	PowerPanel® Business
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	300000 Lifetime
