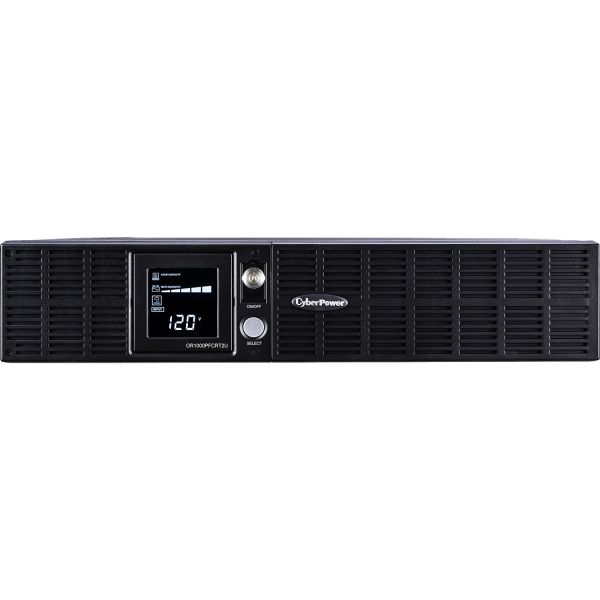

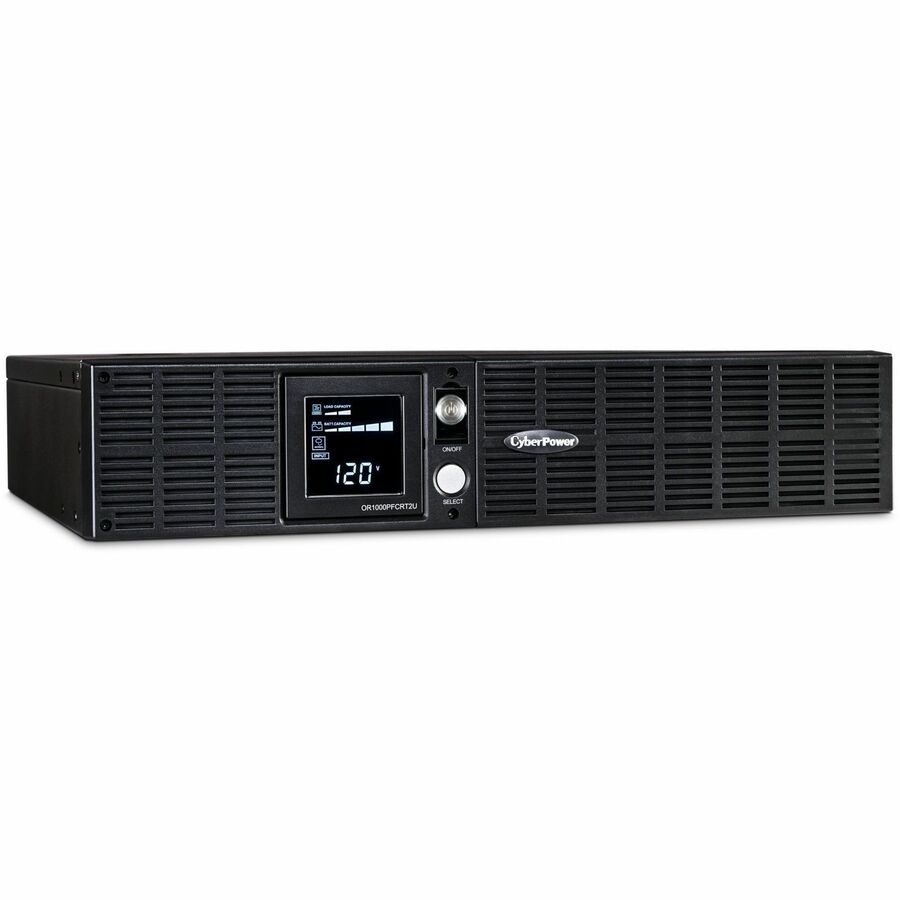

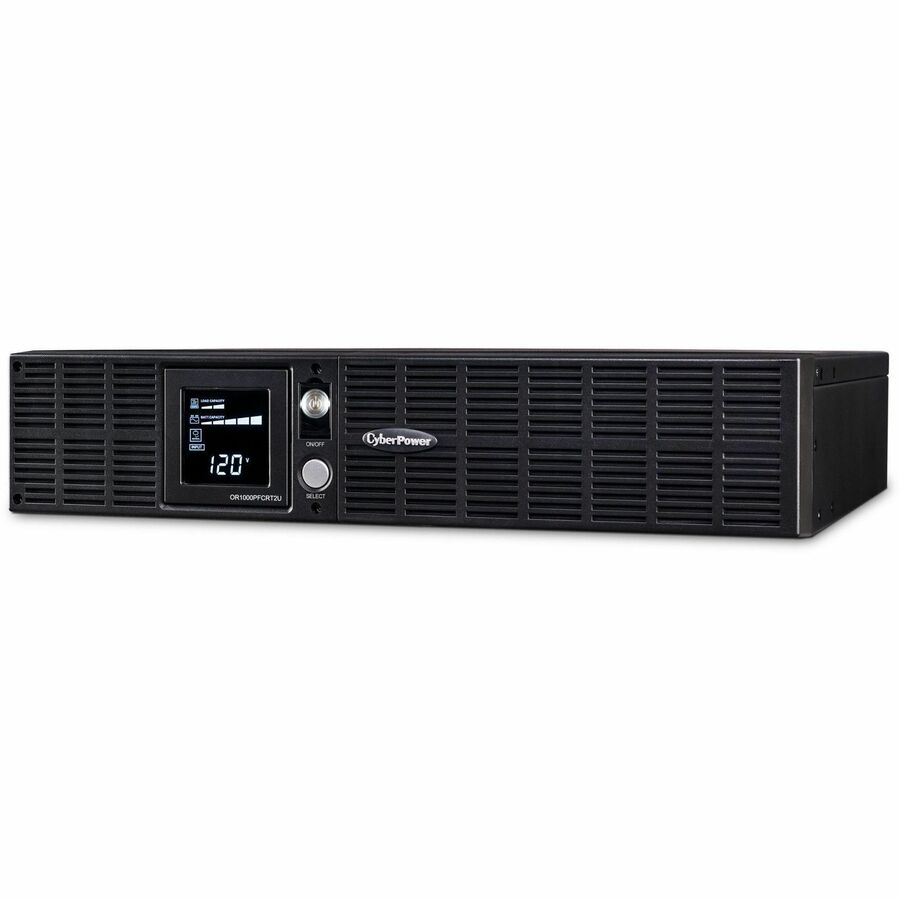

CyberPower OR1000PFCRT2U PFC Sinewave UPS Systems

Name: CyberPower OR1000PFCRT2U PFC Sinewave UPS Systems
Brand: CYBERPOWER
SKU: 9GM150
Price: 520.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM150

MFG#

OR1000PFCRT2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$520.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

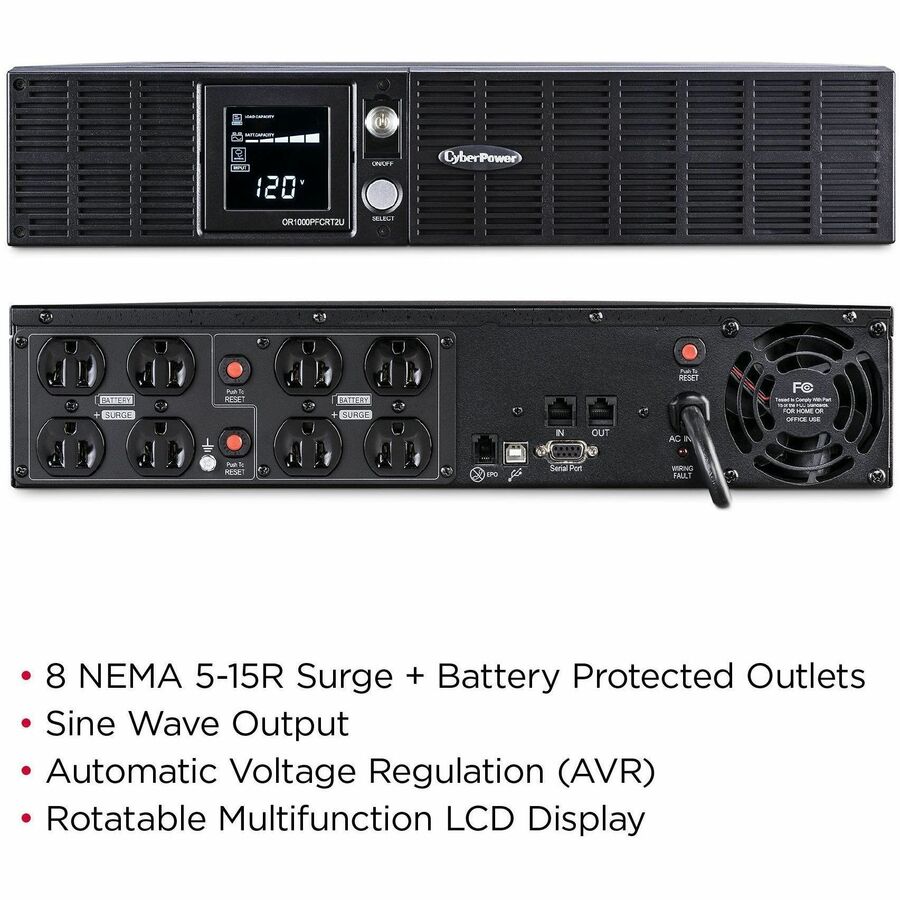

1000VA/700W, 120 VAC, NEMA 5

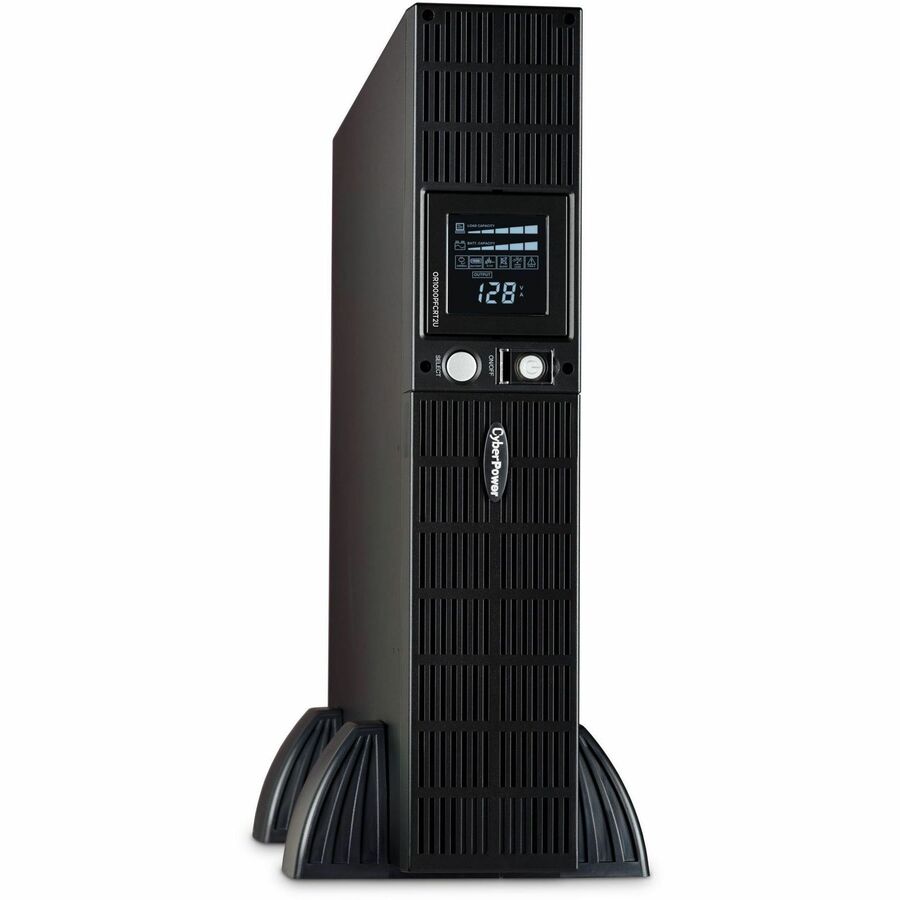

15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & Standards cUL UL 1778 5th Ed FCC Class A Software IncludedPowerPanel Business EditionEnergy StarNoCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 45 lbs.

CyberPower OR1000PFCRT2U PFC Sinewave UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OR1000PFCRT2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	PFC Sinewave UPS
Product Model	OR1000PFCRT2U
Product Name	OR1000PFCRT2U PFC Sinewave UPS Systems

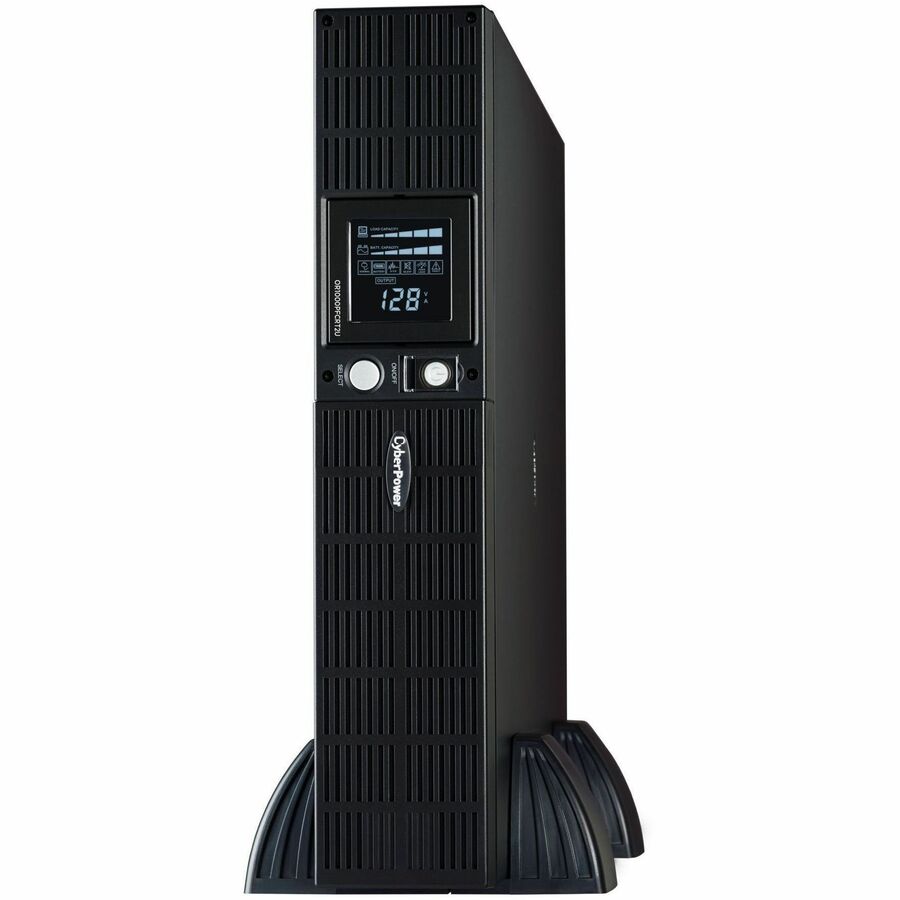

Marketing Information	A a rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR1000PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices and telecom equipment requiring Active PFC power source compatibility. The OR1000PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1000PFCRT2U comes with a three-year warranty and a 300,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

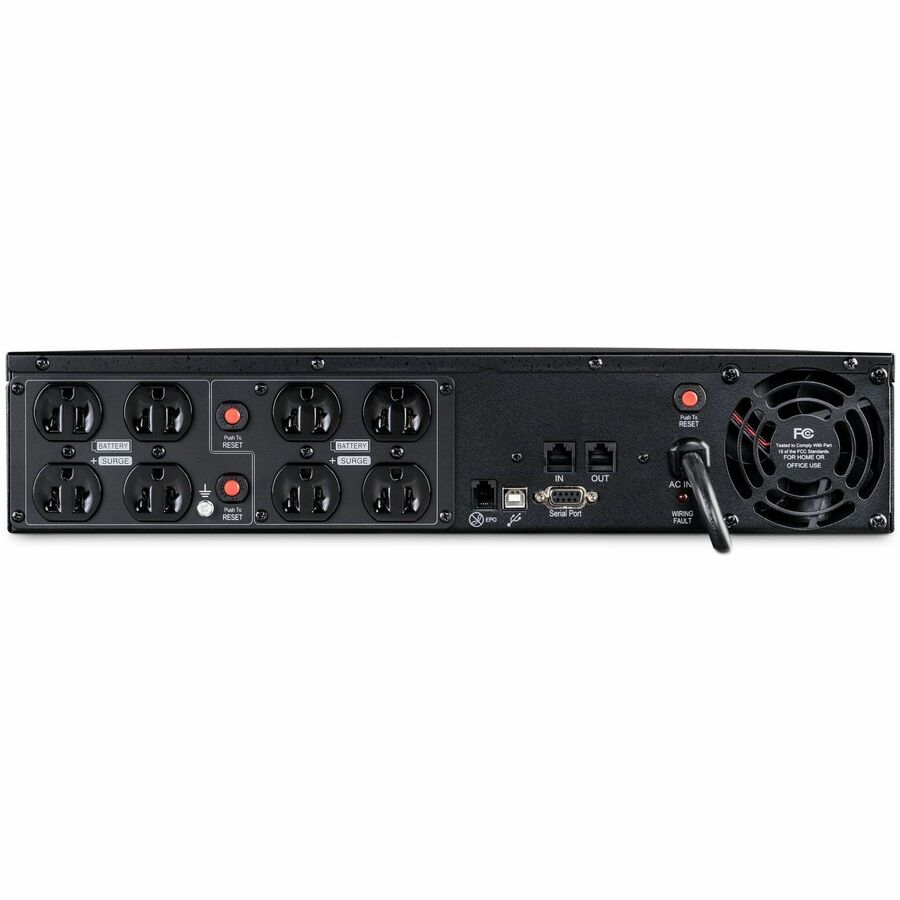

Receptacle Detail	8 x NEMA 5-15R
Dataline Protection	RJ-11 RJ-45
Overload Protection	Yes
EMI/RFI Noise Filter	Yes

Power Description

Load Capacity (VA)	1000 VA
Load Capacity (Watt)	700 W
Input Voltage	120 V AC
Output Voltage	120 V AC
Waveform Type	Sine Wave
Surge Energy Rating	1470 J

Management

Alarm

On Battery
Low Battery
Overload

Controls/Indicators

Status Indicators

Power On
Wiring Fault

Interfaces/Ports

Serial Port	Yes
Modem (RJ-11)	Yes
Network (RJ-45)	Yes
USB	Yes

Battery Information

Number of Batteries	2
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	6.60 Minute
Backup/Run Time (Half Load)	17.90 Minute
Typical Battery Recharge Time	10 Hour

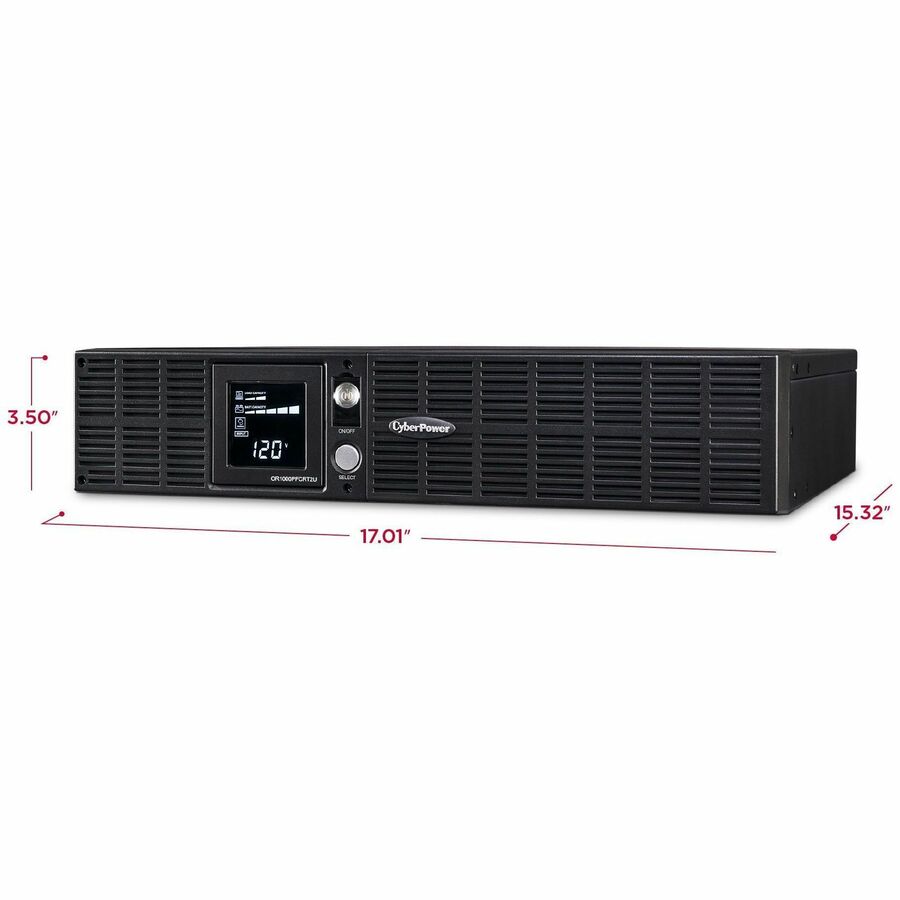

Physical Characteristics

Height	3.50"
Width	17.01"
Depth	15.32"

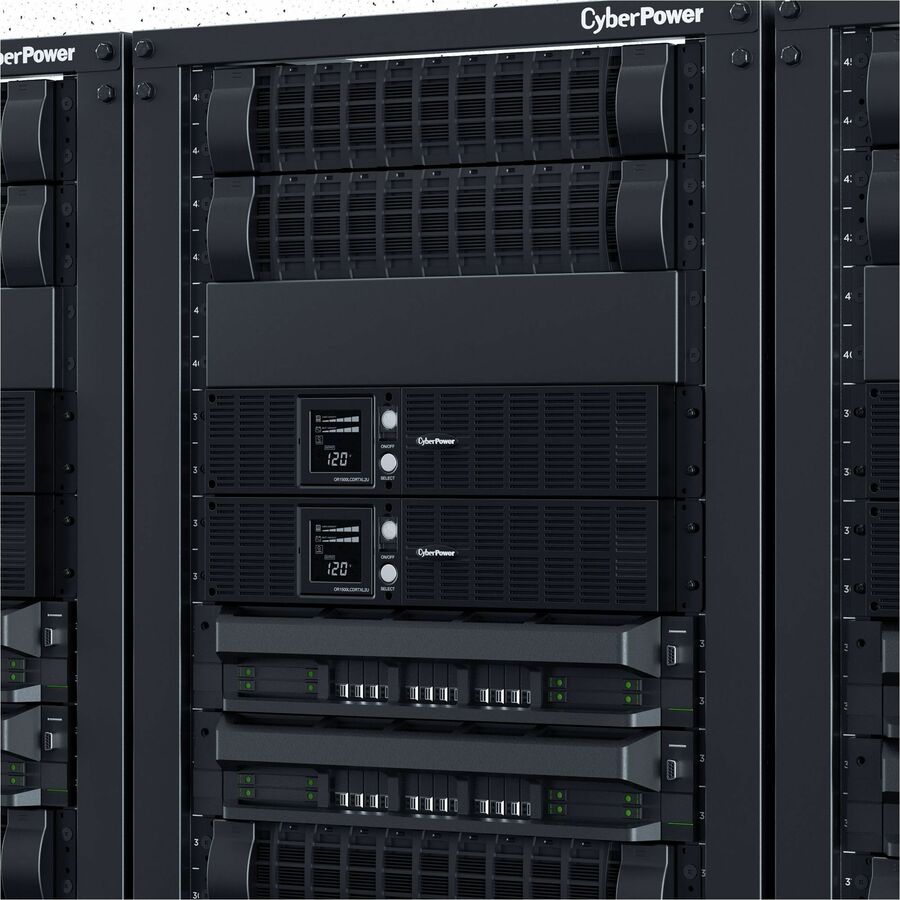

Form Factor	Rack-mountable
Weight (Approximate)	37.40 lb

Miscellaneous

Package Contents	OR1000PFCRT2U PFC Sinewave 1000VA Rack-mountable UPS USB A-B Cable User's Manual Software Download Card Registration Info Card
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Battery Voltage : 24 VDC Hot Swappable : Yes Replacement Battery Cartridge : RB1290X2C Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 6.6 min Runtime at Half Load : 17.9 min Typical Recharge Time : 10 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.21 x 8.89 x 38.91 (cm) Physical Dimensions - (WxHxD) (in) : 17.01 x 3.5 x 15.32 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 389 (mm) Weight (kg) : 16.96 Weight (lb) : 37.4 Shipping Dimensions - (WxHxD) (cm) : 52.07 x 29.21 x 53.98 (cm) Shipping - Dimensions (WxHxD, in) : 20.5 x 11.5 x 21.25 (in) Shipping - Dimensions (WxHxD, mm) : 520.7 x 292.1 x 539.75 (mm) Shipping - Weight (kg) : 20.5 Shipping - Weight (lb) : 45.2 Adjustable Voltage Range : 86 - 142 VAC Circuit Breaker : 15 A Cord Length : 10 ft (3.0 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 88 VAC - 139 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Sine Wave Outlets - Battery & Surge Protected : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-15R Output Power Factor : 0.7 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms Under/Over-Voltage Correction : +14% USB Charge Port : No VA : 1000 VA Watts : 700 W EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1470 J EMI/RFI Filtration COMPUTED : Yes Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo) Surge Suppression (Joules) : 1470 J Audible Alarms : Battery Mode Emergency Power Off (EPO) Port : Yes HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Remote Management Card : None Serial Port : 1 Serial Software (Free Download) : PowerPanel® Business Color : Black Form Factor : Rack / Tower Material of Construction : Metal Rack Height : 2U Audible noise at 1.5M from surface of unit : 48.5 dBA On Battery Thermal Dissipation : 447.6 BTU/hr Online Thermal Dissipation : 70.3 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 5th Ed. CEG Amount : 300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	cUL UL 1778 5th Ed FCC Class A

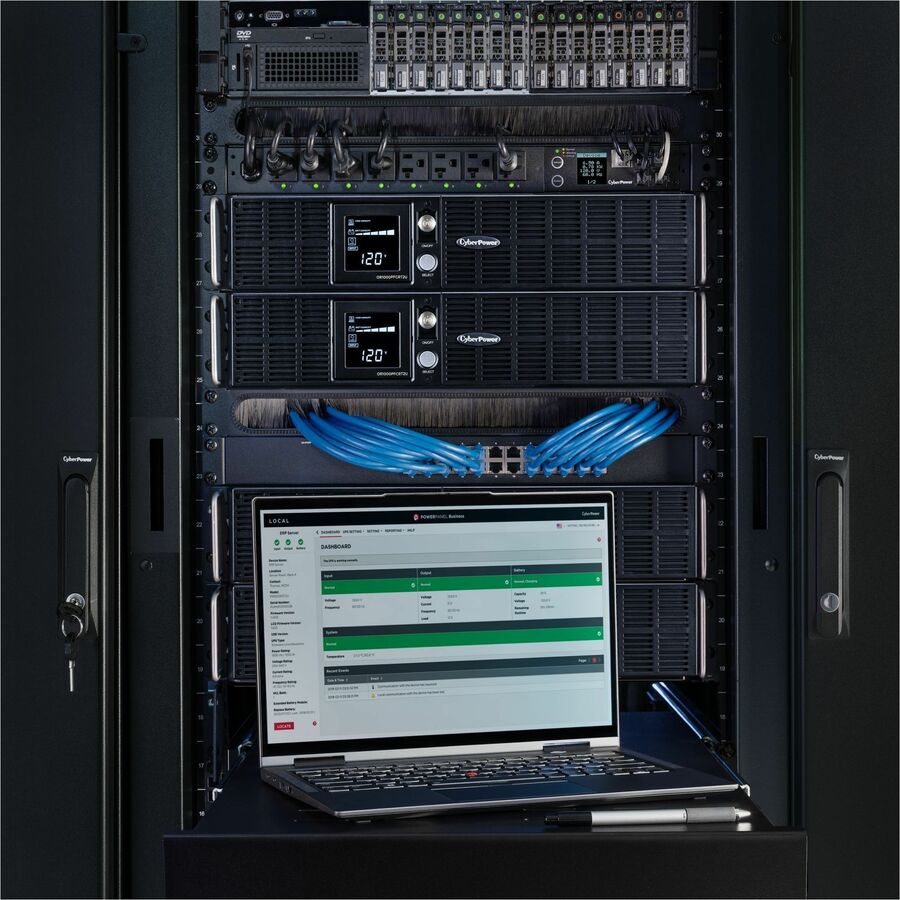

Software Included	PowerPanel Business Edition
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
