CyberPower Smart App Online 8000VA Rack/Tower UPS

by
CYBERPOWER
PCN#
09QH40
MFG#
OL8KRTHD
$8,749.95
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 8000VA/8000W, 200
  • 240 VAC, Hardwire, Rack / Tower, Sine Wave, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
Product Condition: New and Factory Fresh
Limited Warranty3 YearDirectly Connected Equipment Guarantee300000 Lifetime
Shipping Weight: 200 lbs.

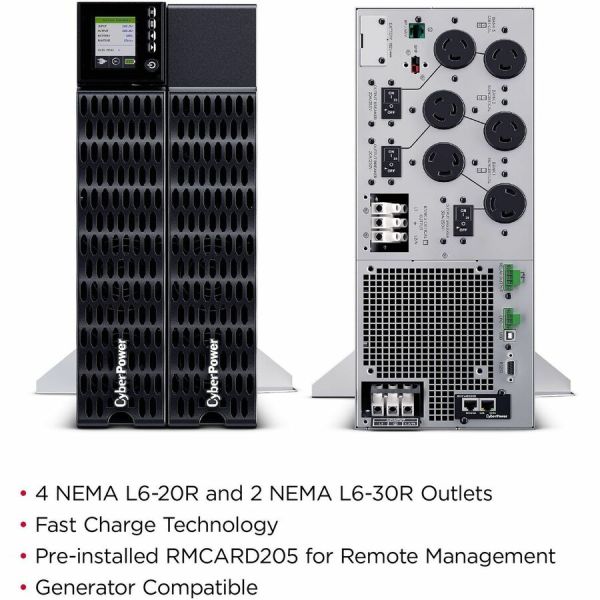

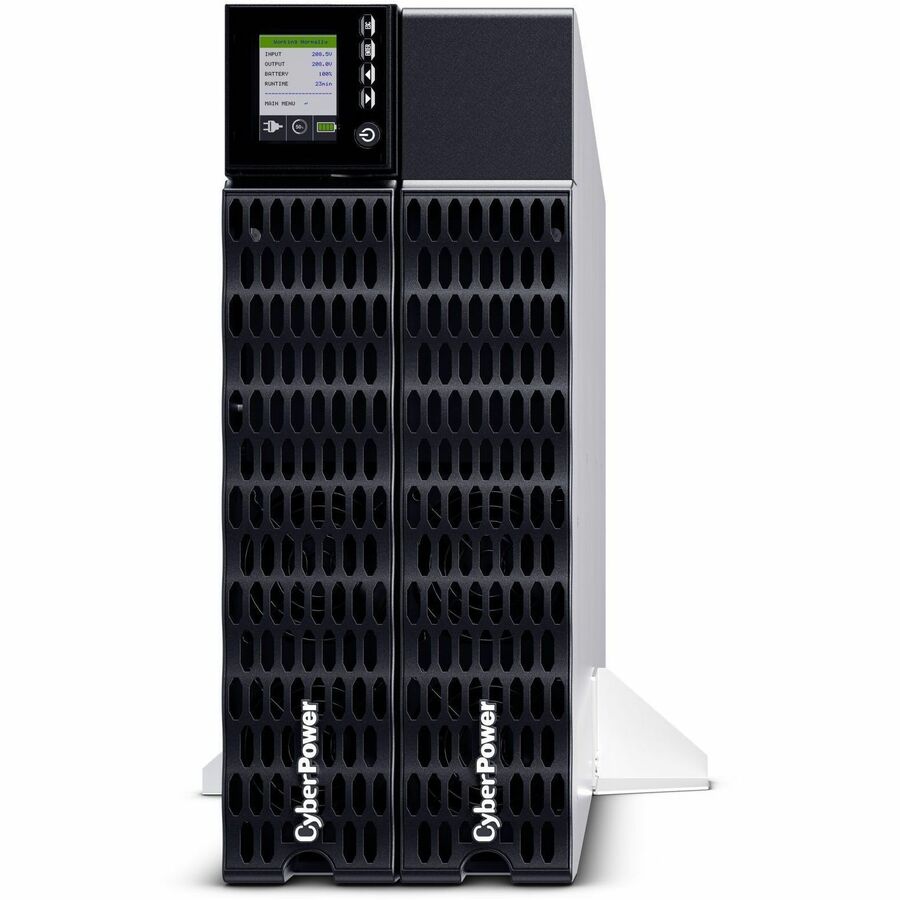

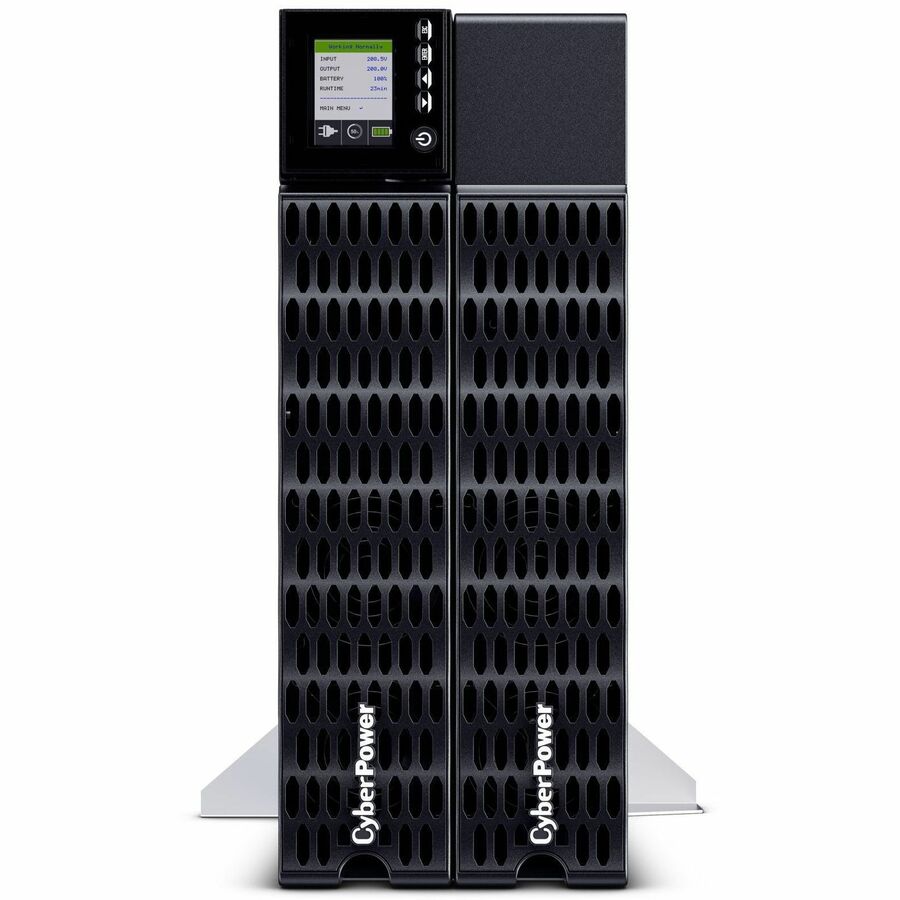

CyberPower OL8KRTHD Smart App Online UPS Systems
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

OL8KRTHD

Manufacturer Website Address

https://www.cyberpowersystems.com

Brand Name

CyberPower

Product Line

Smart App Online

Product Name

OL8KRTHD Smart App Online UPS Systems

Marketing Information

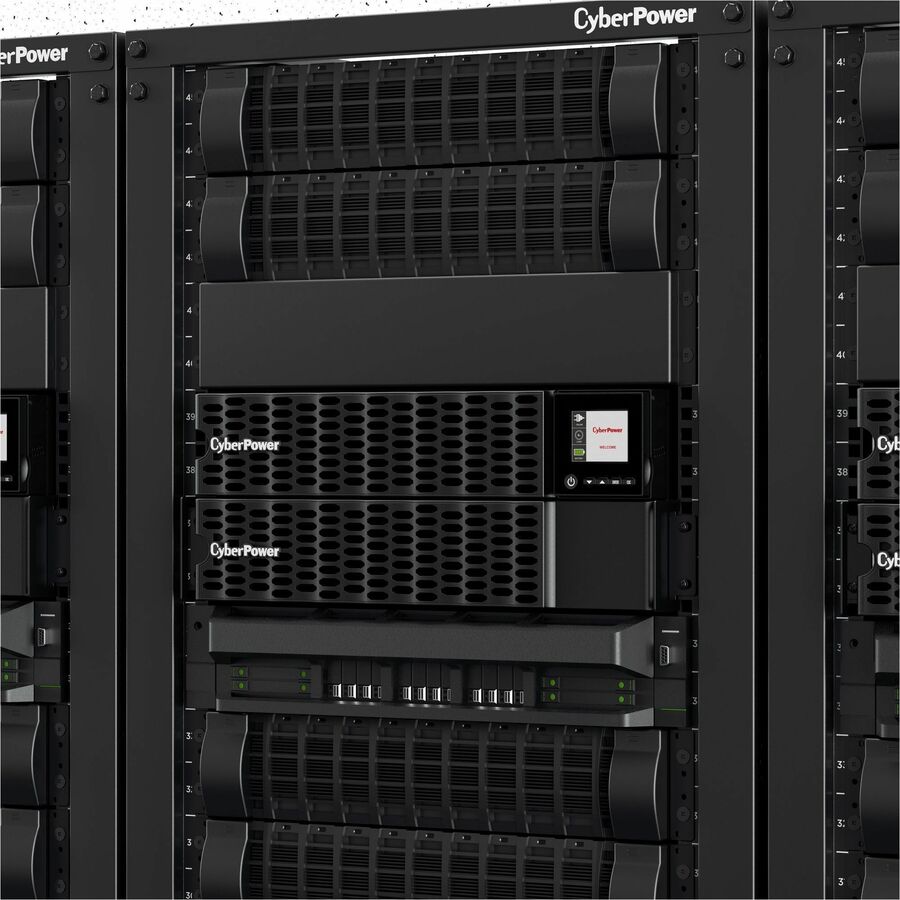

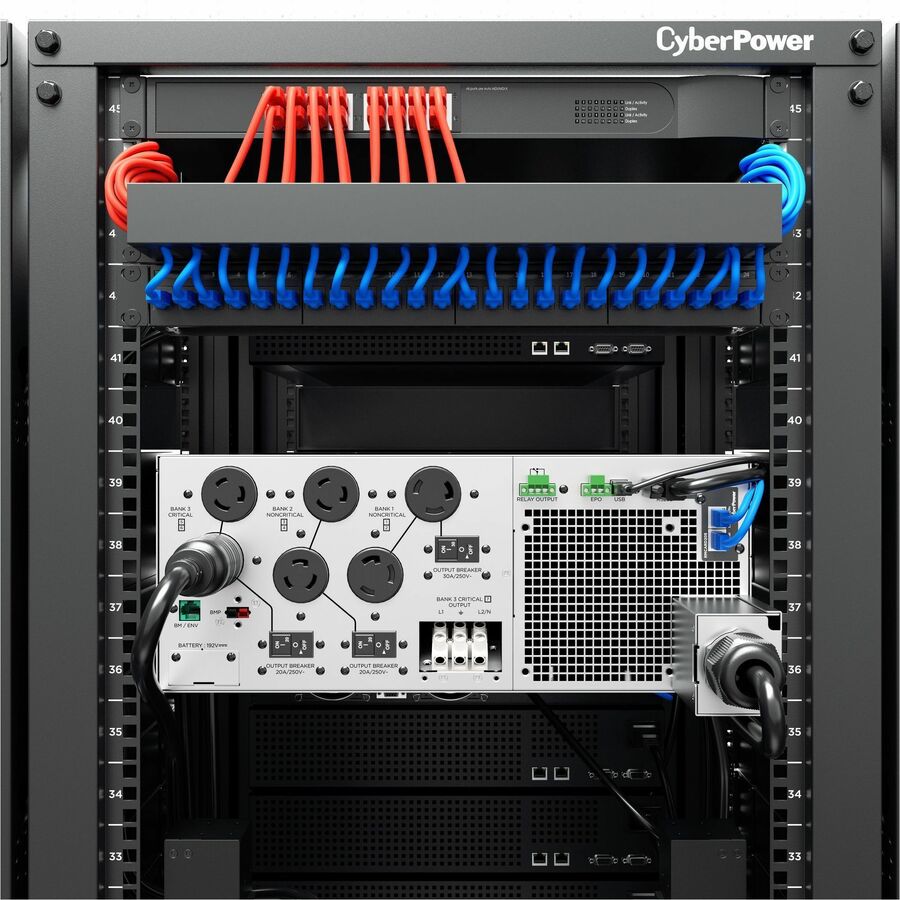

  • The CyberPower Smart App Online OL8KRTHD high-density design offers more power in less space. In fact, it can be configured into 4U of rack space or as a tower, compared to 6U for similar competitive UPS models - giving you more room to grow. The OL8KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

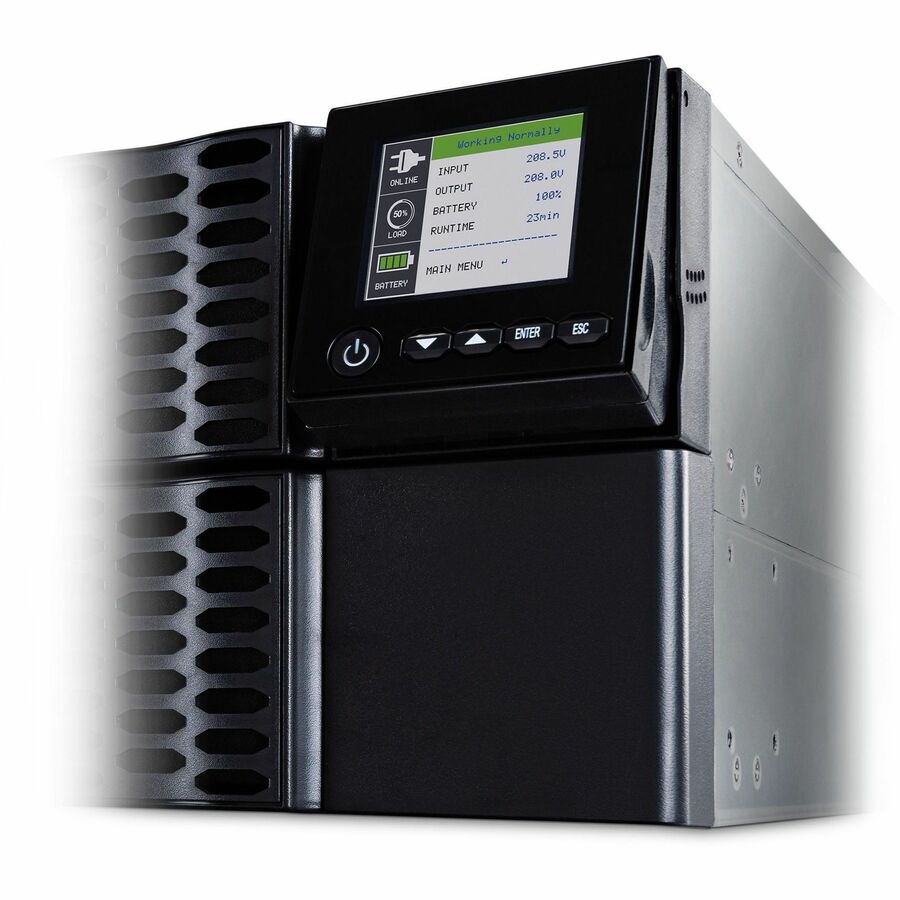

    For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

    The OL8KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 98% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

    The optional BP192VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a

  • 300,000 Connected Equipment Guarantee.

Product Type

Dual Conversion Online UPS
Technical Information

Plug/Connector Type

Hardwired

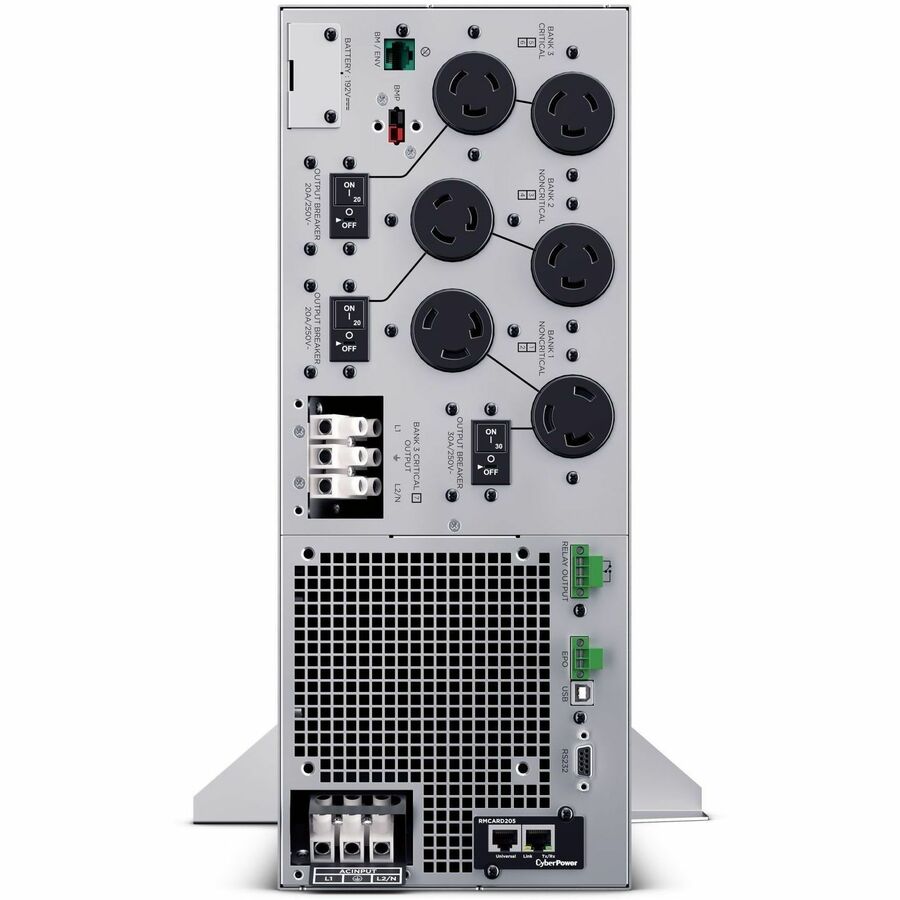

Receptacle Type

NEMA L6-20R

Receptacle Detail

4 x NEMA L6-20R

Transfer Time

0 ns

EMI/RFI Noise Filter

Yes

Energy Saving

ECO Mode Efficiency >98%
Power Description

Load Capacity (VA)

8000 VA

Load Capacity (Watt)

8000 W

Input Voltage

  • 120 V AC
  • 230 V AC

Input Voltage Range

  • 120 V AC - 139 V AC
  • 200 V AC - 240 V AC

Output Voltage

  • 200 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
  • 240 V AC

Input Frequency

  • 50 Hz
  • 60 Hz

Output Frequency

  • 50 Hz
  • 60 Hz

Waveform Type

Sine Wave

Surge Energy Rating

2430 J

Circuit Breaker

Yes

Input Power Factor

0.99

Output Power Factor

1
Display & Graphics

Display

LCD
Management

Network Management

SNMP/HTTP Remote Monitoring

Alarm

Battery Mode
Controls/Indicators

Status Indicators

Power On (White)
Interfaces/Ports

Serial Port

Yes

EPO Port

Yes

USB (HID Compliant) Port

Yes
Battery Information

Number of Batteries

16

Battery Characteristics

Sealed

Battery Chemistry

Lead Acid

Battery Size

12V

Battery Capacity

9000 mAh

Backup/Run Time (Full Load)

3.80 Minute

Backup/Run Time (Half Load)

11 Minute

Typical Battery Recharge Time

4 Hour

Hot Swappable

Yes

Replaceable Battery

Yes
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

104°F (40°C)

Storage Temperature

-4°F (-20°C) - 113°F (45°C)

Maximum Operating Elevation

10000 ft

Maximum Storage Elevation

50000 ft

Operating Humidity

0% - 90%

Storage Relative Humidity

0% - 95%

Sound Emission (A-Weighted)

66 dB(A)

Thermal Dissipation

465.69 W
Physical Characteristics

Color Family

Black

Product Color

Black

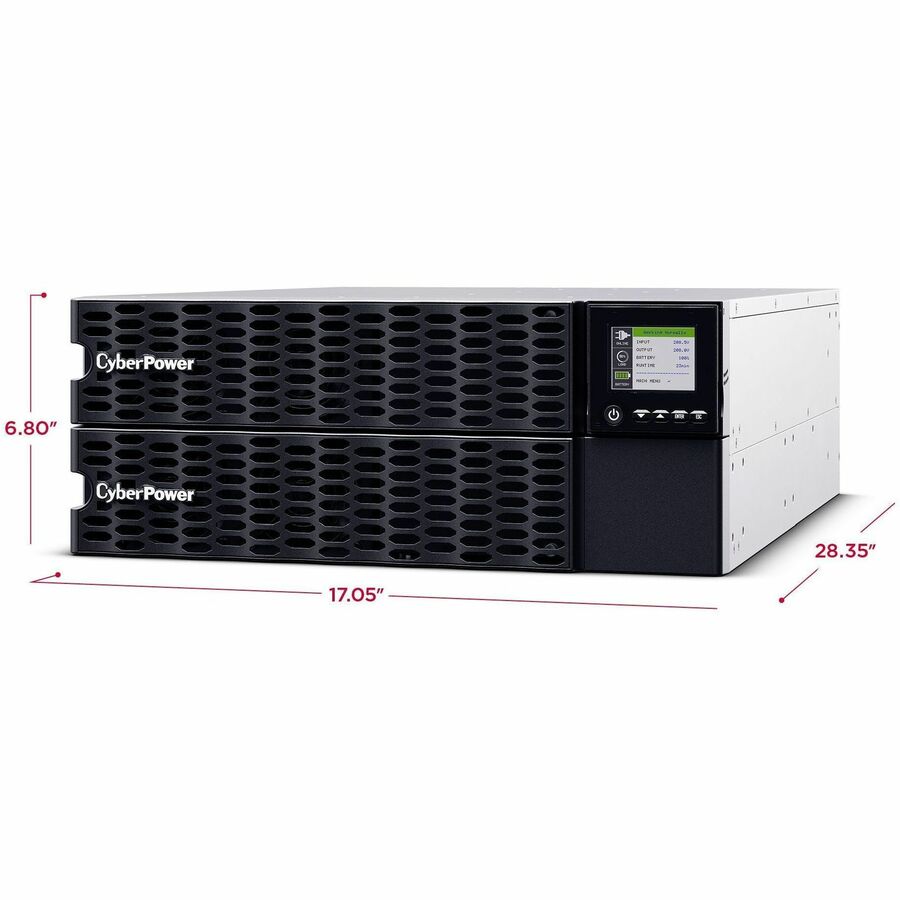

Height

6.80"

Width

17.05"

Depth

28.35"

Form Factor

Rack/Tower

Weight (Approximate)

157 lb
Miscellaneous

Additional Information

  • Bypass: Internal Bypass (Automatic and Manual)
  • Chassis Product Color: Unpainted
  • Dry Contacts: No
  • ECO Mode Voltage Regulation: ±10%, ±15% (configurable)
  • Harmonic Distortion: < 3% at Linear Load
  • Management Cable: USB Cable
  • Material of Construction: Metal
  • Mounting Hardware: Yes
  • Removable LCD Control Panel Option: No
  • Rotatable LCD Control Panel Option: Yes
  • Serial Port: 1 Serial
  • Short Circuit Protection: UPS Output Cut off Immediately
  • Software (Free Download): PowerPanel® Business
  • USB Charge Port: No
  • Certifications & Standards

    UL1778

    Energy Star

    Yes

    Environmentally Friendly

    Yes

    Environmental Compliance

    Restriction of Hazardous Substances (RoHS)
    Warranty

    Limited Warranty

    3 Year

    Directly Connected Equipment Guarantee

    • 300000 Lifetime
