CyberPower OL8KRT Smart App Online UPS Systems

Name: CyberPower OL8KRT Smart App Online UPS Systems
Brand: CYBERPOWER
SKU: 9ML302
Price: 7495.95 USD
Availability: InStock

CYBERPOWER

PCN#

9ML302

MFG#

OL8KRT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$7,495.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $418.99

3-Year $535.99

Free Shipping

Estimated Shipment:

Product Highlights:

8000VA/8000W, 200
240 VAC, Hardwire, 6U, Rack / Tower, Sine Wave, 4 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearDirectly Connected Equipment Guarantee300000 Lifetime

Shipping Weight: 1 lbs.

CyberPower OL8KRT Smart App Online UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OL8KRT
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Smart App Online UPS
Product Model	OL8KRT
Product Name	OL8KRT Smart App Online UPS Systems

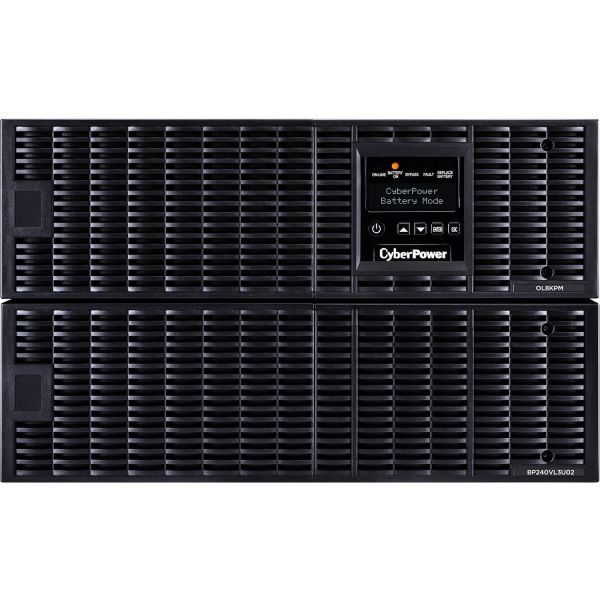

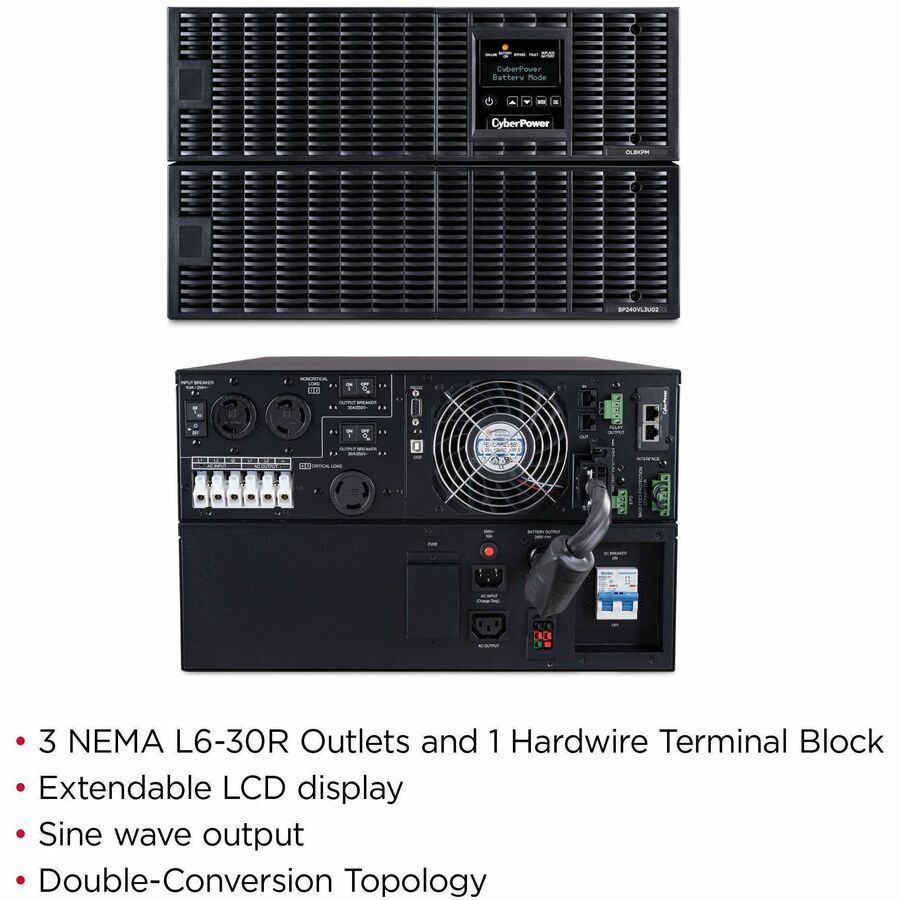

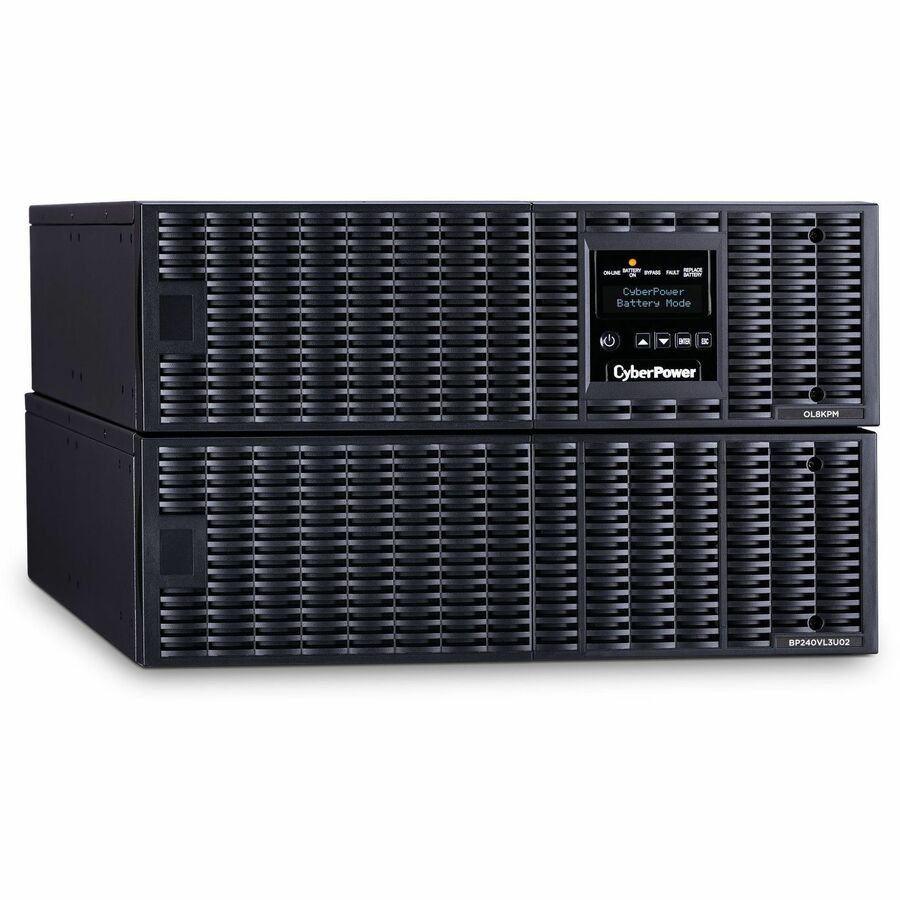

Marketing Information	The CyberPower Smart App Online OL8KRT is a 6U rack/tower UPS with double-conversion. It provides sine wave output to multiple types of critical IT infrastructure requiring seamless power protection. The OL8KRT is generator compatible and delivers consistent 200-240 V power with zero-transfer time. Automatic-bypass ensures connected equipment continues to operate seamlessly when an overload or internal fault is detected. The OL8KRT features a removable LCD control panel to reposition it in a more convenient location (with optional DB-26 cable), and it has a RMCARD205 pre-installed network card. Smart-battery management charging technology increases battery life by up to 50%. Fast-charge technology helps replenish battery charge from 0-90% in five hours, regardless of the number of Extended Battery Modules (EBM) connected. The energy-saving GreenPower UPS™ ECO Mode allows the UPS to reach up to 96% efficiency to reduce power consumption and thermal dissipation. This UPS can use the BP240V30ART3U or BP240VL3U01 extended battery module for more runtime. The OL8KRT comes with a three-year warranty (including batteries) and a 300,000 connected equipment guarantee.
Product Type	Dual Conversion Online UPS

Technical Information

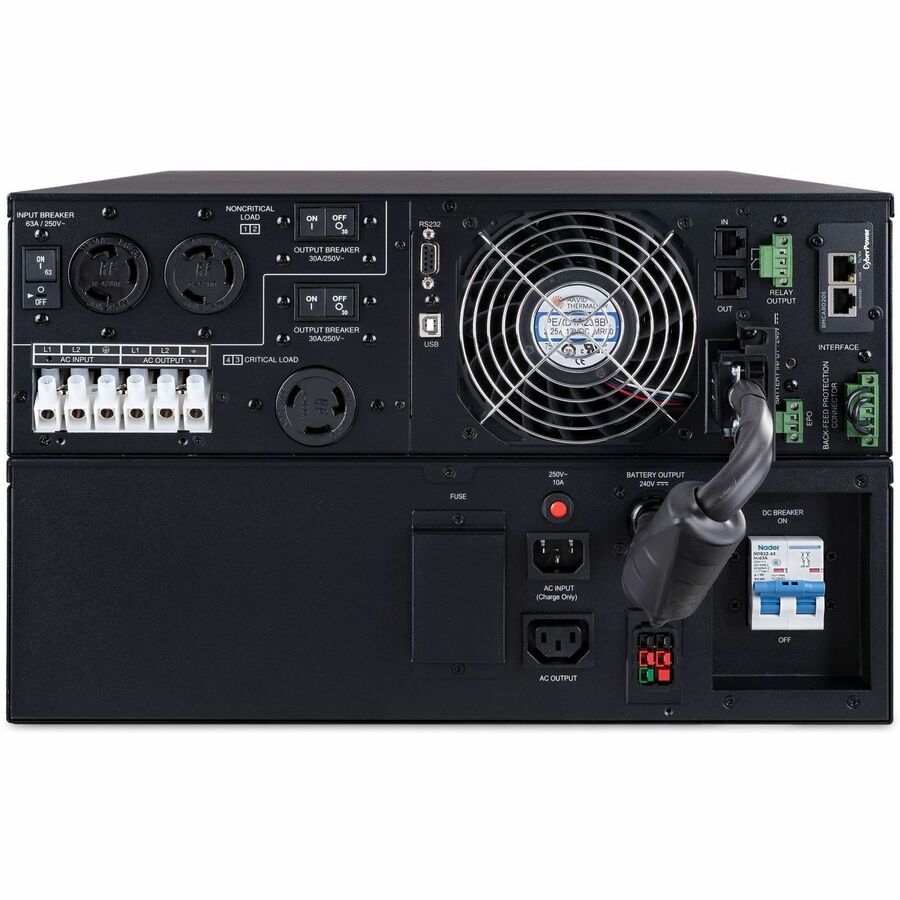

Plug/Connector Type	Hardwired
Receptacle Type	NEMA L6-30R
Receptacle Detail	3 x NEMA L6-30R
Transfer Time	0 ns
Dataline Protection	RJ-11 RJ-45
Protection Type	Backfeed Short Circuit
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Energy Saving	ECO Mode Efficiency >96%
Application/Usage	IT Infrastructure Server Room Network Device VoIP Device Storage Device IT System Generator
Crest Factor	3:1
Circuit Breaker Current Rating	63 A

Power Description

Load Capacity (VA)	8000 VA
Load Capacity (Watt)	8000 W
Input Voltage	120 V AC 230 V AC
Input Voltage Range	200 V AC - 240 V AC 120 V AC - 139 V AC
Output Voltage	200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
Input Frequency	50 Hz 60 Hz
Output Frequency	50 Hz 60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	2430 J
Input Power Factor	0.99
Output Power Factor	1

Display & Graphics

Display

LCD

Management

Network Management	Dry Contact
Alarm	Battery Mode

Controls/Indicators

Status Indicators

Power On (White)

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes
USB (HID Compliant) Port	Yes
EPO Port	Yes

Battery Information

Number of Batteries	20
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	4.70 Minute
Backup/Run Time (Half Load)	12 Minute
Typical Battery Recharge Time	5 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 90%
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	65 dB(A)
Thermal Dissipation	743.23 W

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack/Tower
Rack Height	6U

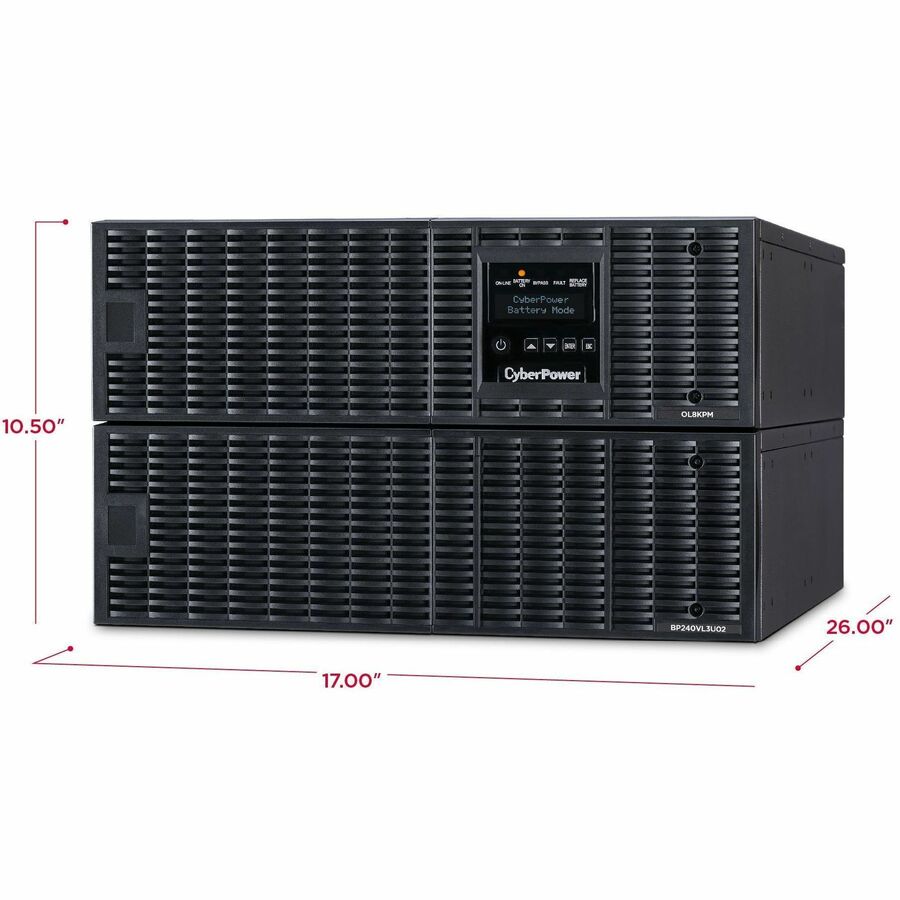

Height	10.5"
Width	17"
Depth	26"
Weight (Approximate)	226.60 lb

Miscellaneous

Package Contents	Smart App Online OL8KRT 8KVA Tower/Rack Mountable UPS Extended Battery Module (EBM) Left & Right Rackmount Rails Left & Right Hanging Brackets Phone Cable USB Communication Cable Serial Interface Cable (RS-232) NEMA L6-30P to IEC-320-C13 Power Cord Quick Start Guide Safety Instructions Registration Warranty Card PowerPanel Management Software Download Card 4 x Rackmount Ears Tie Plate 16 x Black M5X7L Flat Head Screws 24 x Black M5X12L Pan Head Screws 12 x Silver M5X6L Pan Head Screws 16 x Plastic Washers 28 x Screw Hole Dust Covers 24 x Rubber Pads
Additional Information	Bypass: Internal Bypass (Automatic and Manual) Dry Contacts: Yes ECO Mode Voltage Regulation: ±10%, ±15% (configurable) ECO Mode Thermal Dissipation: 932 BTU/hr Harmonic Distortion: < 3% at Linear Load Management Cable: USB Cable Material of Construction: Metal Mounting Hardware: Yes Nominal Output Voltage: 19292 V AC Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included) Rotatable LCD Control Panel Option: Yes Serial Port: 1 Serial Short Circuit Protection: UPS Output Cut off Immediately Software (Free Download): PowerPanel® Business Upgradeable firmware: Yes USB Charge Port: No Voltage Range: 121 V to 139 V, 0% to 25% load
Certifications & Standards	UL1778 5th Ed.
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	300000 Lifetime
