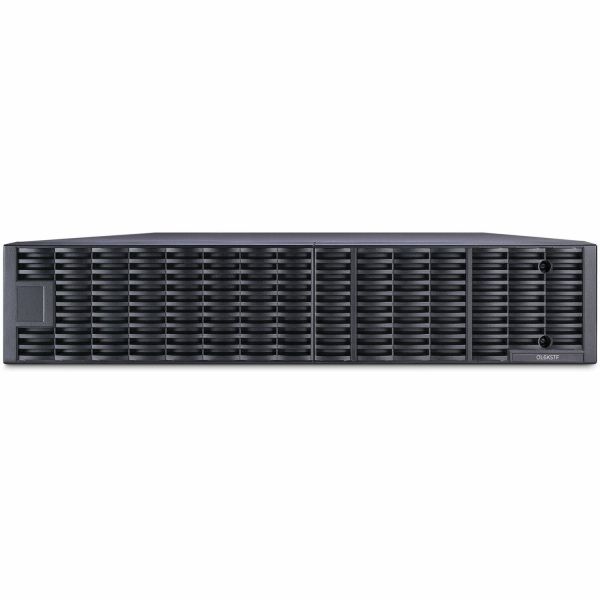

CyberPower OL6KSTF OL6KSTF 2U 6,000 VA Step-down and Isolation Transformer

The CyberPower Smart App Online OL6KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output.

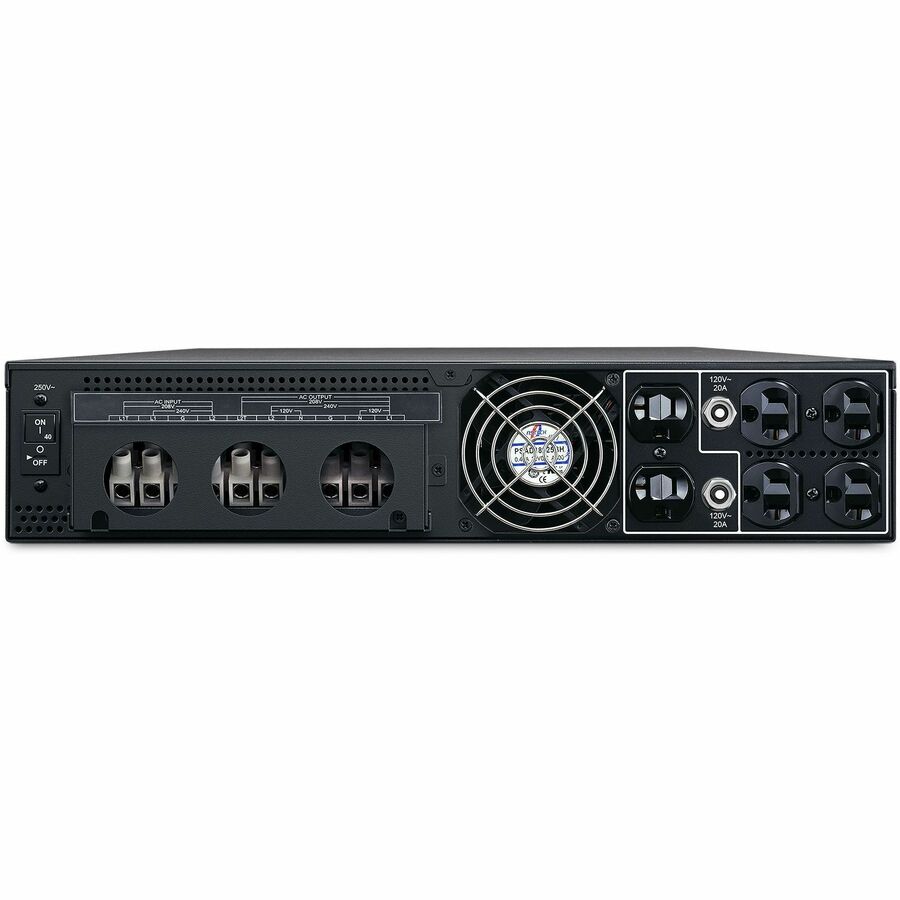

The OL6KSTF has a capacity of 6,000 VA / 6,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.

The included 6-foot cord (NEMA L6-30P plug to ROJ) connects the OL6KSTF to input power. Over temperature protection safeguards your OL6KSTF from damage if the internal heat exceeds safe operating parameters.

• NEMA 5-20R
• Terminal Block

• 6 x NEMA 5-20R
• 1 x Terminal Block

• 120 V AC
• 208 V AC

• Current Rating : 30 A
• Energy Saving : Yes
• Nominal Voltage : 200 V to 240 V
• Over Temperature Protection : Yes
• Type : Step-Down Transformer
• UPS Topology : Step-Down Transformer
• Cord Length (m) : 1.8
• Input Frequency : 50/60 Hz
• Nominal Voltage (Battery Mode) : 120 V, 208 V
• Output Frequency : 50/60 Hz
• Overload Protection : Circuit Breaker Protected
• Enclosure Construction : Steel
• Audible noise at 1m from surface of unit : 58 dBA
• Operating Elevation : 0 ft to 10,000 ft (0 m to 3,000 m)
• Operating Relative Humidity : 0% to 90% non-condensing
• Operating Temperature : 32 °F to 104 °F (0 °C to 40 °C)
• STF Thermal Dissipation (100% load) : 1379 BTU/hr
• Storage Elevation : 0 ft to 50,000 ft (0 to 15,000 m)
• Storage Relative Humidity : 0% to 95% non-condensing
• Storage Temperature : -4 °F to 113 °F (-20 °C to 45 °C)

• OL6KSTF Isolation/Step-Down Transformer
• 6ft NEMA L6-30 Locking Male Plug to 3-wire ROJ (Remove Outer Jacket) Power Cable (L630PHW6FT)
• 2 x Terminal Block Cable glands
• Left & Right Rackmount Rails
• Left & Right Hanging Brackets
• Input/Output Terminal Block Cover
• Quick Start Guide
• Registration Card
• 2U Rack Mount Ears (Tower Stands)
• Tower Installation Tie Plate
• 8 x M5X7L Black Flat Head Screws
• 12 x M5X12L Black Pan an Head Screws
• 6 x M5X6L silver pan head Screws
• 8 x Plastic Washers
• 12 x Screw Hole Dust Covers
• 12 x Rubber Pads
• Safety Instruction Card

CyberPower UPS:

• OL3000RTXL2UHV
• OL5KRTHD
• OL6KRT
• OL6000RT3UPDU
• OL6KRT3UHW
• OL6KRTHD
• OL6KRTHW
• OL6KRTMB
• OL8000RT3U
• OL8000RT3UPDU
• OL8KRT3UHW
• OL8KRTHW
• OL8KRTMB
• OL10000RT3U
• OL10000RT3UPDU
• OL10KRT3HW
• OL10KRTHW
• OL10KRTMB

• UL 1778 5th Ed.
• CSA C22.2 NO.107.3-05
