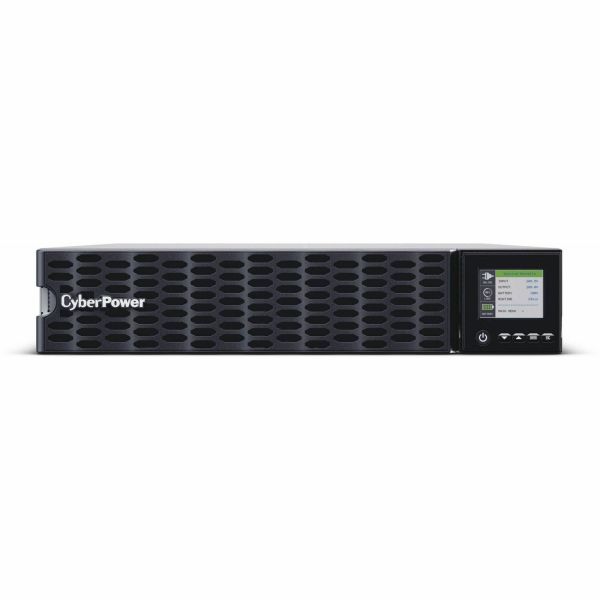

CyberPower OL6KRTHD Smart App Online UPS Systems

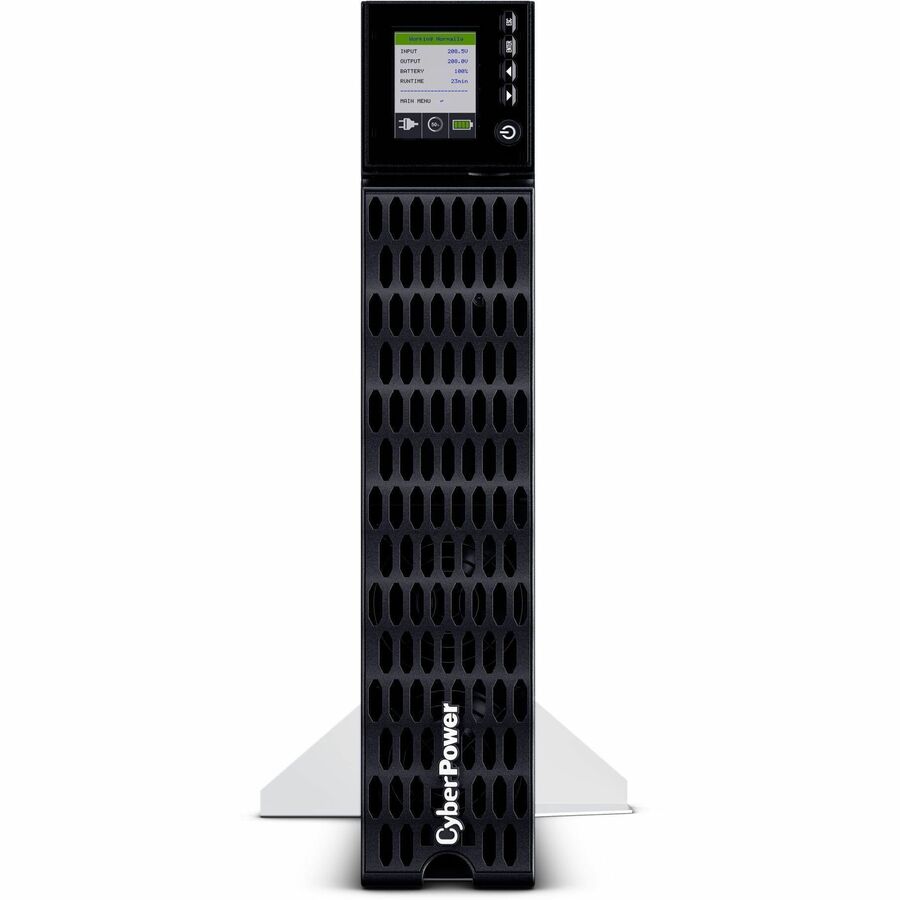

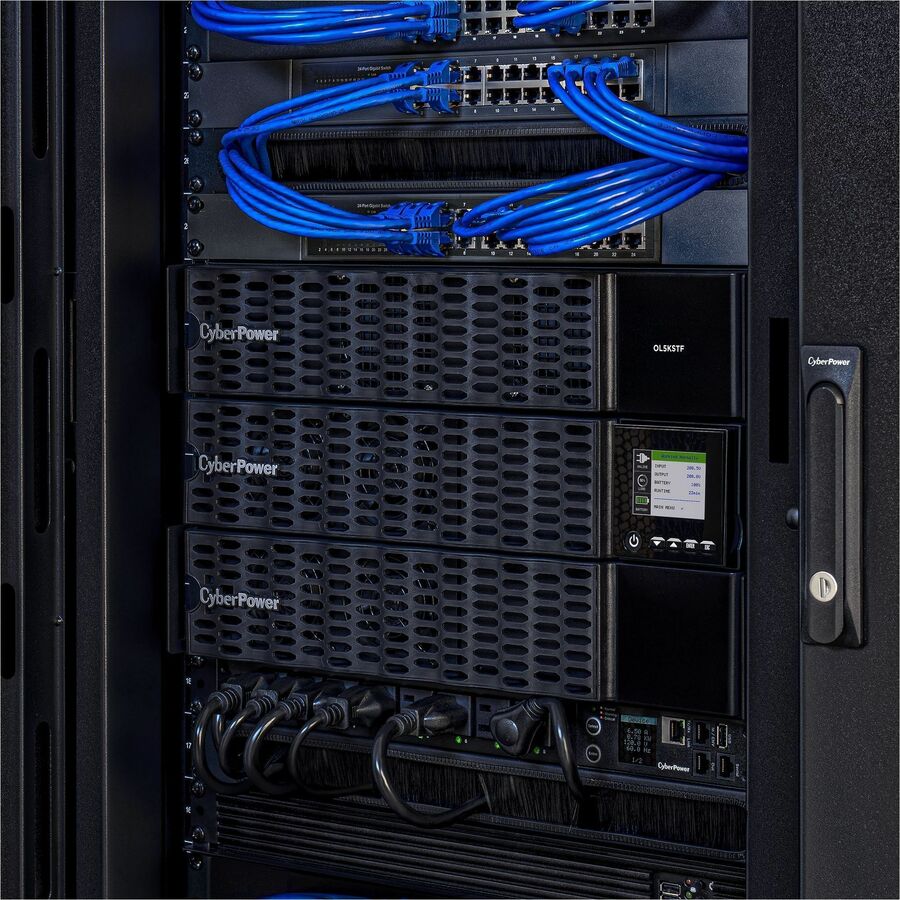

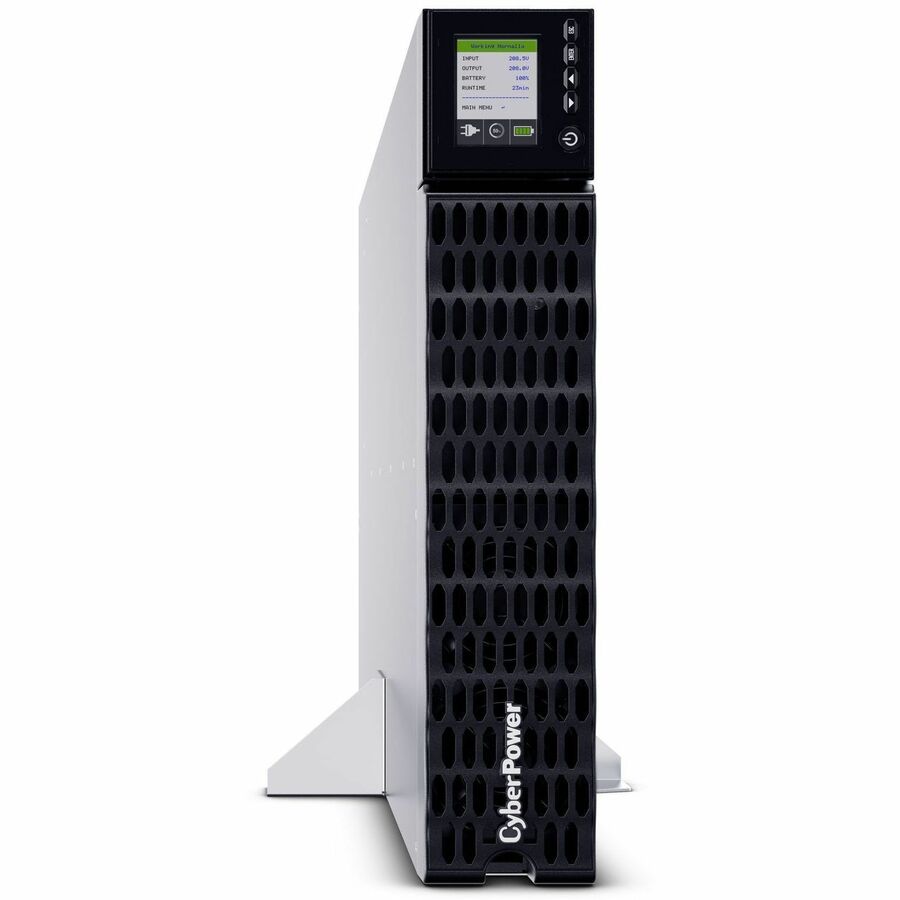

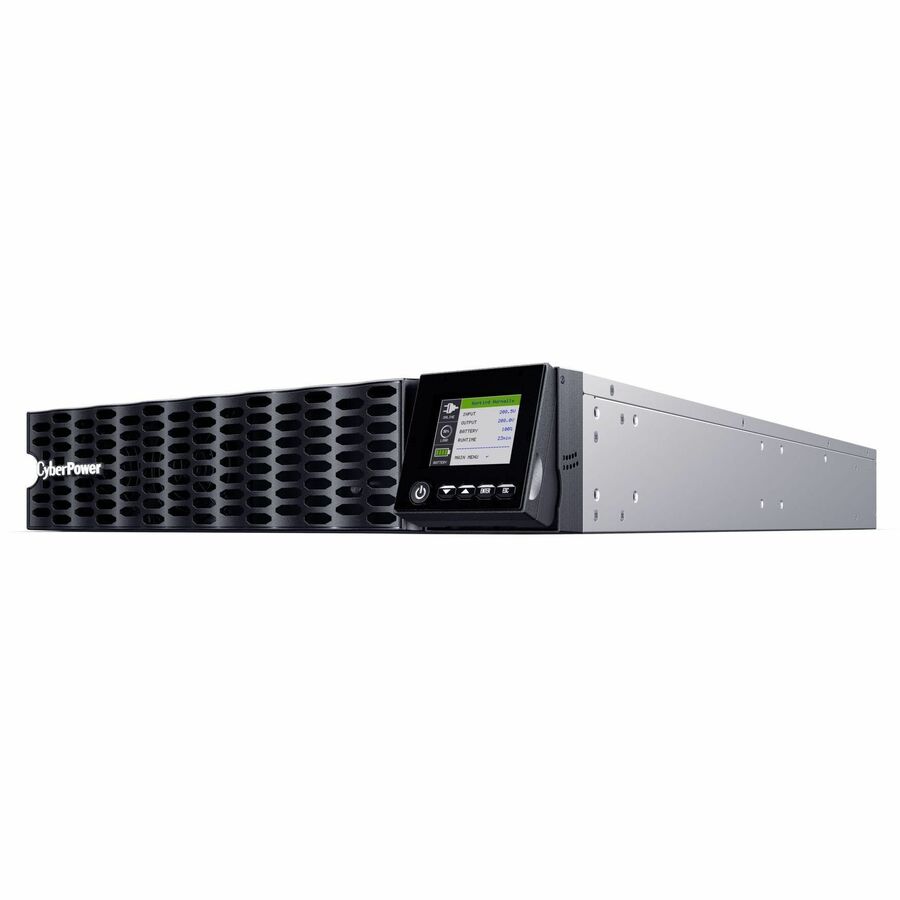

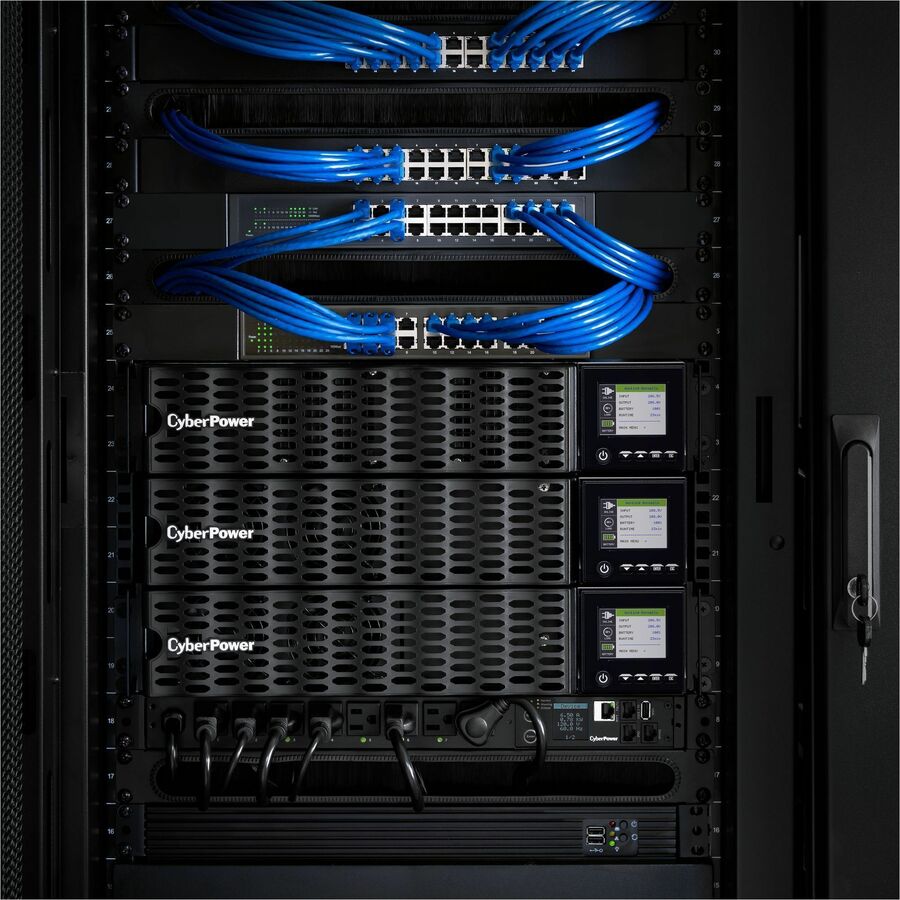

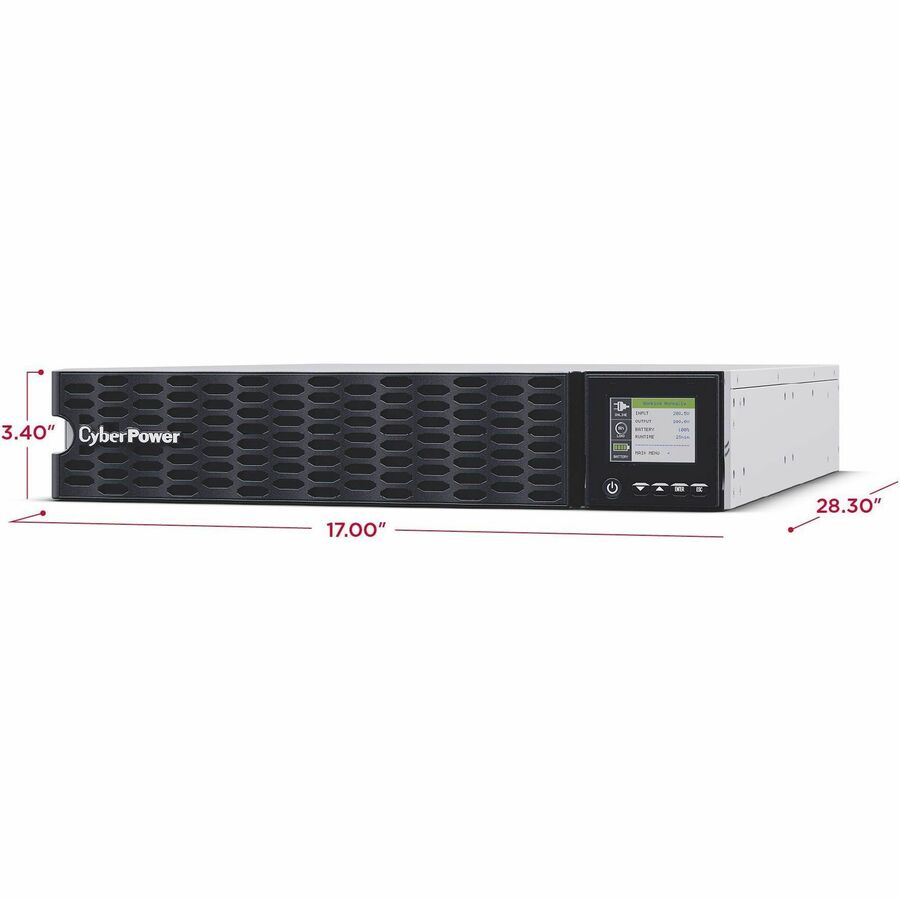

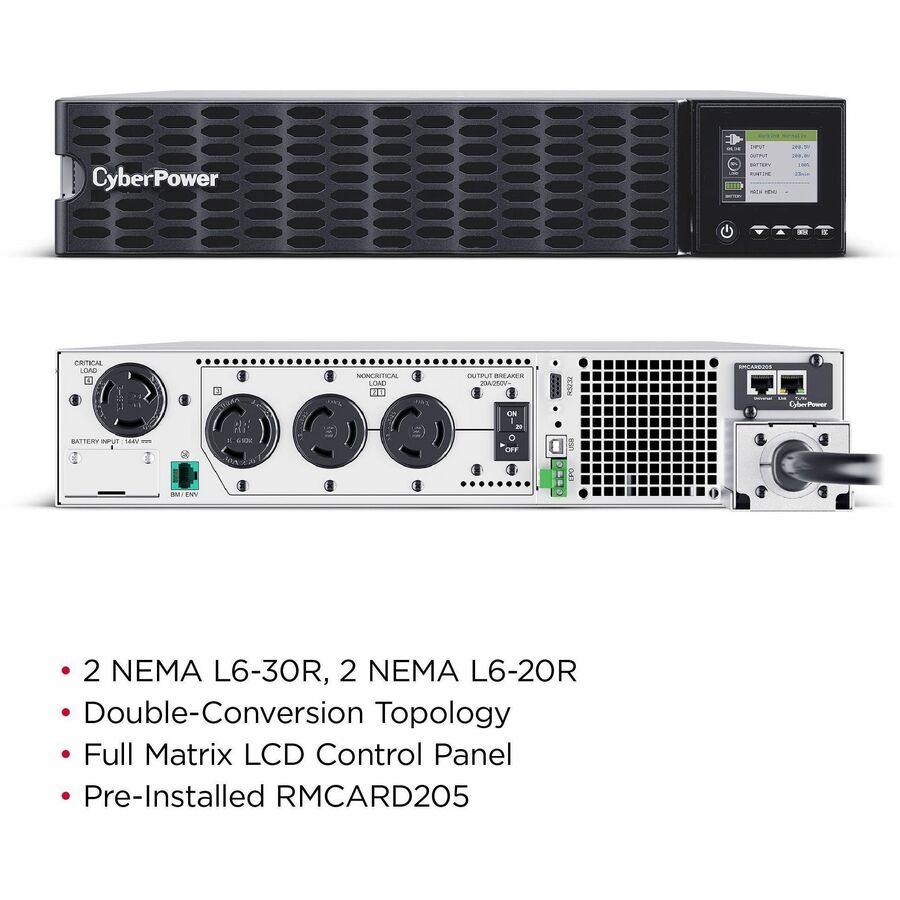

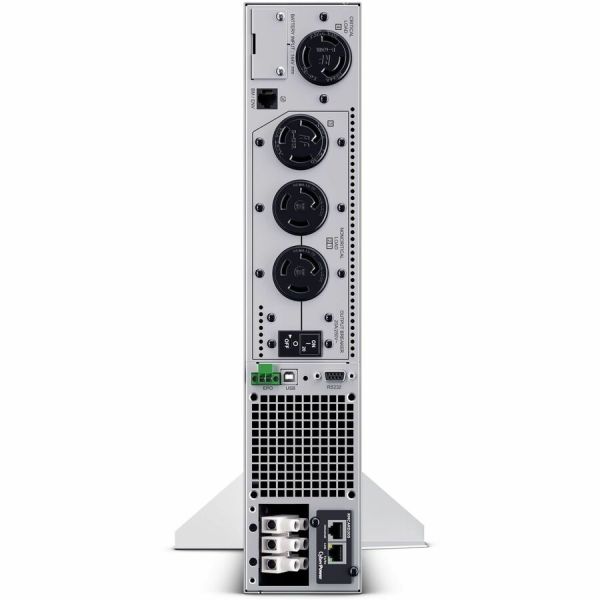

• The CyberPower Smart App Online OL6KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL6KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

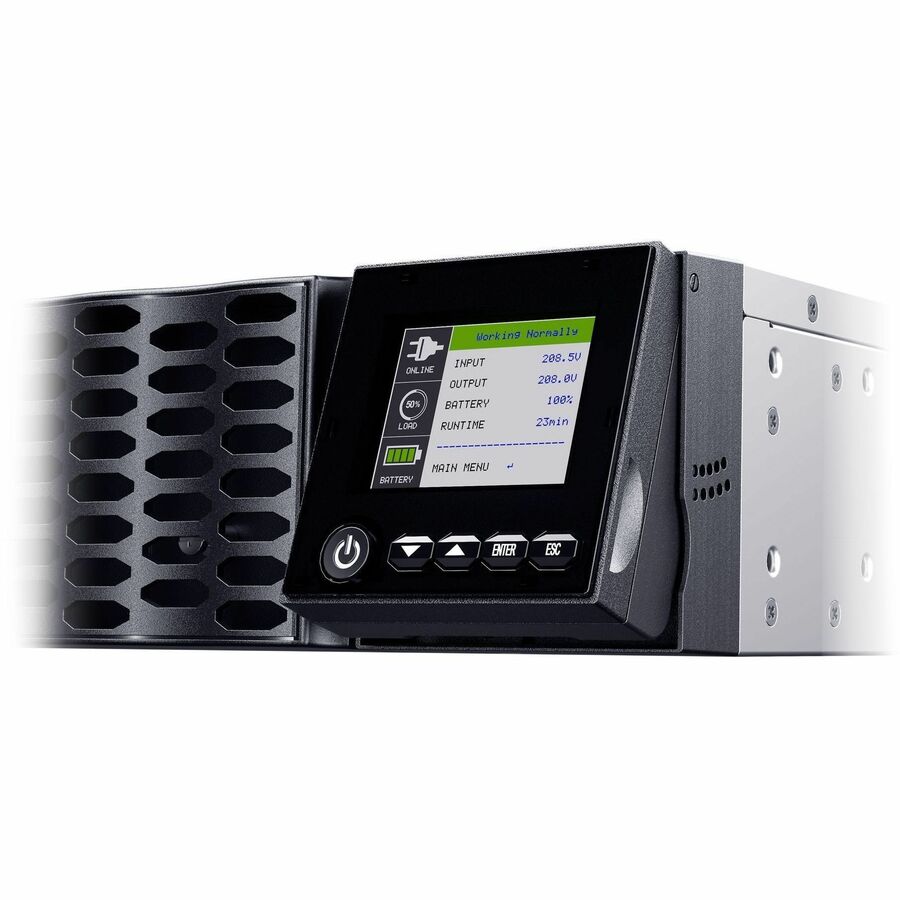

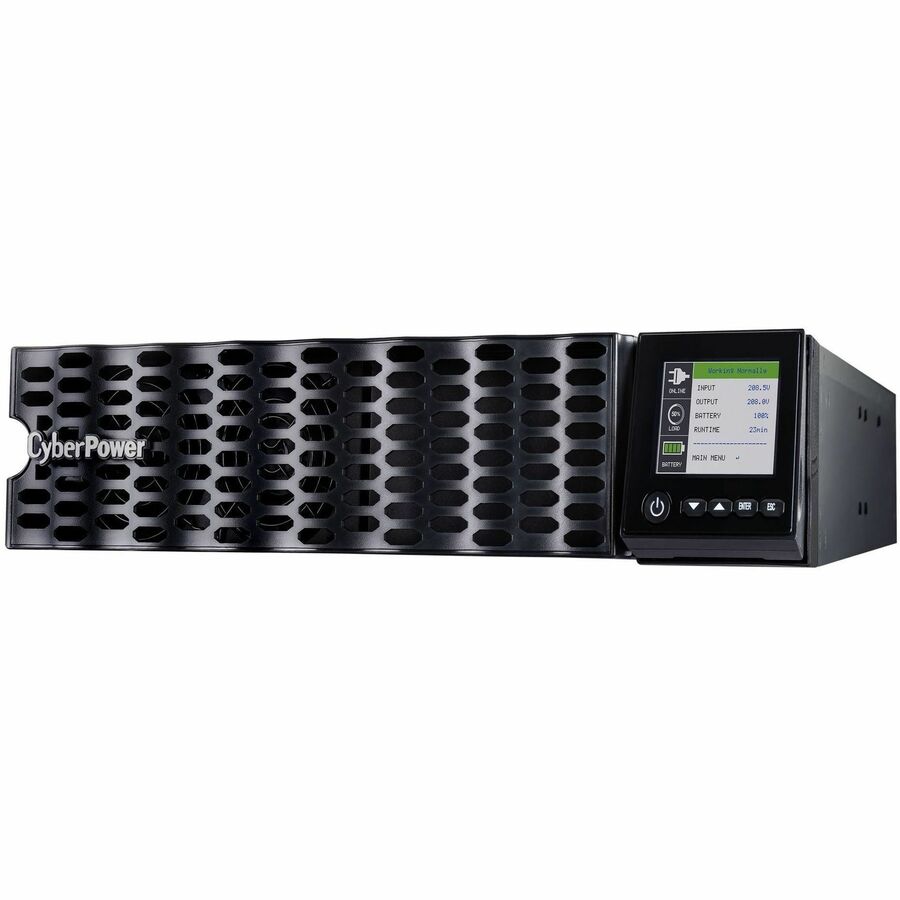

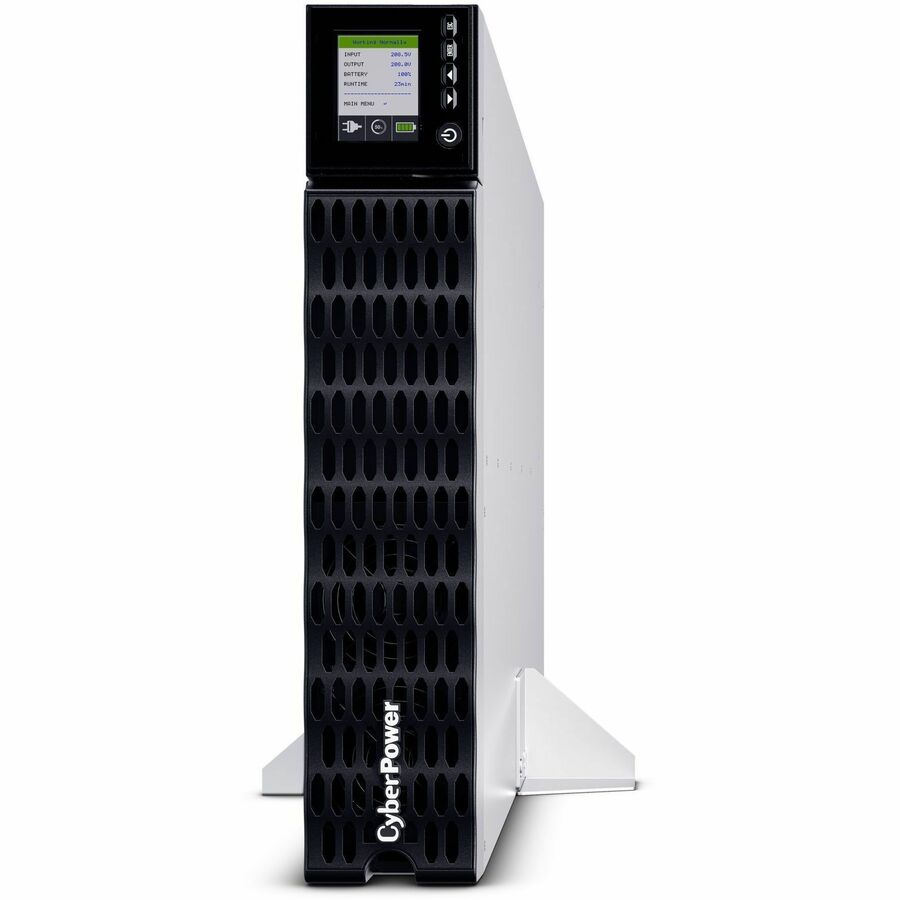

  For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

  The OL6KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

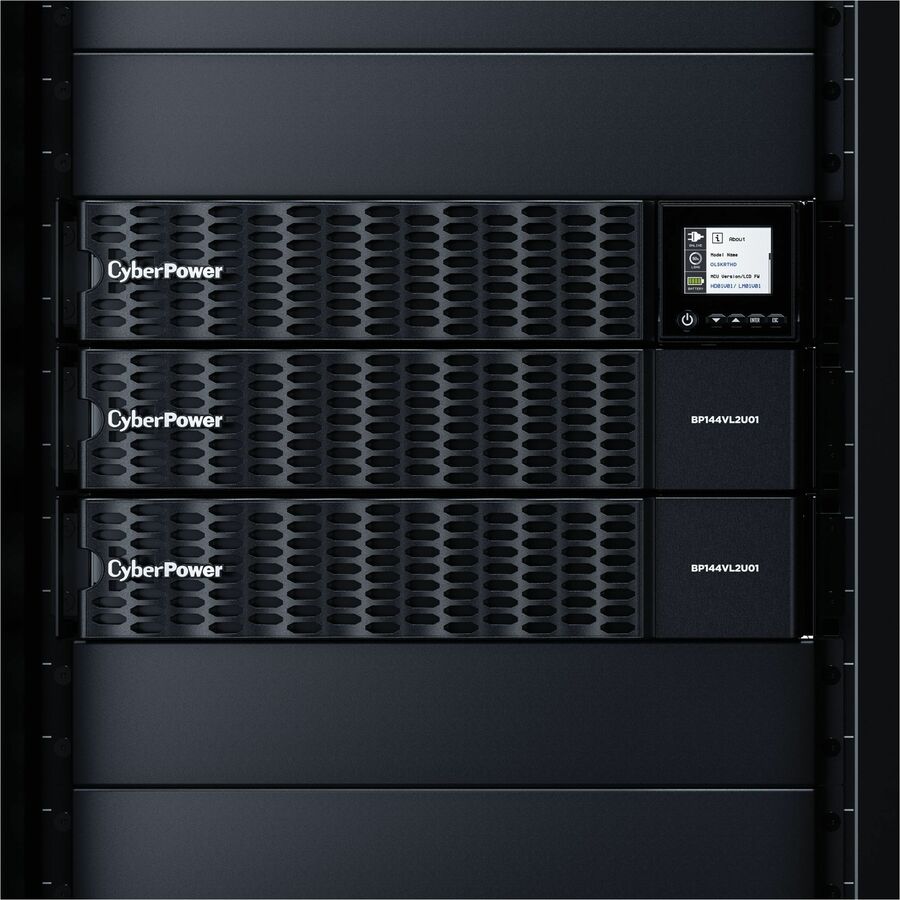

  The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a

• 300,000 Connected Equipment Guarantee.

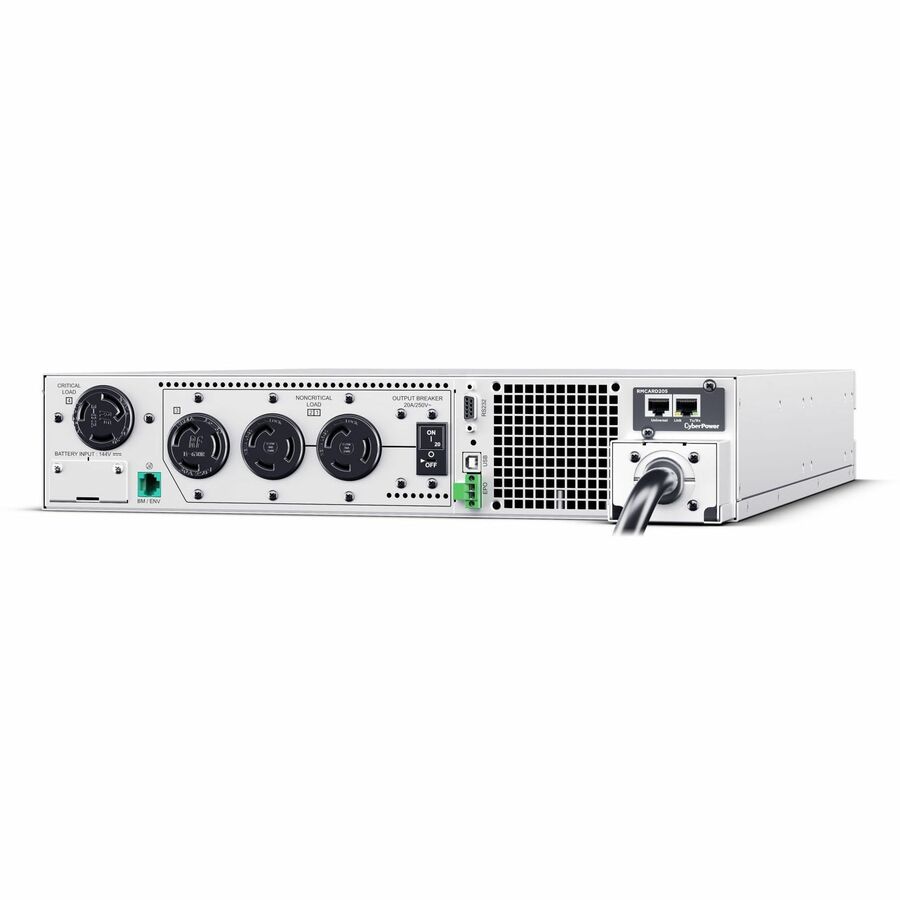

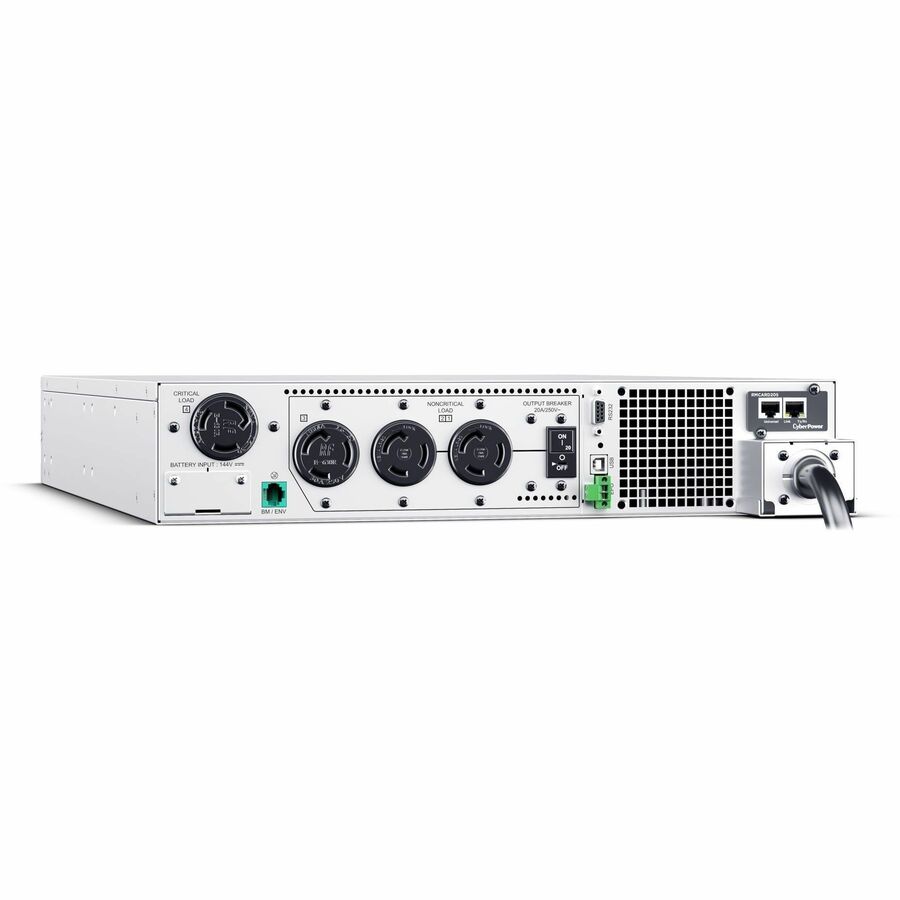

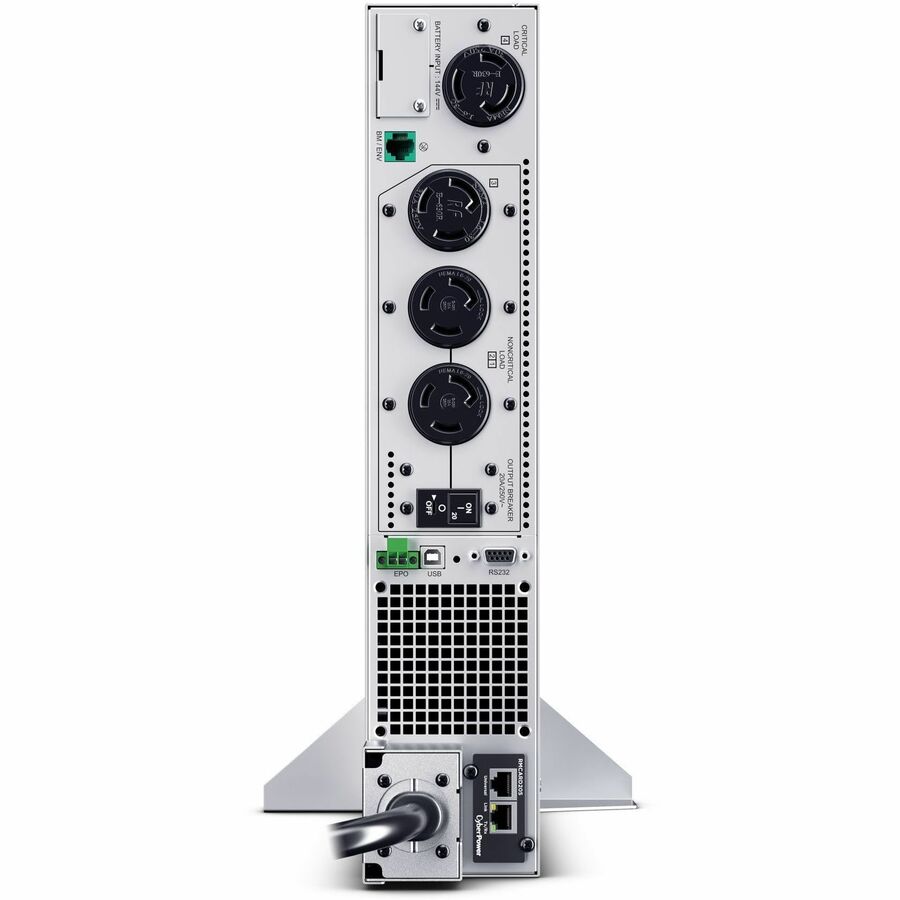

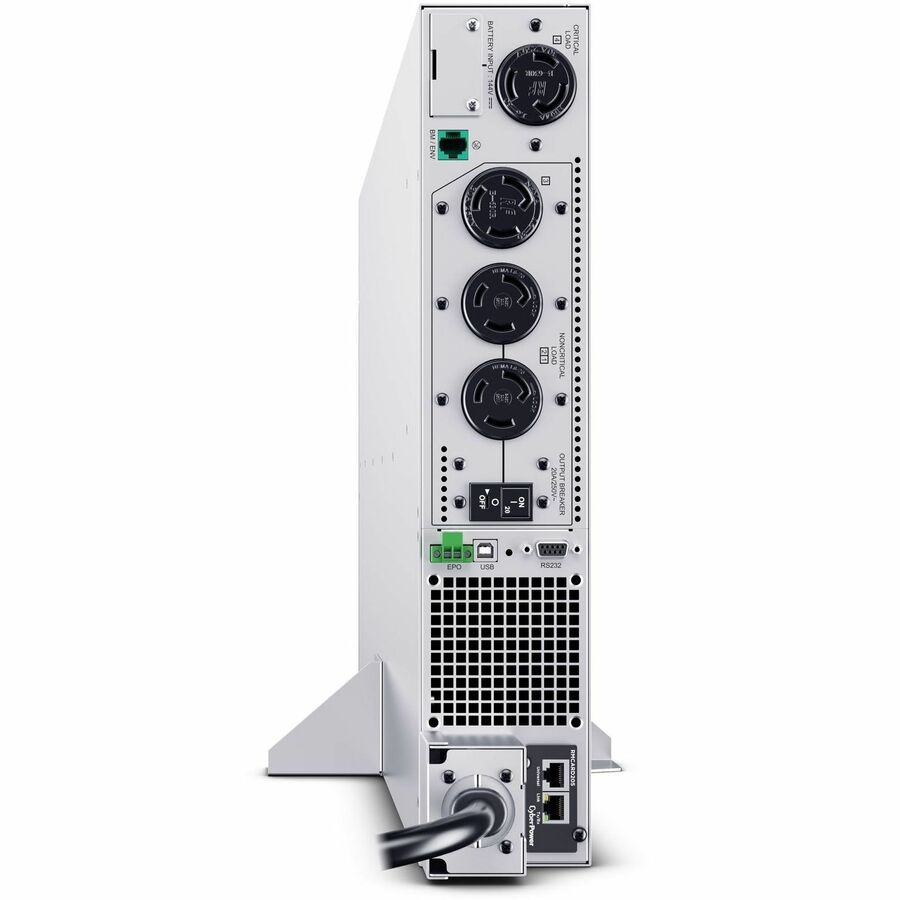

• NEMA L6-20R
• NEMA L6-30R

• 2 x NEMA L6-20R
• 2 x NEMA L6-30R

• Short Circuit
• Backfeeding

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

• UPS Fault
• Low Battery
• Battery Mode
• Overload

• LED Indicators: Power On (White)

Multi-Function Color TFT-LCD Readout that Supports:

• 15 x Types of UPS status
• 7 x Types of Controls
• 20 x Types of Set Up
• 12 x Event Logs
• 11 x Types of About
• 4 x Types of Diagnostics

• Smart App Online OL6KRTHD 6KVA Tower/Rack Convertible UPS
• Mounting Hardware

• Energy Saving: Yes - ECO Mode Efficiency >96%
• Battery Equalization Technology: Yes
• Smart Battery Management (SBM) Mode: Yes
• Cold Start: Yes
• Backfeed Protection: Yes
• Input Power Factor: 0.99
• Harmonic Distortion: THD < 3% at Linear Load, < 5% at Non-linear Load
• Short Circuit Protection: UPS Output Cut off Immediately or Input Fuse / Circuit Breaker Protection
• Rated Power Factor: 1
• Crest Factor: 3:1
• Bypass: Internal Bypass (Automatic and Manual)
• ECO Mode Bypass Voltage Range: ±10%, ±15% (Configurable)
• Auto Rotatable LCD Control Panel Option: Yes
• Removable LCD Control Panel Option: No
• Dry Contacts: No

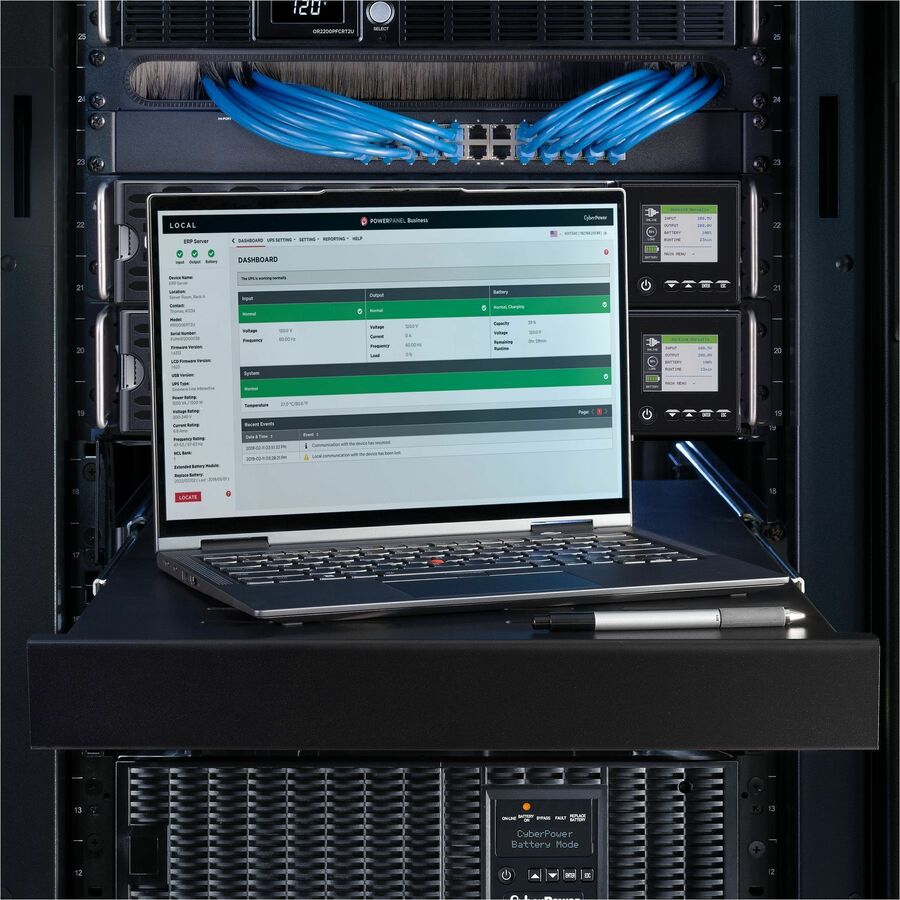

• Management Software: PowerPanel @ Business Edition
• Enclosure Construction: Steel
• Input Voltage Range: 120-139VAC for 0-25% Load
• Plug Type: Hardwire with NEMA L6-30P Power Cord Option
• Crest Factor: 3:1
• Operating Relative Humidity: 0% - 90% non condensing
• Operating Temperature: 32°F to 104°F (0°C to 40°C)



Overload Protection:

Line Mode:

• 105~125% Load for 1 min
• 126~150% Load for 10 sec

Battery Mode:

• 105~130% Load for 10 sec
• 131~150% Load for 2 sec

• UL 1778 5th Ed
• CSA C22.2 NO.107.3-05
• FCC Part 15 Class A

• 300000 Lifetime
