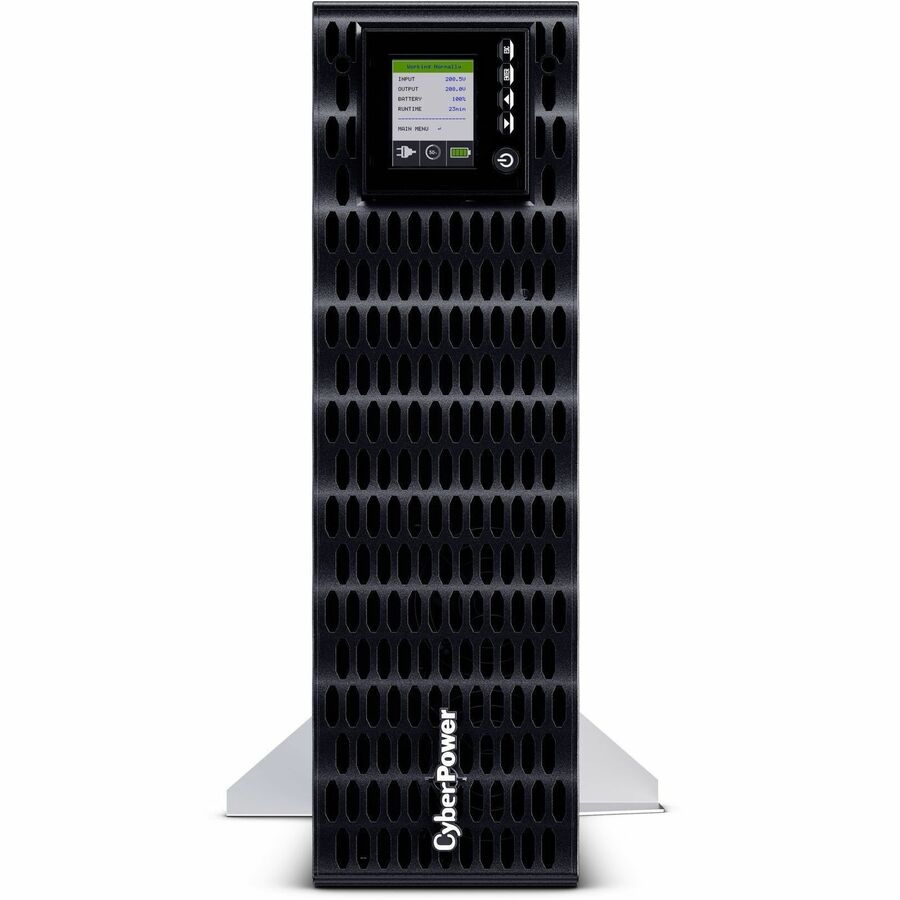

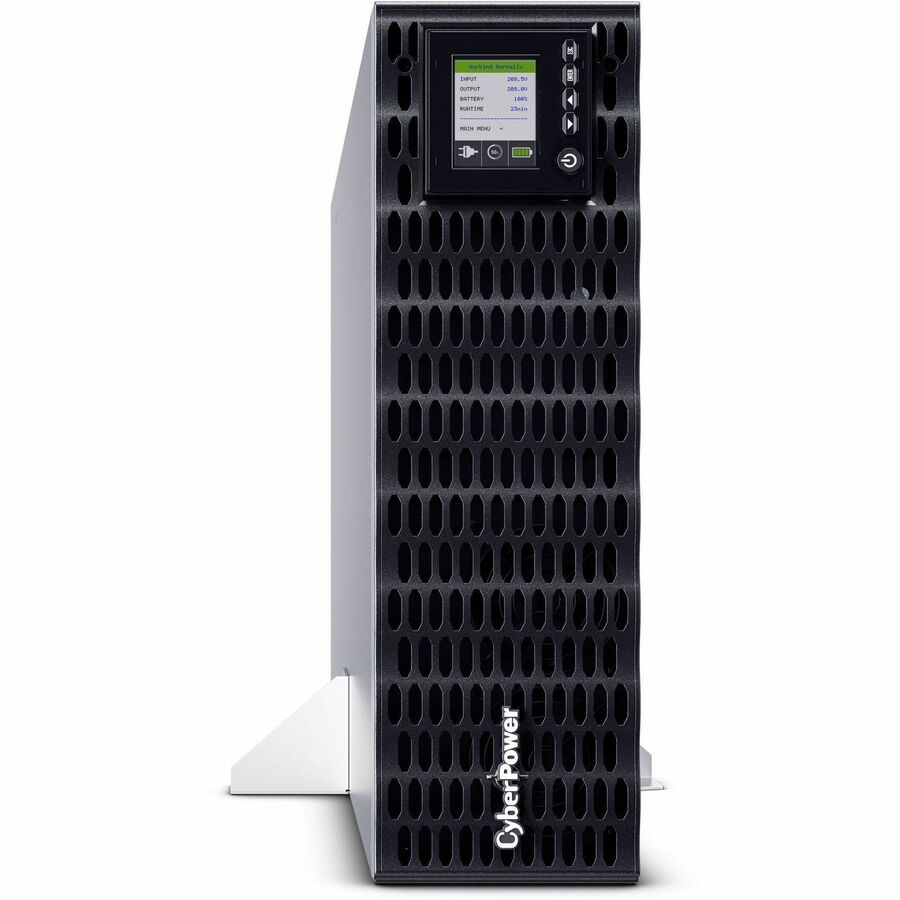

CyberPower Smart App Online OL5KRTHDL 5000VA Rack/tower UPS

• The CyberPower Smart App Online OL5KRTHDL high-density design offers more power and longer run times. The OL5KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

  For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

  The OL5KRTHDL ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

  The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a

• 300,000 Connected Equipment Guarantee.

  Product Features | Double-Conversion Topology

  Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

  Sine Wave Output

  Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

  Full Matrix LCD Control Panel

  Auto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.

  Toolless Front Panel

  Tool-less front panel removal makes battery replacement easier.

  Hot-Swappable Batteries

  Keeps equipment running by eliminating downtime during UPS power maintenance.

  Extended Battery Module (EBM)

  Extends runtime by adding up to 10 EBMs.

  Smart Battery Management (SBM)

  Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

  Battery Equalization Technology

  Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

  Fast Charge Technology

  Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs.

  PowerPanel® Business Software

  Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

  RMCARD205

  Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.

  Hanging Rack Mount Rail

  Ensures easy installation and slides out safely with a safety catch.

  Tamper-Proof Input Circuit Breaker

  Ensures power is turned off using a tool to eliminate the risk of accidental powering off when not desired during service or maintenance.

  EMI/RFI Filters

  Prevents electromagnetic and radio frequency interference to ensure clean power for connected equipment.

• NEMA L6-30P
• Hardwired

• NEMA L6-20R
• NEMA L6-30R

• 2 x NEMA L6-20R
• 2 x NEMA L6-30R

• High-end System Component
• Corporate
• Server
• Lab Equipment
• Electronic Device
• Network Equipment
• Hyperconverged Infrastructure (HCI)
• Server Room
• Infrastructure
• Storage System
• VoIP

• Audible Alarm
• Built-in Bypass Switch
• Green Energy Saving
• Cold Start Function

• 120 V AC
• 230 V AC

• 120 V AC - 139 V AC
• 140 V AC - 159 V AC
• 160 V AC - 179 V AC
• 180 V AC - 280 V AC
• 200 V AC - 240 V AC

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

• 40 Hz
• 70 Hz

• 50 Hz
• 60 Hz

• Battery Mode
• Low Battery
• Overload
• UPS Fault

LED Indicators:

• Power On

LCD Display:

• UPS status
• Controls
• Most recent event logs
• Diagnostics
• Power Failure
• Fault Notices

• Smart App Online OL5KRTHDL 5000VA Rack/tower UPS
• Power Cord

• UL1778 5th Ed.
• CSA C22.2 No.107.3
• FCC Part 15 Class A

• Three-year warranty (including batteries) and

• 300,000 Connected Equipment Guarantee.
