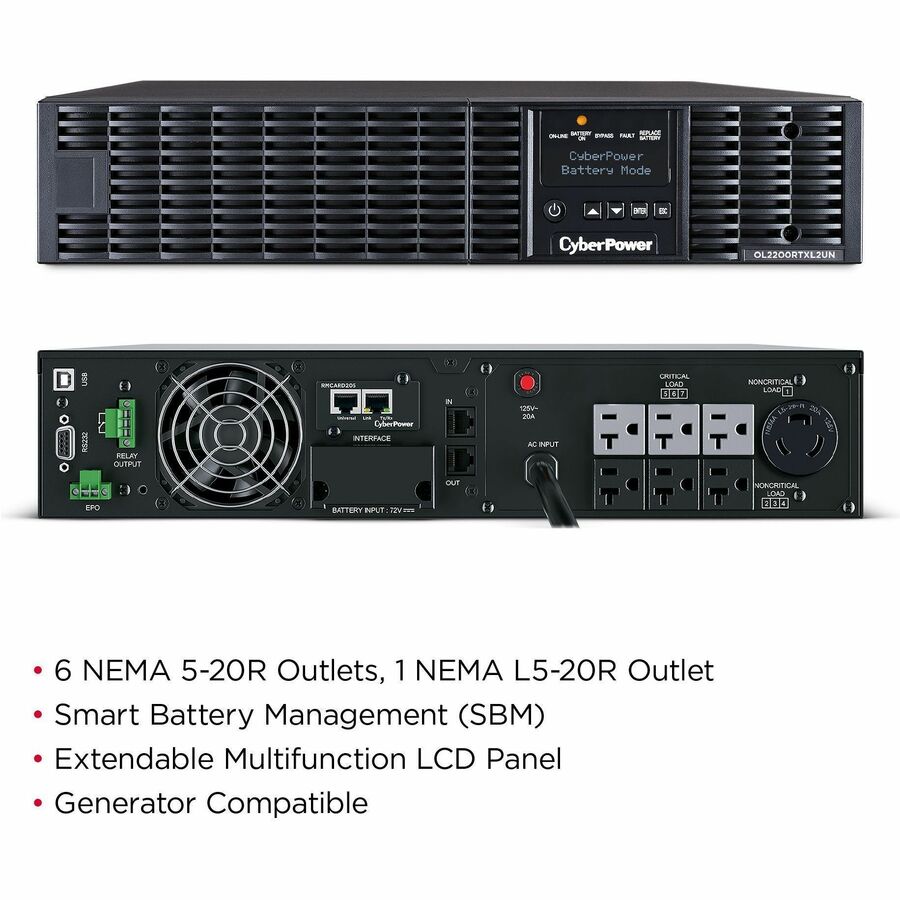

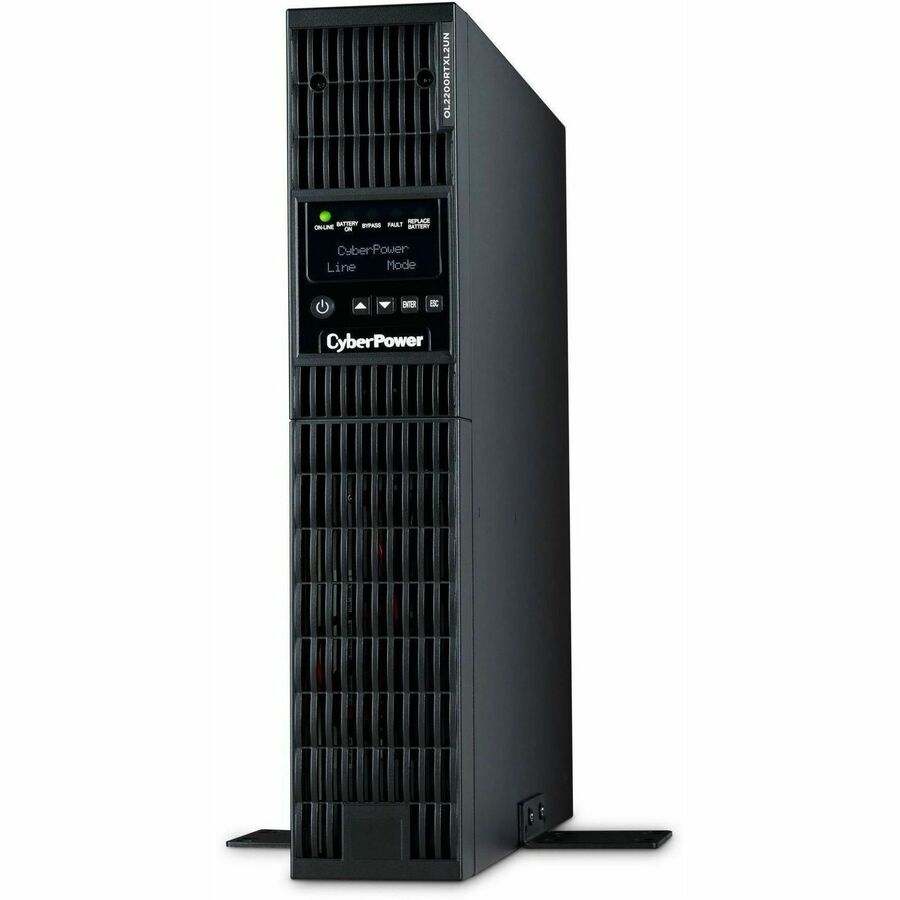

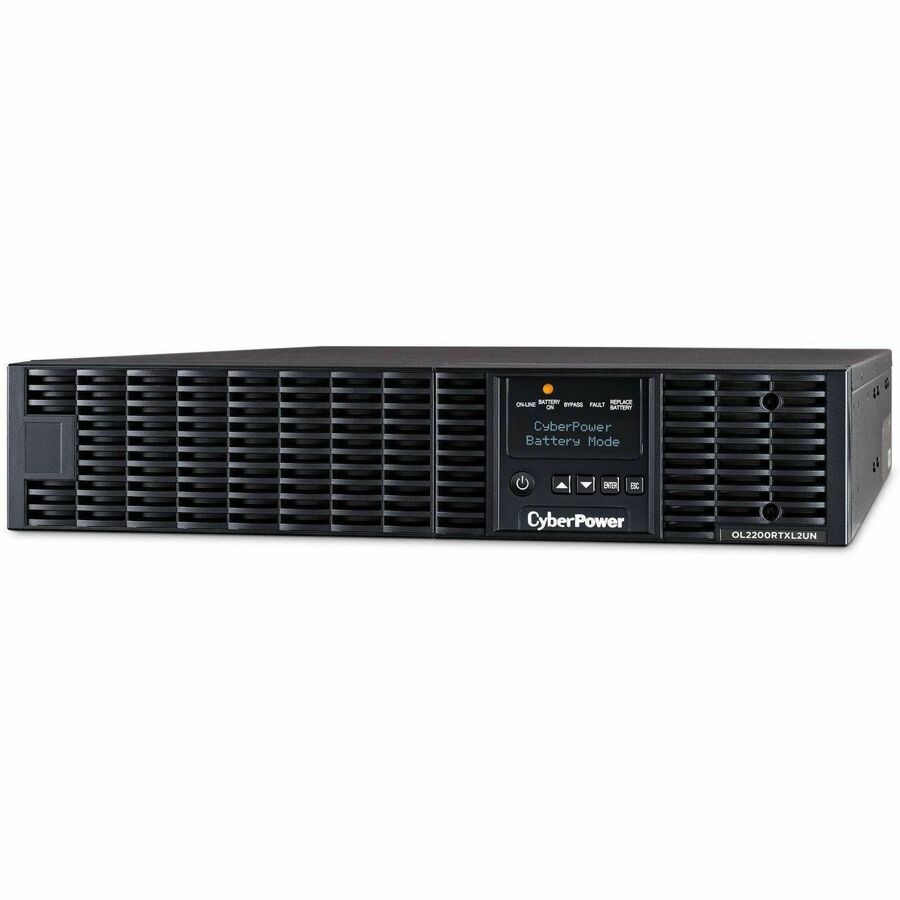

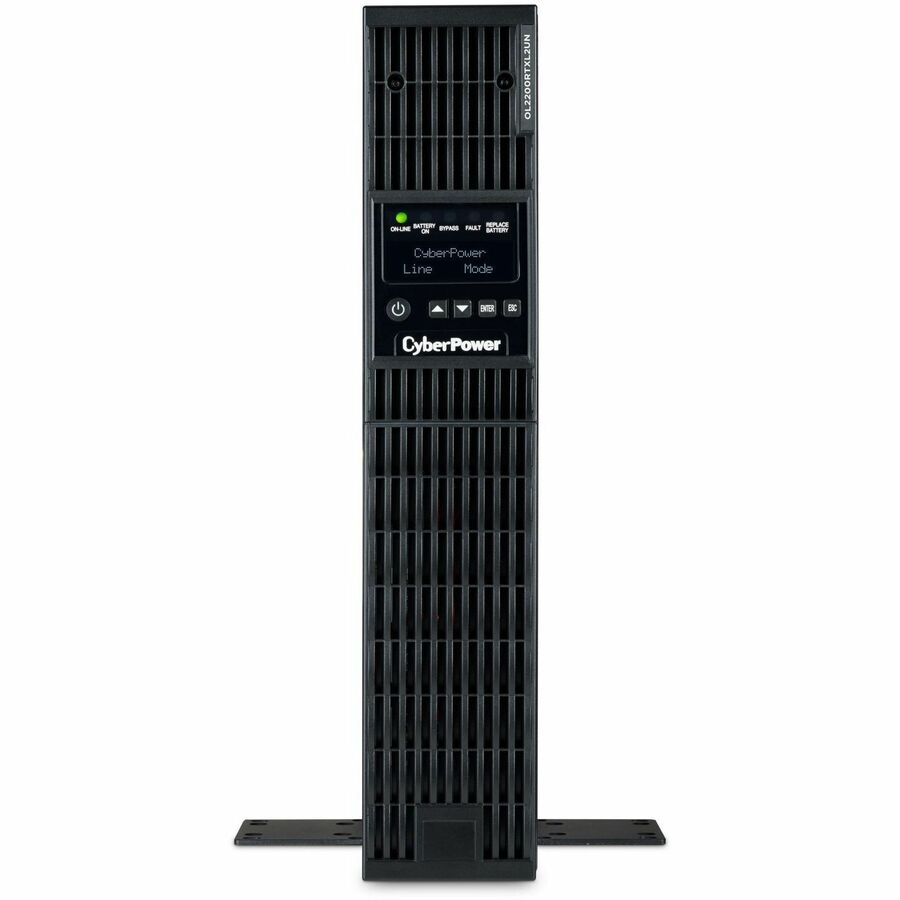

CyberPower OL2200RTXL2UN Smart App Online UPS Systems

• Prevent business interruptions and safeguard mission-critical enterprise network equipment.

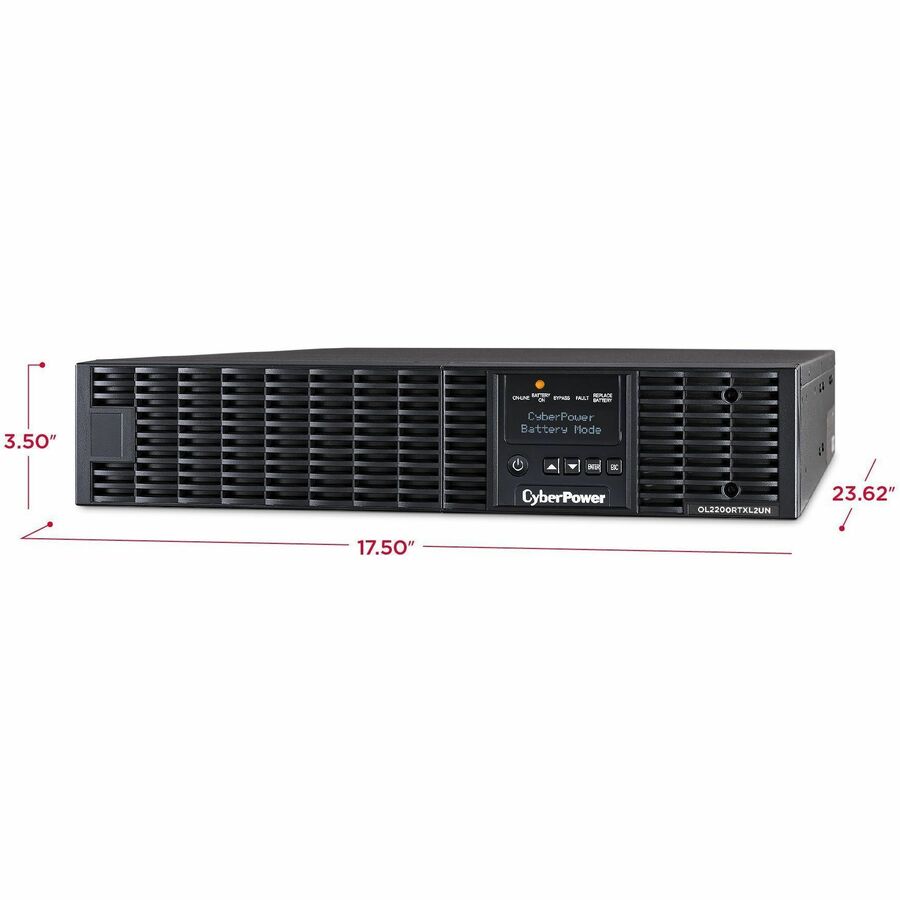

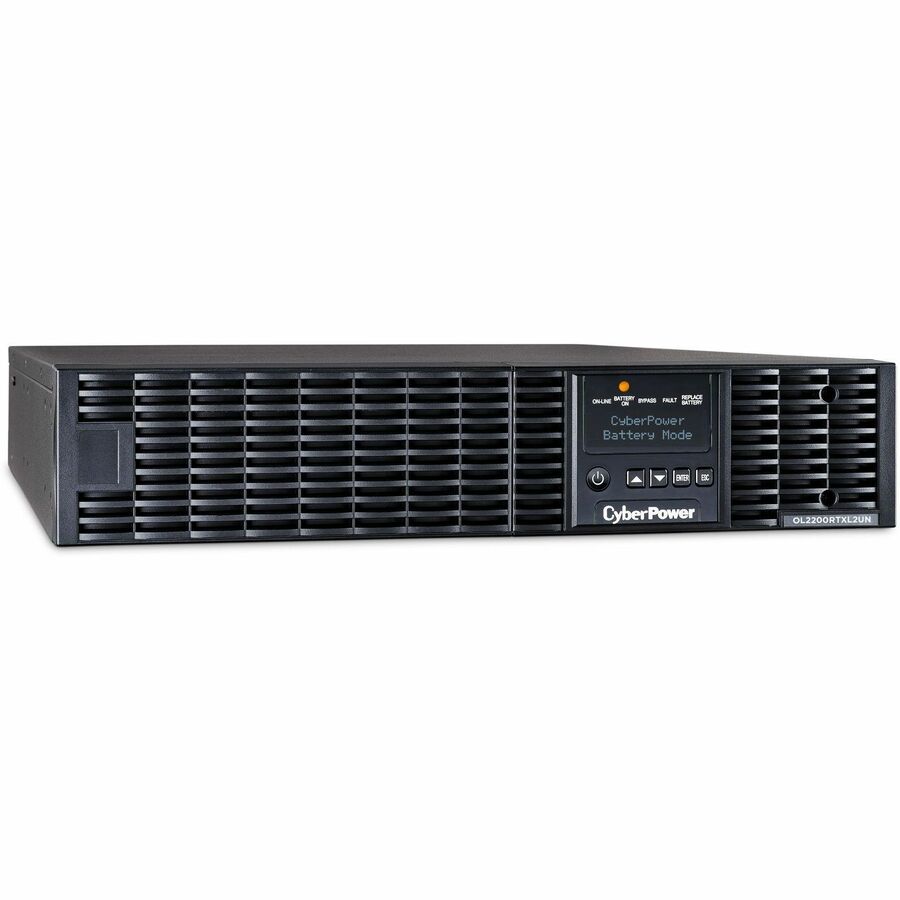

  The CyberPower OL2200RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

  The OL2200RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

  With a

• 400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

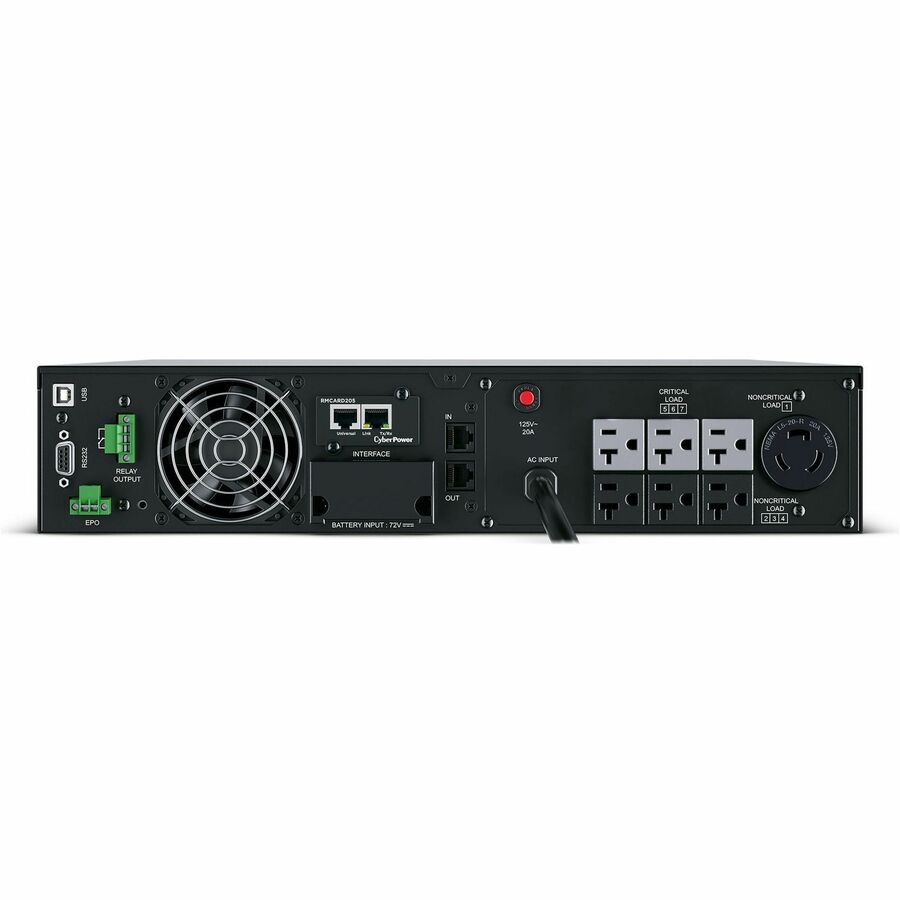

• NEMA L5-20R
• NEMA 5-20R

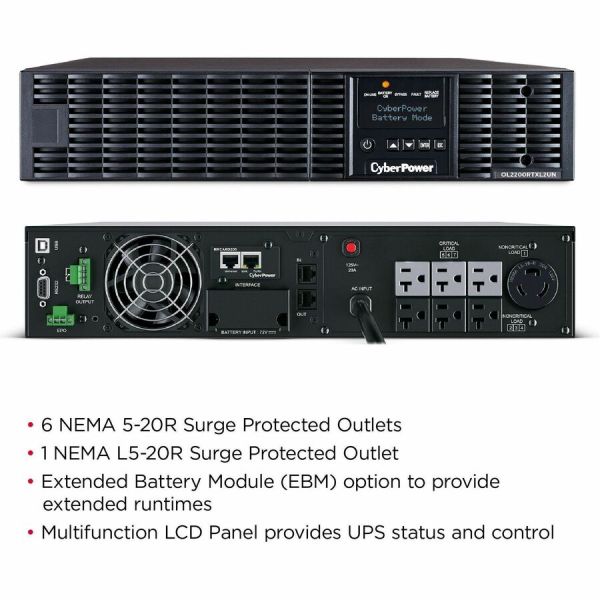

• 1 x NEMA L5-20R
• 6 x NEMA 5-20R

• RJ-11
• RJ-45

• Server
• Network Device
• Storage Device
• Network Closet
• PBX System
• VoIP Device
• Mission Critical Equipment

• 125 V AC
• 100 V AC
• 110 V AC
• 115 V AC
• 120 V AC

• Battery Mode
• Low Battery
• Overload
• UPS Fault

LED Indicators:

• Power On (White)
• Line Mode (Green)
• Battery Mode (Yellow)
• Bypass Mode (Yellow)
• Fault (Red)
• Replace Battery (Red)

• Smart App Online OL2200RTXL2UN 2200VA Rack/Tower UPS
• 2 x Rack Mount Rails

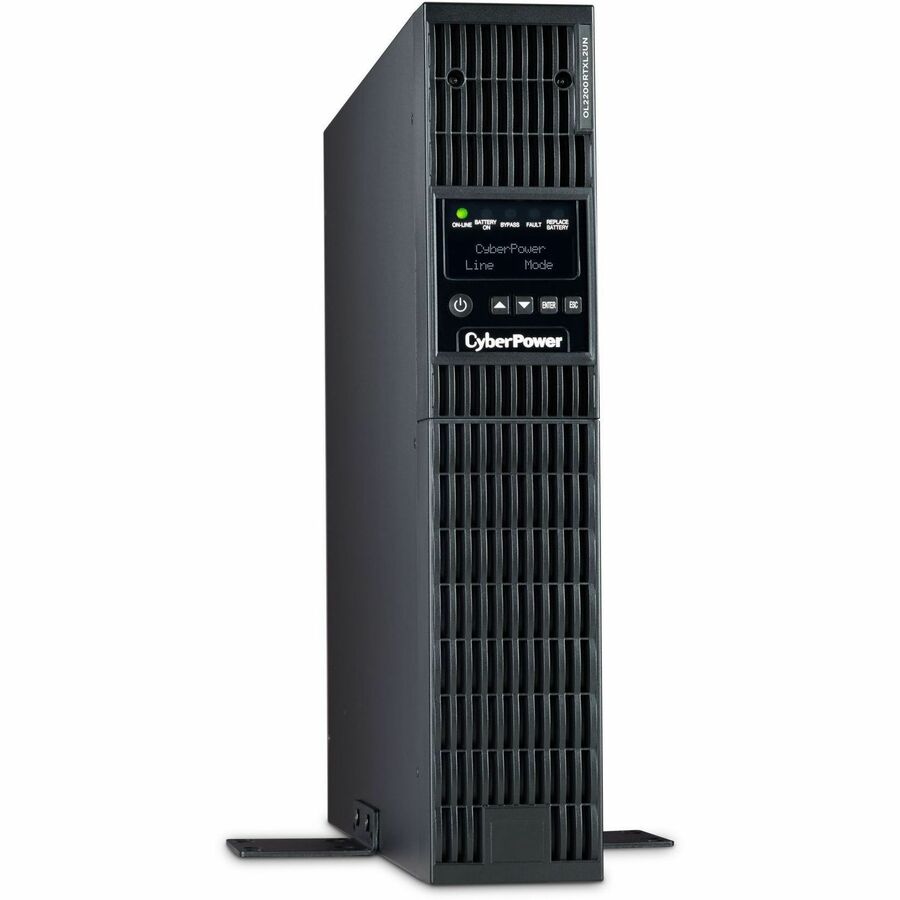

• 2 x Rack Mount Ears (Double As Tower Stands)
• USB Communication Cable
• Serial Interface Cable
• 8 x Flat Head Screws (M5x8l)
• 4 x Pan Head Screws (M5x12l)
• 14 x Pan Head Screws (M5x6l)
• 2 x Guide Screws (M5x10l)
• 8 x Plastic Washers
• 12 x Screw Hole Dust Covers
• 12 x Rubber Feet
• Software Download Card

• Replacement Battery Cartridge Quantity: 1
• Smart Battery Management (SBM) Mode: Yes
• Circuit Breaker: 20A
• Cold Start: Yes
• Input Power Factor: 0.99
• Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
• Crest Factor: 3:1
• ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
• Harmonic Distortion: < 3% at Linear Load
• Nominal Output Voltage: 100 - 125 VAC
• On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
• Output Power Factor: 0.82
• Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
• Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
• VA by Input Type: 2,200 (2.2 kVA) at 120, 125 V input
• Watts by Input Type: 1,800 (1.8 kW) at 120, 125 V input
• Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
• Dry Contacts: Yes
• Expansion Slot: Yes - RMCARD205 pre-installed
• LCD: Multifunction LCD
• Management Cable: USB Cable
• Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
• Rotatable LCD Control Panel Option: Yes
• Upgradeable firmware: Yes
• Material of Construction: Metal
• Mounting Hardware: Yes
• Audible noise at 1m from surface of unit: 38 dBA to 55 dBA (0 to 100% load)
• ECO Mode Thermal Dissipation: 249 BTU/hr
• Operating Relative Humidity: 0 - 90 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)

• 400000 Lifetime
