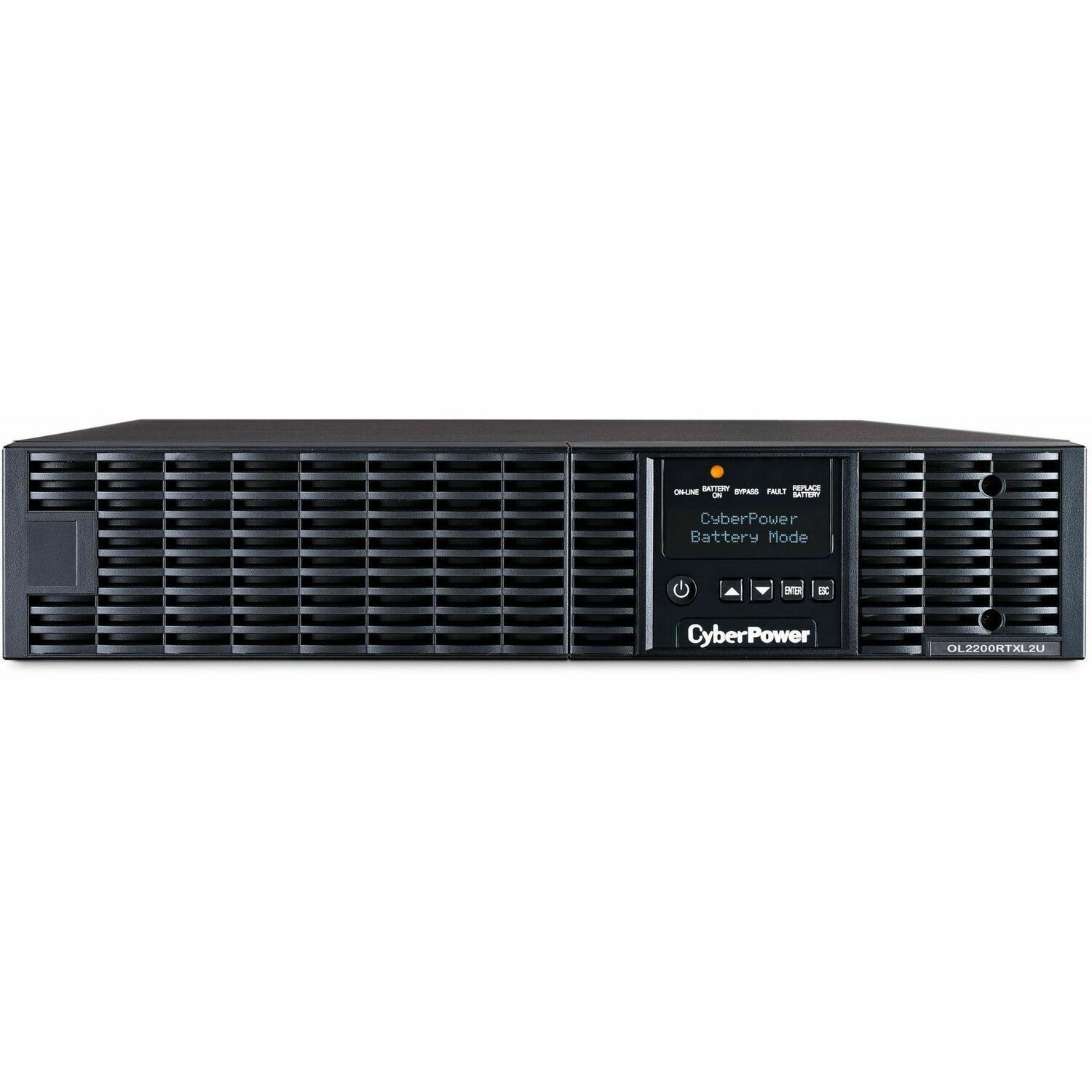

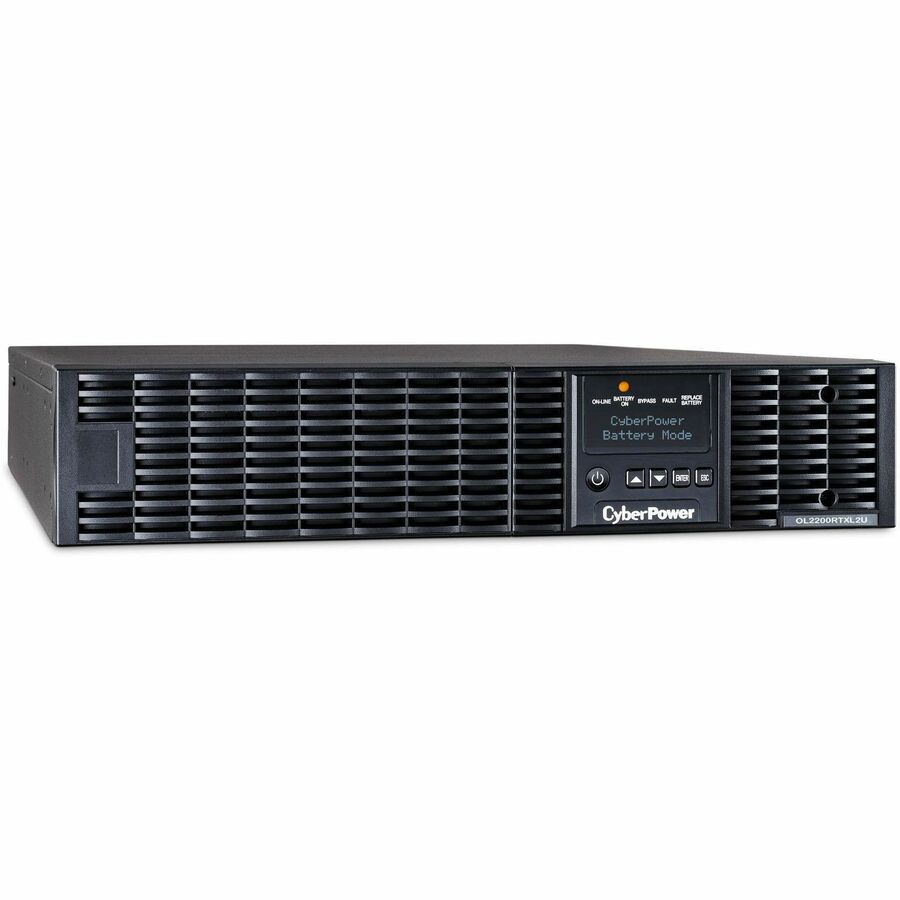

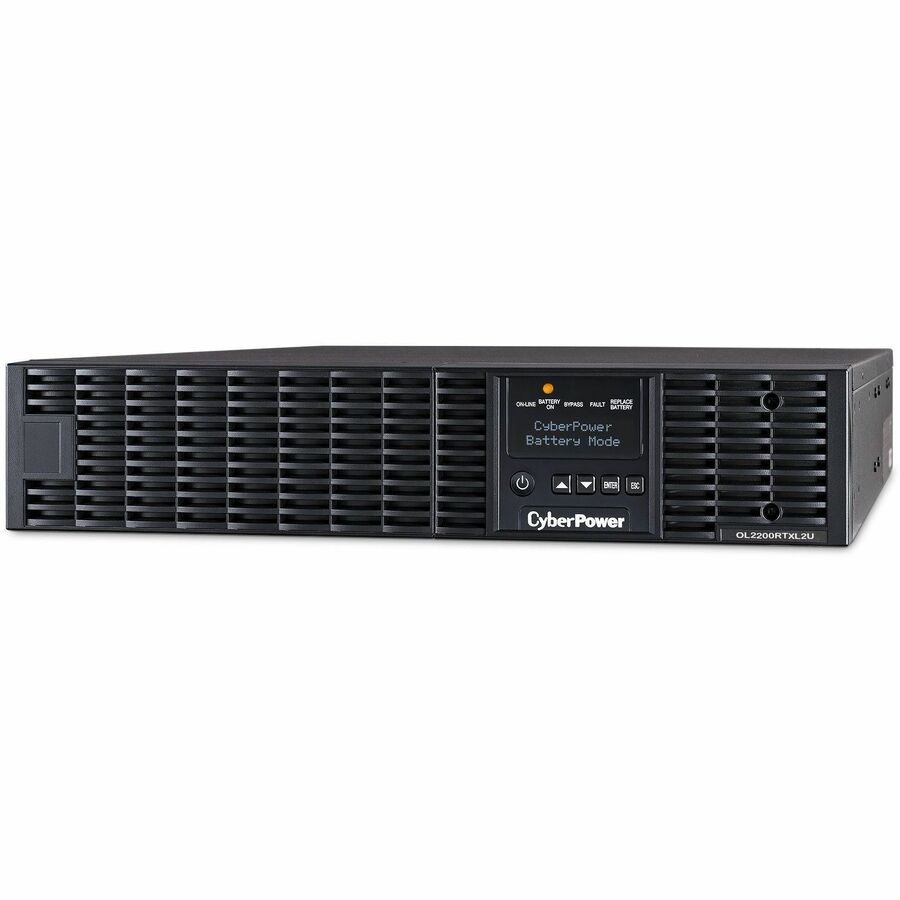

CyberPower OL2200RTXL2U Smart App Online UPS Systems

Name: CyberPower OL2200RTXL2U Smart App Online UPS Systems
Brand: CYBERPOWER
SKU: 9GM215
Price: 1875.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM215

MFG#

OL2200RTXL2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,875.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

2200VA/1800W, 100
125 VAC, NEMA 5
20P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearDirectly Connected Equipment Guarantee400000 Lifetime

Shipping Weight: 86 lbs.

CyberPower OL2200RTXL2U Smart App Online UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OL2200RTXL2U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Smart App Online UPS
Product Model	OL2200RTXL2U
Product Name	OL2200RTXL2U Smart App Online UPS Systems
Marketing Information	Prevent business interruptions and safeguard mission-critical enterprise network equipment. The CyberPower OL2200RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode. The OL2200RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output. With a 400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20R

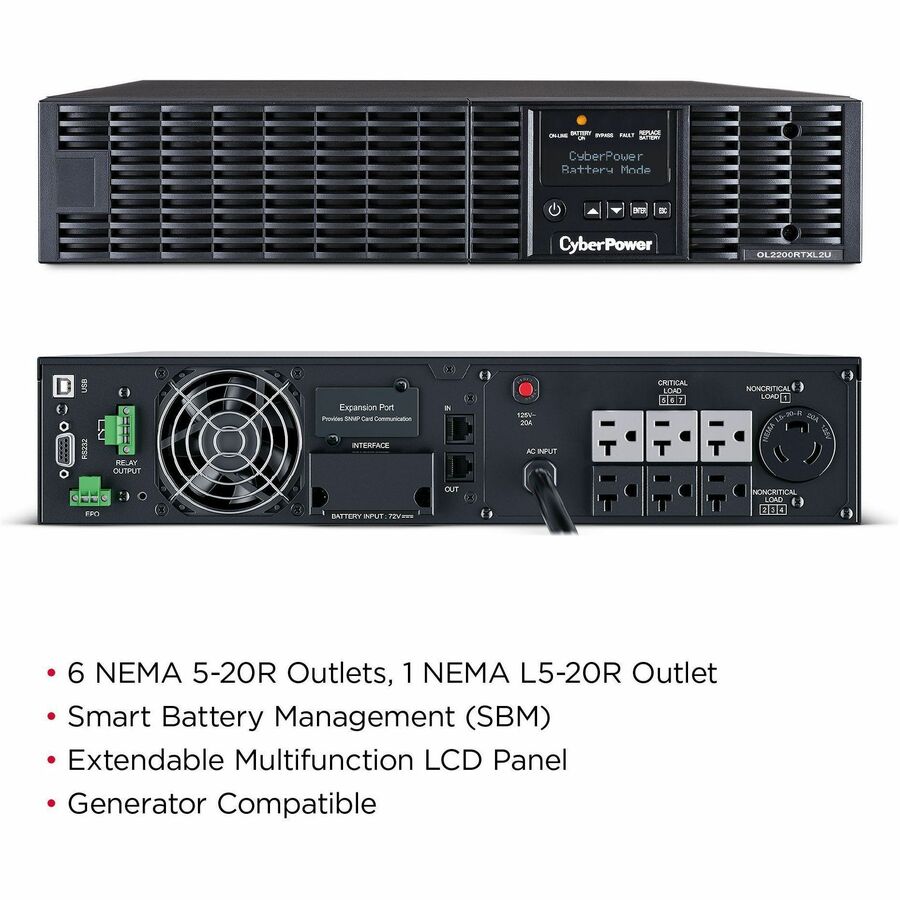

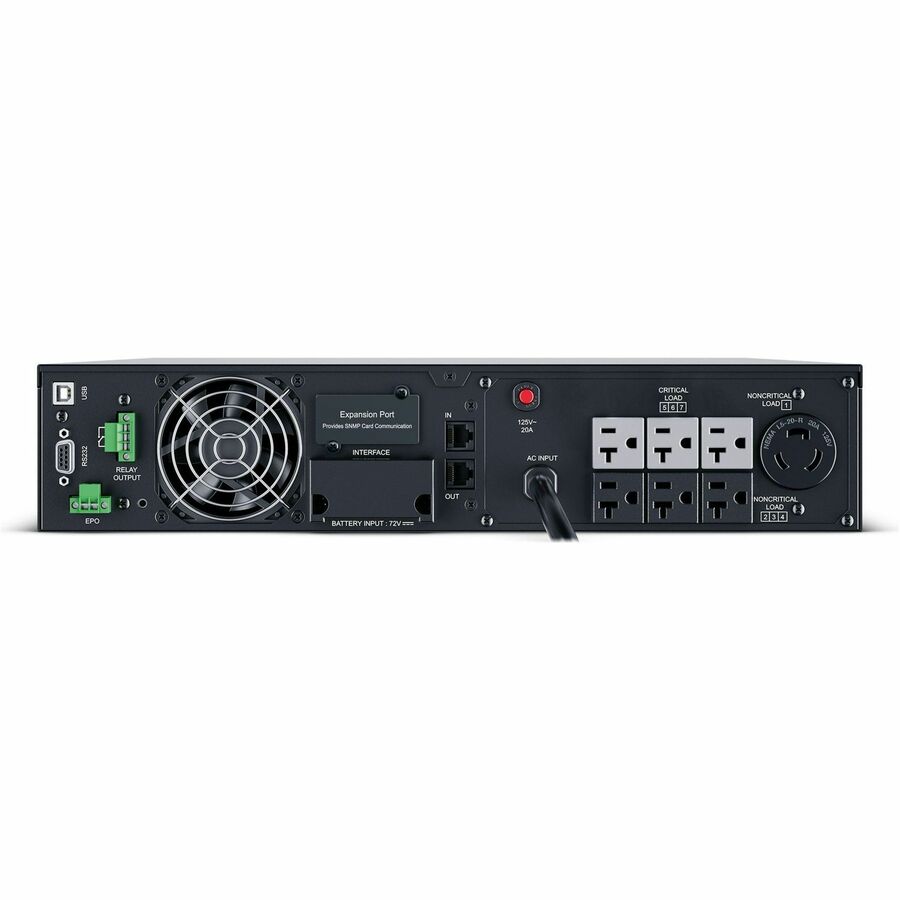

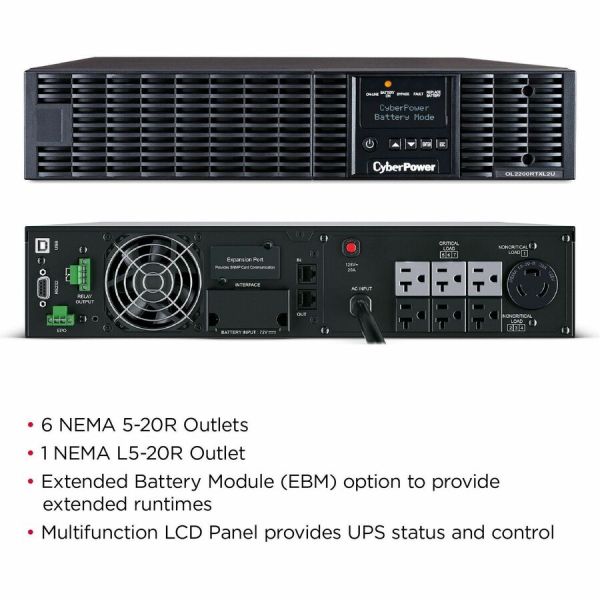

Receptacle Detail	6 x NEMA 5-20R
Transfer Time	0 ns
Dataline Protection	RJ-11 RJ-45
Protection Type	Short Circuit
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Energy Saving	ECO Mode Efficiency >95%
Application/Usage	Mission Critical Equipment Network Device Storage Device PBX System VoIP Device Server Generator
Cord Length	10 ft
Crest Factor	3:1
Circuit Breaker Current Rating	30 A

Power Description

Load Capacity (VA)	2200 VA
Load Capacity (Watt)	1800 W
Input Voltage	120 V AC
Input Voltage Range	60 V AC - 69 V AC 100 V AC - 125 V AC
Output Voltage	100 V AC 110 V AC 115 V AC 120 V AC 125 V AC
Input Frequency	60 Hz
Output Frequency	50 Hz 60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	1335 J
Input Power Factor	0.99
Output Power Factor	0.8

Display & Graphics

Display

LCD

Management

Network Management	Dry Contact
Alarm	Battery Mode

Controls/Indicators

Status Indicators

Power On (White)

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes
USB (HID Compliant) Port	Yes
EPO Port	Yes

Battery Information

Number of Batteries	6
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh

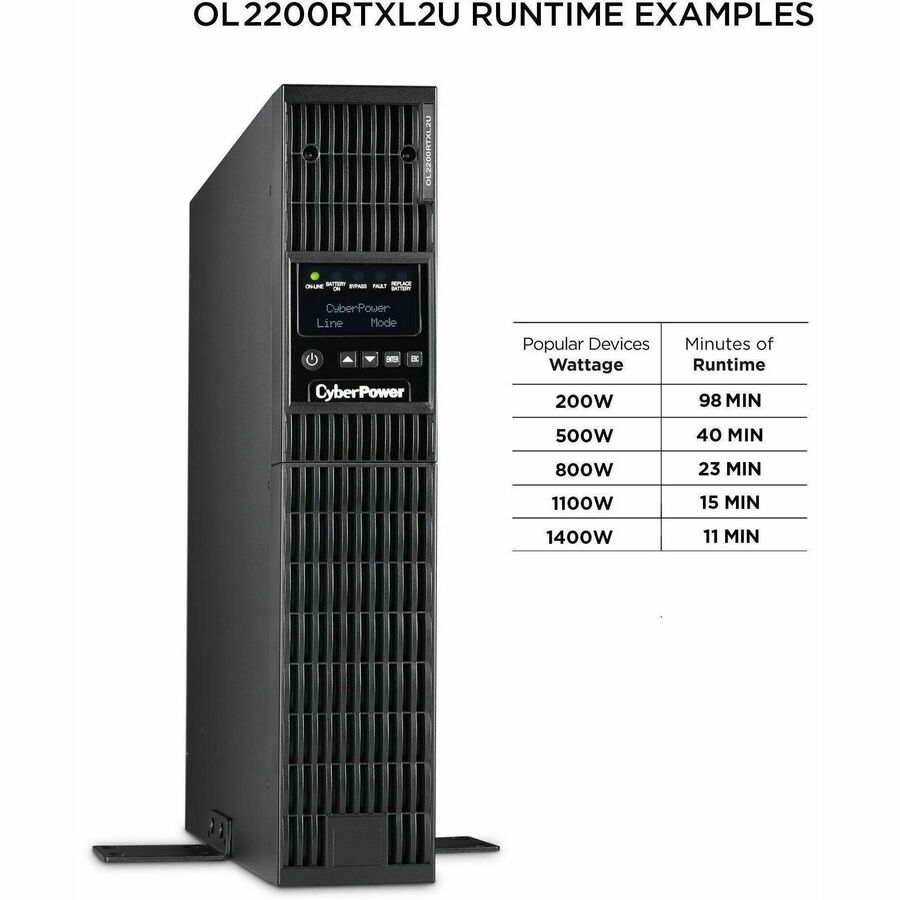

Backup/Run Time (Full Load)	8 Minute
Backup/Run Time (Half Load)	21 Minute
Typical Battery Recharge Time	4 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 90%
Storage Relative Humidity	0% - 95%
Thermal Dissipation	158.55 W

Physical Characteristics

Color Family	Black
Product Color	Black

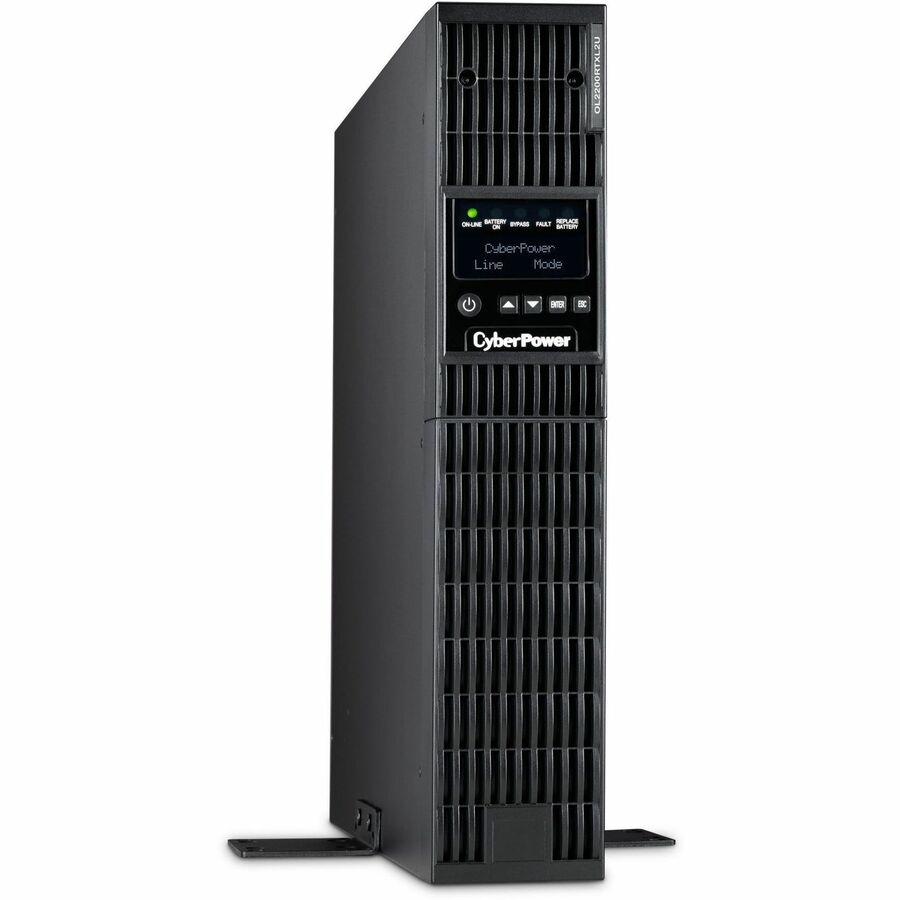

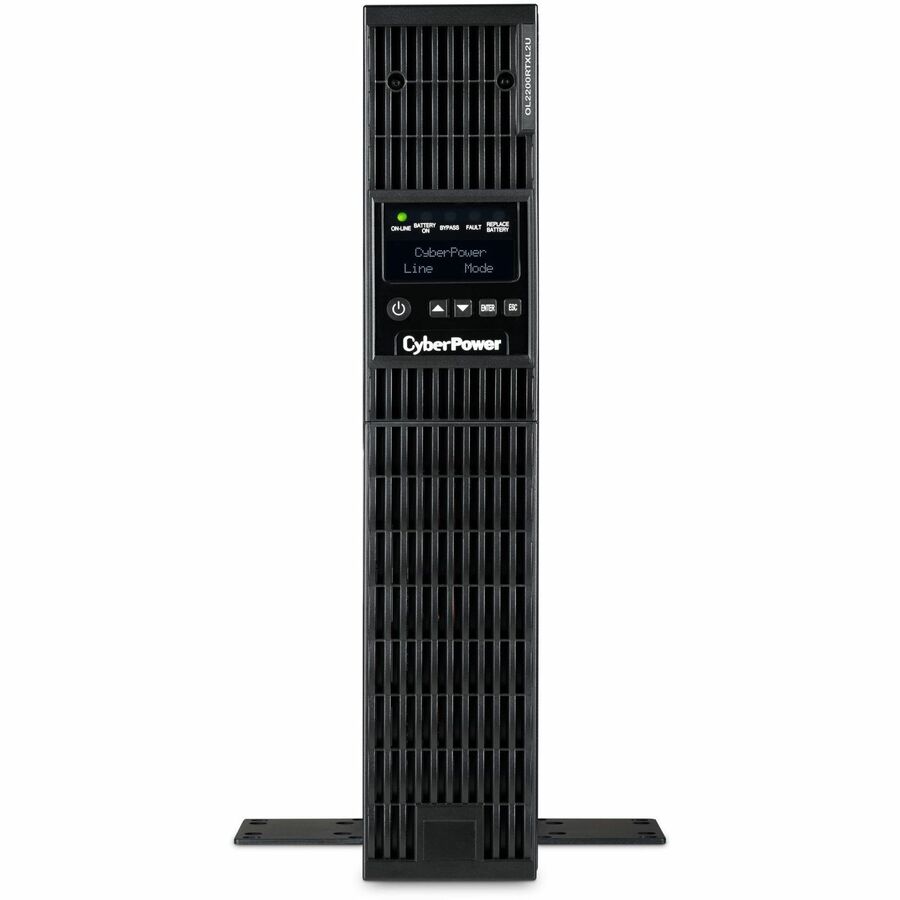

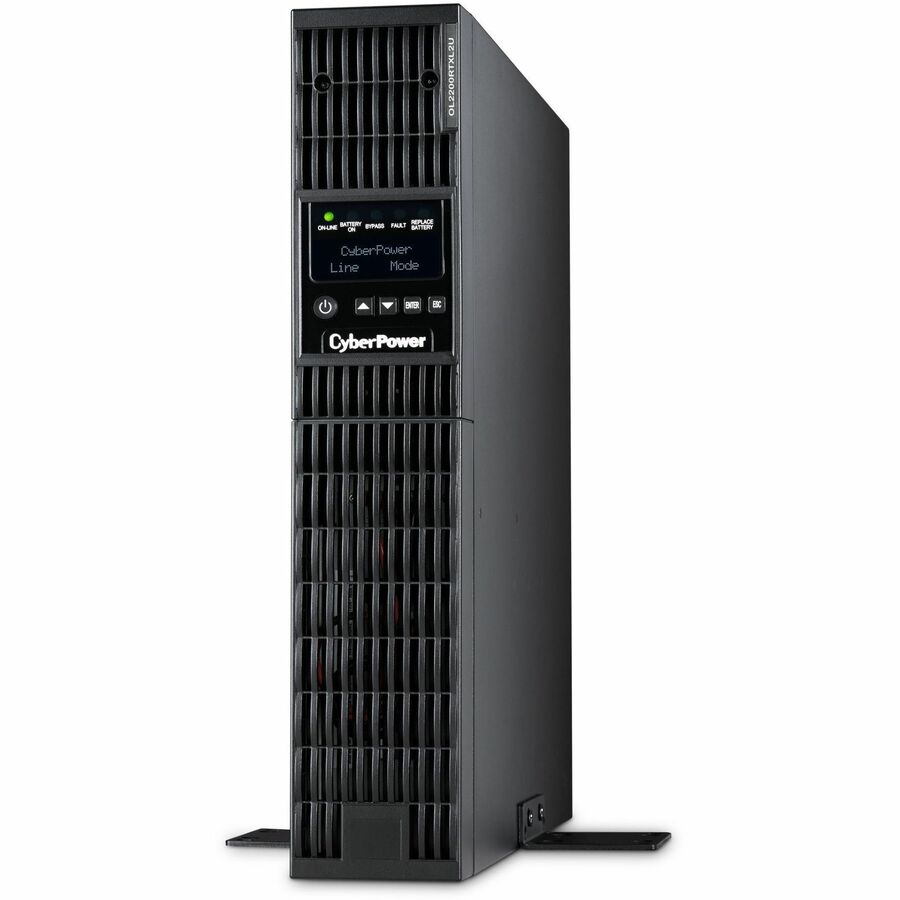

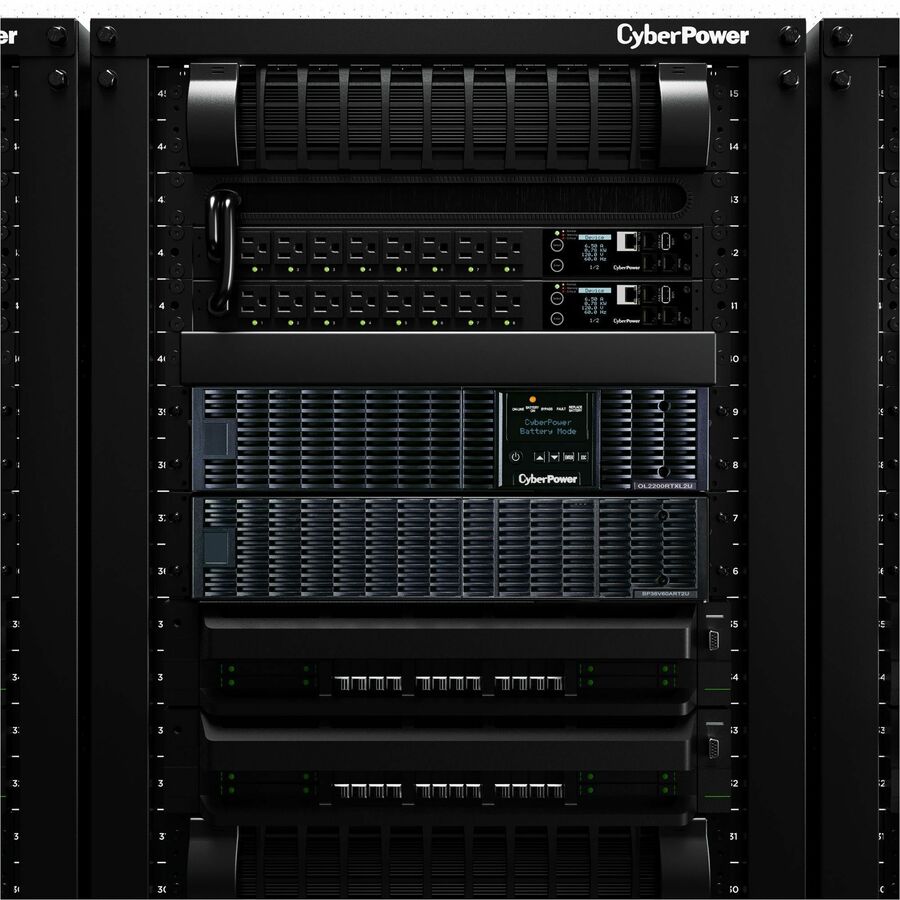

Form Factor	Rack/Tower
Rack Height	2U

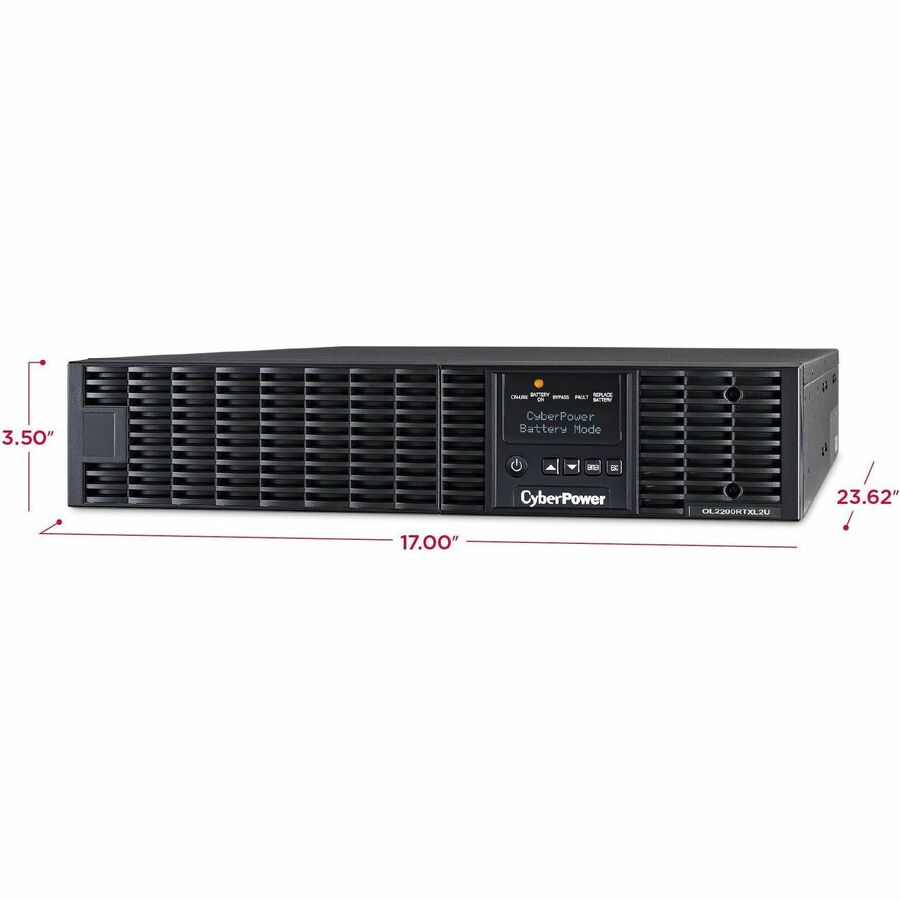

Height	3.5"
Width	17"
Depth	23.6"
Weight (Approximate)	68.20 lb

Miscellaneous

Package Contents	Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS User Manual Registration card 2 x Rackmount rails 2 x Hanging brackets 2 xRackmount ears USB communication cable Serial interface cable (RS-232) 8 x M5X7L black flat head screws 12 x M5X12L black pan head screws 6 x M5X6L silver pan head screws 8 x Plastic washers 12 x Screw hole dust covers 12 x Rubber pads Software download card
Additional Information	Replacement Battery Cartridge Quantity: 1 Smart Battery Management (SBM) Mode: Yes Circuit Breaker: 20A Cold Start: Yes Input Power Factor: 0.99 Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load Crest Factor: 3:1 ECO Mode Voltage Regulation: ±10%, ±15% (Configurable) Harmonic Distortion: < 3% at Linear Load On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable) Output Power Factor: 0.82 Overload Protection: Line Mode: 105% ~ 125% Load - 1 min Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection VA by Input Type: 2,200 (2.2 kVA) at 120, 125 V input Watts by Input Type: 1,800 (1.8 kW) at 120, 125 V input Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo) Dry Contacts: Yes Expansion Slot: Yes - with optional RMCARD205 or RELAYIO500 LCD: Multifunction LCD LED Indicators: Power On (White) Management Cable: USB Cable Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included) Rotatable LCD Control Panel Option: Yes Serial Port: 1 Serial Upgradeable firmware: Yes Material of Construction: Metal Mounting Hardware: Yes ECO Mode Thermal Dissipation: 249 BTU/hr Operating Elevation: 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity: 0 - 90 % (non-condensing) Operating Temperature: 32 - 104 °F (0 - 40 °C) Storage Elevation: 0 - 50000 ft (0 - 15239 m)
Certifications & Standards	UL1778
Software Included	PowerPanel® Business
Energy Star	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	400000 Lifetime
