CyberPower OL10KSTF OL10KSTF 2U 10,000 VA Step-down and Isolation Transformer

Name: CyberPower OL10KSTF OL10KSTF 2U 10,000 VA Step-down and Isolation Transformer
Brand: CYBERPOWER
SKU: 9MF643
Price: 3125.95 USD
Availability: InStock

CYBERPOWER

PCN#

9MF643

MFG#

OL10KSTF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,125.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

200
240 VAC, Hardwire (6AWGHW3FT Power Cable Kit included), 2U, Rack / Tower, 7 Outlets, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyPackage Contents OL10KSTF Isolation/Step-Down Transformer 3 ft hardwire power cable kit 2 x Terminal block cable glands Left & right rackmount rails Left & right hanging brackets Input/output terminal block cover Quick Start Guide Registration Card 2U rack mount ears (tower stands) Tower installation tie plate 8 x black flat head screws 12 x black pan head screws 6 x silver pan head screws 8 x Plastic washers 12 x Screw hole dust covers 12 x Rubber pads Safety Instruction Card CompatibilityOL8KRTOL10KRTCertifications & Standards UL 1778 5th Ed. CSA C22.2 NO.107.3-05 Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 120 lbs.

CyberPower OL10KSTF Smart App Online UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OL10KSTF
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Line	Smart App Online
Product Series	UPS Hardware
Product Model	OL10KSTF
Product Name	OL10KSTF Step-down and Isolation Transformer
Marketing Information	The CyberPower Smart App Online OL10KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output. The OL10KSTF has a capacity of 10,000 VA / 10,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel. The included 3-foot power cable kit (6AWGHW3FT) connects the OL10KSTF to input power. Over temperature protection safeguards your OL10KSTF from damage if the internal heat exceeds safe operating parameters. A Three-Year Warranty ensures that this step-down transformer has passed our highest quality standards in design, assembly, material or workmanship.
Product Type	Isolation/Step-Down Transformer

Technical Information

Power Rating	10000 VA
Input Receptacle Type	Hardwired

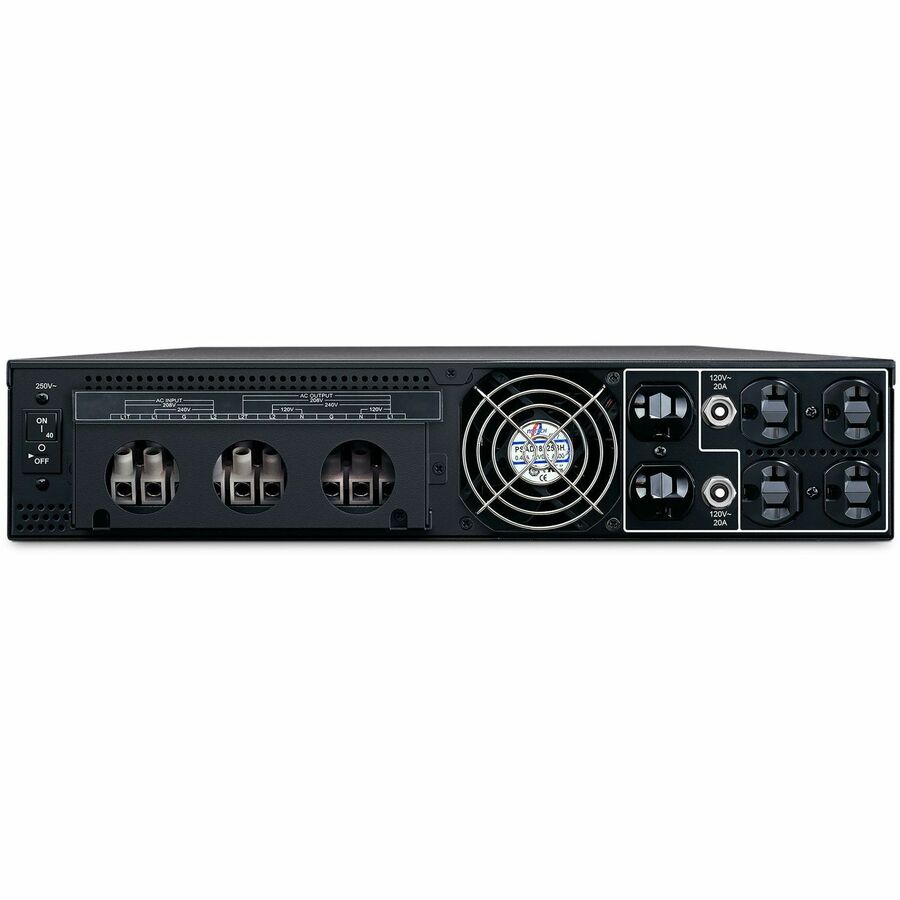

Output Receptacle Type	NEMA 5-20R Terminal Block

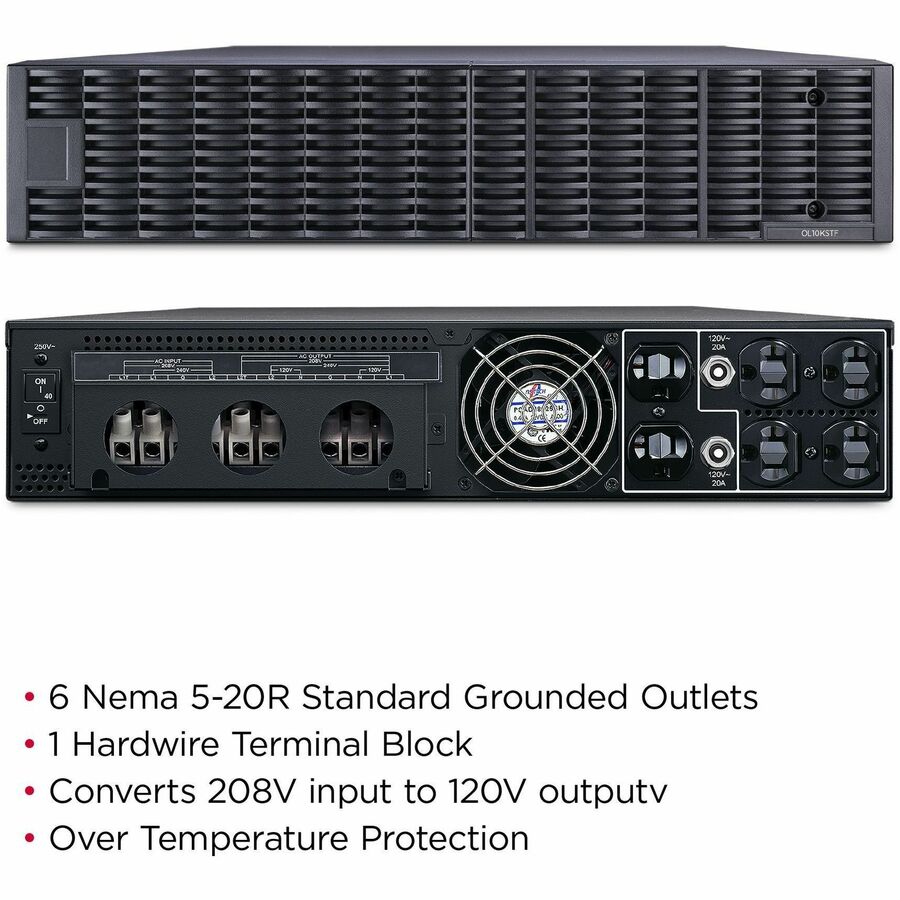

Output Receptacle Detail	6 x NEMA 5-20R 1 x Terminal Block
Cord Length	36"

Power Description

Input Voltage	230 V AC
Output Voltage	120 V AC 208 V AC
Maximum Line Current	50 A

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Tower/Rack Mountable
Rack Height	2U

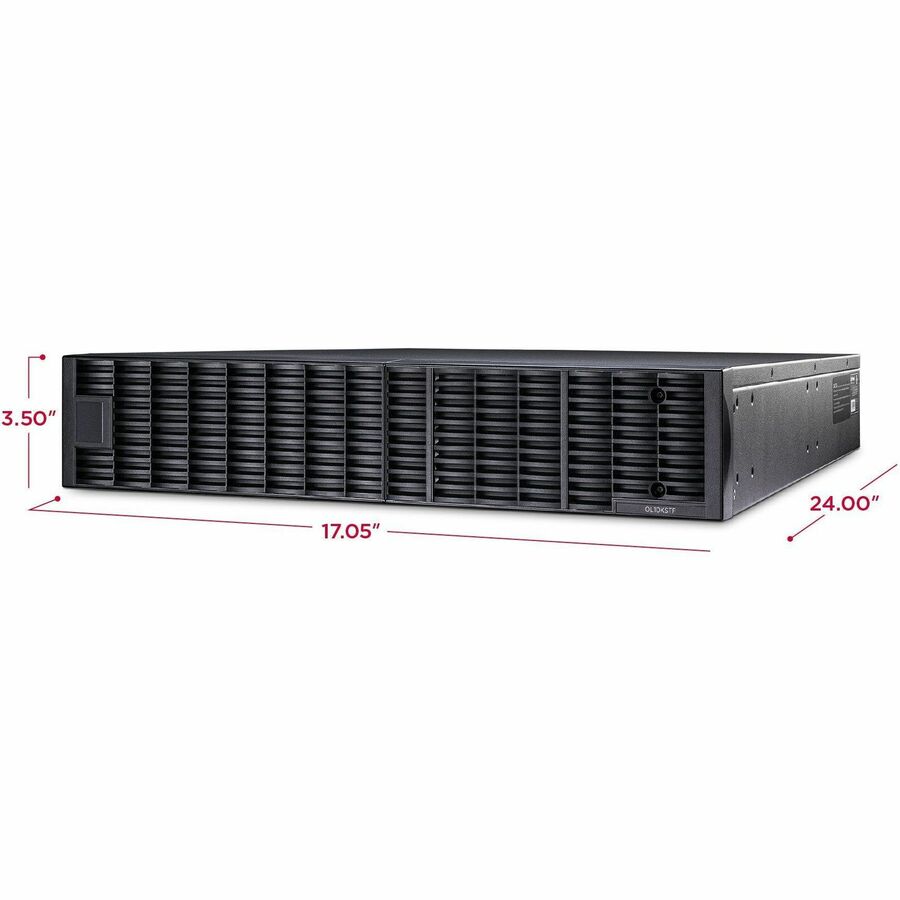

Height	3.5"
Width	17.1"
Depth	24"
Weight (Approximate)	119.70 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.89 x 60.96 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.5 x 24 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 89 x 610 (mm) Weight (kg) : 54.29 Weight (lb) : 119.7 Shipping Dimensions - (WxHxD) (cm) : 59.94 x 33.02 x 89.92 (cm) Shipping - Dimensions (WxHxD, in) : 23.6 x 13.0 x 35.4 (in) Shipping - Dimensions (WxHxD, mm) : 599.44 x 330.2 x 899.16 (mm) Shipping - Weight (kg) : 74.25 Shipping - Weight (lb) : 163.7 Cord Length : 3 ft (0.9 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : Hardwire (6AWGHW3FT Power Cable Kit included) Maximum Input Current : 50A Nominal Input Voltage : 200 - 240 VAC Nominal Output Voltage : 120 VAC Outlets - Total : 7 Outlet Type COMPUTED : 6 - NEMA 5-20R Output Frequency : 50/60 Hz (auto-sensing/configurable) Overload Protection : Circuit Breaker Protected Step Down Thermal Dissipation : 1914 BTU/hr USB Charge Port : No VA by Input Type : 10,000 (10 kVA) at 230, 240 V input Watts by Input Type : 10,000 (10 kW) at 230, 240 V input Color : Black Form Factor : Rack / Tower Material of Construction : Metal Mounting Hardware : Yes Rack Height : 2U Audible noise at 1m from surface of unit : 58 dBA Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : -4 - 113 °F (-20 - 45 °C) Models : OL8000RT3U, OL8000RT3UPDU, OL8KRT3UHW, OL8KRT, OL8KRTHW, OL8KRTMB, OL10000RT3U, OL10000RT3UPDU, OL10KRT3HW, OL10KRT, OL10KRTHW, OL10KRTMB, UPS Models : OL8000RT3U, OL8000RT3UPDU, OL8KRT3UHW, OL8KRT, OL8KRTHW, OL8KRTMB, OL10000RT3U, OL10000RT3UPDU, OL10KRT3HW, OL10KRT, OL10KRTHW, OL10KRTMB, Environmental : RoHS Compliant Safety : UL1778 5th Ed. Extended Warranty Option : WEXT5YR-ACC2C Product Warranty : 3 Year Limited Warranty
Package Contents	OL10KSTF Isolation/Step-Down Transformer 3 ft hardwire power cable kit 2 x Terminal block cable glands Left & right rackmount rails Left & right hanging brackets Input/output terminal block cover Quick Start Guide Registration Card 2U rack mount ears (tower stands) Tower installation tie plate 8 x black flat head screws 12 x black pan head screws 6 x silver pan head screws 8 x Plastic washers 12 x Screw hole dust covers 12 x Rubber pads Safety Instruction Card
Compatibility	OL8KRT OL10KRT
Certifications & Standards	UL 1778 5th Ed. CSA C22.2 NO.107.3-05
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
