CyberPower Smart App Online 10000VA Rack/Tower UPS

by
CYBERPOWER
PCN#
09QH39
MFG#
OL10KRTHD
$10,375.95
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 10000VA/10000W, 200
  • 240 VAC, Hardwire, Rack / Tower, Sine Wave, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
Product Condition: New and Factory Fresh
Limited Warranty3 YearDirectly Connected Equipment Guarantee300000 Lifetime
Shipping Weight: 200 lbs.

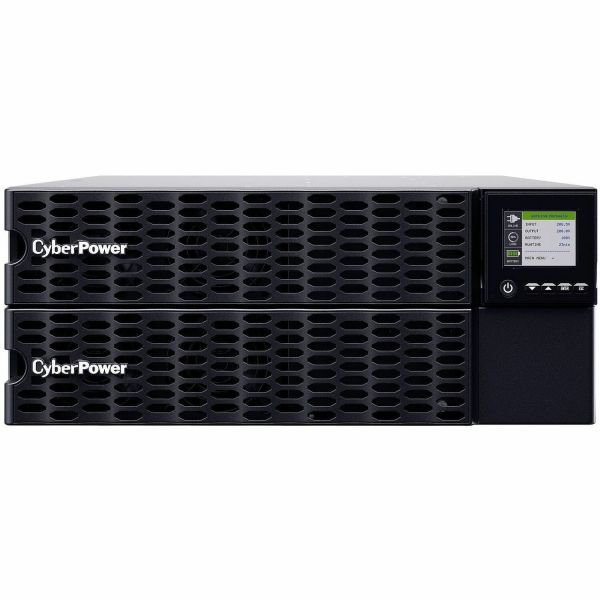

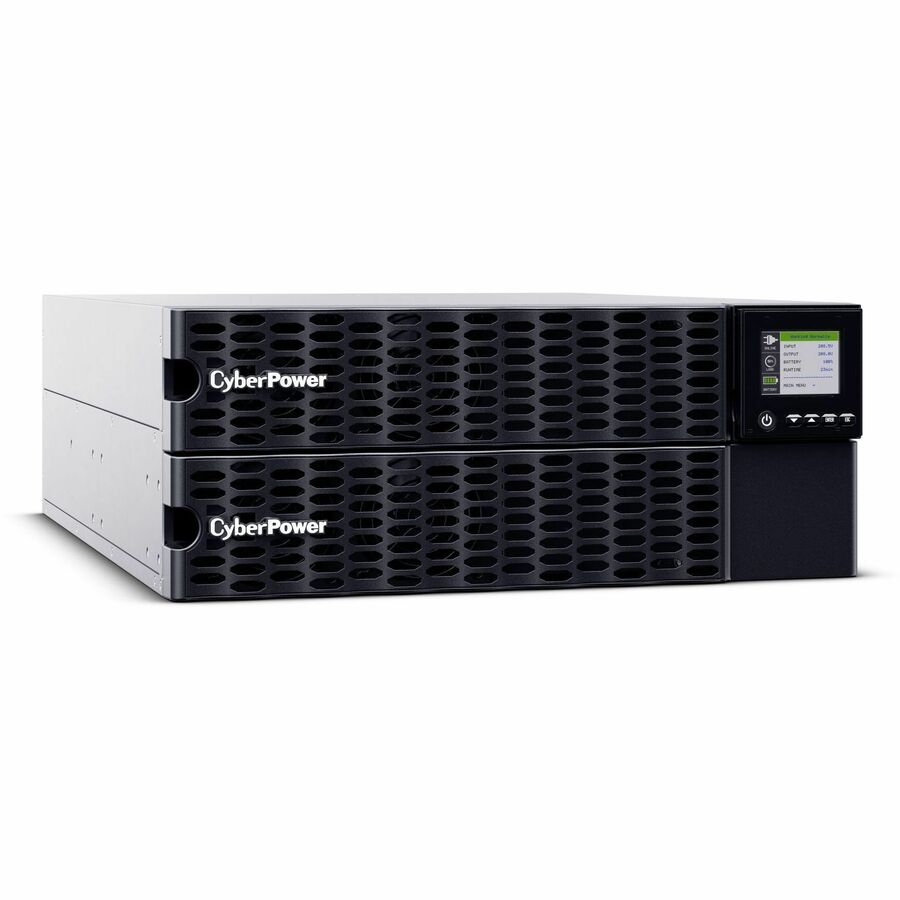

CyberPower OL10KRTHD Smart App Online UPS Systems
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

OL10KRTHD

Manufacturer Website Address

https://www.cyberpowersystems.com

Brand Name

CyberPower

Product Line

Smart App Online

Product Model

OL10KRTHD

Product Name

OL10KRTHD Smart App Online UPS Systems

Marketing Information

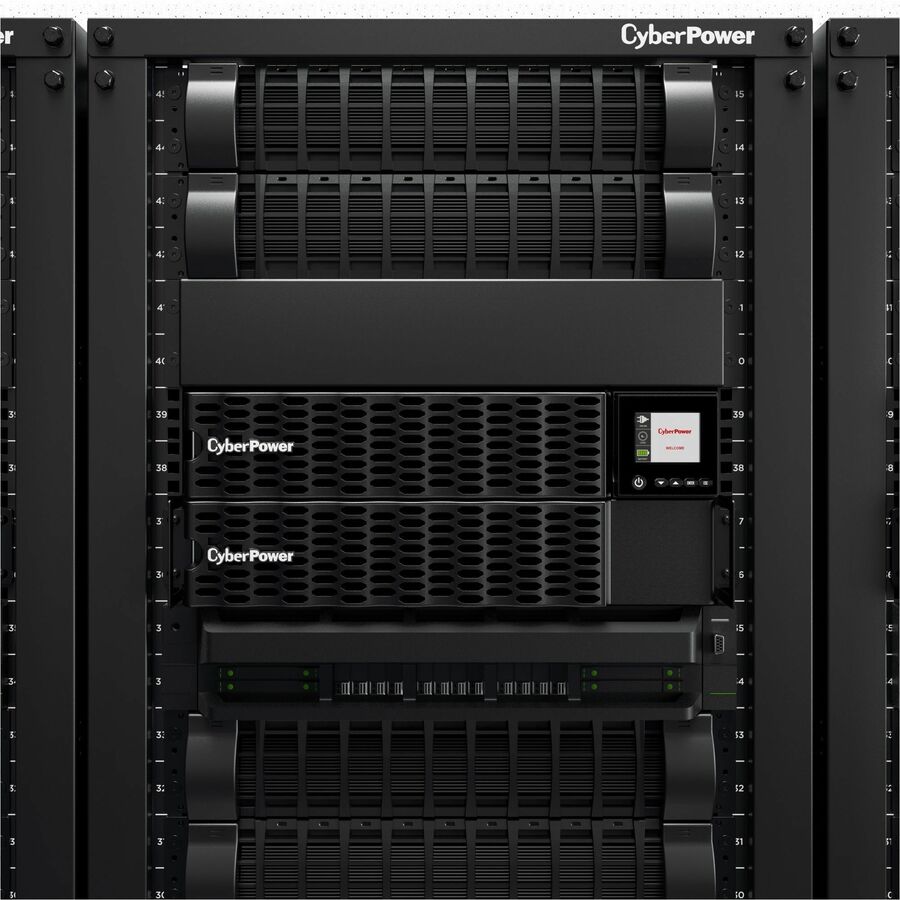

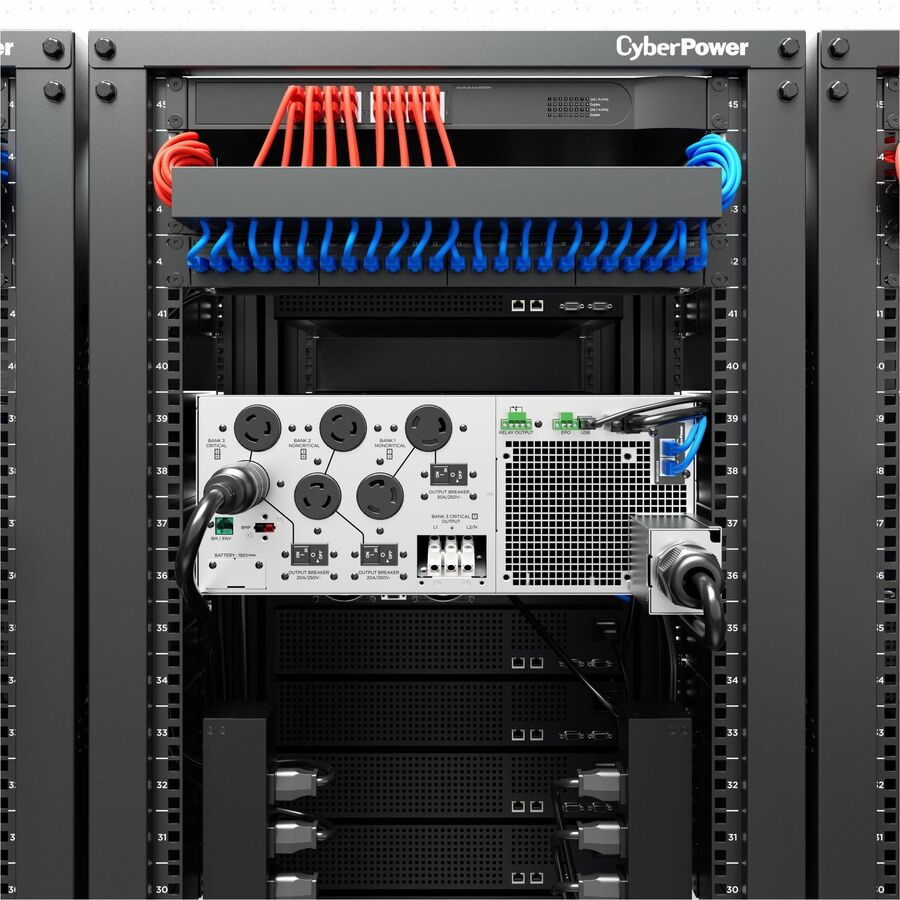

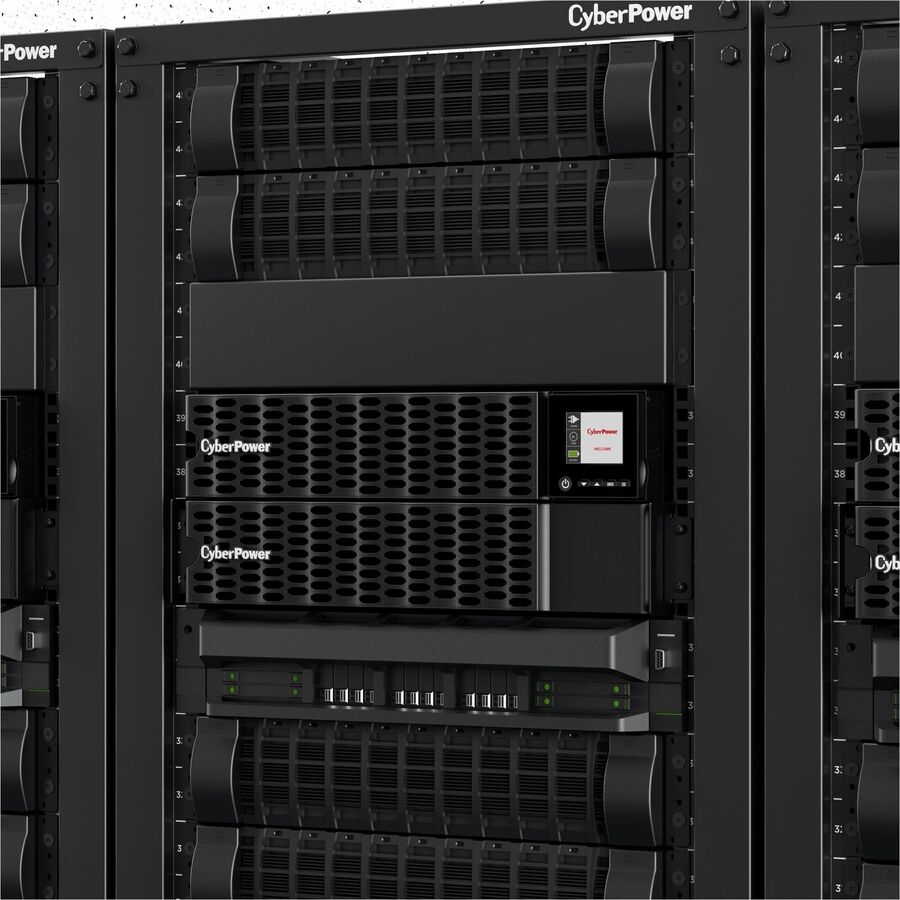

  • The CyberPower Smart App Online OL10KRTHD high-density design offers more power in less space. In fact, it can be configured into 4U of rack space or as a tower, compared to 6U for similar competitive UPS models - giving you more room to grow. The OL10KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

    For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

    The OL10KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables > 98% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

    The optional BP192VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a

  • 300,000 Connected Equipment Guarantee.

Product Type

Double Conversion Online UPS
Technical Information

Plug/Connector Type

Hardwired

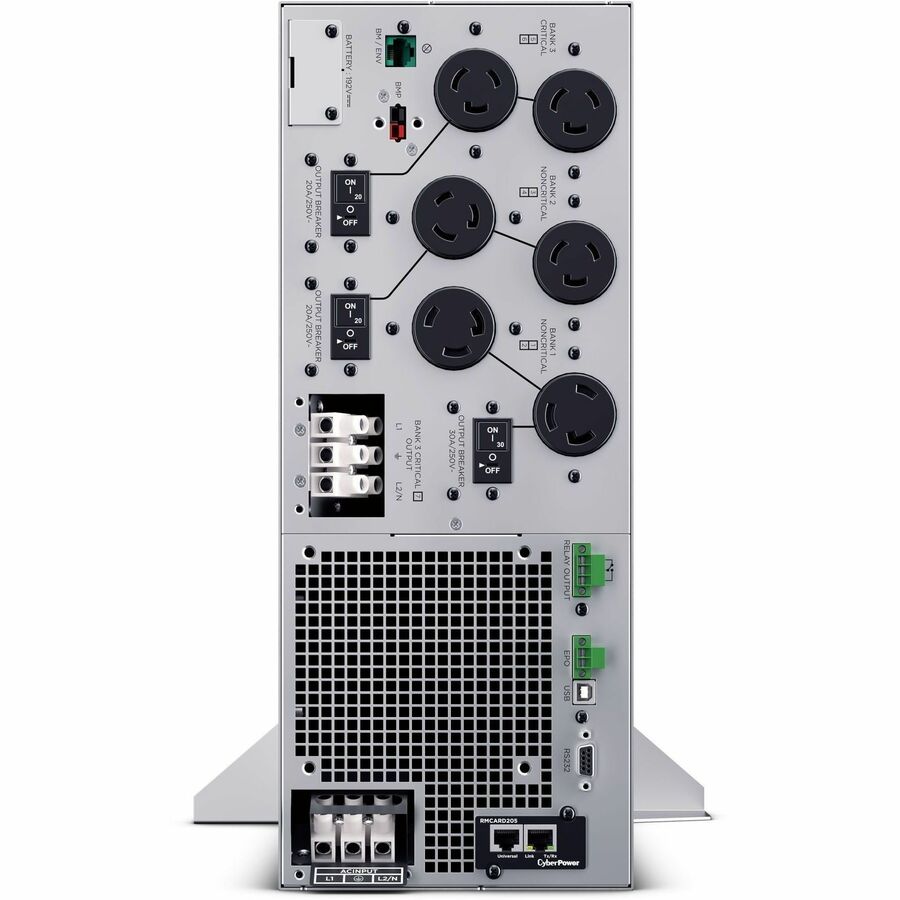

Receptacle Type

  • NEMA L6-20R
  • NEMA L6-30R
  • Hardwired

Receptacle Detail

  • 4 x NEMA L6-20R
  • 2 x NEMA L6-30R

Transfer Time

0 ns

Protection Type

  • Backfeed
  • Short Circuit

EMI/RFI Noise Filter

Yes

Energy Saving

ECO Mode Efficiency >98%

Circuit Breaker Current Rating

70 A

Efficiency

98%
Power Description

Load Capacity (VA)

10000 VA

Load Capacity (Watt)

10 kW

Input Voltage

  • 120 V AC
  • 230 V AC

Input Voltage Range

  • 120 V AC - 139 V AC
  • 200 V AC - 240 V AC

Output Voltage

  • 200 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
  • 240 V AC

Input Frequency

  • 50 Hz
  • 60 Hz

Output Frequency

  • 50 Hz
  • 60 Hz

Waveform Type

Sine Wave

Surge Energy Rating

2430 J

Input Power Factor

0.99

Output Power Factor

1
Display & Graphics

Display

LCD
Management

Network Management

SNMP/HTTP Remote Monitoring

Alarm

Battery Mode
Controls/Indicators

Status Indicators

LED Indicators:
  • Power On (White)
Interfaces/Ports

Serial Port

Yes

USB

Yes

USB (HID Compliant) Port

Yes

EPO Port

Yes
Battery Information

Number of Batteries

16

Battery Characteristics

Sealed

Battery Chemistry

Lead Acid

Battery Size

12V

Battery Capacity

9000 mAh

Backup/Run Time (Full Load)

2.40 Minute

Backup/Run Time (Half Load)

8.30 Minute

Typical Battery Recharge Time

4 Hour

Replaceable Battery

No
Environmental Conditions

Maximum Operating Temperature

104°F (40°C)

Storage Temperature

-4°F (-20°C) - 113°F (45°C)

Maximum Operating Elevation

10000 ft

Maximum Storage Elevation

50000 ft

Operating Humidity

0% - 90%

Storage Relative Humidity

0% - 95%

Sound Emission (A-Weighted)

66 dB(A)

Thermal Dissipation

593.47 W
Physical Characteristics

Form Factor

Rack/Tower

Height

6.8"

Width

17"

Depth

28.3"

Weight (Approximate)

156.99 lb
Miscellaneous

Certifications & Standards

UL1778

Energy Star

Yes

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

3 Year

Directly Connected Equipment Guarantee

  • 300000 Lifetime
