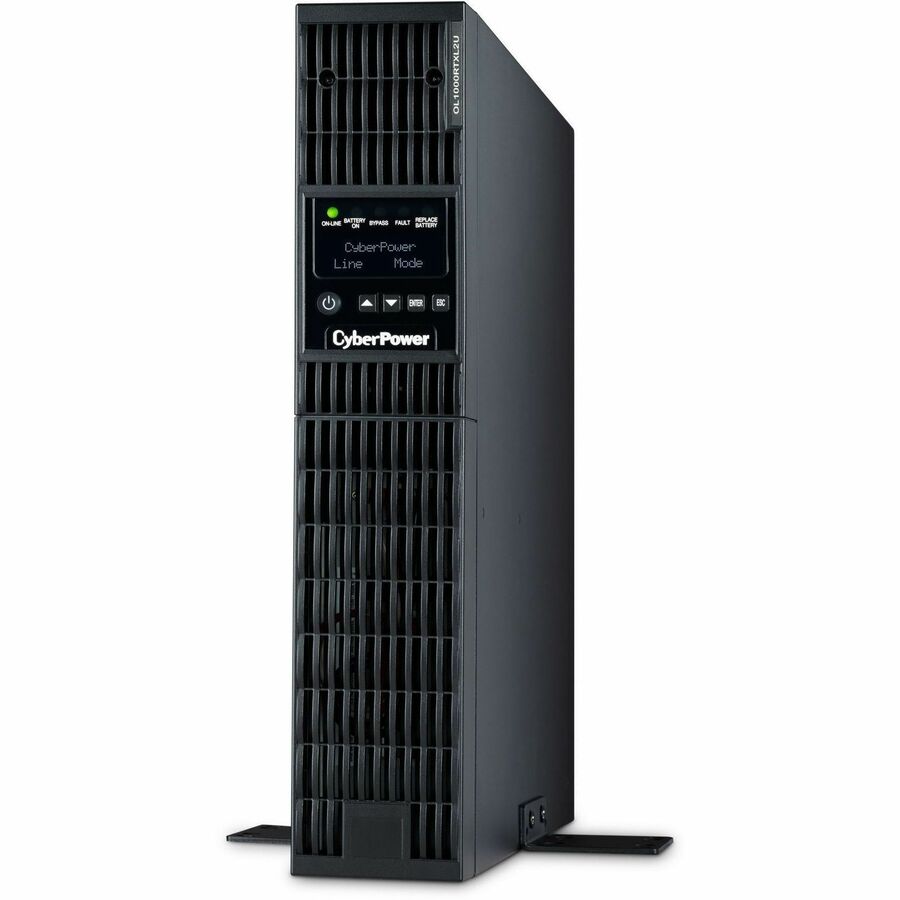

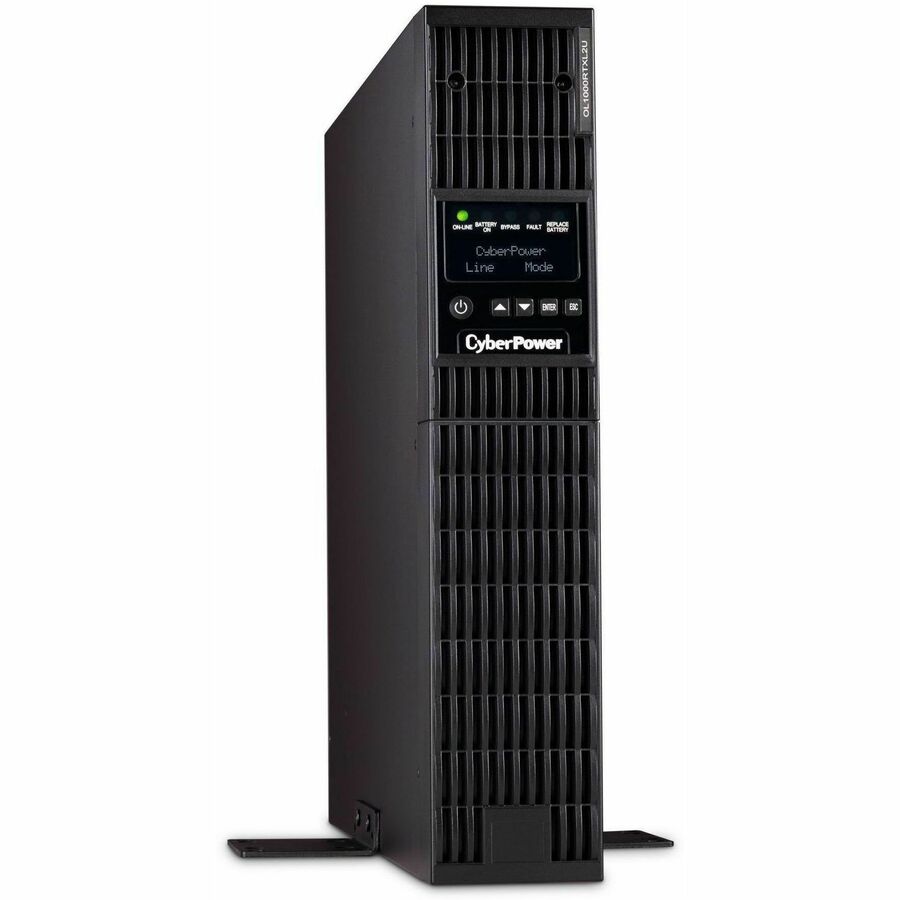

CyberPower OL1000RTXL2U Smart App Online UPS Systems

Name: CyberPower OL1000RTXL2U Smart App Online UPS Systems
Brand: CYBERPOWER
SKU: 9GM373
Price: 894.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM373

MFG#

OL1000RTXL2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$894.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

1000VA/900W, 100
125 VAC, NEMA 5
15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearDirectly Connected Equipment Guarantee400000 Lifetime

Shipping Weight: 65 lbs.

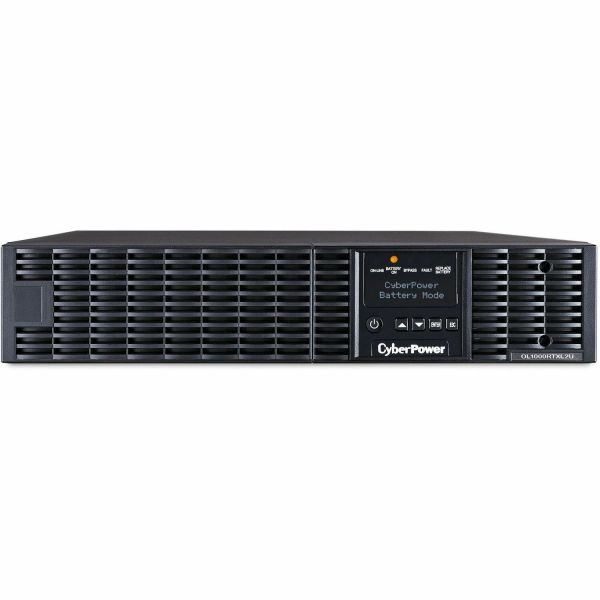

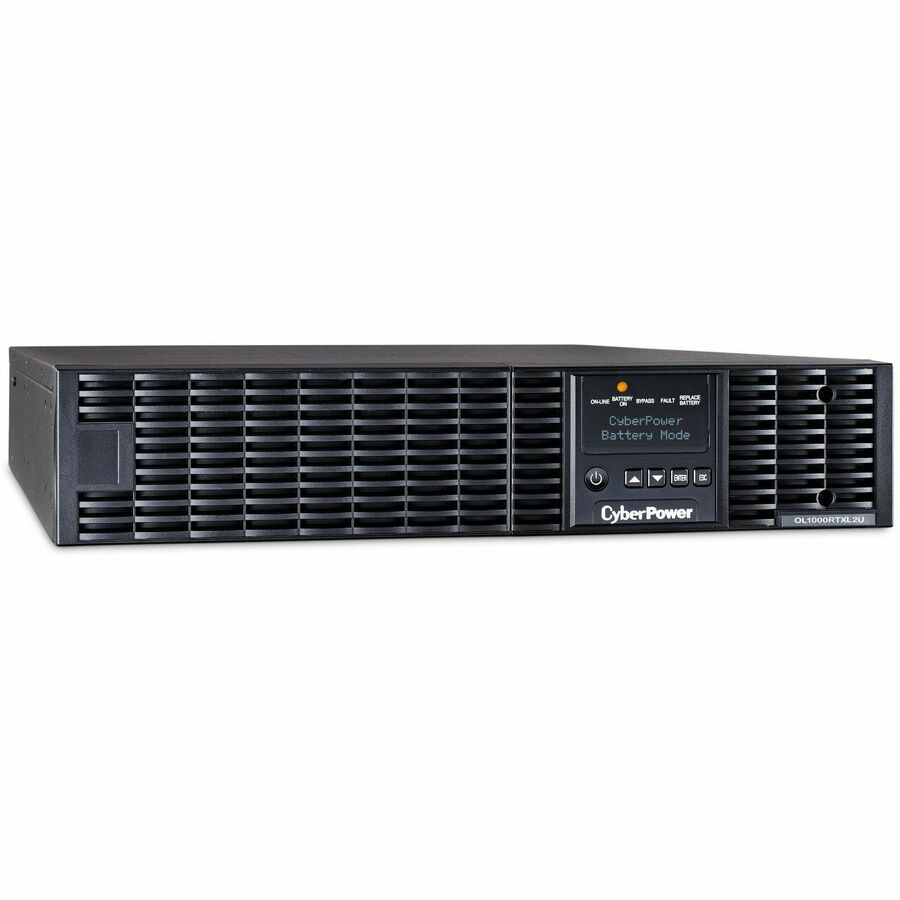

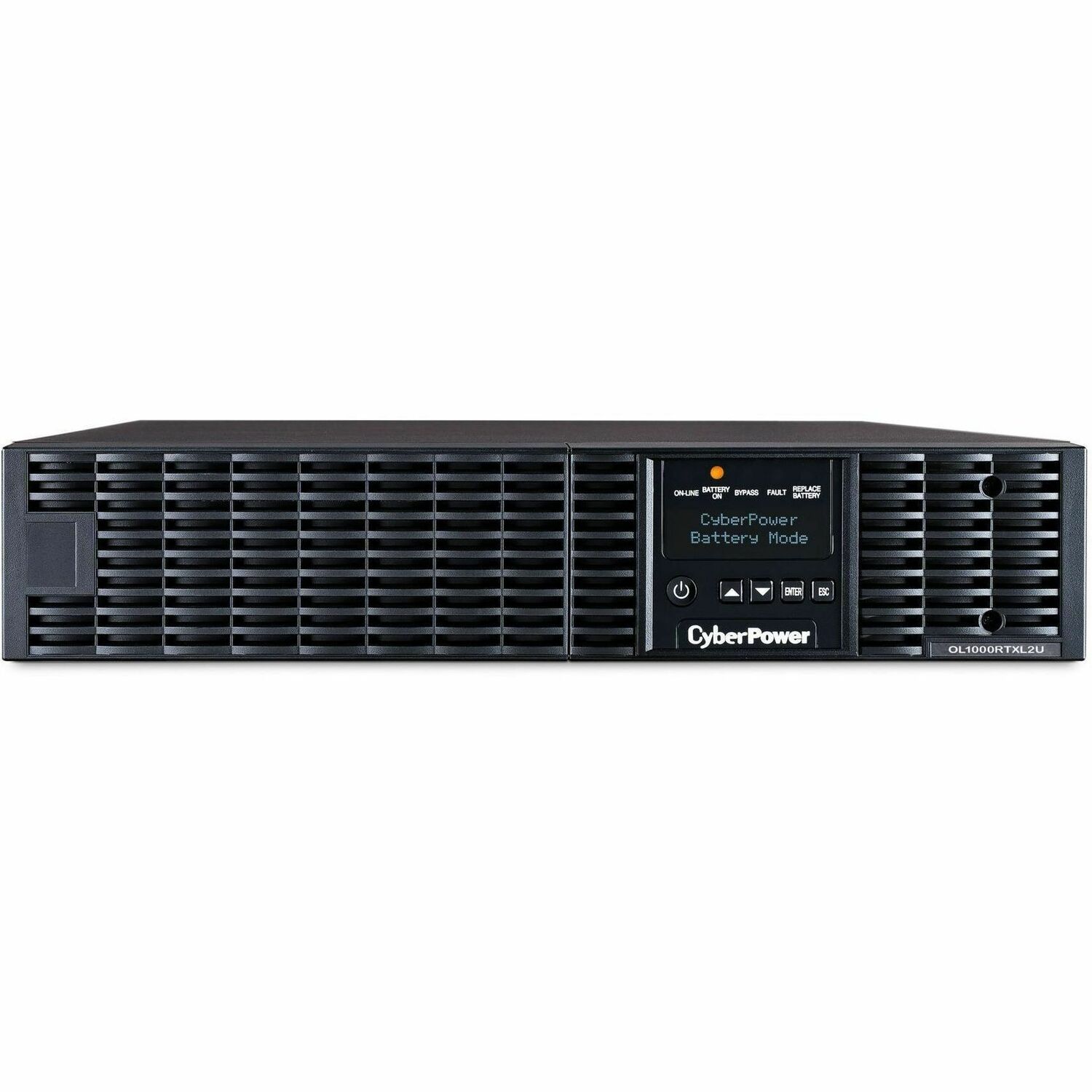

CyberPower OL1000RTXL2U Smart App Online UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OL1000RTXL2U
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	Smart App Online UPS
Product Model	OL1000RTXL2U
Product Name	Smart App Online OL1000RTXL2U 1000VA 100-125V Sine Wave LCD Rack/Tower UPS
Marketing Information	Prevent business interruptions and safeguard mission-critical enterprise network equipment. The CyberPower OL1000RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode. The OL1000RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output. With a 400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
Product Type	Double Conversion Online UPS

Technical Information

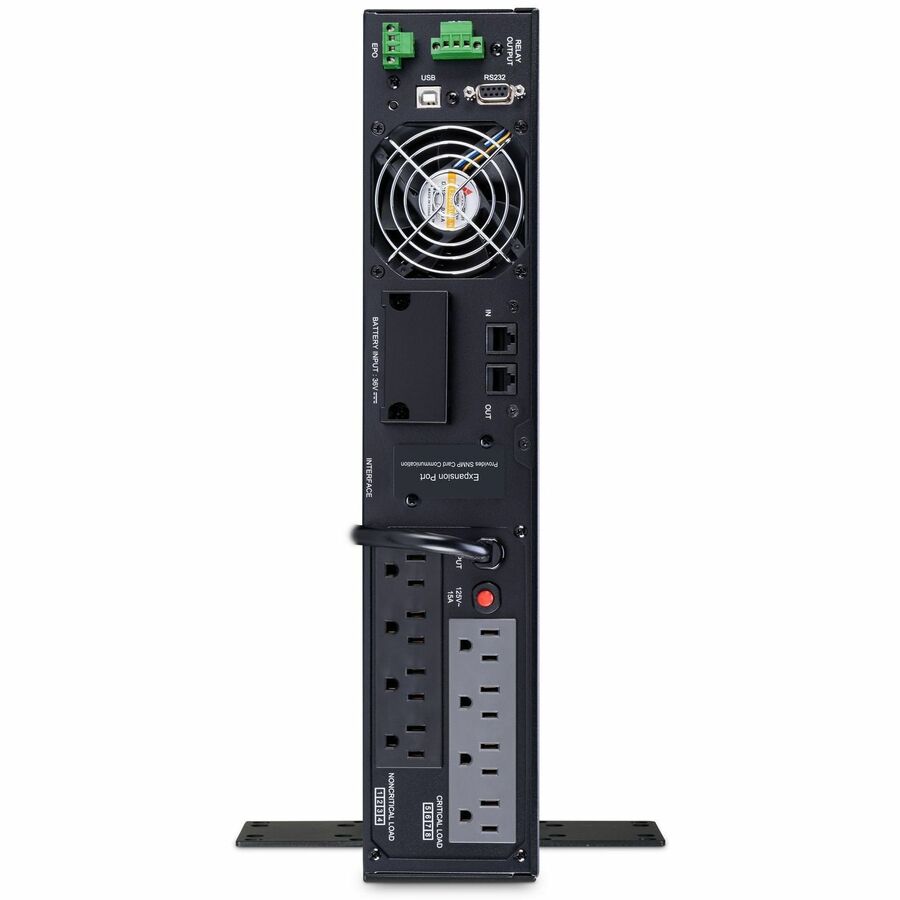

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

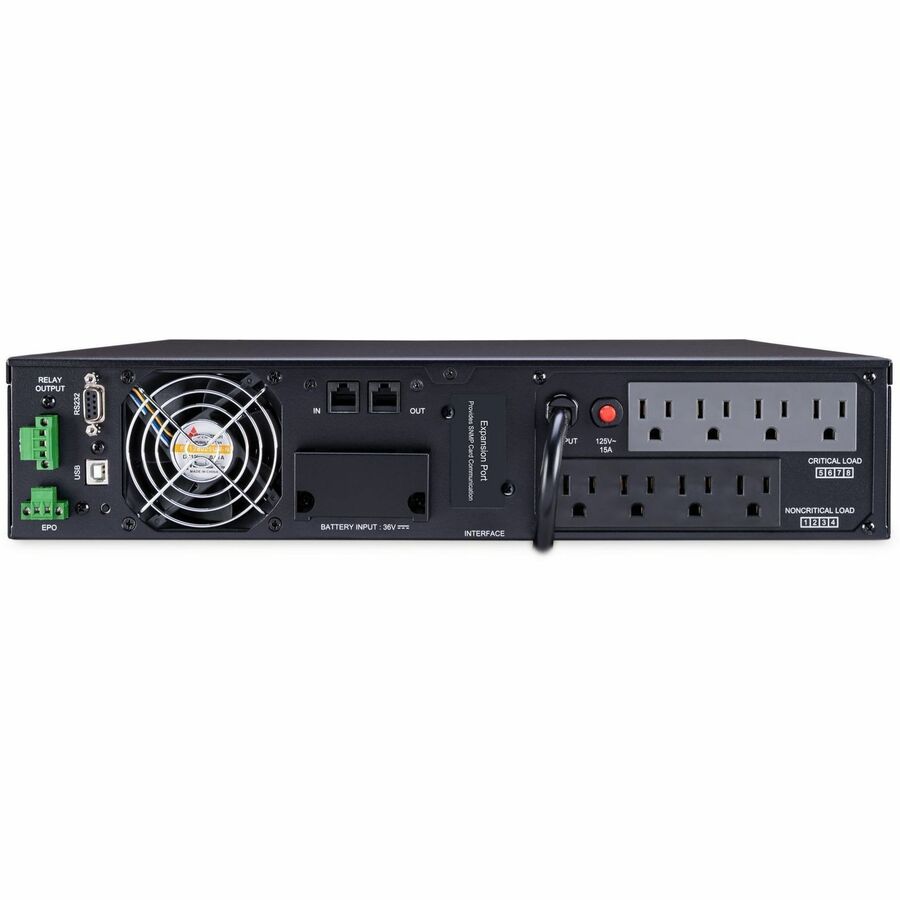

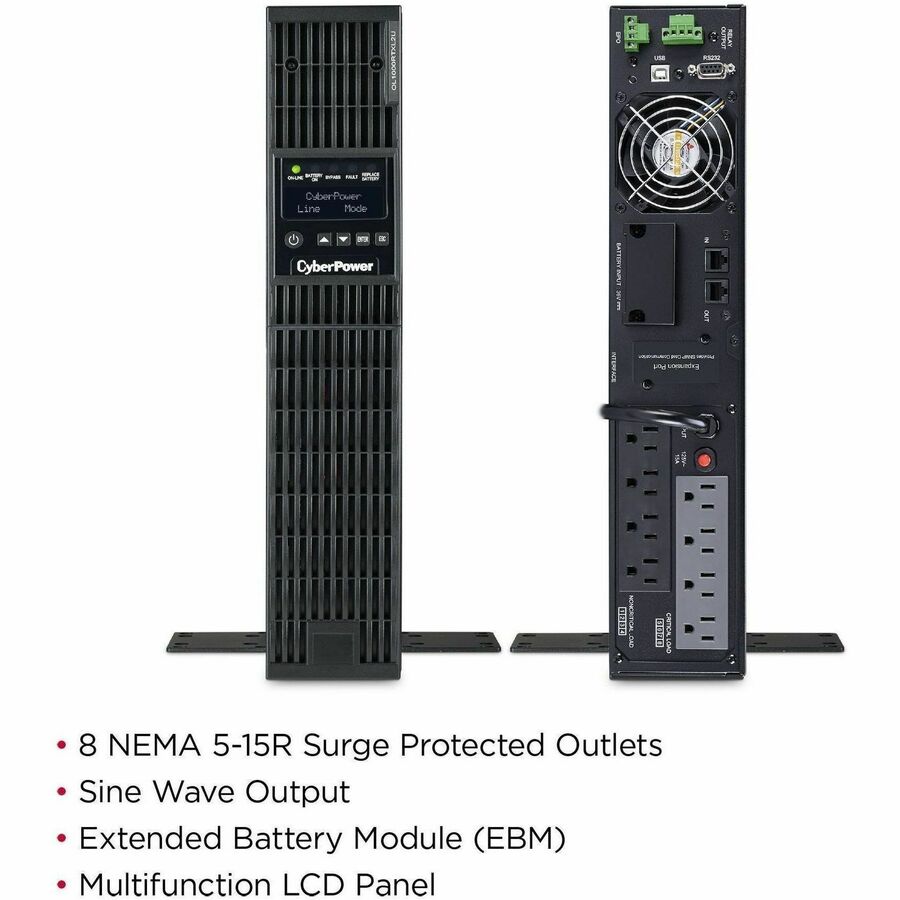

Receptacle Detail	8 x NEMA 5-15R
Transfer Time	0 ns
Dataline Protection	RJ-11 RJ-45
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Energy Saving	ECO Mode Efficiency >94%

Power Description

Load Capacity (VA)	1000 VA
Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage	100 V AC 110 V AC 115 V AC 120 V AC
Input Frequency	70 Hz
Waveform Type	Sine Wave
Surge Energy Rating	1780 J

Management

Network Management	SNMP/HTTP Remote Monitoring
Alarm	Battery Mode Low Battery Overload UPS Fault

Controls/Indicators

Status Indicators

Power On
Line Mode
Battery Mode
Bypass Mode
Fault
Replace Battery

Interfaces/Ports

Serial Port	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	3
Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	7.40 Minute
Backup/Run Time (Half Load)	20 Minute
Typical Battery Recharge Time	4 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Sound Emission (A-Weighted)	38 dB(A)
Thermal Dissipation	31.65 W

Physical Characteristics

Color Family	Black
Product Color	Black

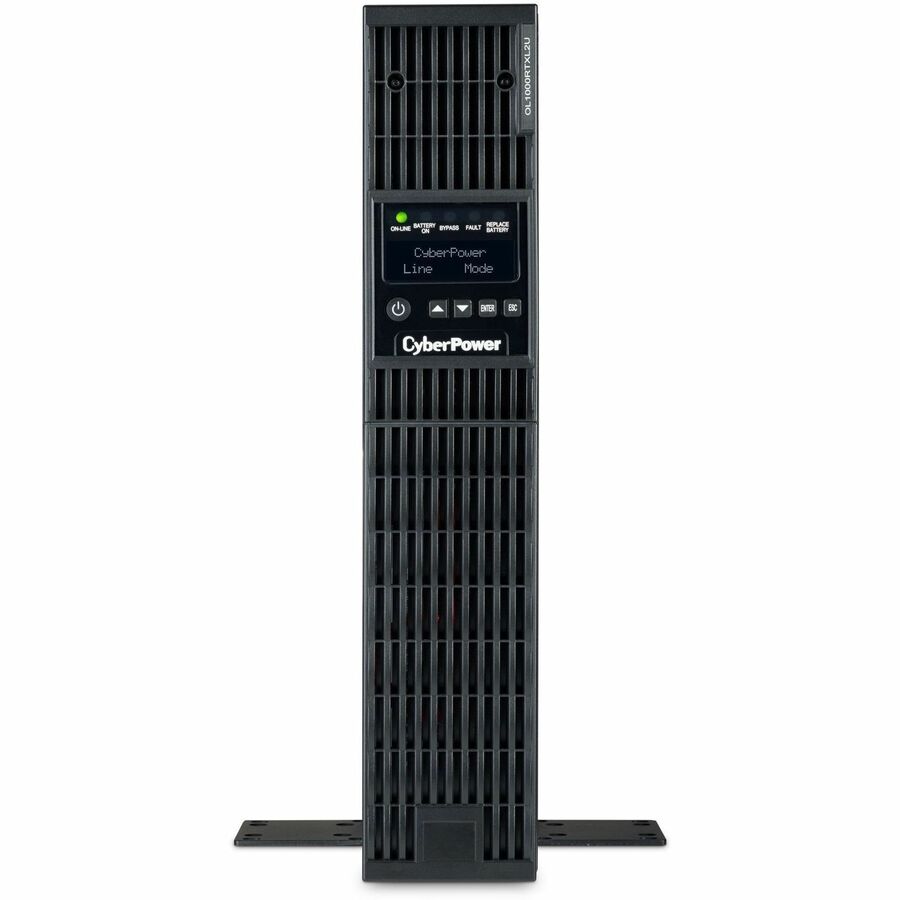

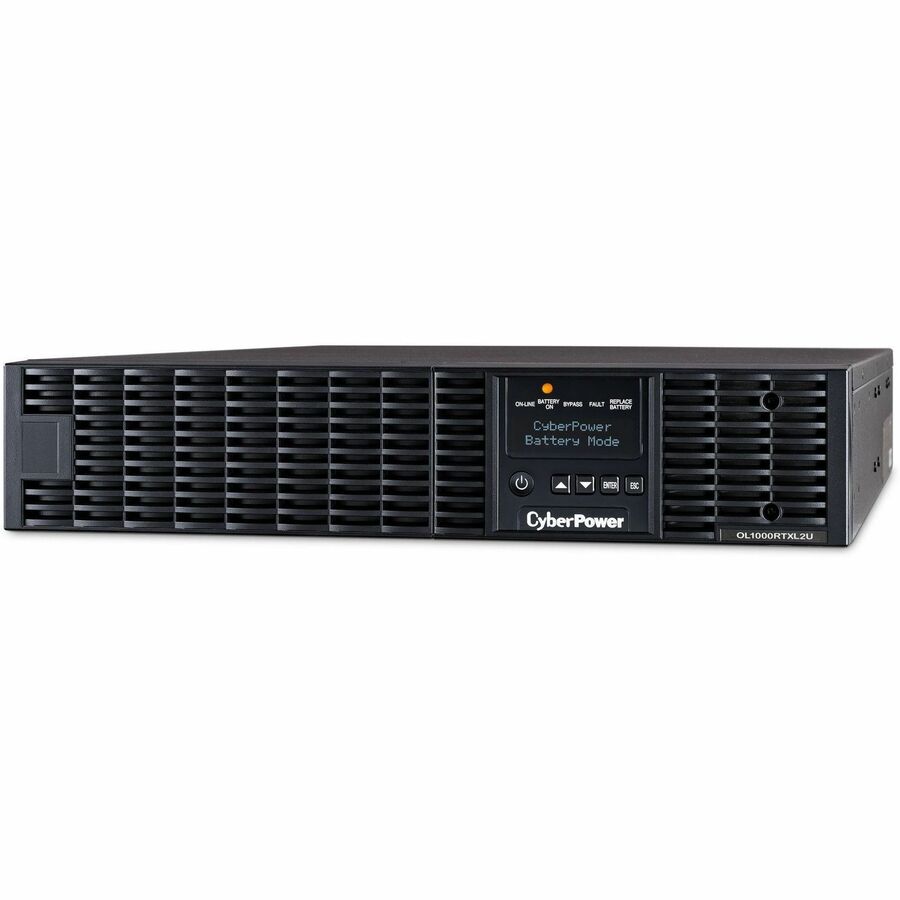

Form Factor	Rack/Tower
Rack Height	2U

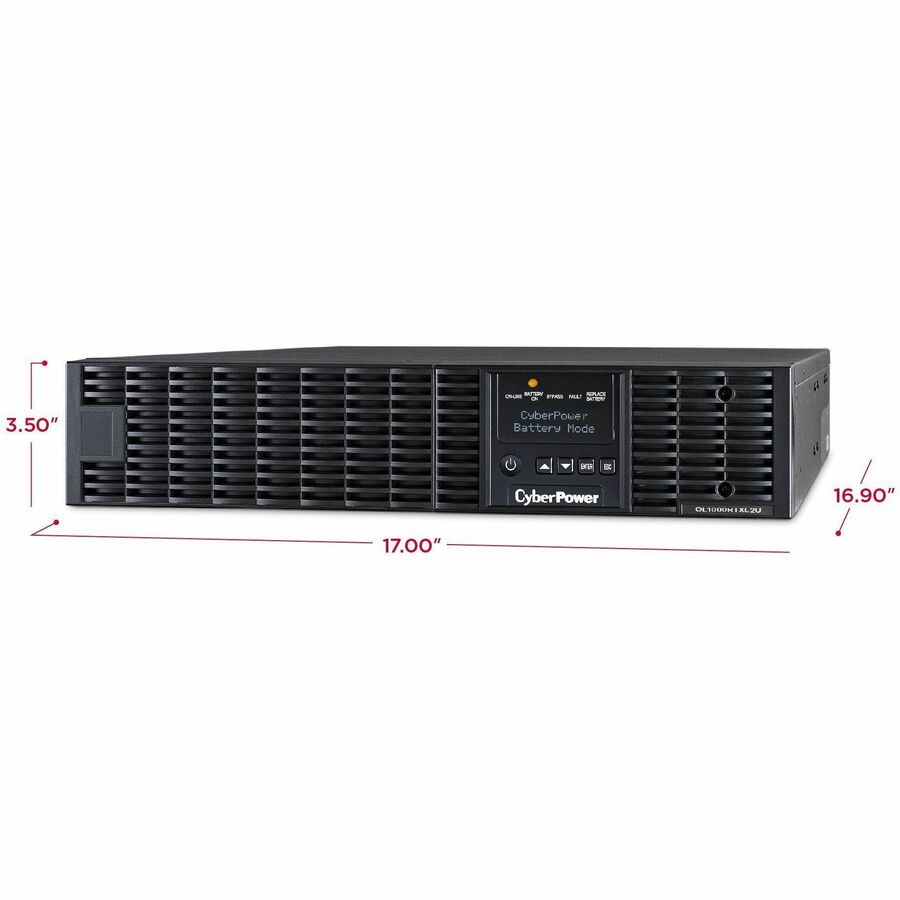

Height	3.5"
Width	17"
Depth	16.9"
Weight (Approximate)	39.60 lb

Miscellaneous

Package Contents	Smart App Online OL1000RTXL2U 1000VA 100-125V Sine Wave LCD Rack/Tower UPS PowerPanel Business Edition Software CD User Manual USB Cable Serial Cable Phone Cable Mounting Hardware Registration Card
Additional Information	Smart Battery Management (SBM) Mode: Yes Circuit Breaker: 15A Cold Start: Yes Input Power Factor: 0.99 Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load Crest Factor: 3:1 ECO Mode Voltage Regulation: ±10%, ±15% (Configurable) Harmonic Distortion: < 3% at Linear Load On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable) Output Power Factor: 0.9 Overload Protection: Line Mode: 105% ~ 125% Load - 1 min Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo) Audible Alarms: Battery Mode Dry Contacts: Yes LCD: Multifunction LCD Management Cable: USB Cable Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included) Rotatable LCD Control Panel Option: Yes Upgradeable firmware: Yes Form Factor: Rack / Tower Material of Construction: Metal Mounting Hardware: Yes Online Thermal Dissipation: 274 BTU/hr Operating Elevation: 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity: 0 - 90 % (non-condensing) Operating Temperature: 32 - 104 °F (0 - 40 °C) Storage Elevation: 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity: 0 - 95% (non-condensing)
Certifications & Standards	UL1778
Software Included	PowerPanel® Business
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	Philippines

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	400000 Lifetime
