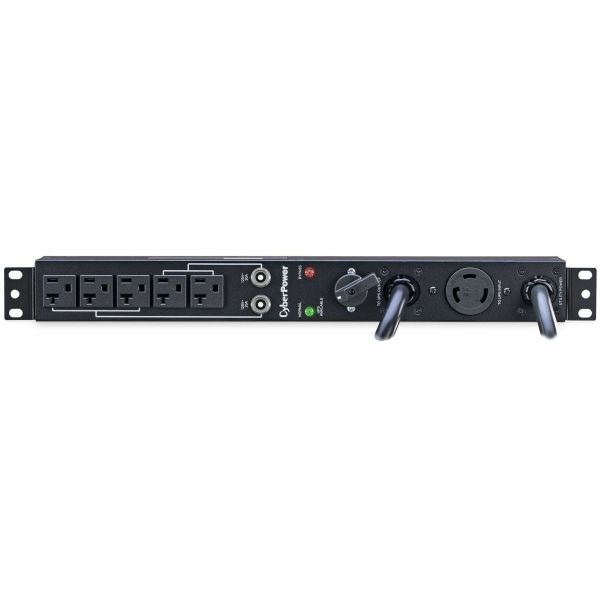

CyberPower MBP30A5 120 VAC 30A Maintenance Bypass PDU

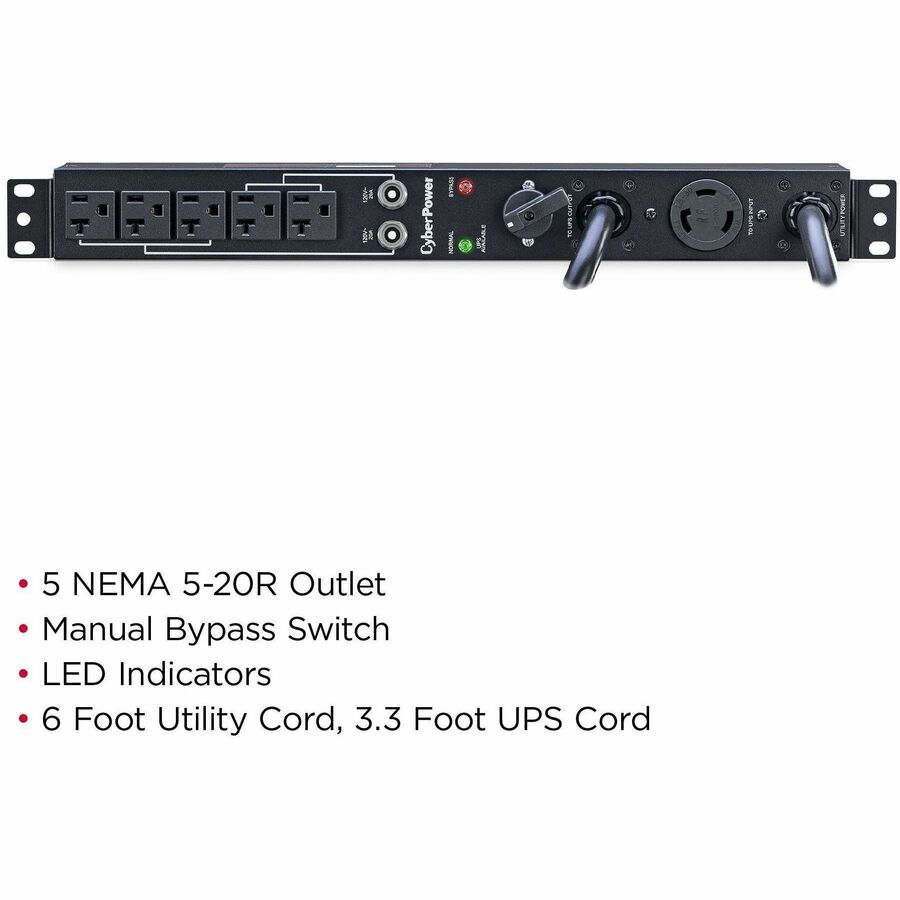

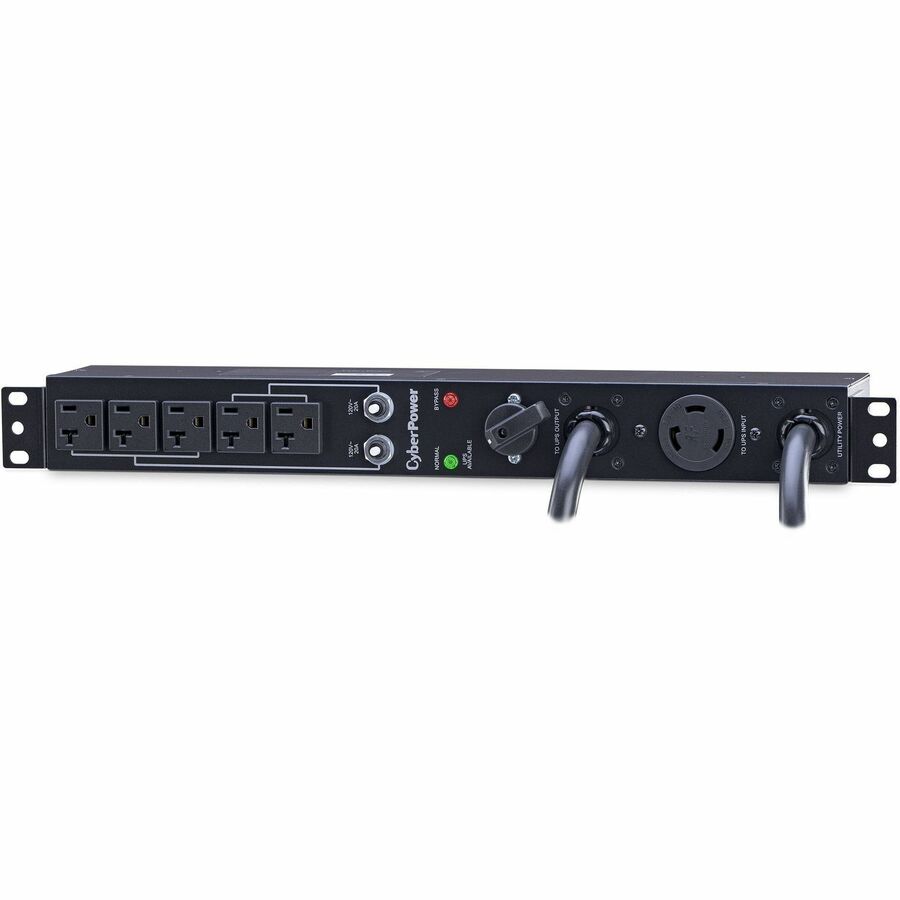

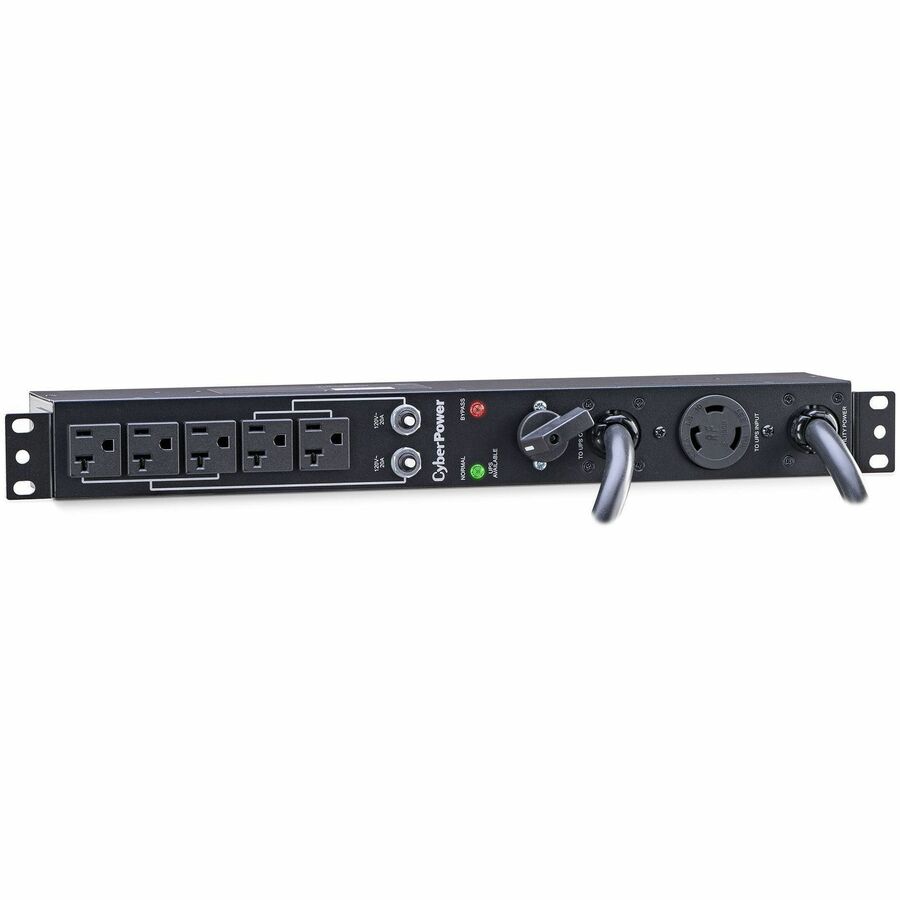

The CyberPower MBP30A5, a 5-outlet (rear), 1U Maintenance Bypass Power Distribution Unit (MBP PDU), provides 100-120 VAC 30A output (derated to 24A) to 5 NEMA 5-20R receptacles. Designed for datacenters and other electrically demanding applications, the MBP30A5 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS.

A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP30A5 through a dedicated NEMA L5-30R separate from the outlets for connected devices. When the switch on the front of the MBP30A5 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

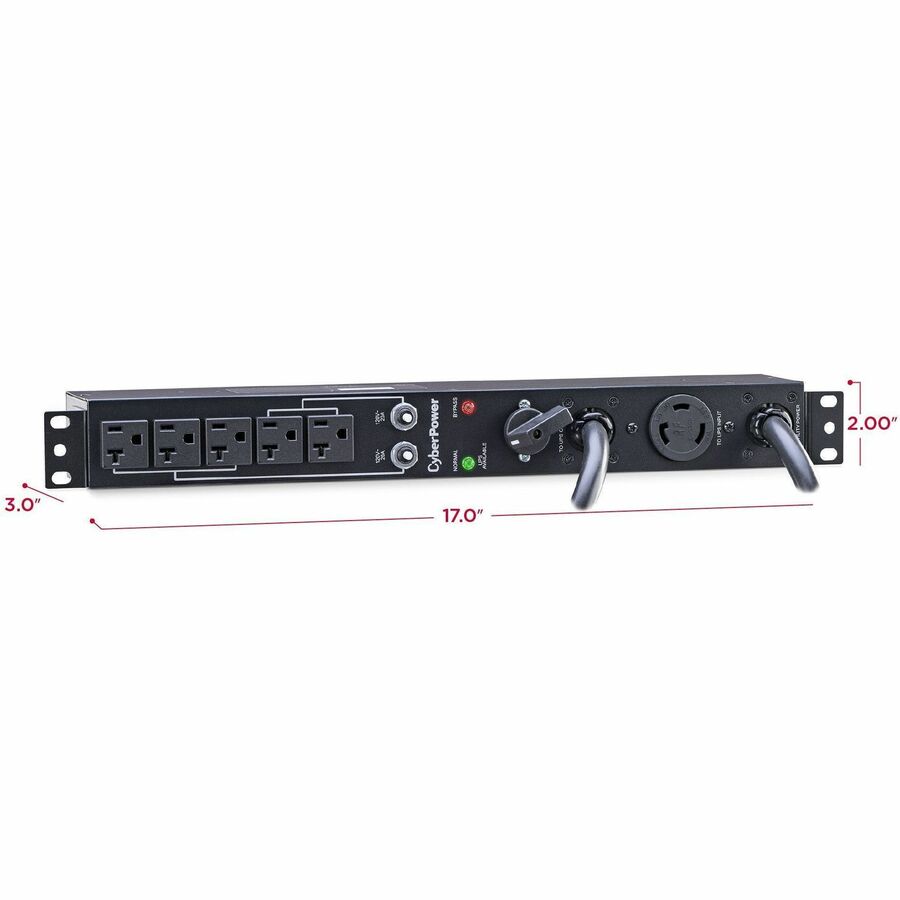

Rugged, industrial-grade metal housing protects the MBP30A5. With a 1U form factor, this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP30A5 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.

What's In The Box

PDU, 6-ft. utility cord, 3.3-ft. UPS cord, 2 Rackmount Brackets, 4 Flat Head Screws M4X8L, 4 Pan Head Screws M5X12L, User Manual, Registration Card

• Maintenance Bypass MBP30A5
• 6-ft. utility cord
• 3.3-ft. UPS cord
• 2 x Rackmount Brackets
• 4 x Flat Head Screws M4X8L
• 4 x Pan Head Screws M5X12L
• User Manual
• Registration Card

• Operating Relative Humidity | 0% - 90% non-condensing
• Operating Temperature | 32°F to 104°F / 0°C to 40°C
• UPS Cord Length | 3.3 ft.
• Enclosure Construction | Steel

• UL60950_1
• cUL
