CyberPower M750L Medical UPS Systems

• Hospital
• Healthcare
• Medical
• Lab Equipment

• 57 Hz
• 63 Hz

LED Indicators

Power On

• M750L Medical Grade 750VA/600W UPS
• User Manual
• USB A+B Type Cable
• Serial Cable

• Energy Saving : GreenPower UPS™ Bypass Technology
• UPS Topology : Line Interactive
• Battery Quantity : 3
• Battery Size : 12 V / 7 Ah
• Battery Type : Sealed Lead-Acid Battery
• Hot Swappable : Yes
• Replacement Battery Cartridge : RB1270X3A
• Replacement Battery Cartridge Quantity : 1
• Runtime at Full Load : 12 min
• Runtime at Half Load : 30 min
• Typical Recharge Time : 8 Hours (0% to 90% charged)
• User Replaceable Battery : Yes

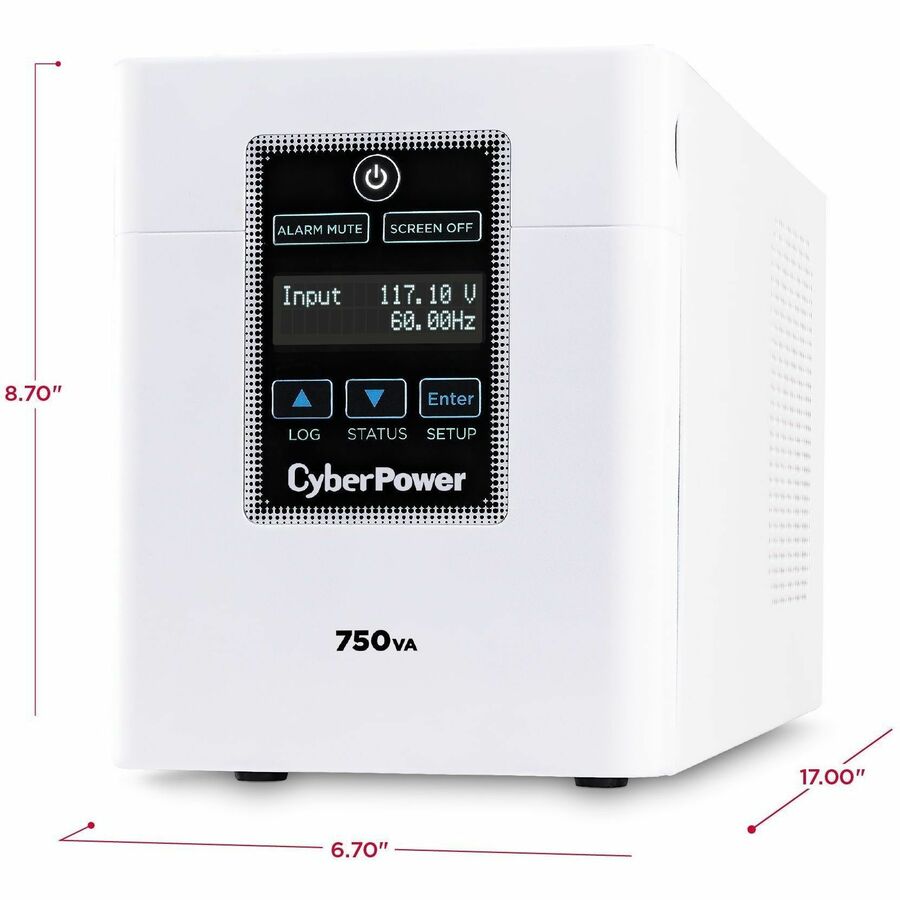

• Physical Dimensions - (WxHxD) (cm) : 17.02 x 22.1 x 43.18 (cm)
• Physical Dimensions - (WxHxD) (in) : 6.7 x 8.7 x 17 (in)
• Physical Dimensions - (WxHxD) (mm) : 170 x 221 x 432 (mm)
• Weight (kg) : 23.95
• Weight (lb) : 52.8
• Shipping Dimensions - (WxHxD) (cm) : 31.6 x 35.99 x 57.91 (cm)
• Shipping - Dimensions (WxHxD, in) : 12.44 x 14.17 x 22.8 (in)
• Shipping - Dimensions (WxHxD, mm) : 315.98 x 359.92 x 579.12 (mm)
• Shipping - Weight (kg) : 10.34
• Shipping - Weight (lb) : 22.8
• Adjustable Voltage Range : 88 - 150 VAC
• Circuit Breaker : 8 A
• Cord Length : 6 ft (1.8 m)
• Input Frequency Range : 57 Hz - 63 Hz

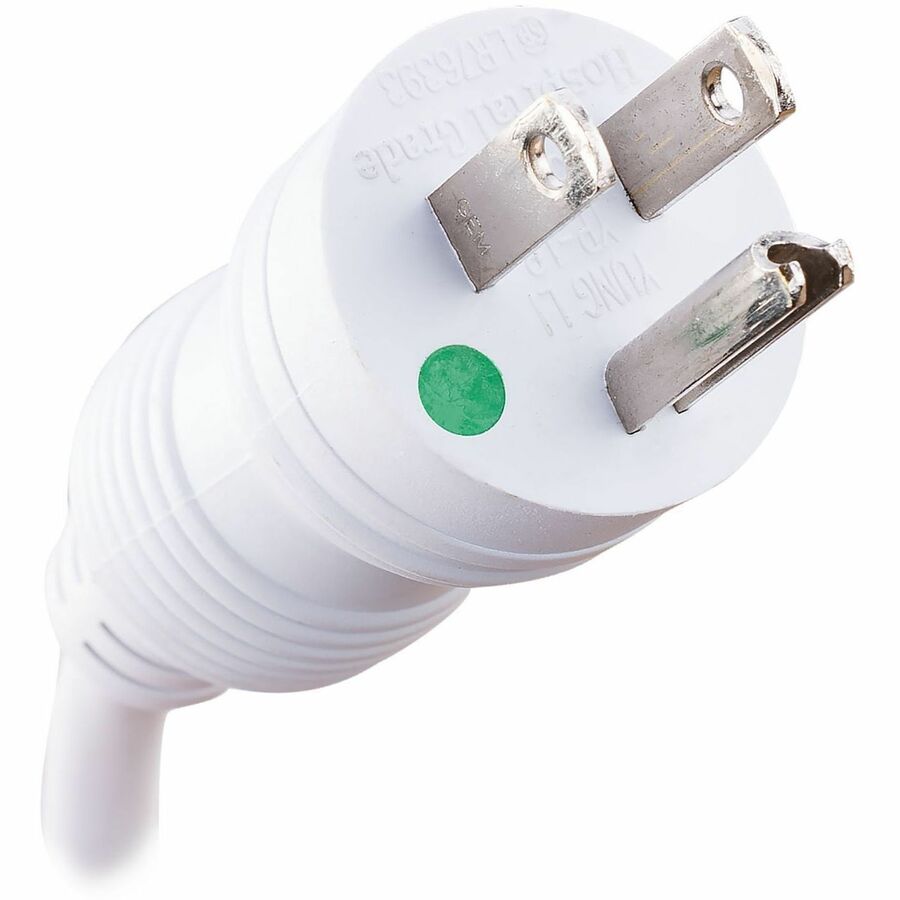

• Input Plug Type : NEMA 5-15P-HG
• Input Voltage Range : 90 VAC - 150 VAC
• Maximum Input Current : 10A (Derated to 8A)
• Nominal Input Voltage : 120 VAC
• Automatic Voltage Regulation : Single Boost
• On AC WaveForm : Sine Wave
• On Battery Frequency : 60 Hz ± 1%
• On Battery Voltage : 120 VAC ± 5%
• On Battery Waveform : Simulated Sine Wave
• Outlets - Battery & Surge Protected : 6
• Outlets - Total : 6
• Outlet Type COMPUTED : 6 - 5-15R-HG
• Output Power Factor : 0.8
• Overload Protection : Internal Circuitry Limiting
• Typical Transfer Time : < 10 ms
• USB Charge Port : No
• VA : 750 VA
• Watts : 600 W
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 1445 J
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 1445 J
• Audible Alarms : Battery Mode
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• LED Indicators : Power On
• Management Cable : USB Cable
• Serial Port : 1 Serial
• Software (Free Download) : PowerPanel® Business
• Color : White
• Form Factor : Mini-Tower
• Form Factors Supported : Horizontal Mount in Variety of Other Applications
• Material of Construction : Plastic
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1778
• Leakage Current (Max Shock Potential) : <100 µA
• Output Isolation Transformer : Hospital Grade Load Isolation Transformer
• CEG Amount :
• 400000
• Connected Equipment Guarantee : Lifetime
• Extended Warranty Option : WEXT5YR-U4A
• Product Warranty : 3 Year Limited Warranty

• 400000 Lifetime
