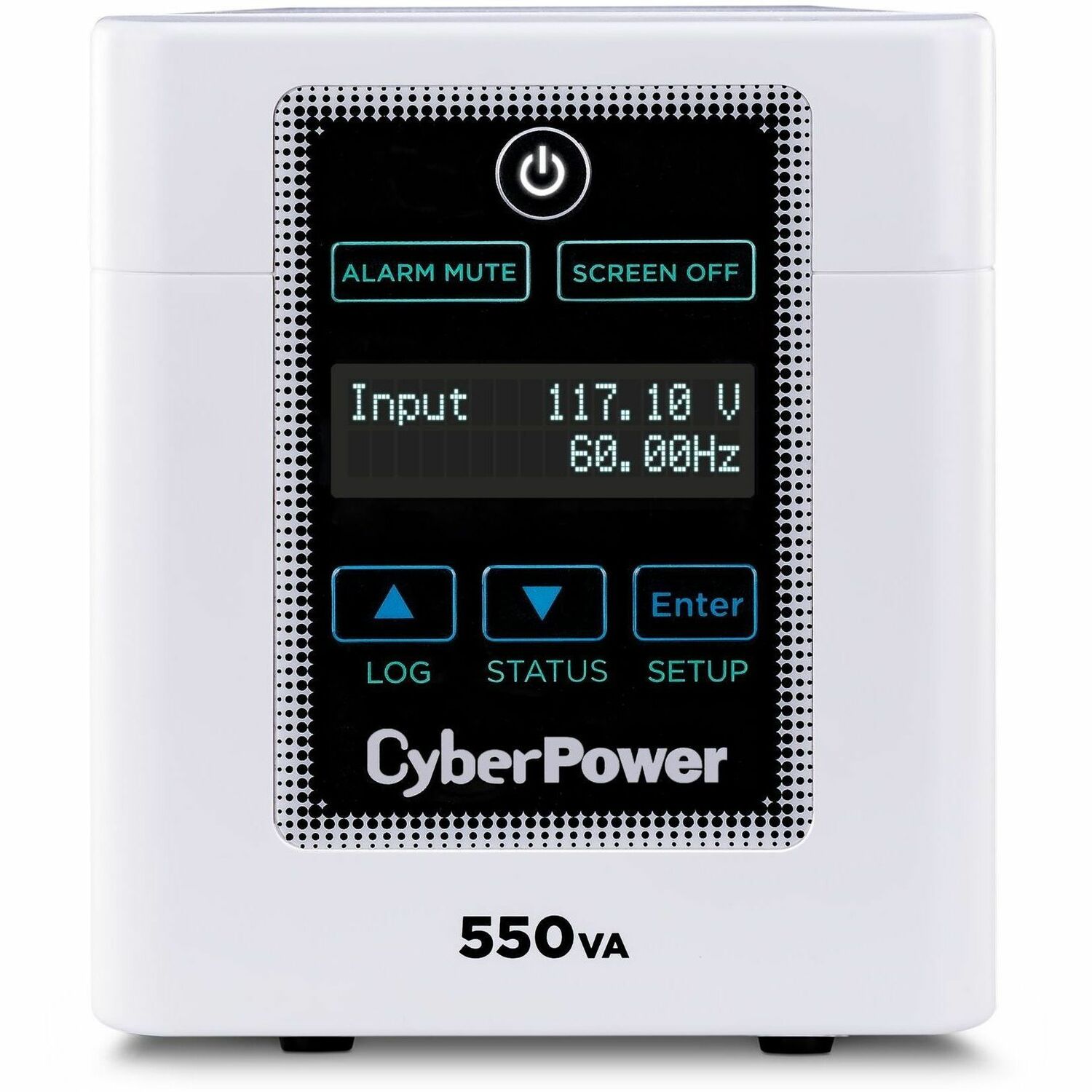

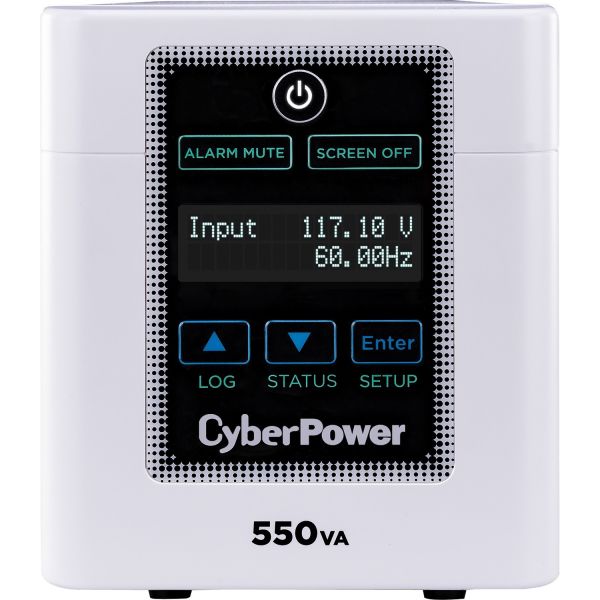

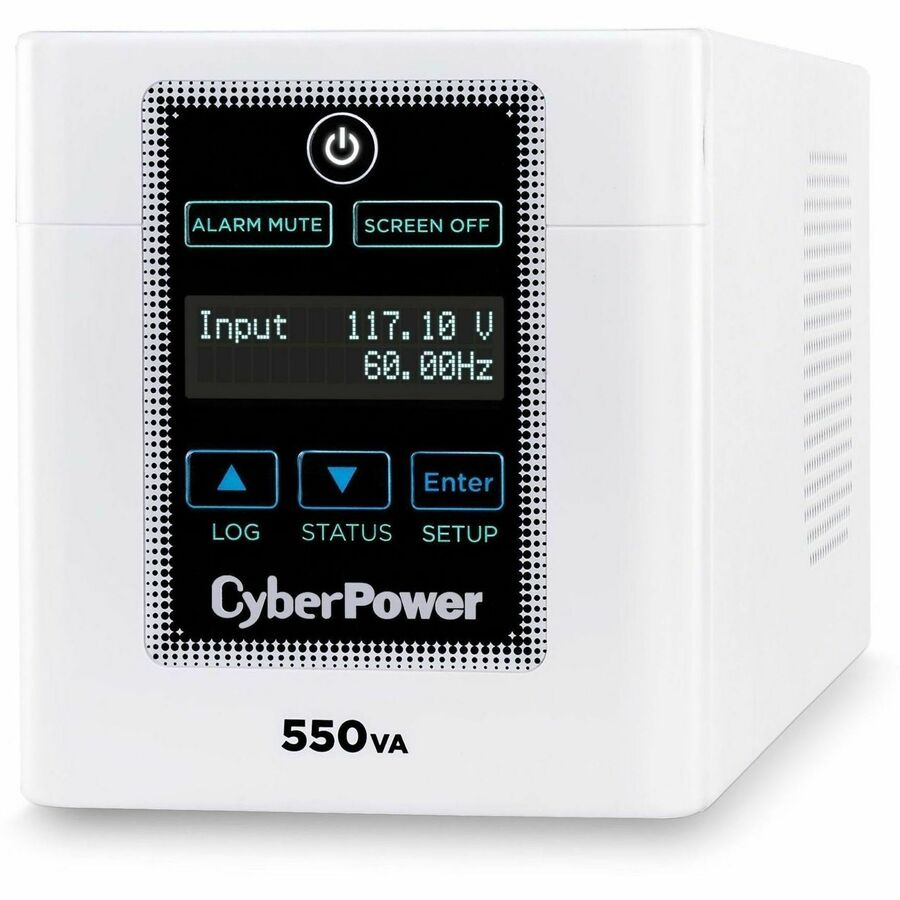

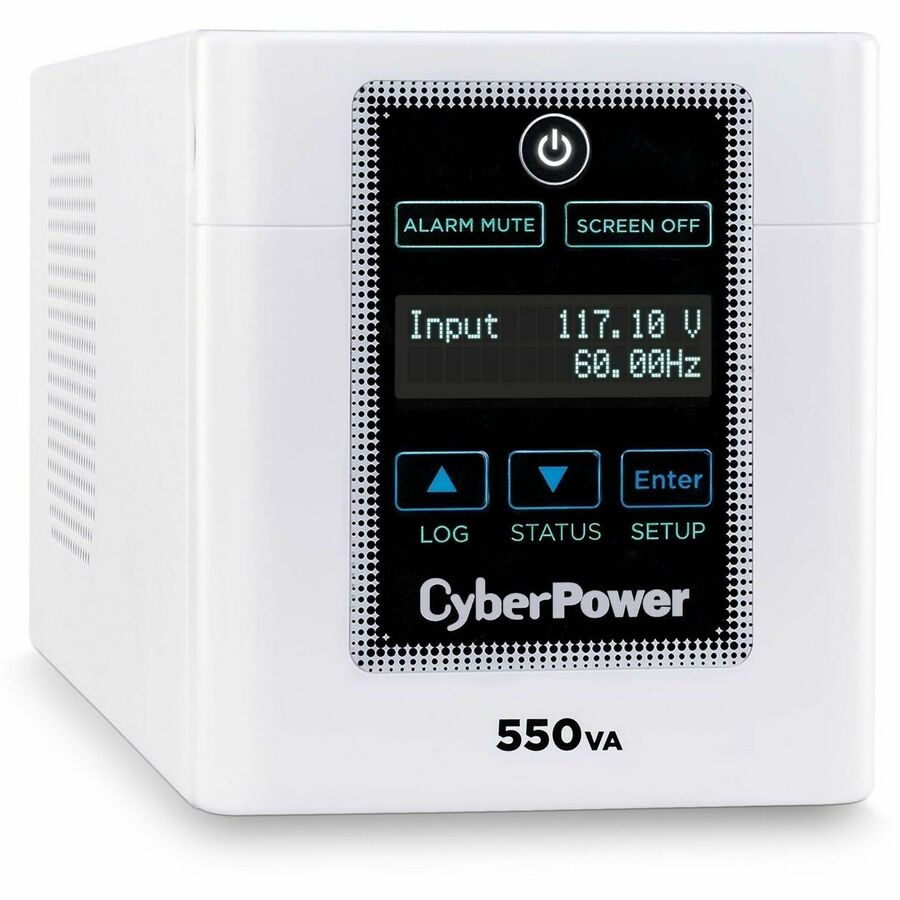

CyberPower M550L Medical UPS Systems

Name: CyberPower M550L Medical UPS Systems
Brand: CYBERPOWER
SKU: 9GM300
Price: 490.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM300

MFG#

M550L

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$490.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

550VA/440W, 120 VAC, NEMA 5
15P
HG, Mini
Tower, 4 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1778 (USA)Energy StarYesCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 33 lbs.

CyberPower M550L Medical UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	M550L
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Hospital/Medical Power
Product Model	M550L
Product Name	M550L Hospital/Medical UPS Systems

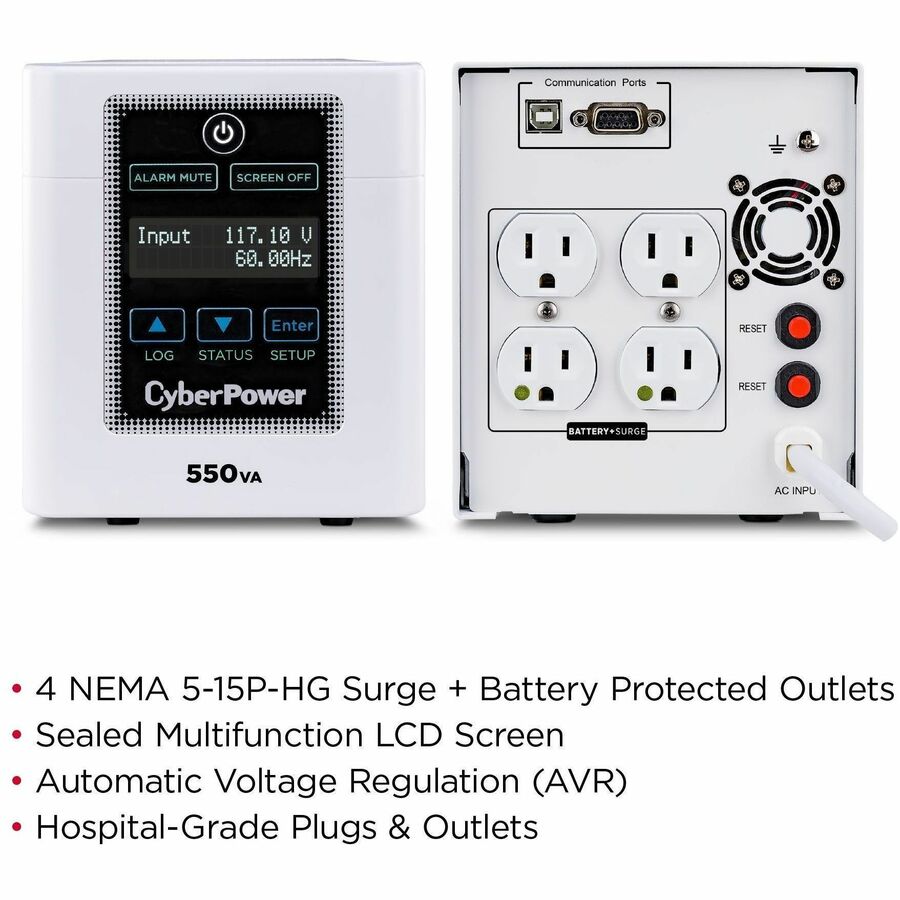

Marketing Information	The CyberPower M550L medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M550L has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M550L also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes

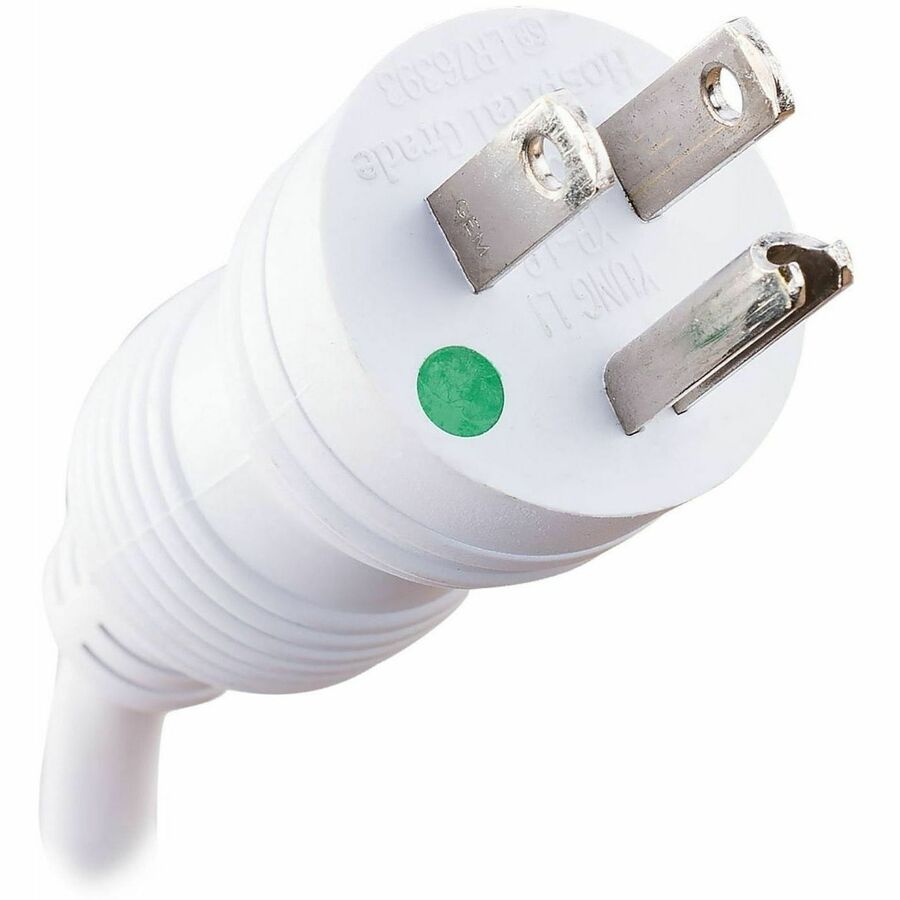

Plug/Connector Type	NEMA 5-15P-HG
Receptacle Type	NEMA 5-15R-HG

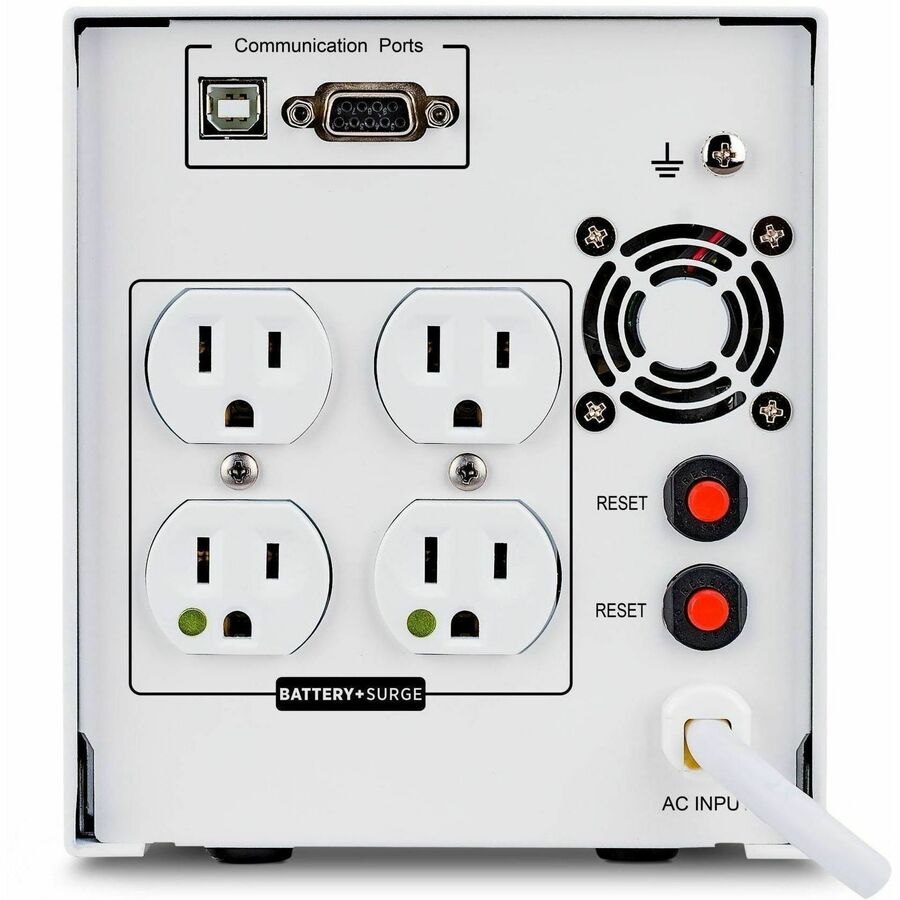

Receptacle Detail	4 x NEMA 5-15R-HG
Number of Battery & Surge Outlets	4
Overload Protection	Yes
Cord Length	6 ft
Transfer Time	10 ms
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Application/Usage	Hospital Healthcare Medical Lab Equipment
Features	Audible Alarm

Power Description

Load Capacity (VA)	550 VA
Load Capacity (Watt)	440 W
Input Voltage	120 V AC
Input Voltage Range	90 V AC - 146 V AC
Output Voltage	120 V AC
Input Frequency	57 Hz 63 Hz
Output Frequency	60 Hz
Waveform Type	Simulated Sine Wave
Surge Energy Rating	1445 J
Circuit Breaker	Yes
Output Power Factor	0.8

Display & Graphics

Display

LCD

Management

Alarm

Battery Mode

Controls/Indicators

Status Indicators

LED Indicators

Power On

Interfaces/Ports

Serial Port	Yes
USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	2
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	7000 mAh
Backup/Run Time (Full Load)	8 Minute
Backup/Run Time (Half Load)	25 Minute
Typical Battery Recharge Time	8 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft

Physical Characteristics

Color Family	White
Product Color	White

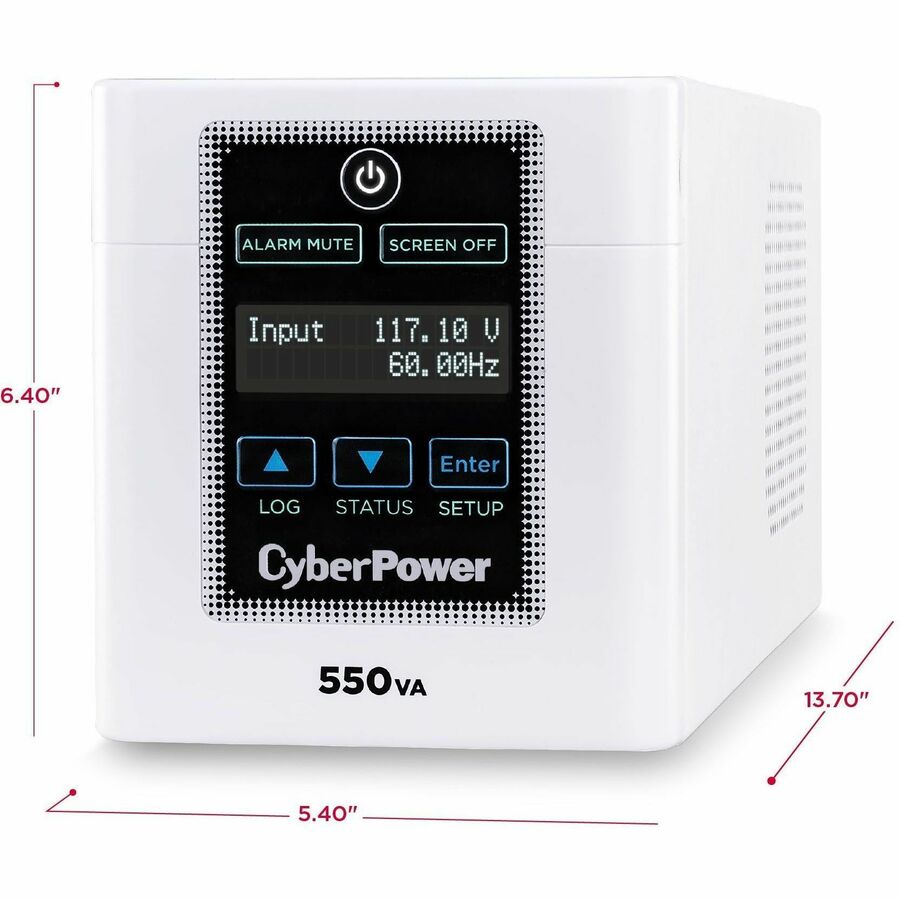

Height	6.40"
Width	5.40"
Depth	13.70"
Form Factor	Mini-tower
Weight (Approximate)	30.10 lb

Miscellaneous

Package Contents	M550L Medical Grade 550VA/440W UPS User Manual USB A+B Type Cable Serial Cable
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1270X2E Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 8 min Runtime at Half Load : 25 min Typical Recharge Time : 8 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 13.72 x 16.26 x 34.8 (cm) Physical Dimensions - (WxHxD) (in) : 5.4 x 6.4 x 13.7 (in) Physical Dimensions - (WxHxD) (mm) : 137 x 163 x 348 (mm) Weight (kg) : 13.65 Weight (lb) : 30.1 Shipping Dimensions - (WxHxD) (cm) : 26.29 x 28.5 x 47.8 (cm) Shipping - Dimensions (WxHxD, in) : 10.35 x 11.22 x 18.82 (in) Shipping - Dimensions (WxHxD, mm) : 262.89 x 284.99 x 478.03 (mm) Shipping - Weight (kg) : 14.88 Shipping - Weight (lb) : 32.8 Adjustable Voltage Range : 88 - 150 VAC Circuit Breaker : 6 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P-HG Input Voltage Range : 90 VAC - 146 VAC Nominal Input Voltage : 120 VAC Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 4 Outlets - Total : 4 Outlet Type COMPUTED : 4 - 5-15R-HG Output Power Factor : 0.8 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : < 10 ms USB Charge Port : No VA : 550 VA Watts : 440 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 1445 J EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 1445 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial Software (Free Download) : PowerPanel® Business Color : White Form Factor : Mini-Tower Material of Construction : Plastic Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 Leakage Current (Max Shock Potential) : <100 µA Output Isolation Transformer : Hospital Grade Load Isolation Transformer CEG Amount : 400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778 (USA)
Energy Star	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	400000 Lifetime
