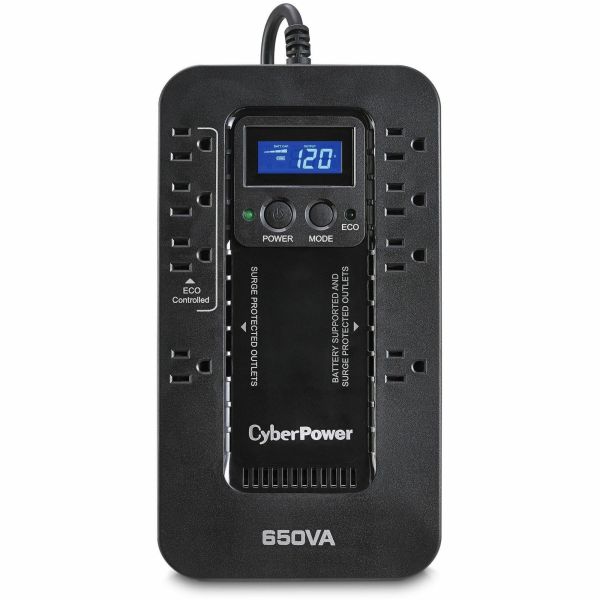

CyberPower EC650LCD Ecologic UPS Systems

• A compact UPS with standby topology, the CyberPower Ecologic EC650LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC650LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC650LCD comes with a three-year warranty (including coverage of batteries) and a

• 100,000 Connected Equipment Guarantee.

• Desktop Computer
• Workstation
• Home Theater
• Home Network
• Router
• Modem
• VoIP Phone System
• Personal Electronic

• 50 Hz
• 60 Hz

• Battery Mode
• Low Battery
• Overload

LED Indicators:

• Power On
• ECO On/Of

• Energy Saving : GreenPower UPS™ High-Efficiency
• Energy Star Certified : Yes
• UPS Topology : Standby
• Battery Quantity : 1
• Battery Size : 12 V
• Battery Type : Sealed Lead-Acid Battery
• Field-serviceable Battery : Replaceable by qualified technician
• Runtime at Full Load : 2.8 min
• Runtime at Half Load : 8.4 min
• Typical Recharge Time : 8 Hours
• User Replaceable Battery : No
• Physical Dimensions - (WxHxD) (cm) : 26.92 x 7.87 x 14.99 (cm)

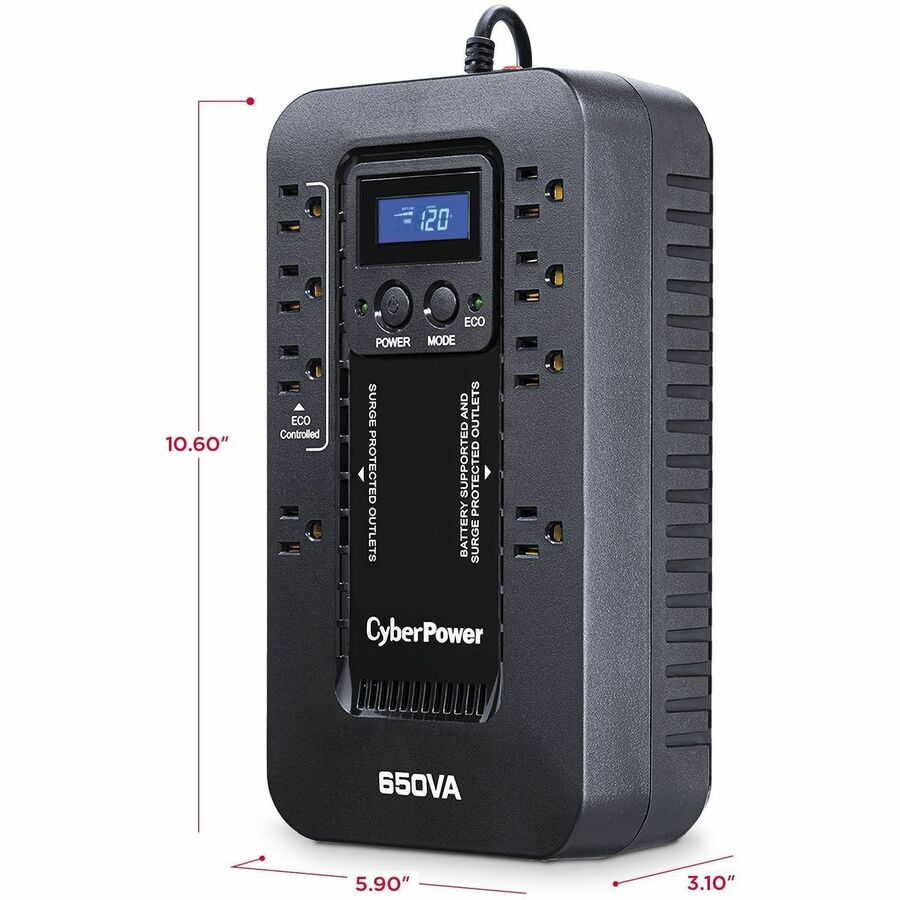

• Physical Dimensions - (WxHxD) (in) : 10.6 x 3.1 x 5.9 (in)
• Physical Dimensions - (WxHxD) (mm) : 269 x 79 x 150 (mm)
• Weight (kg) : 2.9
• Weight (lb) : 6.4
• Shipping Dimensions - (WxHxD) (cm) : 10.87 x 20.65 x 33.66 (cm)
• Shipping - Dimensions (WxHxD, in) : 4.28 x 8.13 x 13.25 (in)
• Shipping - Dimensions (WxHxD, mm) : 108.71 x 206.5 x 336.55 (mm)
• Shipping - Weight (kg) : 3.4
• Shipping - Weight (lb) : 7.5
• Circuit Breaker : 15 A
• Cord Length : 5 ft (1.5 m)
• Input Frequency Range : 47 Hz - 63 Hz
• Input Plug Type : NEMA 5-15P
• Nominal Input Voltage : 120 VAC
• Plug Style : Right Angle - 45° Offset
• On AC WaveForm : Sine Wave
• On Battery Frequency : 50/60 Hz ± 1% (auto-sensing)
• On Battery Voltage : 120 VAC ± 5%
• On Battery Waveform : Simulated Sine Wave

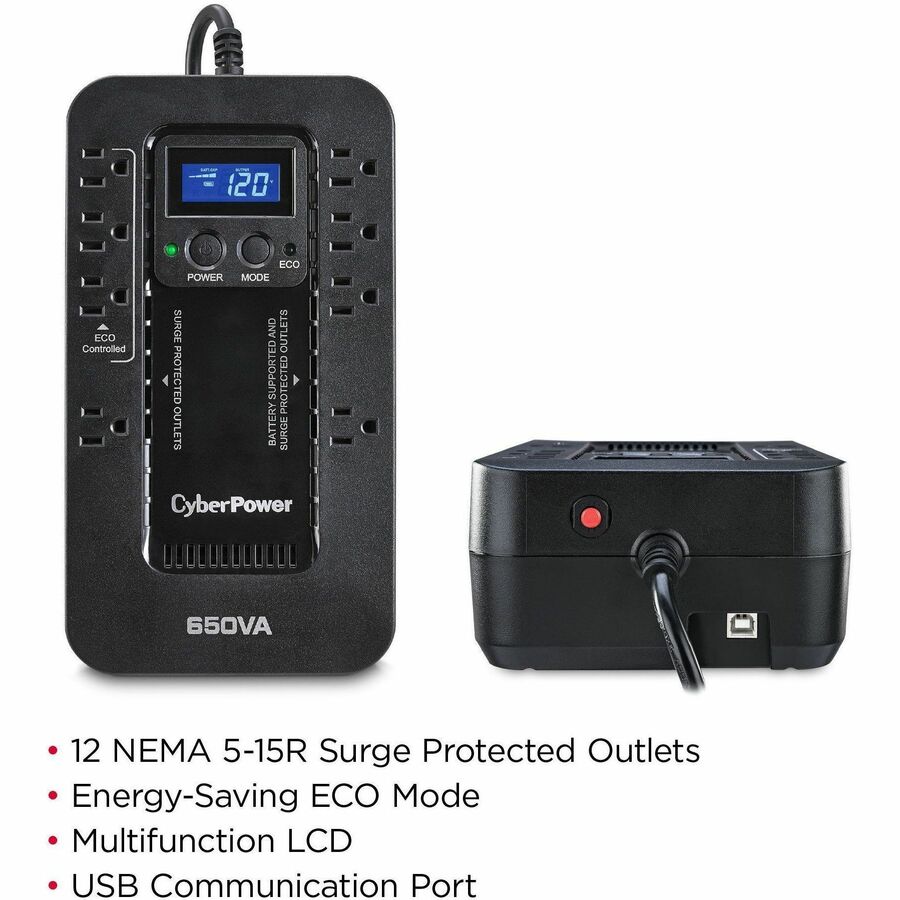

• Outlets - Battery & Surge Protected : 4
• Outlets - Eco Controlled : 3
• Outlets - Surge-Only Protected : 4
• Outlets - Total : 8
• Outlets - Widely Spaced : 2
• Outlet Type COMPUTED : 8 - NEMA 5-15R
• Output Power Factor : 0.6
• Overload Protection : Internal Circuitry Limiting
• Typical Transfer Time : 4 ms
• USB Charge Port : No
• VA : 650 VA
• Watts : 390 W
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 526 J
• EMI/RFI Filtration COMPUTED : Yes
• Surge Suppression (Joules) : 526 J
• Audible Alarms : Battery Mode
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• LED Indicators : Power On
• Management Cable : USB Cable
• Software (Free Download) : PowerPanel® Personal
• Color : Black
• Form Factor : Compact

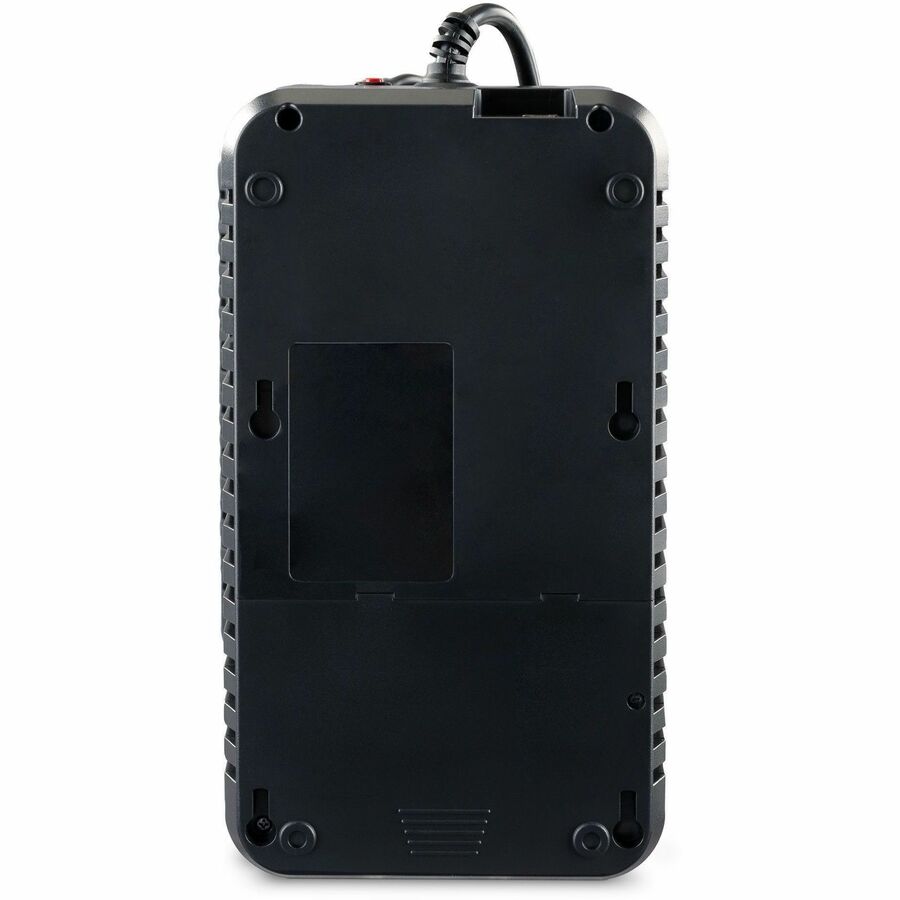

• Keyhole Mounting Slots : Yes
• Material of Construction : Plastic
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity : 0 - 90 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Storage Elevation : 0 - 50000 ft (0 - 15239 m)
• Storage Relative Humidity : 0 - 95% (non-condensing)
• Storage Temperature : 5 - 113 °F (-15 - 45 °C)
• Environmental : RoHS Compliant
• Safety : UL1778
• CEG Amount :
• 100000
• Connected Equipment Guarantee : Lifetime
• Extended Warranty Option : WEXT5YR-U1A
• Product Warranty : 3 Year Limited Warranty

• UL1778
• FCC Part 15 Class B
• CSA C22.2 NO. 107.3

Three-year warranty (including coverage of batteries)

• 100000 Lifetime
