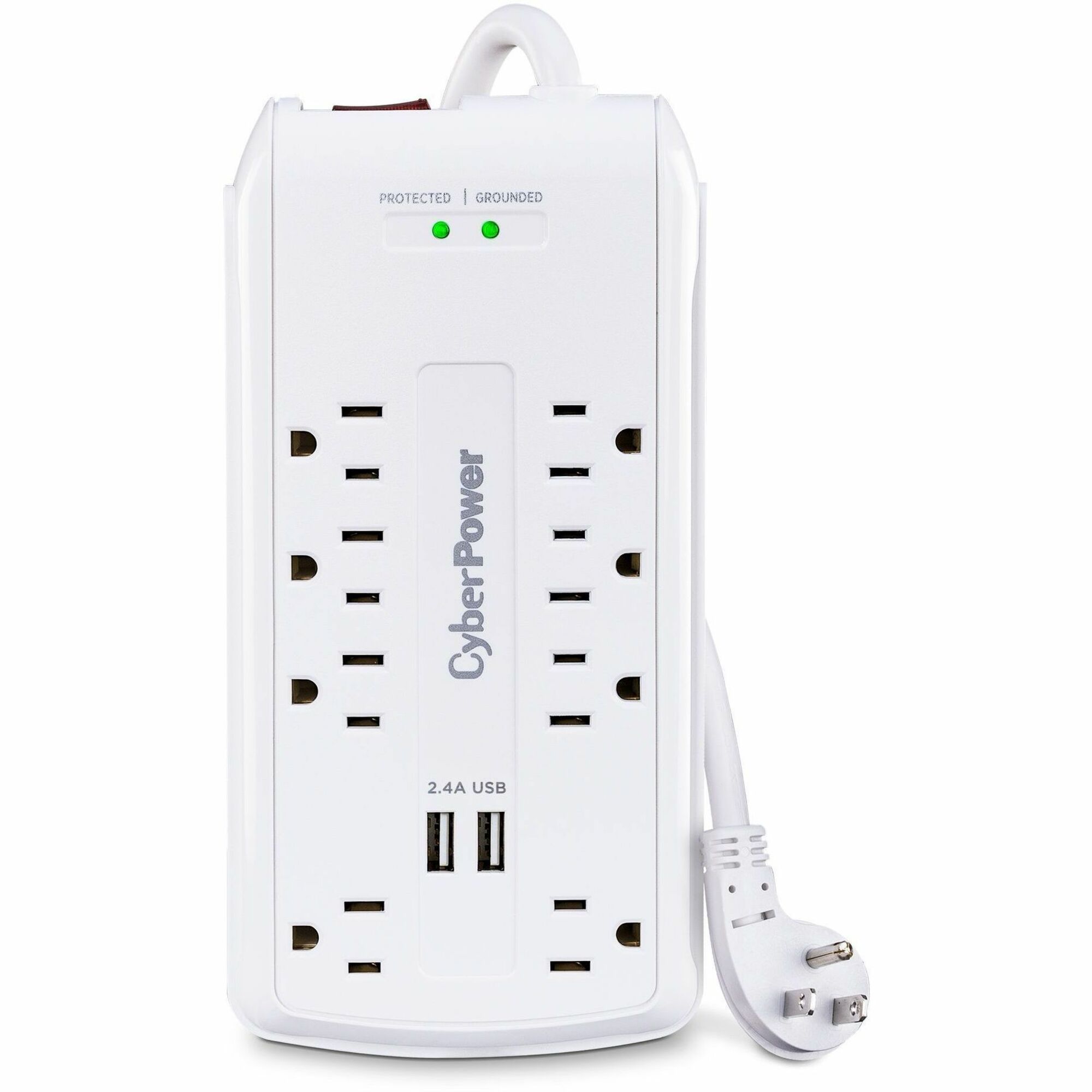

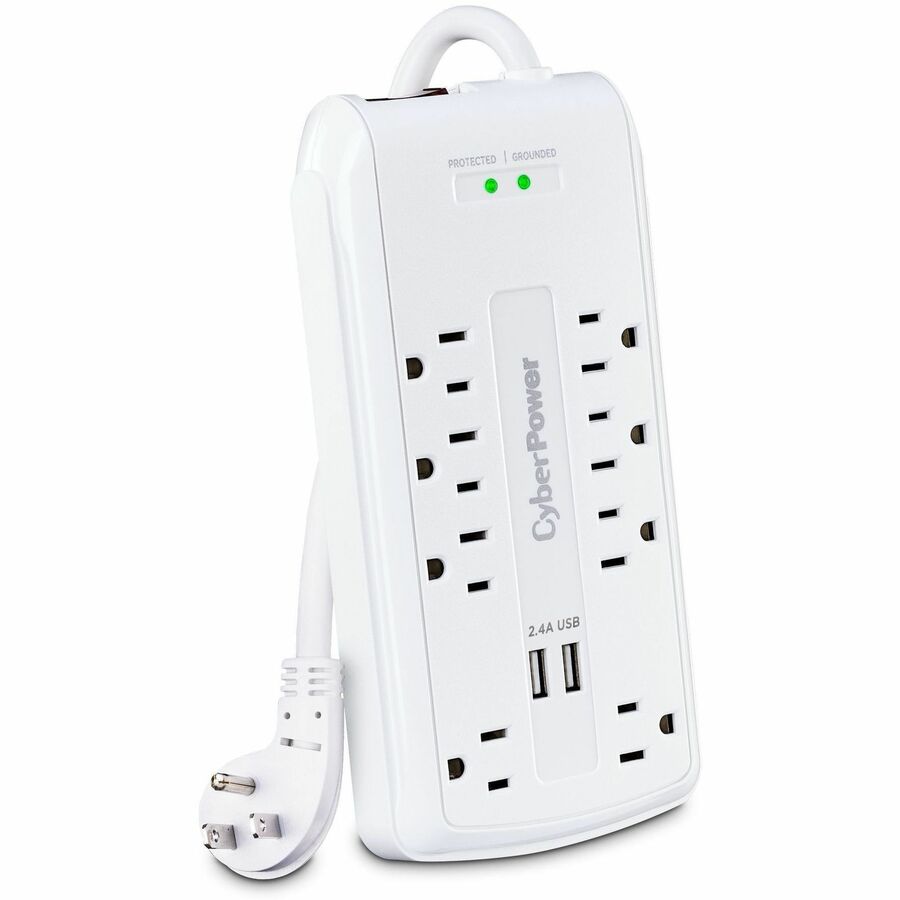

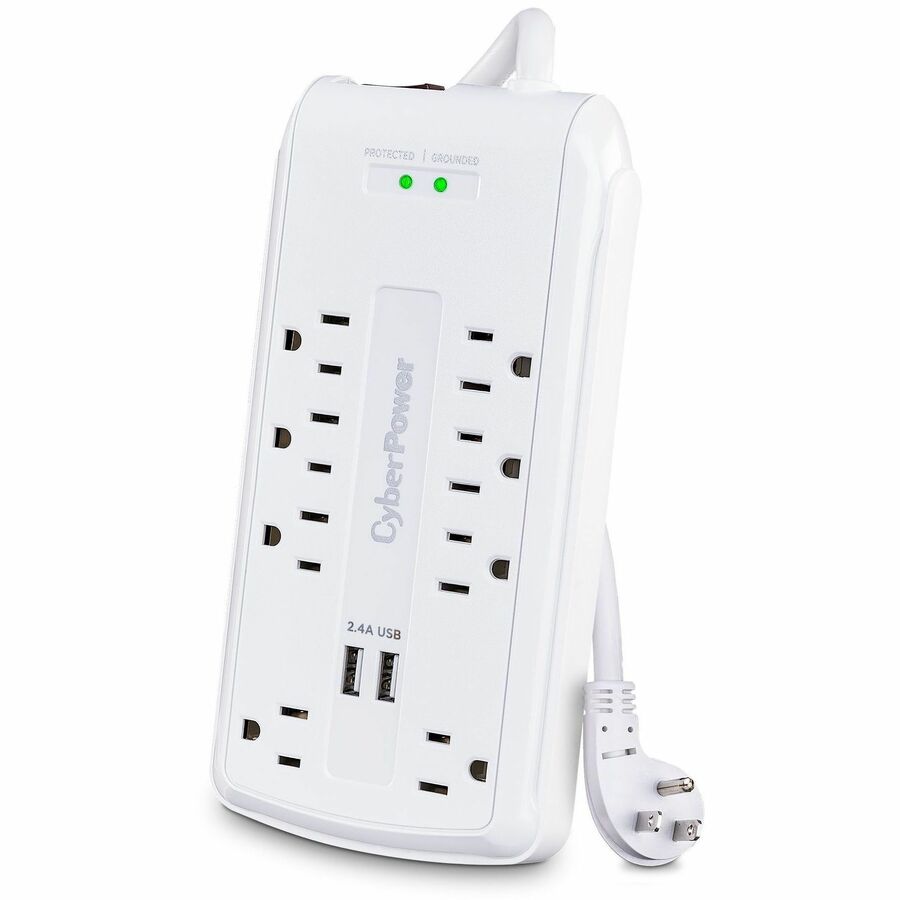

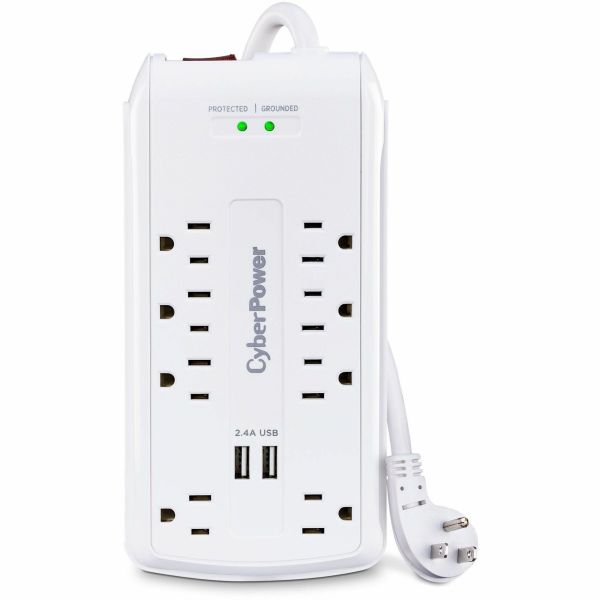

CyberPower CSP806U Professional 8 - Outlet Surge with 3000 J

Name: CyberPower CSP806U Professional 8 - Outlet Surge with 3000 J
Brand: CYBERPOWER
SKU: 9GM063
Price: 28.67 USD
Availability: OutOfStock

CYBERPOWER

PCN#

9GM063

MFG#

CSP806U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

Clamping Voltage 600V, 6 ft, NEMA 5
15P, 15 Amp, 2
2.4 Amps (Shared) USB, EMI/RFI Filtration, White, RG6 Coaxial Protection, Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1363Country of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 2 lbs.

CyberPower CSP806U Professional 8 - Outlet Surge with 3000 J

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CSP806U
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Professional Surge
Product Model	CSP806U
Product Name	CSP806U

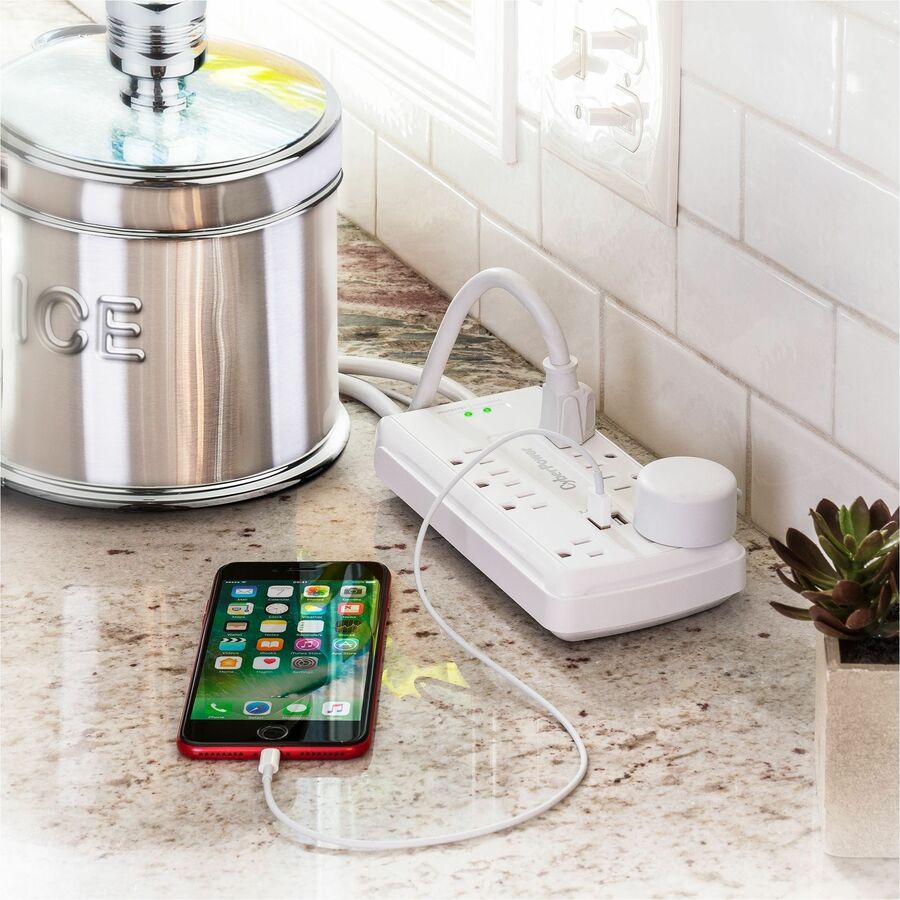

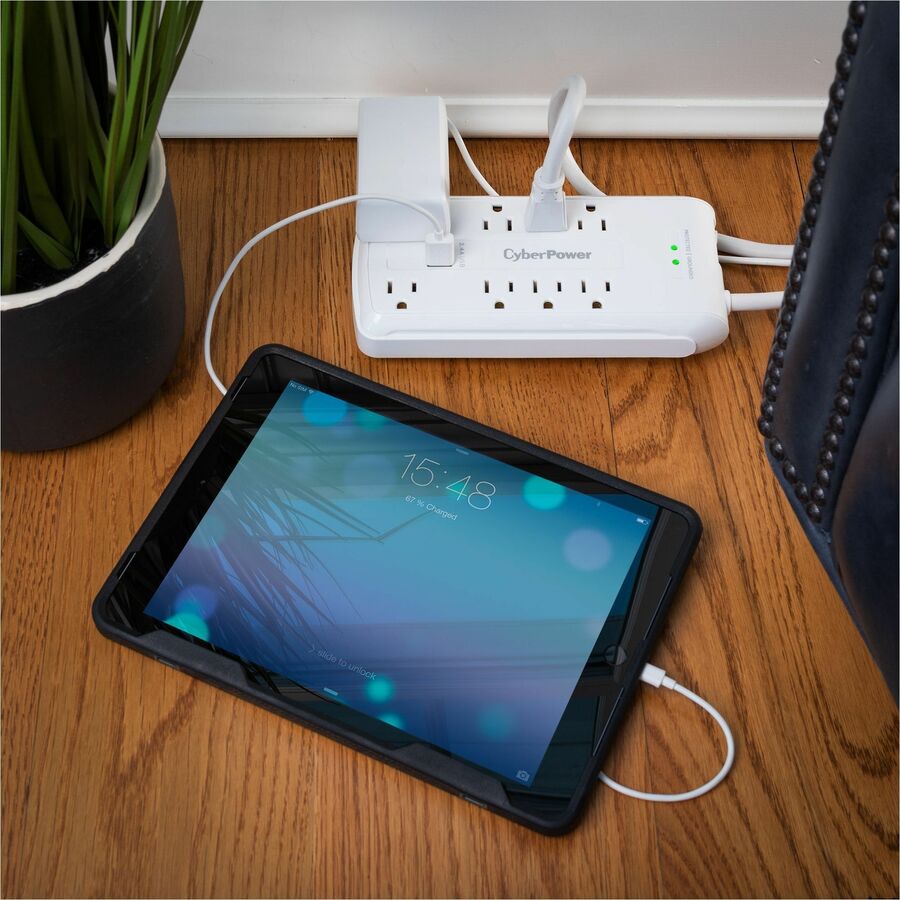

Marketing Information	The Professional Surge Protector CSP806U from CyberPower offers vital surge protection for common home and office devices such as computers and electronics. It prevents spikes in energy caused by storms and electrical power surges and is ideal for safeguarding personal computers, phones/faxes/modems, and other consumer electronics. The CSP806U provides 3000 joules of protection and eight surge-protected outlets. Its two USB charge ports (2.4 Amp shared) keep tablets, smartphones, and other rechargeable electronics ready to use. The 6 ft. power cord has a right-angle plug with a 45° off-set.
Product Type	Surge Suppressor/Protector

Technical Information

Plug/Connector Type	NEMA 5-15P

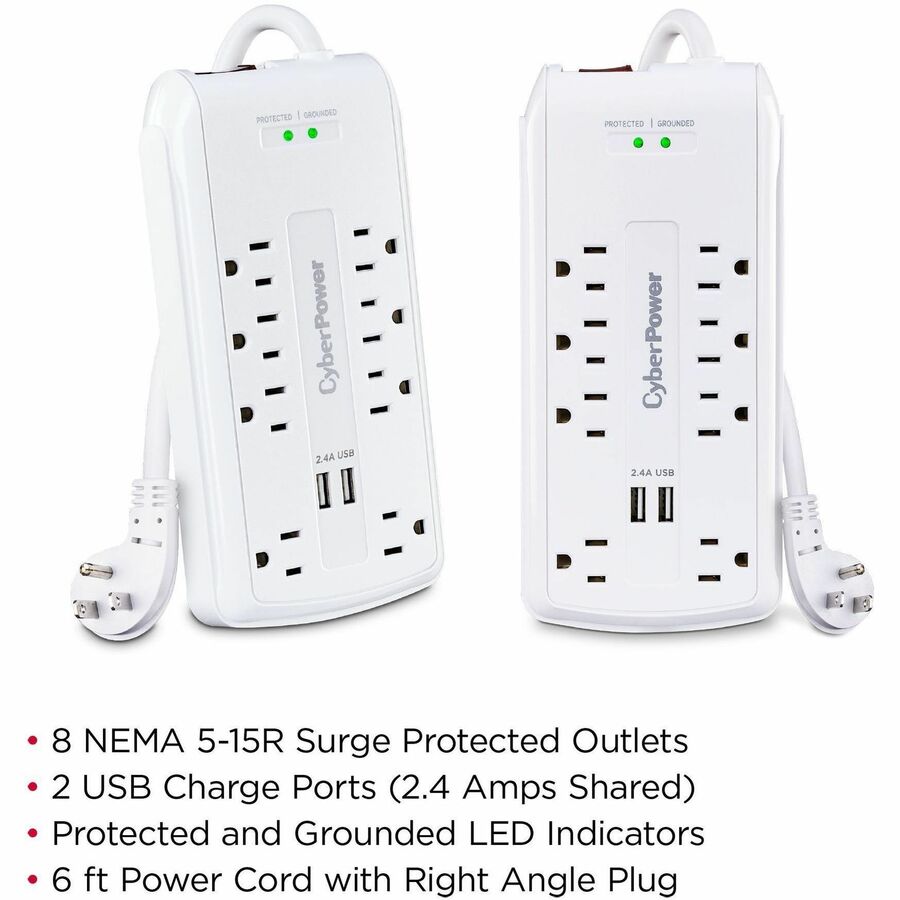

Receptacles	8 x NEMA 5-15R 2 x USB Type A
Features	Overload Protection LED Indicator

Power Description

Input Voltage	120 V AC
Maximum Surge Current	105 kA
Surge Energy Rating	3000 J
Circuit Breaker	Yes
Clamp Voltage	600 V
Maximum Spike Voltage	6 kV AC

Physical Characteristics

Color Family	White
Product Color	White
Product Material	Plastic
Power Cord/Cable Length	6 ft
Form Factor	Strip

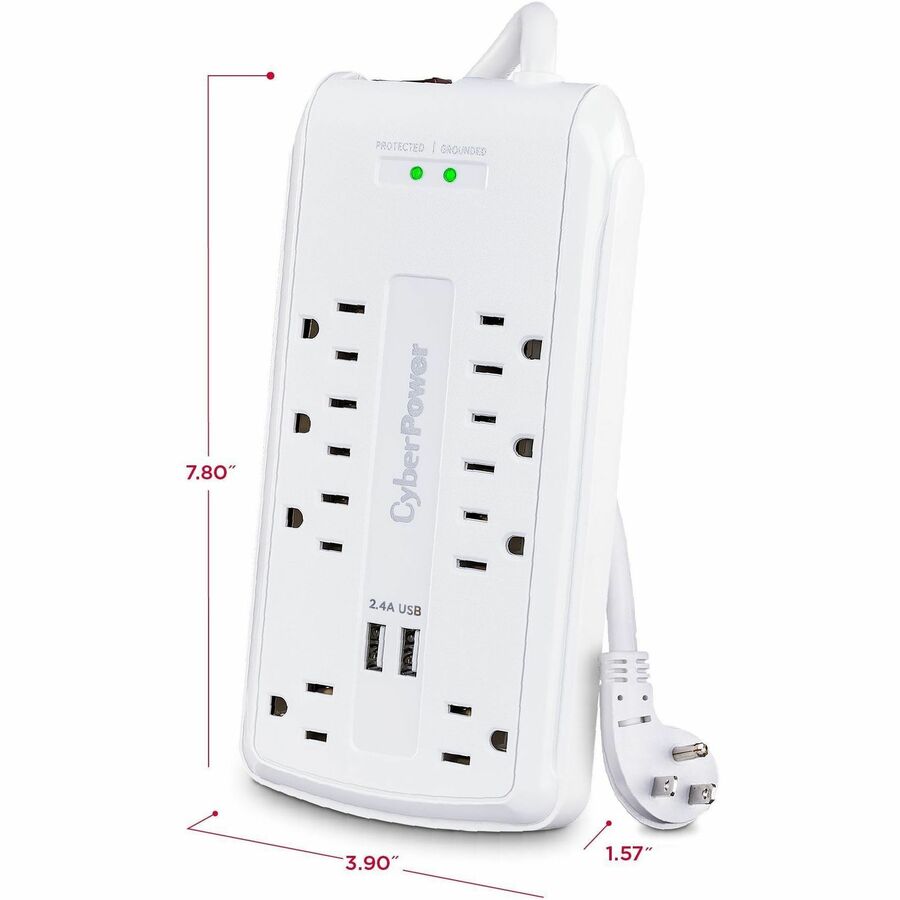

Height	1.6"
Width	3.9"
Depth	7.9"
Weight (Approximate)	1.32 lb

Miscellaneous

Application/Usage	Computer Household Electronic
Additional Information	Physical Dimensions - (WxHxD) (cm) : 9.91 x 3.99 x 19.81 (cm) Physical Dimensions - (WxHxD) (in) : 3.9 x 1.57 x 7.8 (in) Physical Dimensions - (WxHxD) (mm) : 99 x 40 x 198 (mm) Weight (kg) : 0.6 Weight (lb) : 1.32 Shipping Dimensions - (WxHxD) (cm) : 16.48 x 4.6 x 26.49 (cm) Shipping - Dimensions (WxHxD, in) : 6.49 x 1.81 x 10.43 (in) Shipping - Dimensions (WxHxD, mm) : 164.85 x 45.97 x 264.92 (mm) Shipping - Weight (kg) : 0.85 Shipping - Weight (lb) : 1.87 Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Plug Type : NEMA 5-15P Maximum Input Current : 15A Outlets - Total : 8 Outlets - Widely Spaced : 2 Outlet Type COMPUTED : 8 - NEMA 5-15R USB Charge Port : Yes USB Charge Port Amperage : 2.4 Amps (Shared) USB Charge Port Quantity : 2 USB Charge Port Standard : Type A USB Charge Port Type COMPUTED : 2 Type A USB Charge Port Voltage COMPUTED : 5 VDC Attenuation : 30 dB Clamping Voltage : 600V (H-N, H-G, N-G) Coax Protection RG6 COMPUTED : None EMI/RFI Filtration COMPUTED : 150 KHz Maximum Surge Current : 105000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 45000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Response Time : <1 Nanosecond Surge Suppression (Joules) : 3000 J Attenuation : 30 dB Clamping Voltage : 600V (H-N, H-G, N-G) Coax Protection RG6 COMPUTED : None EMI/RFI Filtration COMPUTED : 150 KHz Maximum Surge Current : 105000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 45000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Response Time : <1 Nanosecond Surge Suppression (Joules) : 3000 J LED Indicators : Protected (green) Color : White Cord Management : No Form Factor : Strip Form Factors Supported : Horizontal Mount in Variety of Other Applications Keyhole Mounting Slots : No Material of Construction : Plastic Safety Covers : No Environmental : RoHS Compliant Safety : UL1363 CEG Amount : 300000 Connected Equipment Guarantee : Lifetime Product Warranty : 1 Year Limited Warranty
Certifications & Standards	UL1363
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	1 Year
Directly Connected Equipment Guarantee	300000 Lifetime
