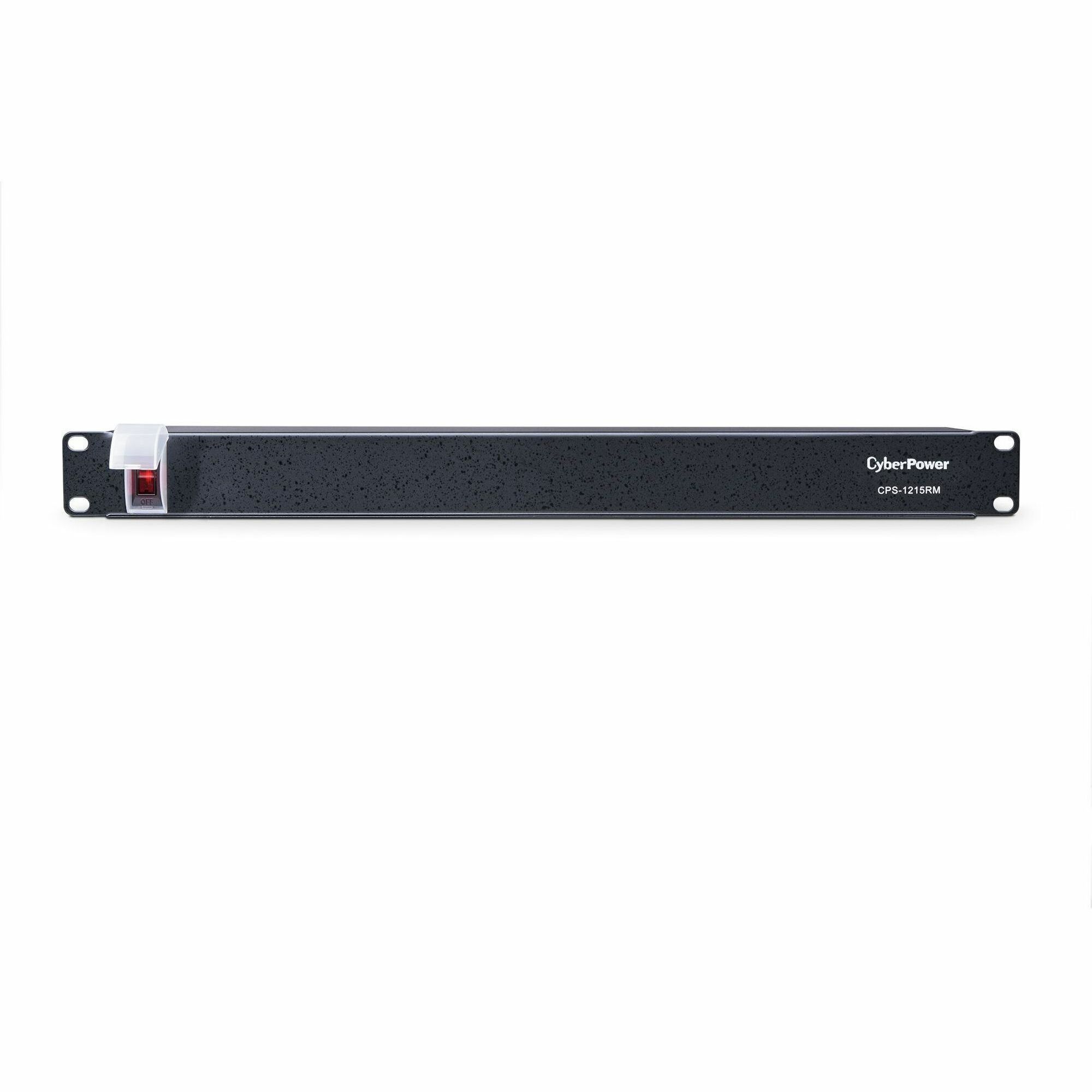

CyberPower CPS1215RM Single Phase 100 - 120 VAC 15A Basic PDU

Name: CyberPower CPS1215RM Single Phase 100 - 120 VAC 15A Basic PDU
Brand: CYBERPOWER
SKU: 9GM169
Price: 59.2 USD
Availability: InStock

CYBERPOWER

PCN#

9GM169

MFG#

CPS1215RM

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$59.20

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $23.99

1-Year $17.99

Estimated Shipment:

Product Highlights:

10 Outlets, 15 ft, NEMA 5
15P, Horizontal, 1U, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterCertifications & StandardsUL RecognizedCountry of OriginChinaUL ListedYesWarranty

Shipping Weight: 6 lbs.

CyberPower CPS1215RM Single Phase 100 - 120 VAC 15A Basic

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CPS-1215RM
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Model	CPS-1215RM
Product Name	CPS1215RM Single Phase 100 - 120 VAC 15A Basic
Marketing Information	The CyberPower CPS1215RM, a 10-outlet (rear) rackmount power distribution unit (PDU), provides 100-125V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1215RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is UL Recognized. The CPS1215RM comes with a three-year limited warranty and covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Product Condition	New
Product Type	PDU

Technical Information

PDU Type	Basic
Phase	Single Phase
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	10 x NEMA 5-15R
Protection Type	Overload Protection Short Circuit Protection
Locking Receptacles	Cord Retention Tray

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage Range	100 V AC - 120 V AC
Power Rating (VA)	1800 VA
Input Current	15 A
Circuit Breaker	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Horizontal
Mount Type	Rack-mountable Rail-mountable
Form Factor	Rack
Rack Height	1U
Number of Cord/Cable	1
Cord Length	15 ft
Height	1.8"
Width	17.3"
Depth	4.8"
Weight (Approximate)	5 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	113°F (45°C)

Miscellaneous

Package Contents	CPS1215RM Warranty Card/Manual
Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.82 x 4.45 x 12.07 (cm) Physical Dimensions - (WxHxD) (in) : 17.25 x 1.75 x 4.75 (in) Physical Dimensions - (WxHxD) (mm) : 438 x 44 x 121 (mm) Weight (kg) : 2.27 Weight (lb) : 5 Shipping Dimensions - (WxHxD) (cm) : 5.84 x 25.15 x 51.74 (cm) Shipping - Dimensions (WxHxD, in) : 2.3 x 9.9 x 20.37 (in) Shipping - Dimensions (WxHxD, mm) : 58.42 x 251.46 x 517.4 (mm) Shipping - Weight (kg) : 2.64 Shipping - Weight (lb) : 5.83 Circuit Breaker : 15 A Cord Length : 15 ft (4.6 m) Input Plug Type : NEMA 5-15P Maximum Input Current : 15A Nominal Input Voltage : 100 - 125 VAC Phase : Single Phase Plug Style : Straight Switch : Lighted On/Off Nominal Output Voltage : 100 - 120 VAC Outlets - Front : 0 Outlets - # of Banks : 1 Outlets - Rear : 10 Outlets - Total : 10 Outlet Type COMPUTED : 10 - NEMA 5-15R Overload Protection : 15A USB Charge Port : No Clamping Voltage : 800V (H-N) Clamping Voltage : 800V (H-N) Color : Black Cord Retention Tray/Cord Organizers : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Safety : UL Recognized Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center
Certifications & Standards	UL Recognized
Country of Origin	China
UL Listed	Yes

Warranty

Limited Warranty	3 Year
Parts Warranty/Labor	3 Year Parts & Labor
Additional Warranty Information	CyberPower stands behind its products with an industry-leading 3 year warranty. CyberPower also offers a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of Charge.
