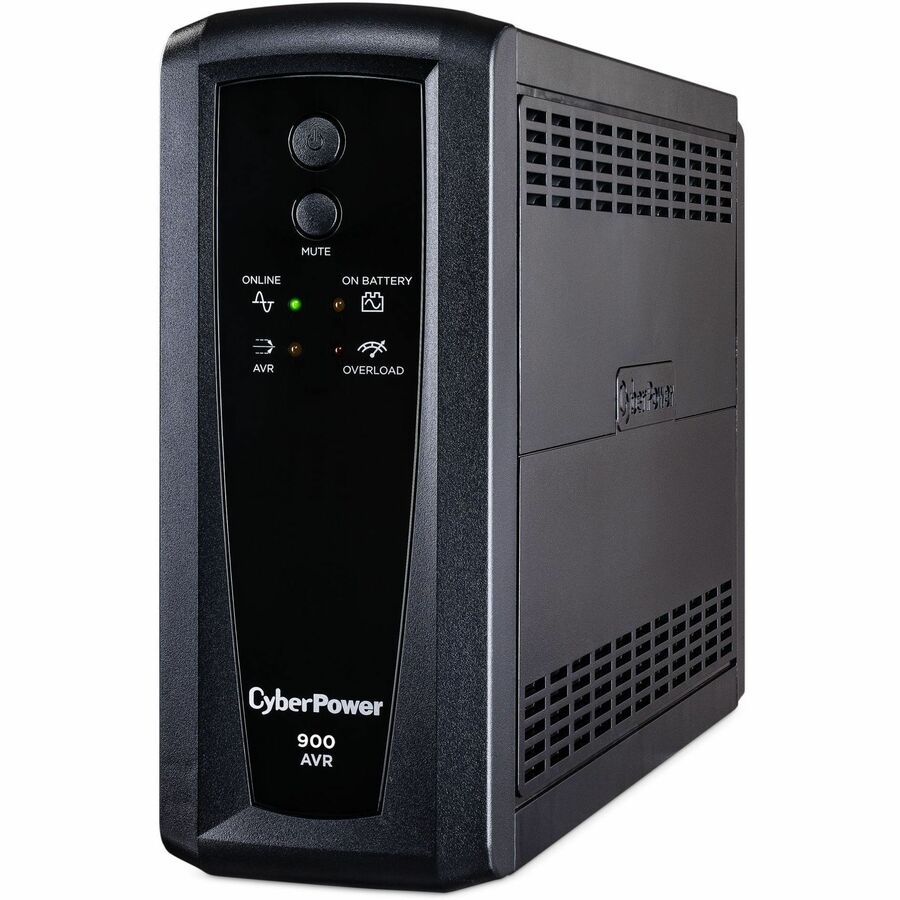

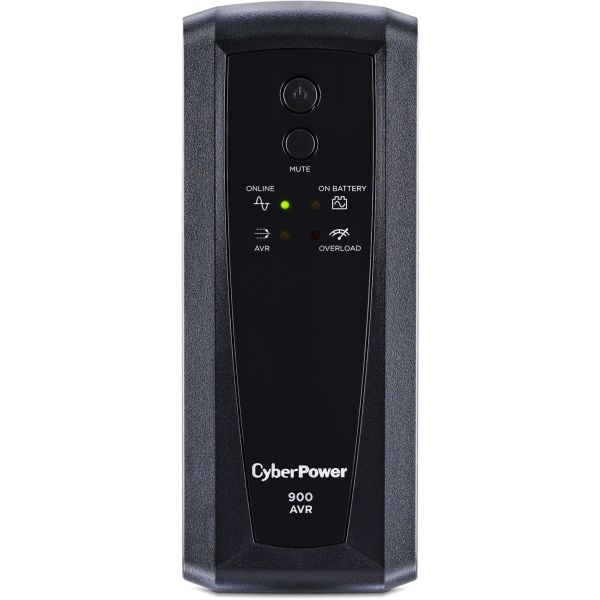

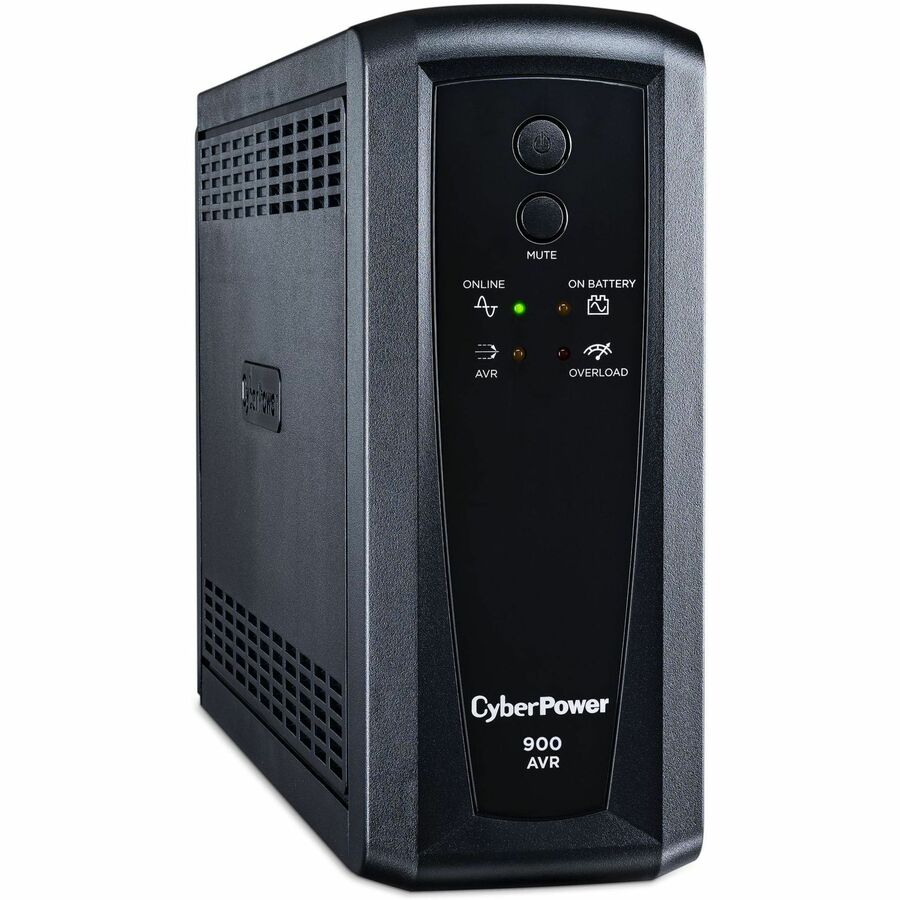

CyberPower CP900AVR AVR UPS Systems

Name: CyberPower CP900AVR AVR UPS Systems
Brand: CYBERPOWER
SKU: 9GM254
Price: 159.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM254

MFG#

CP900AVR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$159.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

900VA/560W, 120 VAC, NEMA 5
15P, Mini
Tower, 10 Outlets, PowerPanel® Personal, $300000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & Standards UL1778 cUL 107 5th FCC DOC Class B Software IncludedPowerPanel PEEnergy StarYesCountry of OriginPhilippinesEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 23 lbs.

CyberPower CP900AVR AVR UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CP900AVR
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	AVR UPS
Product Model	CP900AVR
Product Name	CP900AVR AVR UPS Systems
Marketing Information	A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP900AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP900AVR delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP900AVR comes with a three-year warranty (including coverage of batteries) and a 300,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

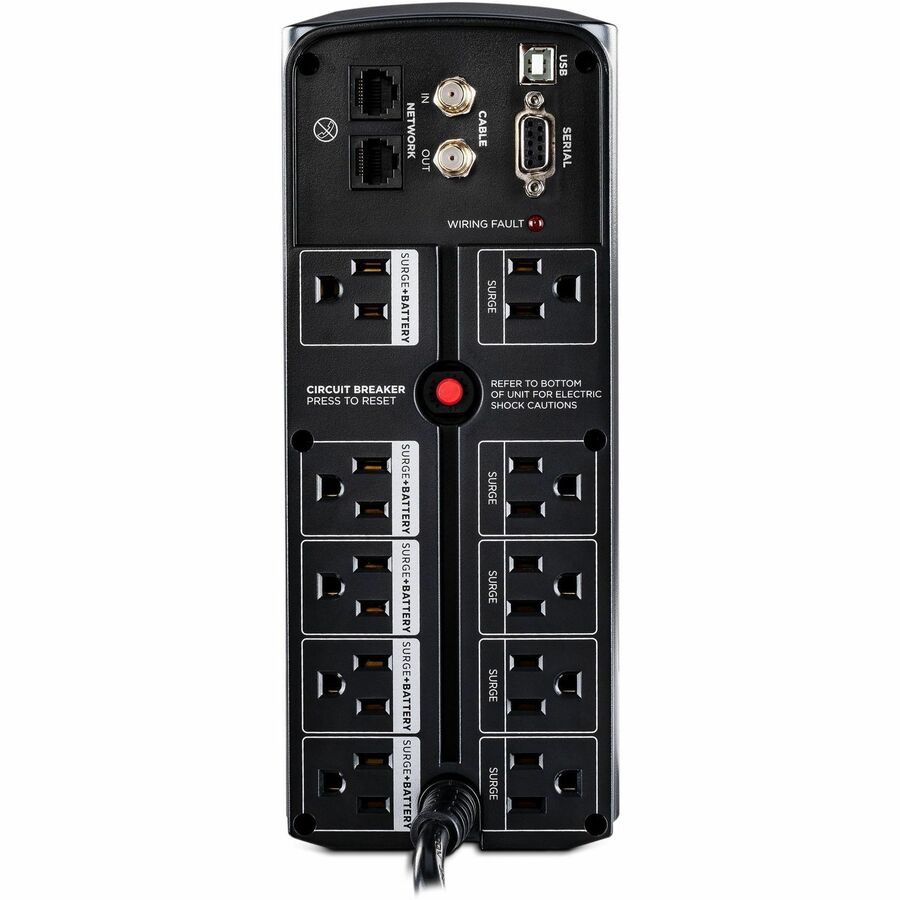

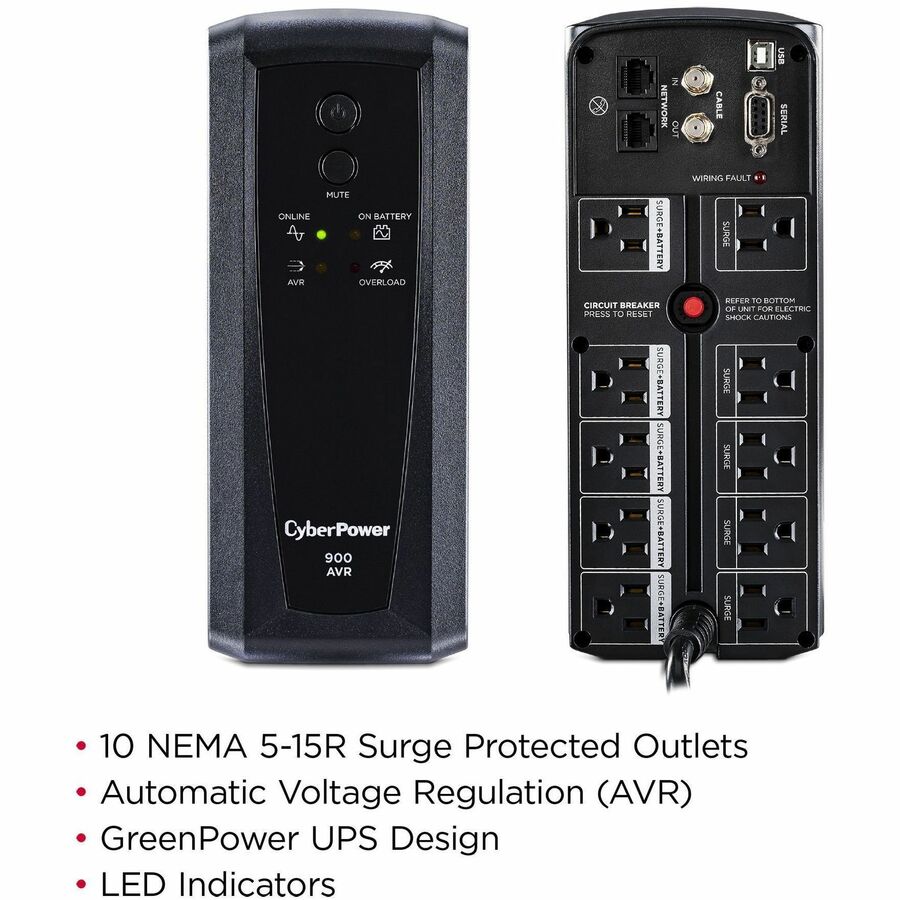

Receptacle Detail	10 x NEMA 5-15R
Number of Battery & Surge Outlets	5
Number of Surge-only Outlets	5
Dataline Protection	Coax RJ-45
Overload Protection	Yes
Bypass Switch	Not Provided
Emergency Power OFF	No
Cord Length	6 ft
Transfer Time	8 ms
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass

Power Description

Load Capacity (VA)	900 VA
Load Capacity (Watt)	560 W
Input Voltage	120 V AC
Input Voltage Range	88 V AC - 144 V AC
Output Voltage	120 V AC
Waveform Type	Simulated Sine Wave
Surge Energy Rating	1500 J
Circuit Breaker	Yes

Management

Alarm

Low Battery
On Battery
Overload
Fault

Controls/Indicators

Status Indicators

Power On
Wiring Fault
On Battery
AVR
Overload

Interfaces/Ports

Serial Port	Yes
USB	Yes

Battery Information

DC System Voltage	12 V DC
Number of Batteries	2
Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	16 Minute
Battery Life	6 Year
Typical Battery Recharge Time	8 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	0% - 95%

Physical Characteristics

Color Family	Black
Product Color	Black

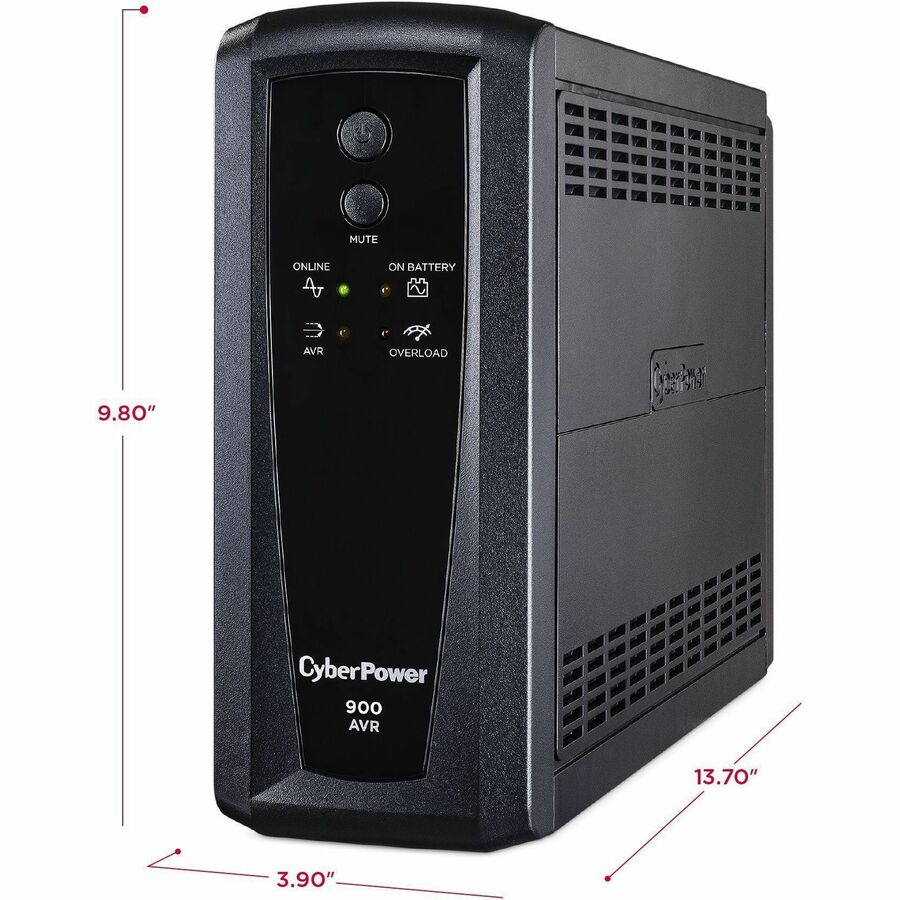

Height	9.80"
Width	3.90"
Depth	13.70"
Form Factor	Mini-tower
Weight (Approximate)	21.83 lb

Miscellaneous

Package Contents	AVR CP900AVR 900VA UPS User Manual Power Management Software Warranty Card Coaxial Cable Phone Cable USB Cable
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 7 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1270X2C (for serial numbers that begin with "CT5" or "CXQ") Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 5 min Runtime at Half Load : 16 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 9.91 x 24.89 x 34.8 (cm) Physical Dimensions - (WxHxD) (in) : 3.9 x 9.8 x 13.7 (in) Physical Dimensions - (WxHxD) (mm) : 99 x 249 x 348 (mm) Weight (kg) : 9.9 Weight (lb) : 21.83 Shipping Dimensions - (WxHxD) (cm) : 19.05 x 34.29 x 43.18 (cm) Shipping - Dimensions (WxHxD, in) : 7.5 x 13.5 x 17.0 (in) Shipping - Dimensions (WxHxD, mm) : 190.5 x 342.9 x 431.8 (mm) Shipping - Weight (kg) : 10.8 Shipping - Weight (lb) : 23.80 Adjustable Voltage Range : 135 - 144 VAC Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 88 VAC - 144 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 5 Outlets - Surge-Only Protected : 5 Outlets - Total : 10 Outlets - Widely Spaced : 2 Outlet Type COMPUTED : 10 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 8 ms USB Charge Port : No VA : 900 VA Watts : 560 W Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial Software (Free Download) : PowerPanel® Personal Color : Black Form Factor : Mini-Tower Material of Construction : Plastic Online Thermal Dissipation : 26.7 BTU/hr Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 300000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U1B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778 cUL 107 5th FCC DOC Class B
Software Included	PowerPanel PE
Energy Star	Yes
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	CyberPower stands behind its products by offering an industry leading 3-year warranty CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge Connected Equipment Guarantee of 300,000
Directly Connected Equipment Guarantee	300000
