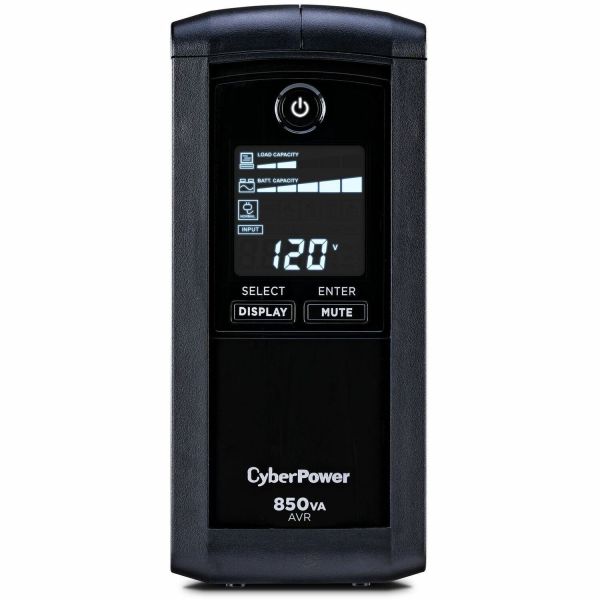

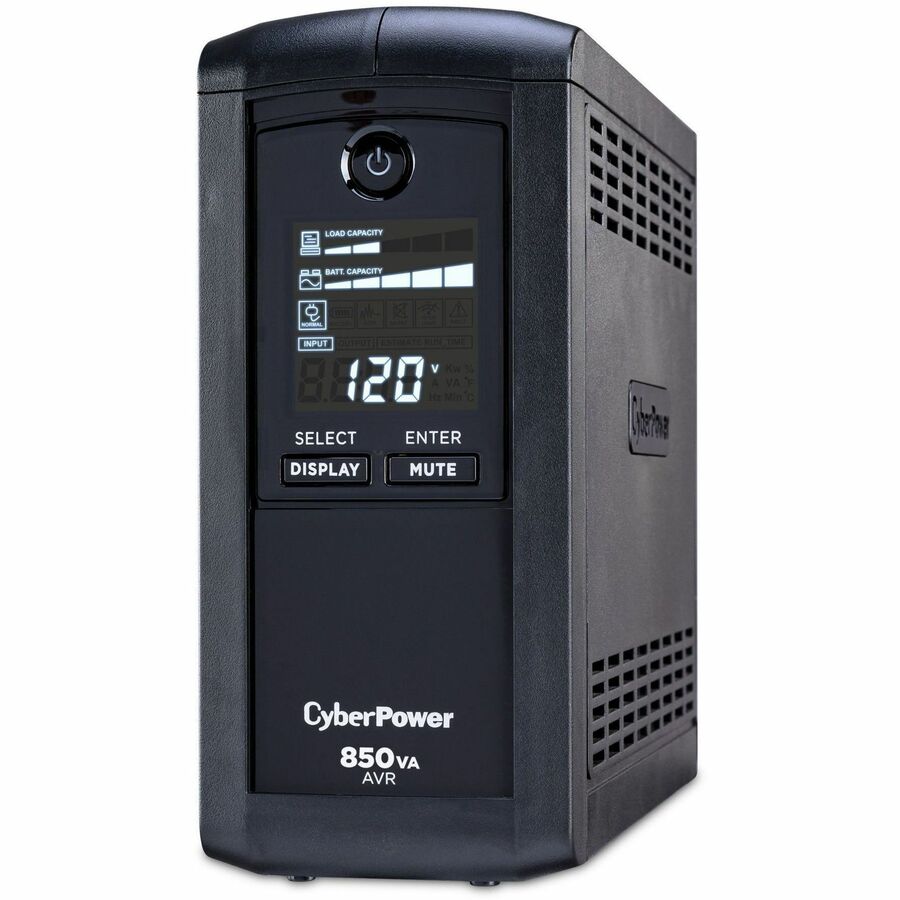

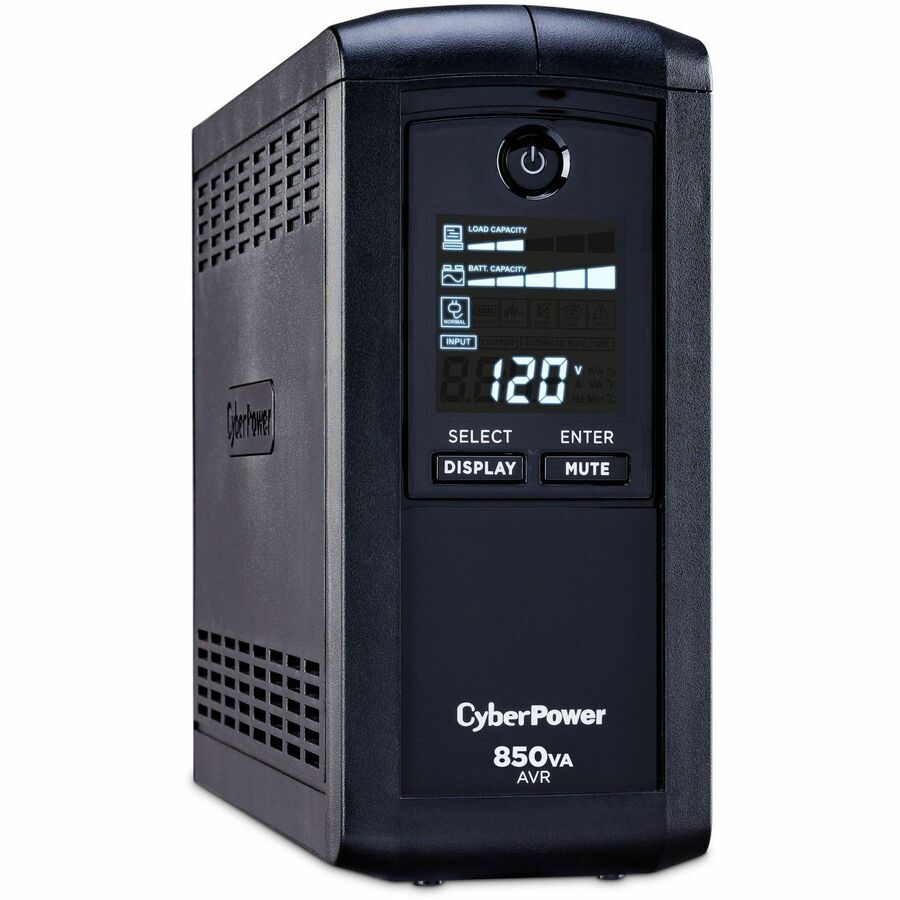

CyberPower CP850AVRLCD Intelligent LCD UPS Systems

Name: CyberPower CP850AVRLCD Intelligent LCD UPS Systems
Brand: CYBERPOWER
SKU: 9GM160
Price: 164.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM160

MFG#

CP850AVRLCD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$164.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

850VA/510W, 120 VAC, NEMA 5
15P, Mini
Tower, 9 Outlets, LCD, PowerPanel® Personal, $250000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCertifications & StandardsUL1778cUL 107.1FCC DOC Class BSoftware IncludedPowerPanel Personal Edition SoftwareEnergy StarYesCountry of OriginChinaEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 17 lbs.

CyberPower CP850AVRLCD Intelligent LCD UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CP850AVRLCD
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Intelligent LCD UPS
Product Model	CP850AVRLCD
Product Name	CP850AVRLCD Intelligent LCD UPS Systems
Marketing Information	A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP850AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP850AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850AVRLCD comes with a three-year warranty (including coverage of batteries) and a 250,000 Connected Equipment Guarantee.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

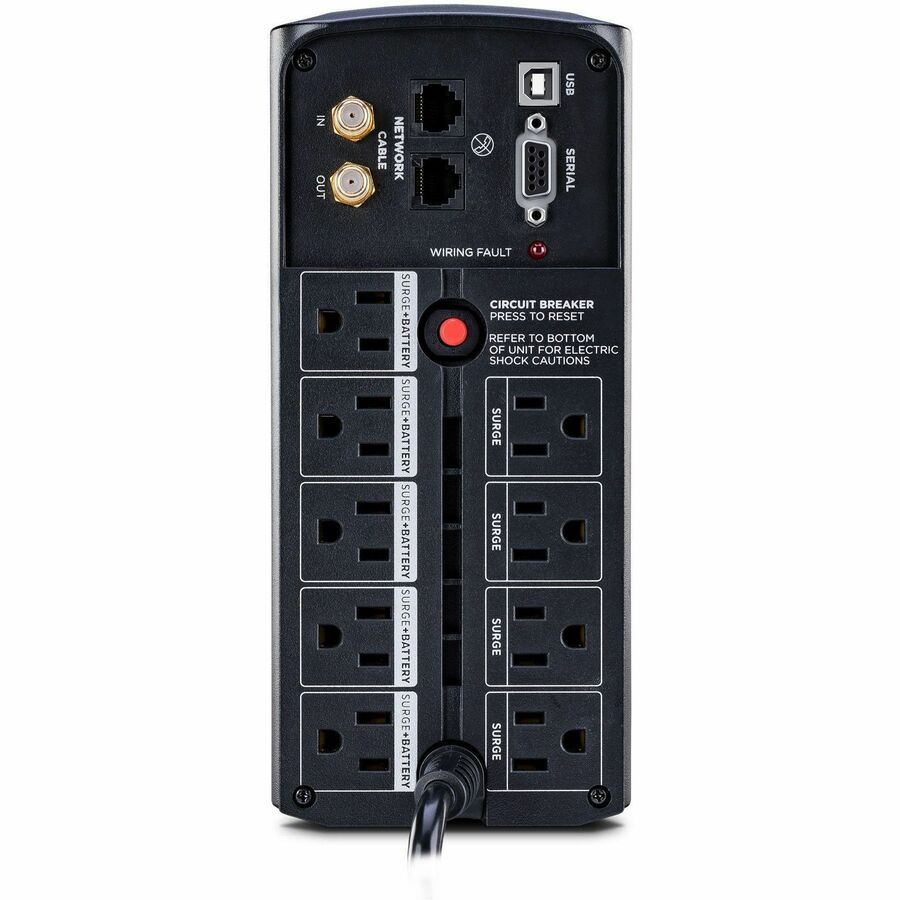

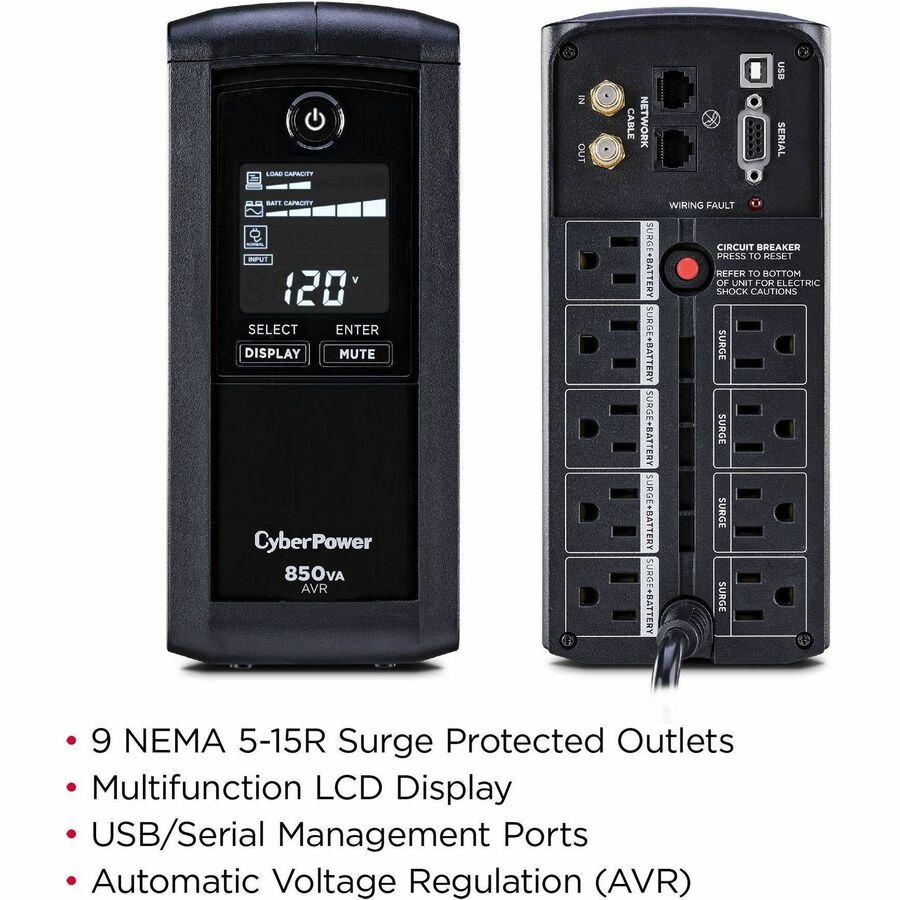

Receptacle Detail	9 x NEMA 5-15R
Number of Battery & Surge Outlets	5
Number of Surge-only Outlets	4
Dataline Protection	RG-6 RJ-45
Overload Protection	Yes
Cord Length	6 ft
Transfer Time	4 ms
EMI/RFI Noise Filter	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Application/Usage	Desktop Computer Workstation Home Theater Home Network Router Modem VoIP Phone System Personal Electronic

Power Description

Load Capacity (VA)	850 VA
Load Capacity (Watt)	510 W
Input Voltage	120 V AC
Input Voltage Range	90 V AC - 142 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Waveform Type	Simulated Sine Wave
Surge Energy Rating	1080 J
Circuit Breaker	Yes
Output Power Factor	0.6

Display & Graphics

Display

LCD

Management

Network Management	Dry Contact
Alarm	Battery Mode Low Battery Overload Fault

Controls/Indicators

Status Indicators

Power On

Wiring Fault

Interfaces/Ports

Serial Port	Yes
USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	1
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	3 Minute
Backup/Run Time (Half Load)	11 Minute
Typical Battery Recharge Time	8 Hour
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Operating Humidity	0% - 90%
Storage Relative Humidity	0% - 95%

Physical Characteristics

Color Family	Black
Product Color	Black

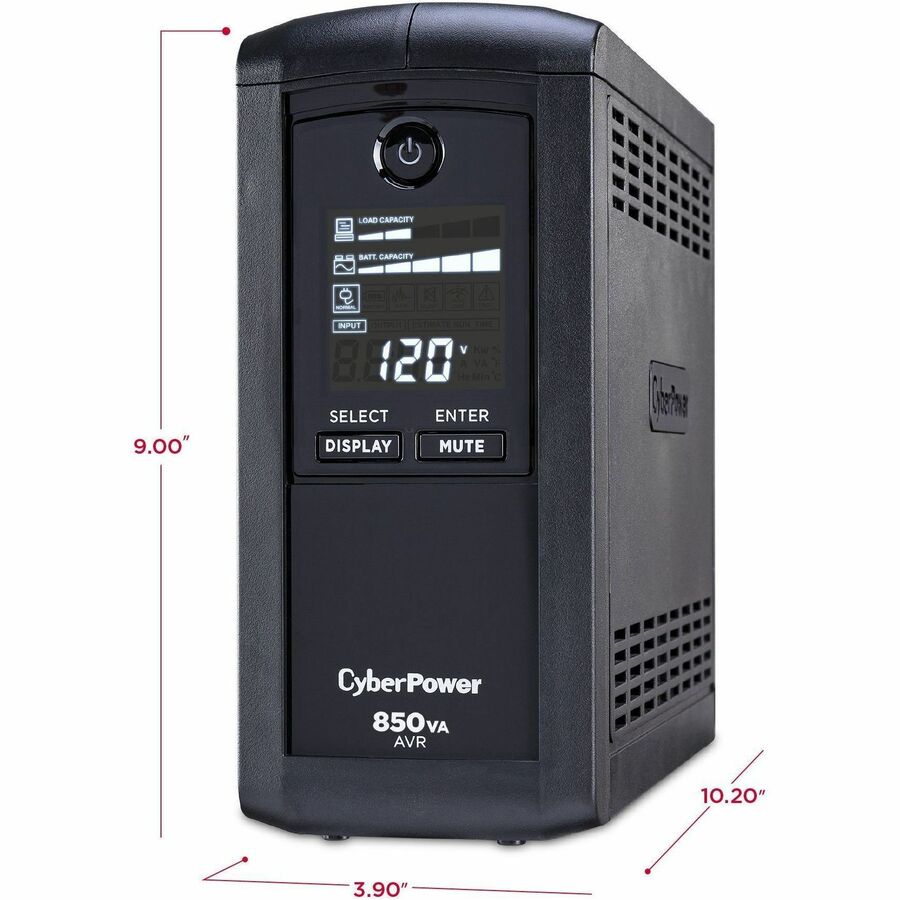

Height	9"
Width	3.90"
Depth	10.20"
Form Factor	Mini-tower
Weight (Approximate)	15 lb

Miscellaneous

Package Contents	Intelligent LCD CP850AVRLCD 850 VA Tower UPS PowerPanel Personal Edition Software CD-ROM
Additional Information	Energy Saving : GreenPower UPS™ Bypass Technology Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 1 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1290 Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 3 min Runtime at Half Load : 11 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 9.91 x 22.86 x 25.91 (cm) Physical Dimensions - (WxHxD) (in) : 3.9 x 9 x 10.2 (in) Physical Dimensions - (WxHxD) (mm) : 99 x 229 x 259 (mm) Weight (kg) : 6.8 Weight (lb) : 15 Shipping Dimensions - (WxHxD) (cm) : 17.27 x 30.81 x 35.89 (cm) Shipping - Dimensions (WxHxD, in) : 6.8 x 12.13 x 14.13 (in) Shipping - Dimensions (WxHxD, mm) : 172.72 x 308.1 x 358.9 (mm) Shipping - Weight (kg) : 7.48 Shipping - Weight (lb) : 16.5 Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz - 63 Hz Input Plug Type : NEMA 5-15P Input Voltage Range : 90 VAC - 142 VAC Nominal Input Voltage : 120 VAC Plug Style : Right Angle - 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets - Battery & Surge Protected : 5 Outlets - Surge-Only Protected : 4 Outlets - Total : 9 Outlet Type COMPUTED : 9 - NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms Under/Over-Voltage Correction : +10% USB Charge Port : No VA : 850 VA Watts : 510 W Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1080 J Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1080 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Dry Contact Software (Free Download) : PowerPanel® Personal Color : Black Form Factor : Mini-Tower Material of Construction : Plastic Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : 250000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U1B Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL1778 cUL 107.1 FCC DOC Class B
Software Included	PowerPanel Personal Edition Software
Energy Star	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Directly Connected Equipment Guarantee	250000 Lifetime
