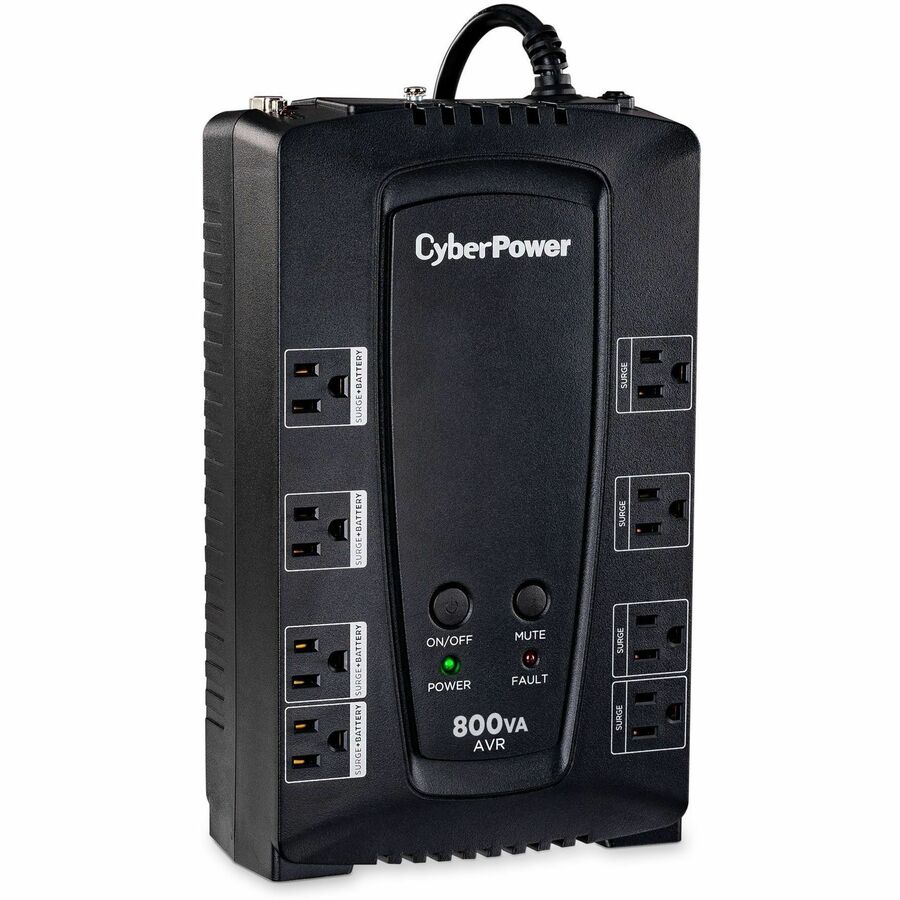

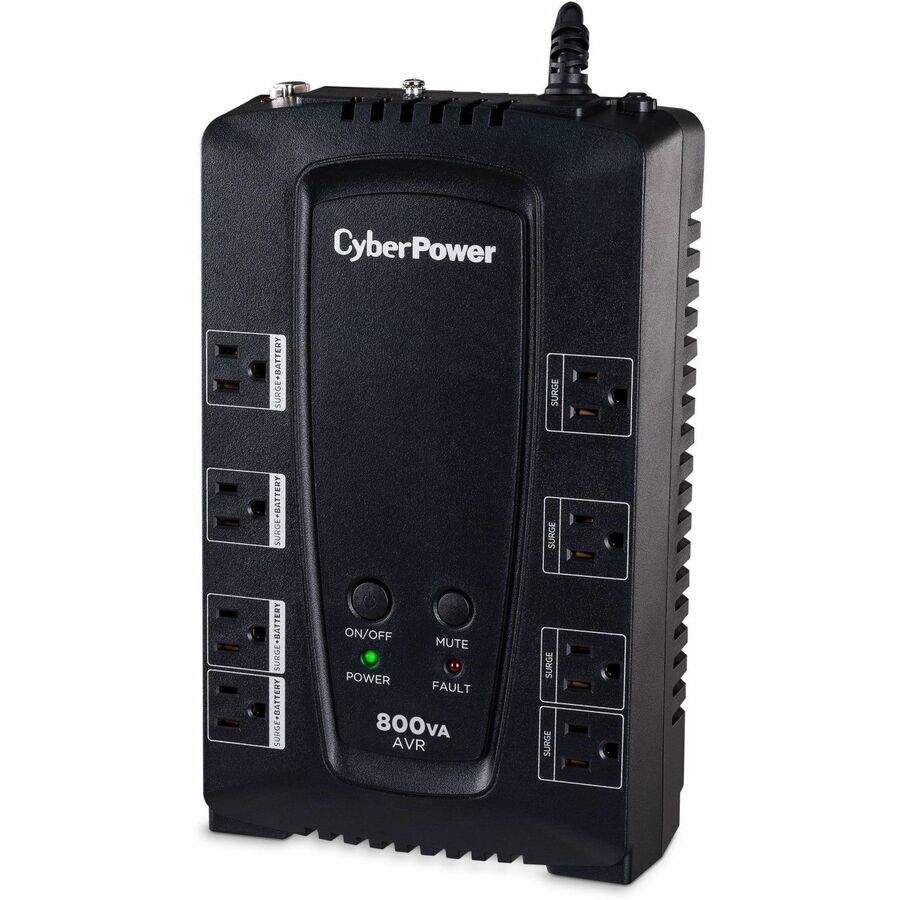

CyberPower CP800AVR AVR UPS Systems

Name: CyberPower CP800AVR AVR UPS Systems
Brand: CYBERPOWER
SKU: 9GM361
Price: 117.95 USD
Availability: InStock

CYBERPOWER

PCN#

9GM361

MFG#

CP800AVR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$117.95

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

800VA/450W, 120 VAC, NEMA 5
15P, Compact, 8 Outlets, PowerPanel® Personal, $200000 CEG, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationCyberPower stands behind its products by offering an industry leading 3-year warrantyCyberPower also has a technical support team that will assist you with product, installation, or warranty concerns.

Shipping Weight: 14 lbs.

CyberPower CP800AVR AVR UPS Systems

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CP800AVR
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Series	AVR UPS
Product Model	CP800AVR
Product Name	AVR CP800AVR 800VA UPS
Marketing Information	The CyberPower CP800AVR uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This UPS, with line-interactive topology, uses simulated sine wave output to deliver battery backup to power connected electronics during a utility power failure. The unit has enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable desktop computers, workstations, networking devices, and home entertainment systems. The CP800AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power. AVR is essential in areas where power fluctuations occur frequently, and it helps to extend the unit's battery life. CyberPower designed the CP800AVR to minimize noise for a quieter work environment and run efficiently to reduce power consumption. With a 200,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of this battery backup with surge protection. Battery Backup Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown. Surge Protection Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. Line Interactive Topology Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. Automatic Voltage Regulation (AVR) Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations. Simulated Sine Wave Output Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output. GreenPower UPS™ Bypass Design Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup. Ultra Quiet Design Minimizes noise during operation for a quieter work environment. PowerPanel® Personal Software Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab. Three-Year Warranty CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details. Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge. What's In The Box UPS System, User Manual, USB A+B Type Cable, Serial Cable, Warranty Registration Card
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R
Number of Battery & Surge Outlets	4
Number of Surge-only Outlets	4
Bypass Switch	Not Provided
Emergency Power OFF	No
Cord Length	6 ft
Transfer Time	4 ms
Energy Saving	GreenPower UPS™ Bypass
Application/Usage	Desktop Computer Workstation Home Theater Electronic Equipment Home Network Router Modem VoIP Phone System

Power Description

Load Capacity (VA)	800 VA
Load Capacity (Watt)	450 W
Input Voltage	120 V AC
Output Voltage	120 V AC
Output Frequency	60 Hz
Waveform Type	Simulated Sine Wave
Surge Energy Rating	1030 J
Circuit Breaker	Yes

Management

Alarm

Low Battery
On Battery
Overload

Controls/Indicators

Status Indicators

Power On
Wiring Fault

Interfaces/Ports

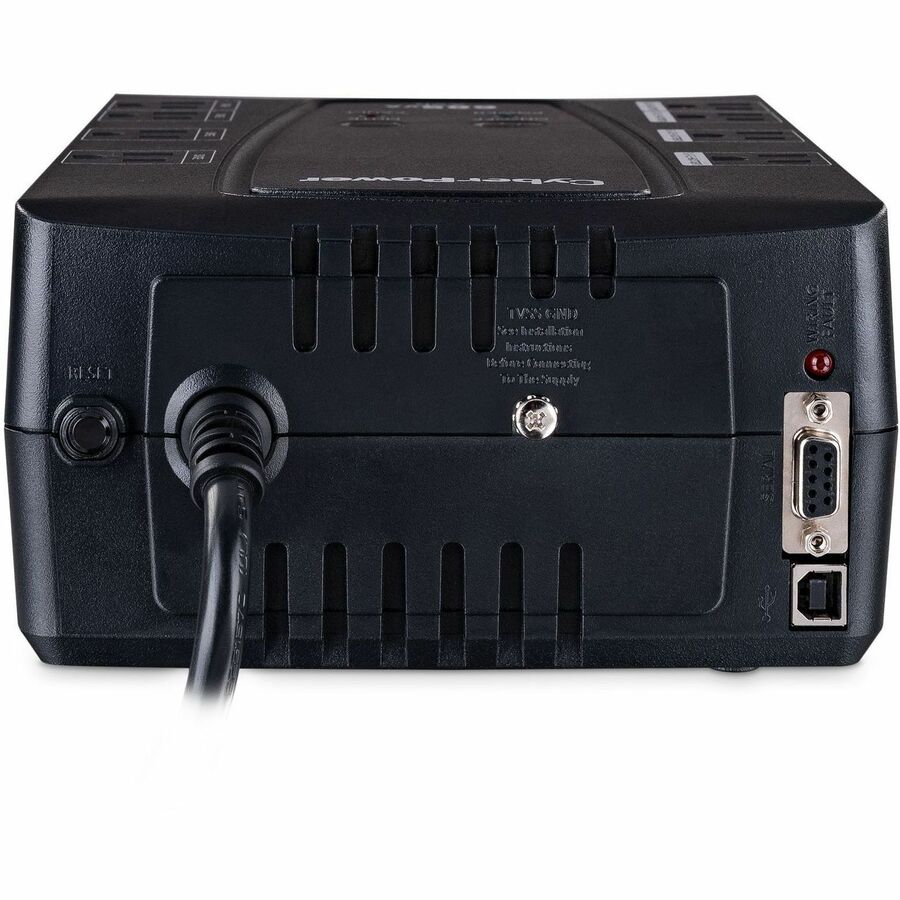

Serial Port	Yes
USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

Number of Batteries	1
Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	1.20 Minute
Backup/Run Time (Half Load)	13.50 Minute
Typical Battery Recharge Time	8 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature

95°F (35°C)

Physical Characteristics

Color Family	Black
Product Color	Black

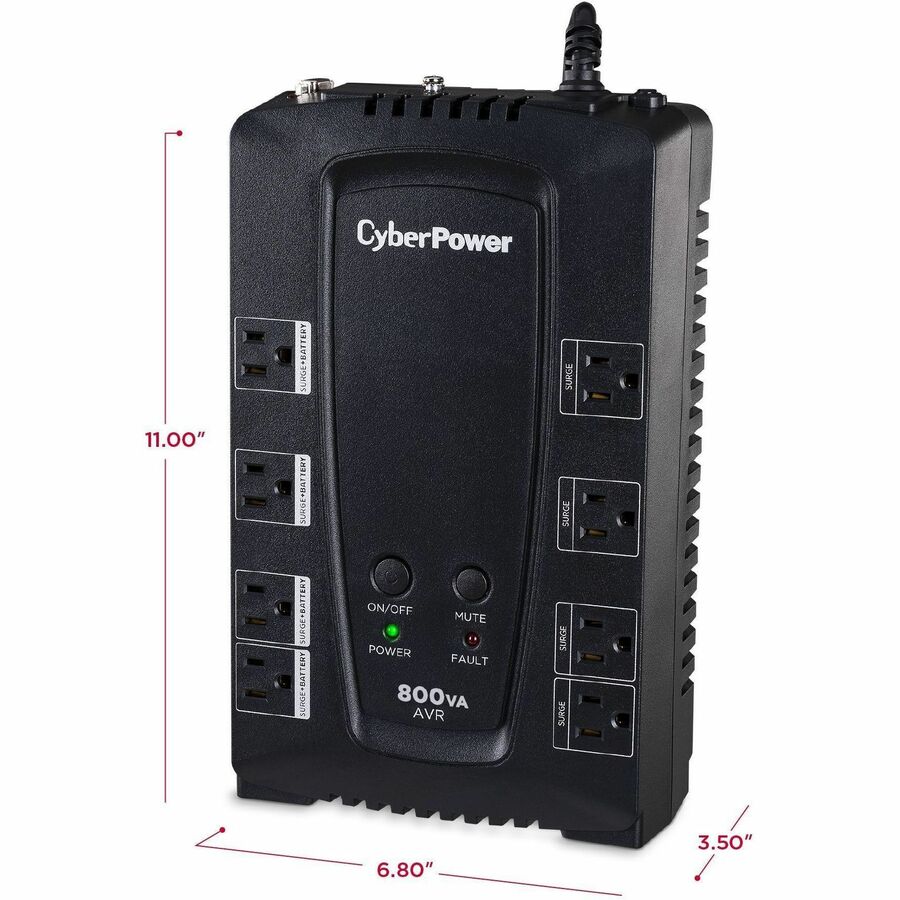

Height	6.8"
Width	11"
Depth	3.5"
Form Factor	Compact
Weight (Approximate)	12.74 lb

Miscellaneous

Package Contents	AVR CP800AVR 800VA UPS User Manual USB A+B Type Cable Serial Cable Warranty Registration Card
Additional Information	Length: 15.35" Automatic Voltage Regulation (AVR): Incoming AC power is electronically regulated for dips and spikes AVR takes this irregular AC power and converts it into a consistent Sinewave so sensitive electronic equipment can achieve its optimal performance EMI/RFI: Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or humming that occurs over telephone lines or stereo electronics Transformer-spaced Outlets - Widely spaced outlets allow you to conveniently add large transformer-based plugs without compromising the utility of other outlets USB Connectivity - Plug-N-Play software and convenient USB ports allow for quick and easy installation PowerPanel PE Smart Management Software: In event of a power outage, PowerPanel PE will not only save your open files and will also Hibernate your PC to increase the run-time on the UPS unit. PowerPanel is quickly and easily installed on any Windows-based PC and is designed to utilize minimal system resources. Diagnostic screens give immediate visuals of the UPSs status, and also include the following features: Silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns Resettable Circuit Breaker: Convenient unit reset switch in case of an overload Convenient Mounting: Multiple mounting options: horizontal, vertical, cabinet, and wall Windows Vista Compliant: Power Management software has been fully tested and compliant with Windows 9x, 200x, Server, XP, and Vista
Certifications & Standards	FCC Class B certified cUL UL 1778
Software Included	PowerPanel® Personal
Energy Star	Yes
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	CyberPower stands behind its products by offering an industry leading 3-year warranty CyberPower also has a technical support team that will assist you with product, installation, or warranty concerns.
